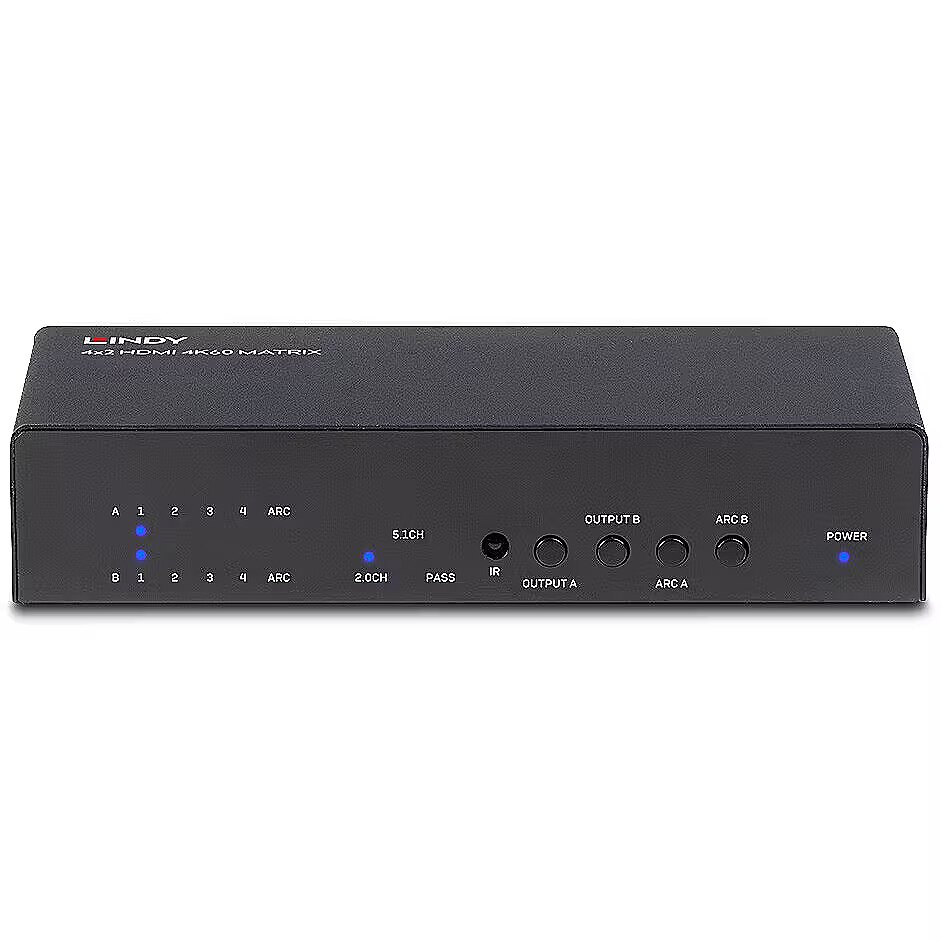

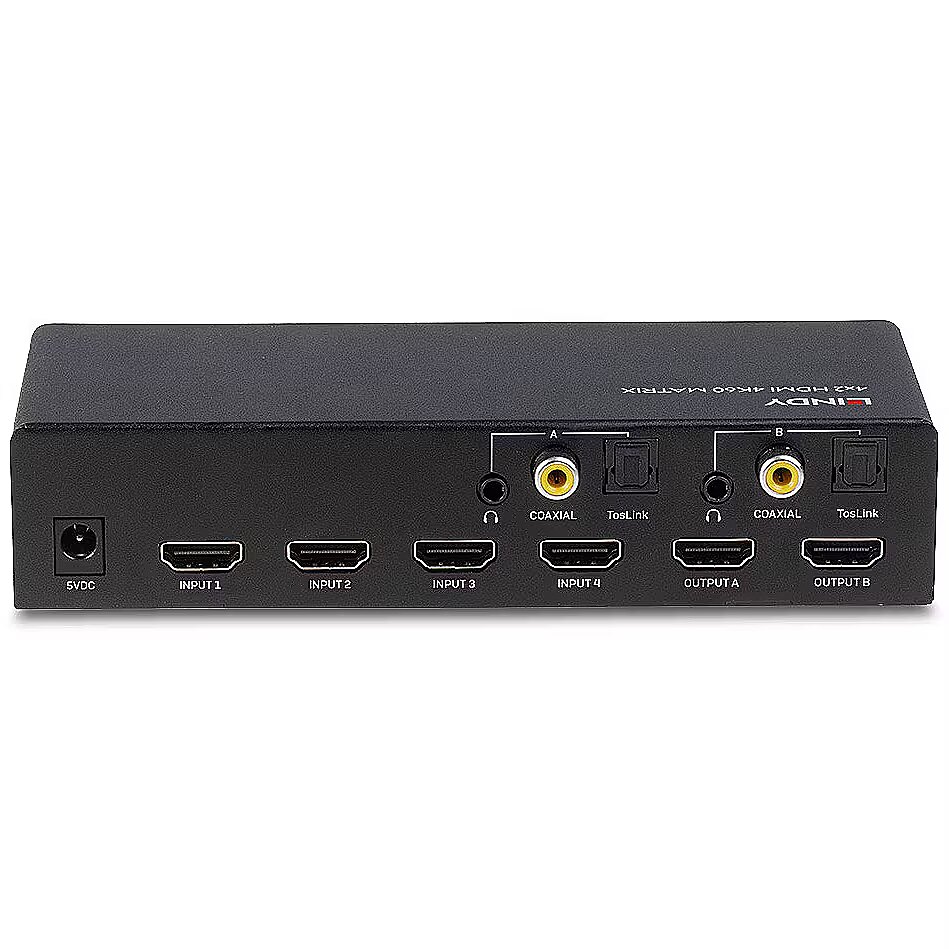

Lindy I/O VIDEO MATRIX SWITCH 4X2

Brand - Lindy
BrandPartCode - 38084
Category - Matrix Switchers
Category Code - IOC
CnCode CnCode - 85176200
Coaxial S/PDIF Input/Output connectors - 1
Colour - Black
Description - 4x2 HDMI 4K60 Matrix Connect and switch between 4 HDMI source devices and 2 HDMI displays
Design - Housing colour - Black
Design - Housing material - Metal
Display - Built-in display - No
Features - Bandwidth - 18 Gbit/s
Features - Extended display identification data (EDID) - Yes
Features - HDCP - Yes
Features - HDCP version - 2.2
Features - Maximum resolution - 3840 x 2160 pixels
Features - Product type - AV matrix switcher
Full Description Line - 6xHDMI|1xCoaxial S/PDIF|1xStereo jack 3.5mm|Colour Black
GTIN - 4002888380843
HDMI Input/Output connectors - 6
Logistics data - Harmonized System (HS) code - 85299097
LongDesc - Switches between 4 HDMI source devices and 2 HDMI displays connected simultaneouslySupports resolutions up to 4K 60Hz, with additional support for HDRExtract audio from HDMI to Toslink (Optical) and 3.5mm audioSupports ARC as well as a Downscaler-Function via HDMI Out B2 year warrantyPlease note that two versions of this item exist with different connectors.Please refer to the manuals to find out which version you have.The Lindy 4x2 HDMI 4K60 Matrix Switch is a high performance solution for distributing content from multiple source devices to two displays.Supporting HDMI 2.0 18G signals, this matrix allows for the transmission of clear 4K Ultra HD 60Hz resolutions, while additional support for High Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail or hospitality or creating engaging educational setups. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
LongProductName - 4x2 HDMI 4K60 Matrix
LongSummaryDescription - Lindy 4x2 HDMI 4K60 Matrix. Product type: AV matrix switcher, Maximum resolution: 3840 x 2160 pixels, Bandwidth: 18 Gbit/s. Housing colour: Black, Housing material: Metal. Output current: 1000 mA, Output voltage: 5 V. Width: 125 mm, Depth: 95 mm, Height: 25 mm
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - AC adapter included - Yes
Packaging content - Manual - Yes
Packaging content - Mounting brackets included - Yes
Ports & interfaces - Audio (L/R) out - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Digital audio optical out - 1
Ports & interfaces - HDMI input ports quantity - 4
Ports & interfaces - HDMI output ports quantity - 2
Ports & interfaces - USB ports quantity - 1
Power - Output current - 1000 mA
Power - Output voltage - 5 V
ProductName - 4x2 HDMI 4K60 Matrix
Shipping Box Depth Shipping/Package Box Dimensions - 22.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7.8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.72 kg
Shipping Box Width Shipping/Package Box Dimensions - 15.8 cm
ShortSummaryDescription - Lindy 4x2 HDMI 4K60 Matrix, AV matrix switcher, 3840 x 2160 pixels, 18 Gbit/s, Black, Metal, 1000 mA
Stereo jack 3.5mm Input/Output connectors - 1
Title - Lindy 4x2 HDMI 4K60 Matrix
Unit Box Height - 0.078
Unit Box Length - 0.225
Unit Box Width - 0.158
Unit Brutto Volume - 0.002773 cubm
Unit Gross Weight - 0.72 kg
Unit Net Weight - 0.348 kg
URL - https://www.lindy.co.uk/search/38084
Vendor Homepage - www.lindy-international.com/4x2-HDMI-4K60-Matrix.htm?websale8=ld0101.ld021102&pi=38084&ci=20
Warranty - 24 months
WarrantyInfo - 2 years
Weight & dimensions - Depth - 95 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 73 mm
Weight & dimensions - Package height - 154 mm
Weight & dimensions - Package weight - 636 g
Weight & dimensions - Package width - 220 mm
Weight & dimensions - Weight - 510 g
Weight & dimensions - Width - 125 mm
