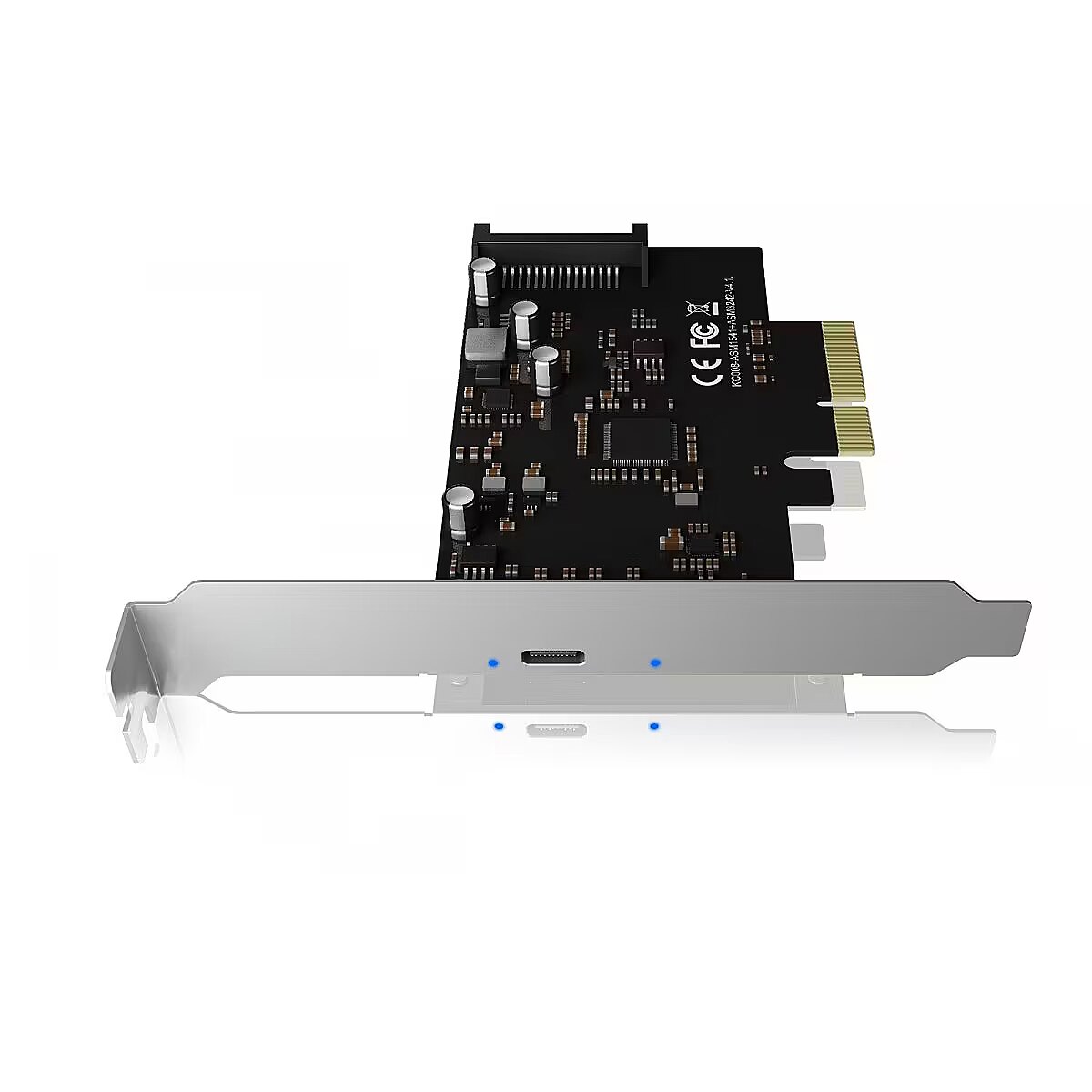

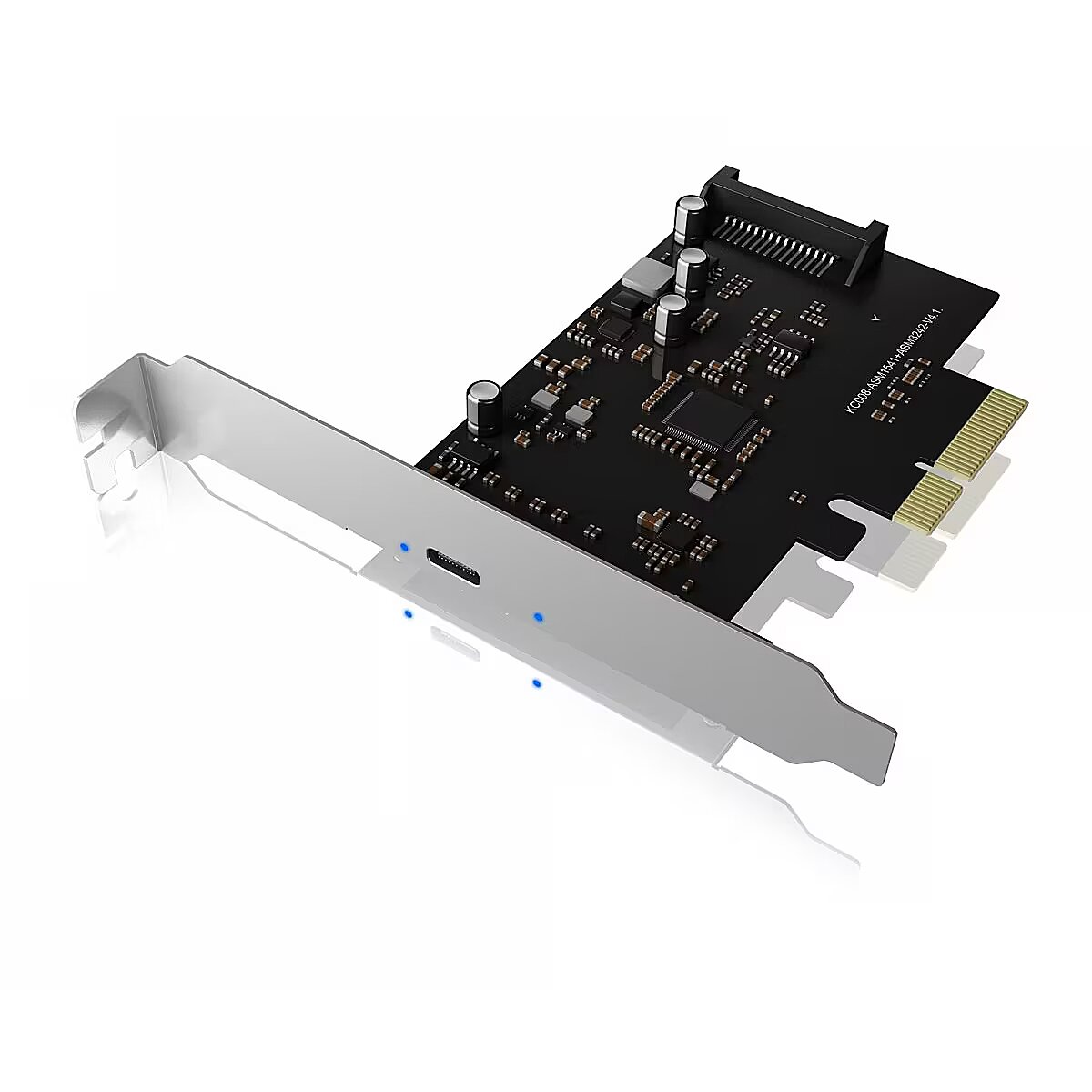

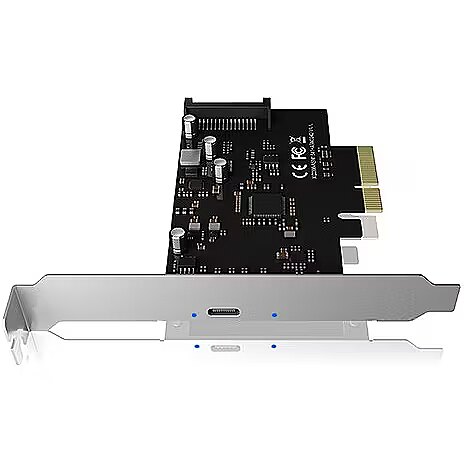

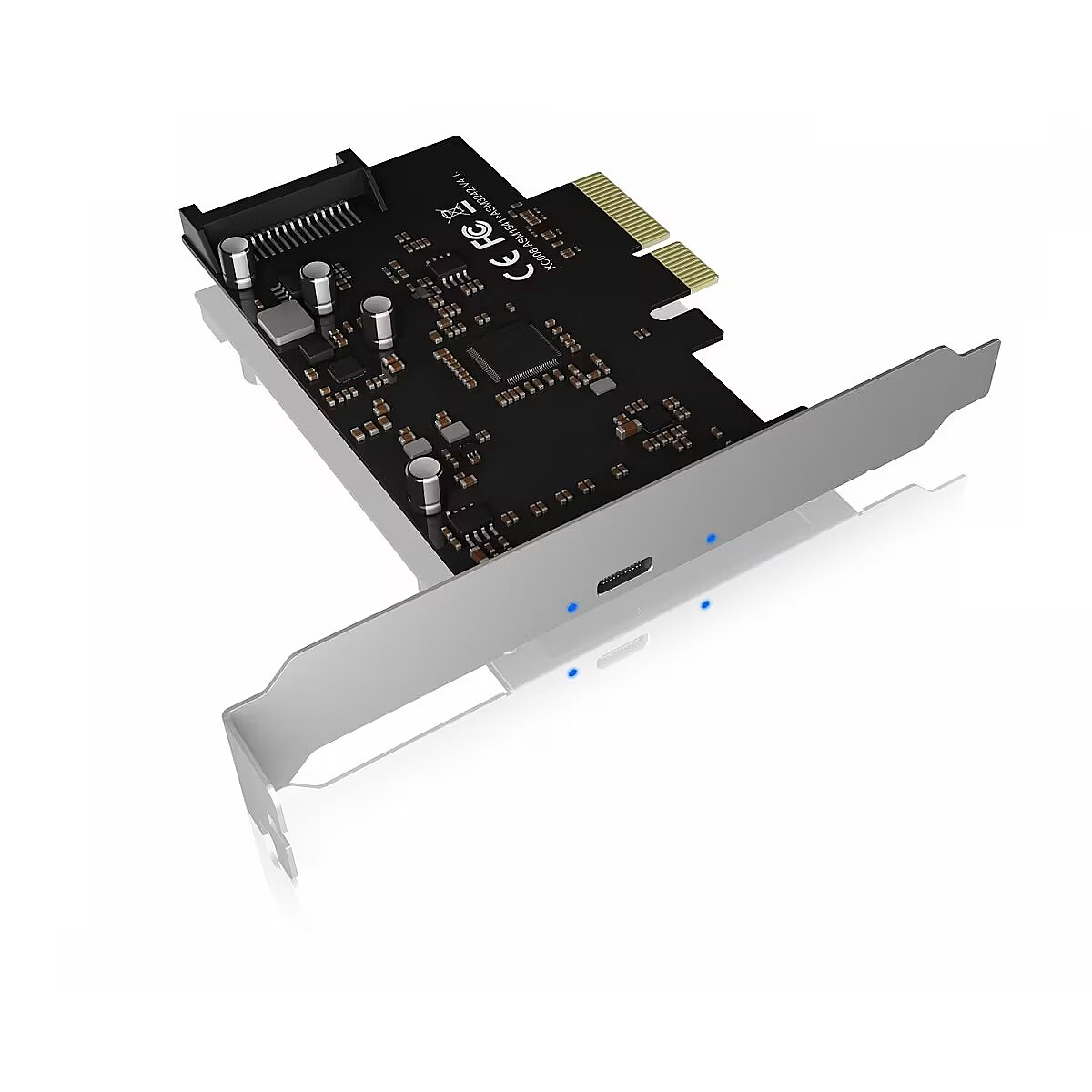

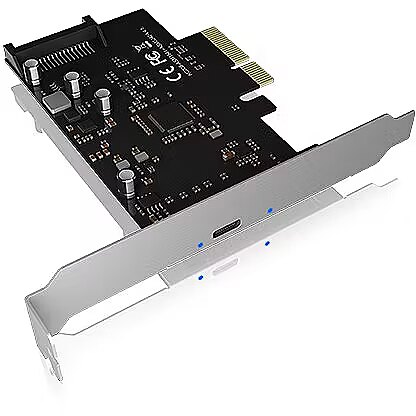

Raidsonic ICY BOX IB-PCI1901-C32 USB PCIe card

Accessories included -
Brand - ICY BOX
BrandPartCode - 60748
Category - Interface Cards/Adapters
Chipset type -
Controller type - Others
Description - Karta kontrolera USB Type-C PCIe Karta kontrolera USB 3.2 (Gen 2x2) PCIe Rozszerza twój komputer o zewnętrzne połączenie USB Type-C 3.2 (Gen 2x2) Obsługuje prędkości transferu danych USB do 20 Gbit / s Wersja specyfikacji PCI Express Base 3.0 (tory x4) Pasuje do gniazda PCIe x4, x8 lub x16 Kontrolery Asmedia ASM1541 i ASM3242 USB 3.2 (Gen 2x2) Niebieskie diody LED sygnalizują działanie i połączenie.
Design - Country of origin - China
Design - Internal - Yes
Design - LED indicators - Access, Power
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 135 mm
Dimensions - 105x19x65 mm
dimension weight - 115 g
dimension width - 130 mm
ean - 4250078170853
Features - Data transfer rate (max) - 20 Gbit/s
GTIN - 4250078170853
guarantee - 24
guarantee_type - normal
Interface - PCIe
Logistics data - Harmonized System (HS) code - 84718000
Logistics data - Master (outer) case gross weight - 7.5 kg
Logistics data - Master (outer) case height - 397 mm
Logistics data - Master (outer) case length - 306 mm
Logistics data - Master (outer) case width - 295 mm
Logistics data - Products per master (outer) case - 60 pc(s)
LongDesc - USB 3.2 (Gen 2x2)The new IB-PCI1901-C32 expansion card supports USB 3.2 (Gen 2x2) for both AMD and Intel platforms and offers data transfer rates of up to 20 Gbit/s, which is double that of the previous generation. With the USB Type-C® connector design and backward compatibility with USB 2.0/3.0/3.1, the new expansion card offers a cost-effective way for users to upgrade to the USB 3.2 (Gen 2x2) specification.High QualityAlso the IB-PCI1901-C32 follows the highest ICY BOX quality standards and uses the best available components. The new PCIe expansion card has been thoroughly tested and is ready for immediate use and delivers reliable performance at a reasonable price.Perfect SymbiosisUSB 3.2 (Gen 2x2)-capable external enclosures are far from being a standard, but ICY BOX already has them and thus belongs to the pioneer of this technology! Be surprised by the incredible data transfer rates of the ICY BOX expansion card IB-PCI1901-C32 in combination with the IB-1916M-C32-NVMe enclosure solution!
LongProductName - PCIe 3.0 x4, USB C 3.2 (2x2), 20 Gbps, 43 g
LongSummaryDescription - ICY BOX IB-PCI1901-C32. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Host interface gender: Male. Product colour: Black, LED indicators: Access, Power, Country of origin: China. Data transfer rate (max): 20 Gbit/s. Width: 19 mm, Depth: 105 mm, Height: 65 mm. Package width: 25 mm, Package depth: 125 mm, Package height: 130 mm
name - ICY BOX IB-PCI1901-C32 PCIe card, USB 3.2
Other features -
Other features - Material - Metal, Plastic
Packaging data - Manual - Yes
Packaging data - Package depth - 125 mm
Packaging data - Package height - 130 mm
Packaging data - Package weight - 158 g
Packaging data - Package width - 25 mm
Packaging data - Quantity - 1
Packaging data - Screws included - Yes
Ports & interfaces - Expansion card standard - PCIe 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Host interface gender - Male
Ports & interfaces - Output interface - USB 3.2 Gen 2 (3.1 Gen 2)
Ports & interfaces - SATA power connector type - SATA 15-pin
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
producer - IcyBox
ProductName - IB-PCI1901-C32
ShortSummaryDescription - ICY BOX IB-PCI1901-C32, PCIe, USB 3.2 Gen 2 (3.1 Gen 2), Male, PCIe 3.0, SATA 15-pin, Black
System Requirements -
System requirements - Windows operating systems supported - Yes
Title - ICY BOX IB-PCI1901-C32 interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)
URL - https://icybox.de/en/product.php?id=387
vendpn - IB-PCI1901-C32
WarrantyInfo -
Weight - 0.043 kg
Weight & dimensions - Depth - 105 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Weight - 43 g
Weight & dimensions - Width - 19 mm
