Startech 2 PORT PCIE USB 3.1 GEN 2 CARD UP TO 10GBPS - PCIE GEN 3 X4

ARTIKEL1 - 2 PORT PCIE USB 3.1 GEN 2 CARD
ARTIKEL2 - UP TO 10GBPS - PCIE GEN 3 X4
Brand - StarTech.com
BrandPartCode - PEXUSB312C3
Category - Interface Cards/Adapters
Design - Certification - CE, FCC, REACH
Design - Internal - Yes
Design - Product colour - Red
EANCode - 0065030887434
Features - Chipset - ASMedia - ASM3142
Features - Data transfer rate (max) - 10 Gbit/s
Features - UASP support - Yes
GRUPPE1 - Network
GRUPPE2 - Firewire / Parallel / Serial
GTIN - 0065030887434
GTIN - 065030887434
HERSTELLER - STARTECH
HSTNUMMER - PEXUSB312C3
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case height - 320 mm
Logistics data - Master (outer) case length - 490 mm
Logistics data - Master (outer) case width - 380 mm
Logistics data - Products per master (outer) case - 60 pc(s)
LongDesc - PCI-Express USB-C Card | 10Gbps | PCIe Gen3 x4 | 2-Year WarrantyThis PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.Faster USB PerformanceAlso known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices.The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.Easy InstallationThe USB 3.2 card is compatible with Windows®, Linux® and macOS® operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.The Choice of IT Pros Since 1985StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
LongProductName - StarTech.com 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps PCI Express 3.0 x4 Adapter, Data Only, Windows/macOS/Linux, TAA
LongSummaryDescription - StarTech.com 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Linux, TAA. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Full-height / Low-profile. Product colour: Red, Certification: CE, FCC, REACH. Chipset: ASMedia - ASM3142, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019. Width: 80 mm, Depth: 122 mm, Height: 18 mm
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -20 - 85 °C

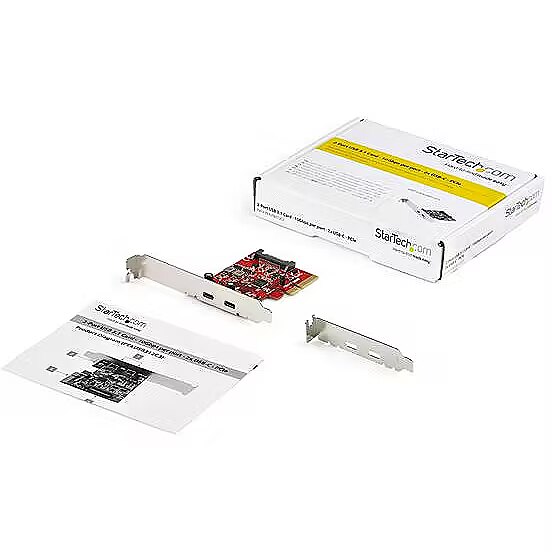

Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 173 mm
Packaging data - Package height - 30 mm
Packaging data - Package weight - 120 g
Packaging data - Package width - 142 mm
Packaging data - User guide - Yes
Ports & interfaces - Expansion card form factor - Full-height / Low-profile
Ports & interfaces - Expansion card standard - PCIe 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Output interface - USB 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
ProductName - 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Linux, TAA
ShortSummaryDescription - StarTech.com 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Linux, TAA, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), Full-height / Low-profile, PCIe 3.0, Red, CE, FCC, REACH
Stck_Kart - 60
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
System requirements - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Technical details - Compliance certificates - CE, RoHS
Technical details - Sustainability compliance - Yes
Title - StarTech.com 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Linux, TAA
URL - https://www.startech.com/en-us/PEXUSB312C3
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 122 mm
Weight & dimensions - Height - 18 mm
Weight & dimensions - Weight - 45 g
Weight & dimensions - Width - 80 mm
