Startech 4-PORT USB-C 10GB PCIE CARD USB-C 3.2 10GBPS PCI EXPRESS TAA

ARTIKEL1 - 4-PORT USB-C 10GB PCIE CARD
ARTIKEL2 - USB-C 3.2 10GBPS PCI EXPRESS TAA
Brand - StarTech.com
BrandPartCode - P10Q4C-USB-CARD
Breite - 0
Category - Interface Cards/Adapters
Design - Internal - Yes
Design - Product colour - Red
EANCode - 0065030911436

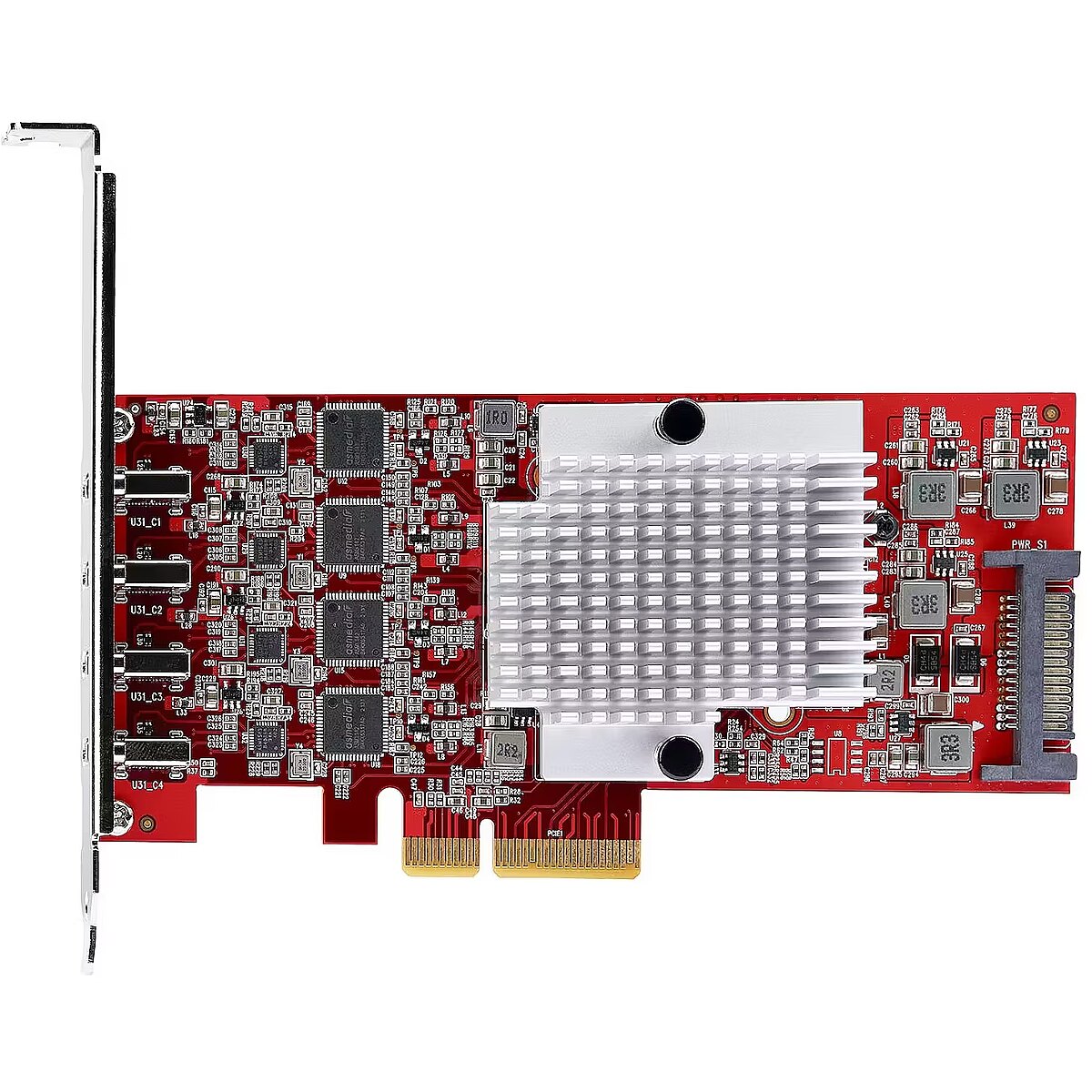

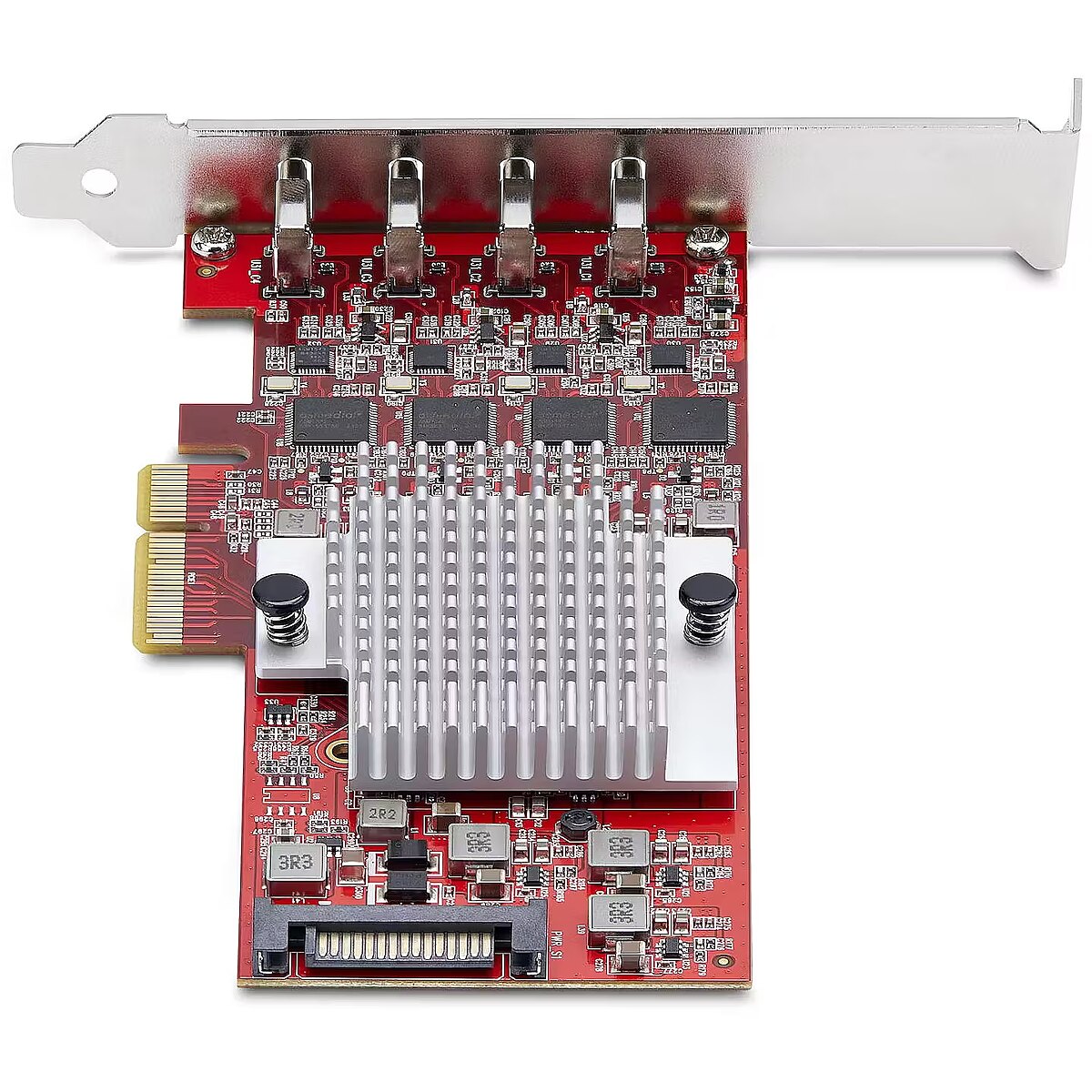

Features - Chipset - ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X
Features - Data transfer rate (max) - 10 Gbit/s
Gewicht - 0.16
GRUPPE1 - Network
GRUPPE2 - Firewire / Parallel / Serial
GTIN - 0065030911436
GTIN - 065030911436
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - P10Q4C-USB-CARD
Laenge - 0
Logistics data - Master (outer) case height - 500 mm
Logistics data - Master (outer) case length - 310 mm
Logistics data - Master (outer) case width - 380 mm
Logistics data - Products per master (outer) case - 60 pc(s)

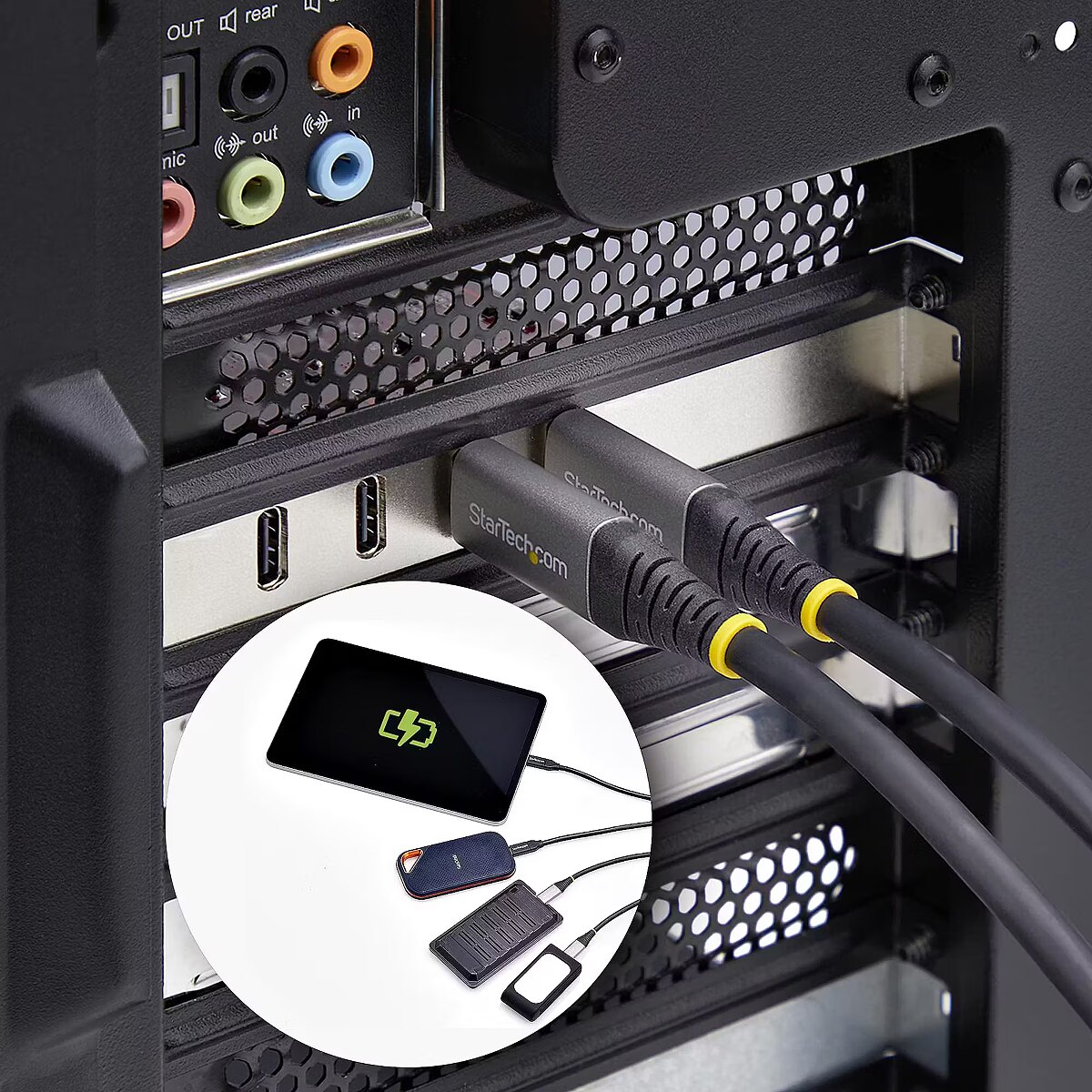

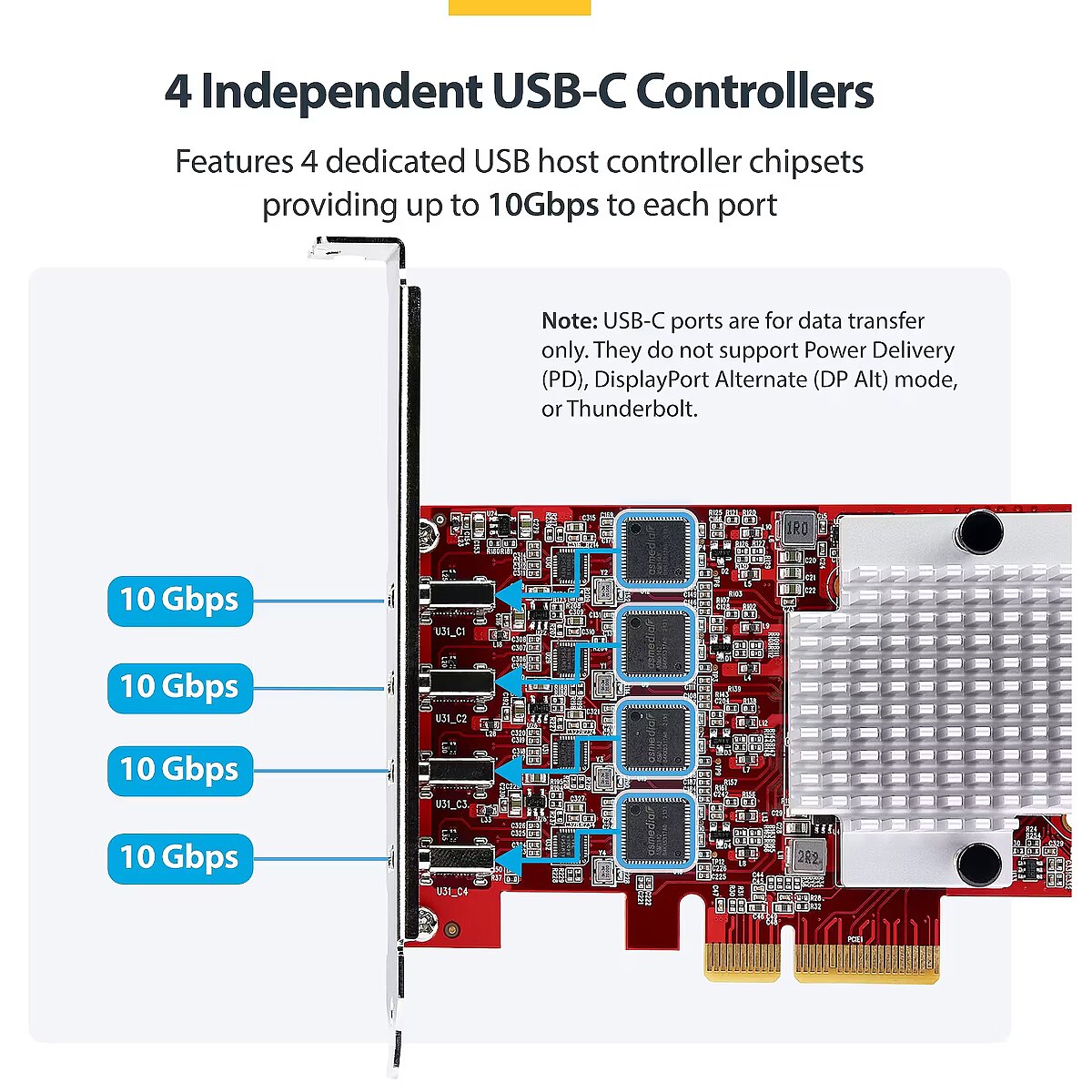

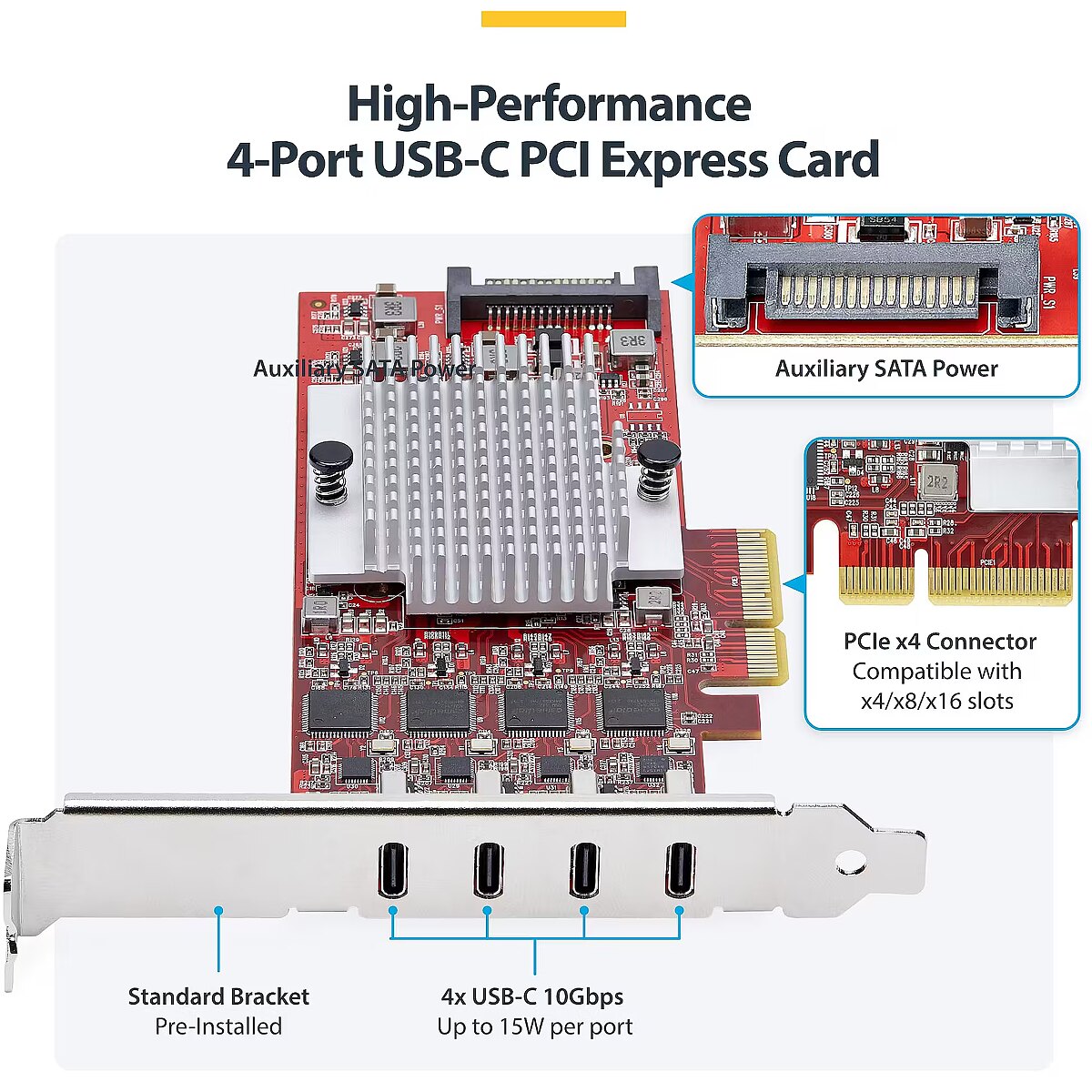

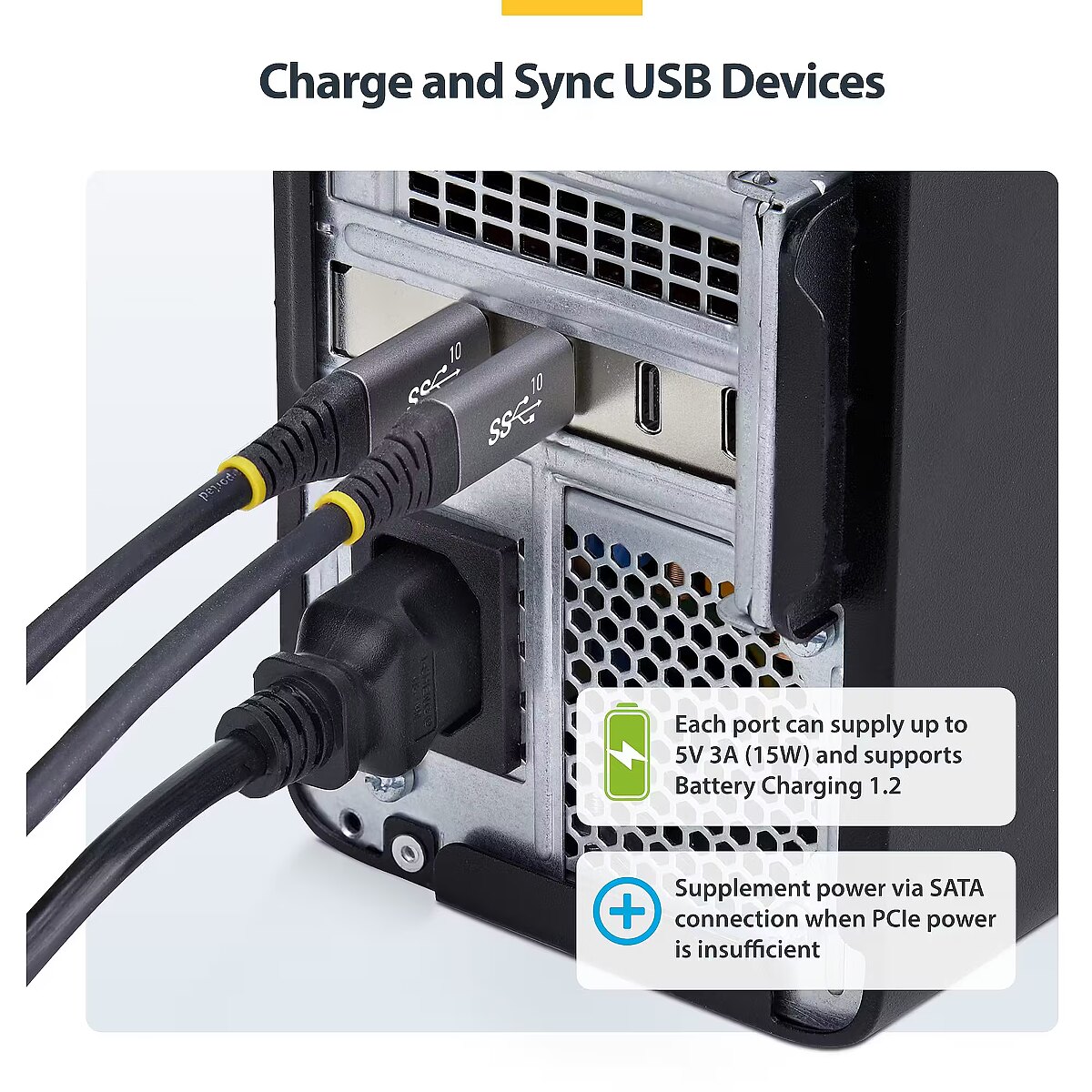

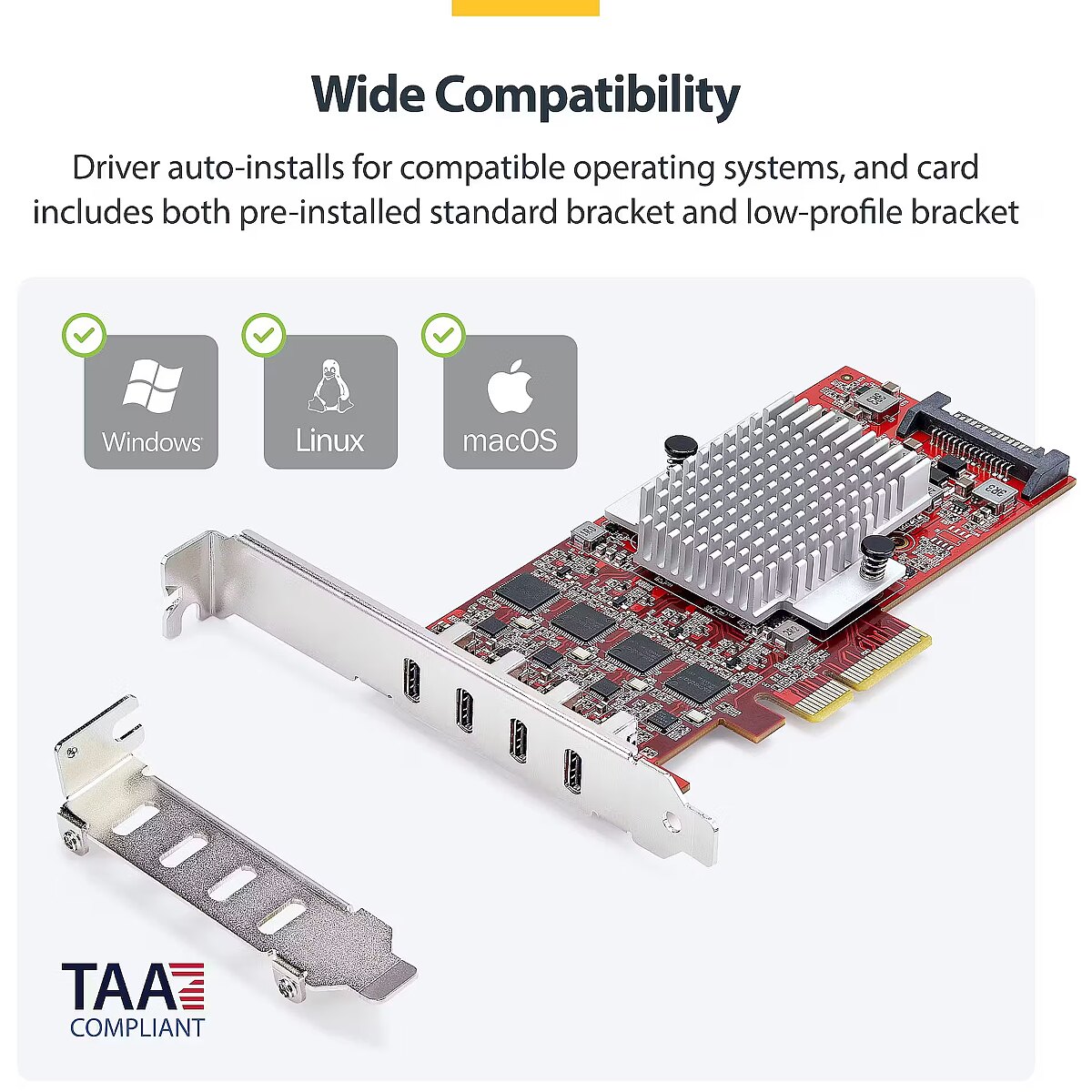

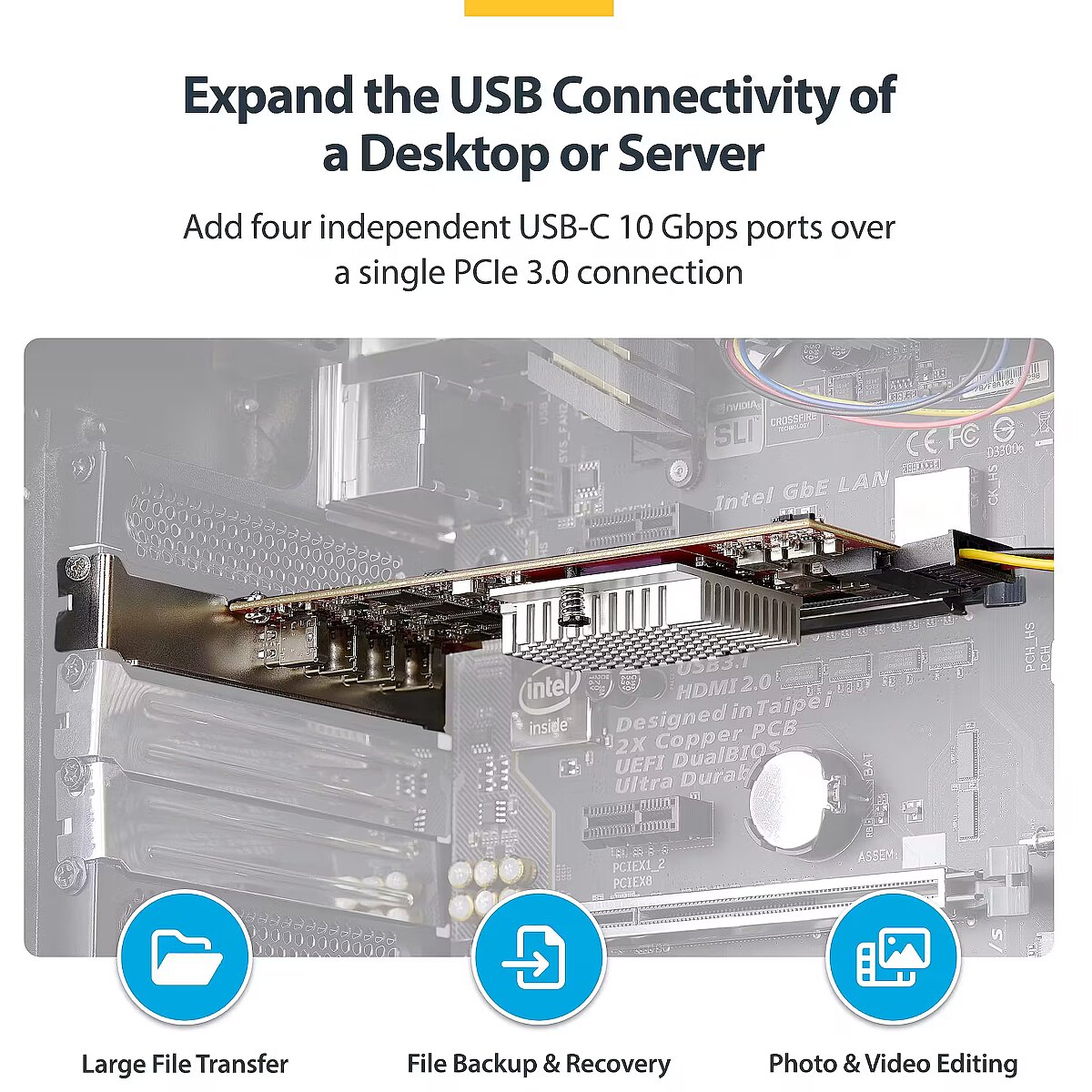

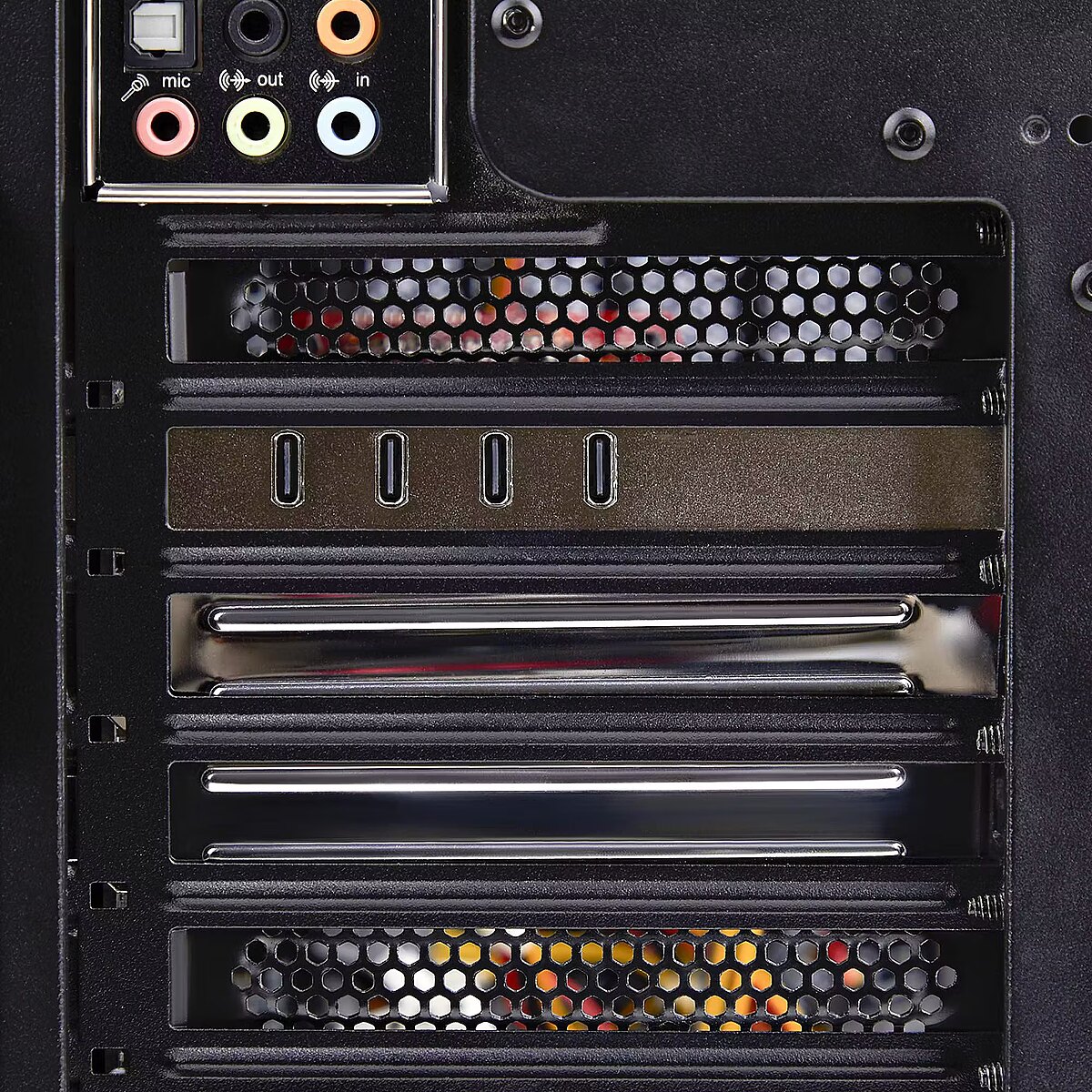

LongDesc - Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI ExpressExpand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.Dedicated USB ControllersTraditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.USB 3.2 Gen 2 (10Gbps) PerformanceThe high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.Charge and Sync USB DevicesThis USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.CompatibilityThe PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.The StarTech.com Advantage
LongProductName - StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Card, 4x Independent USB Controllers, TAA
LongSummaryDescription - StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant. Host interface: PCIe, Output interface: USB Type-C, Expansion card standard: PCI 3.0. Product colour: Red. Chipset: ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2019, Windows Server 2022. Width: 56.2 mm, Depth: 140 mm, Height: 119.9 mm
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Storage temperature (T-T) - -25 - 85 °C

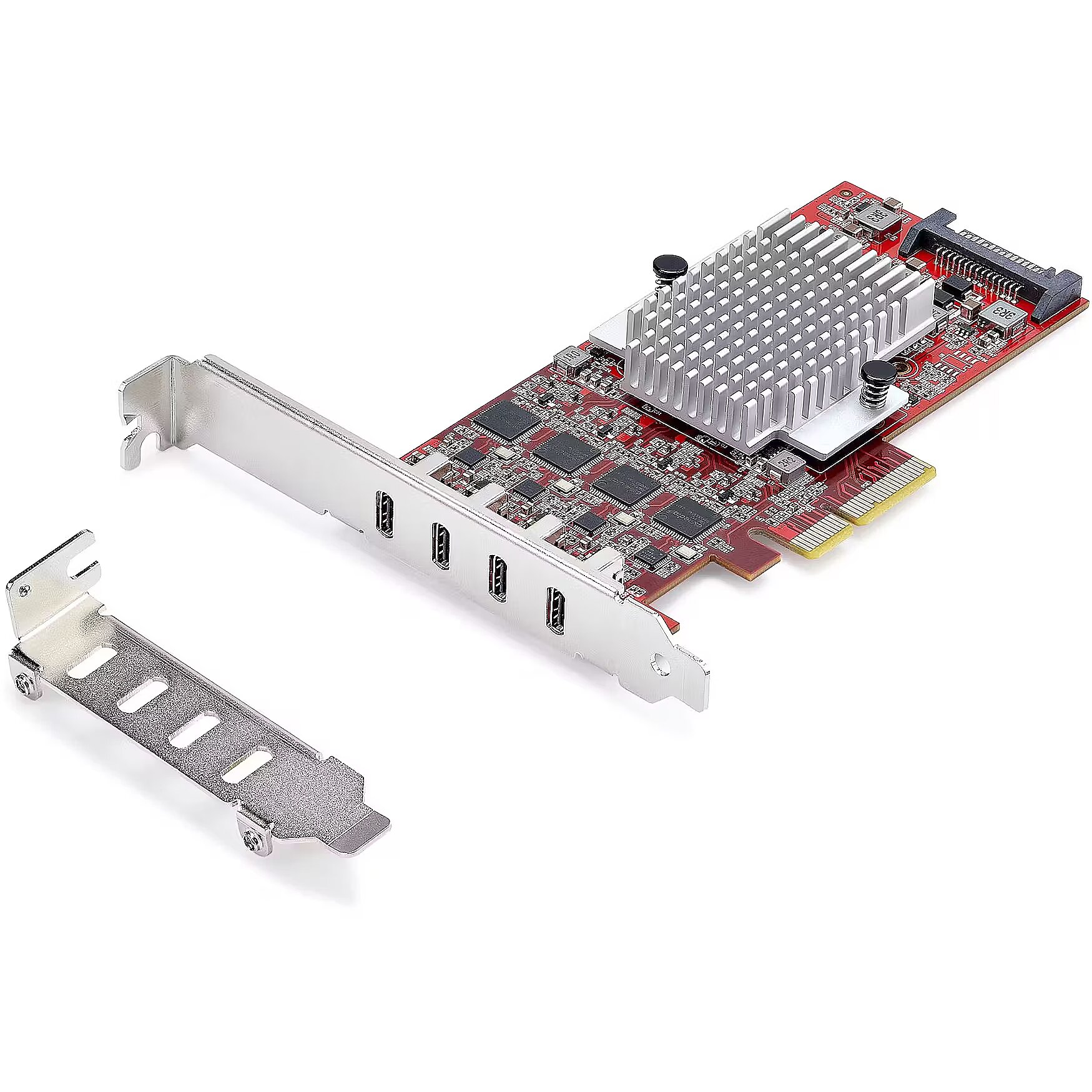

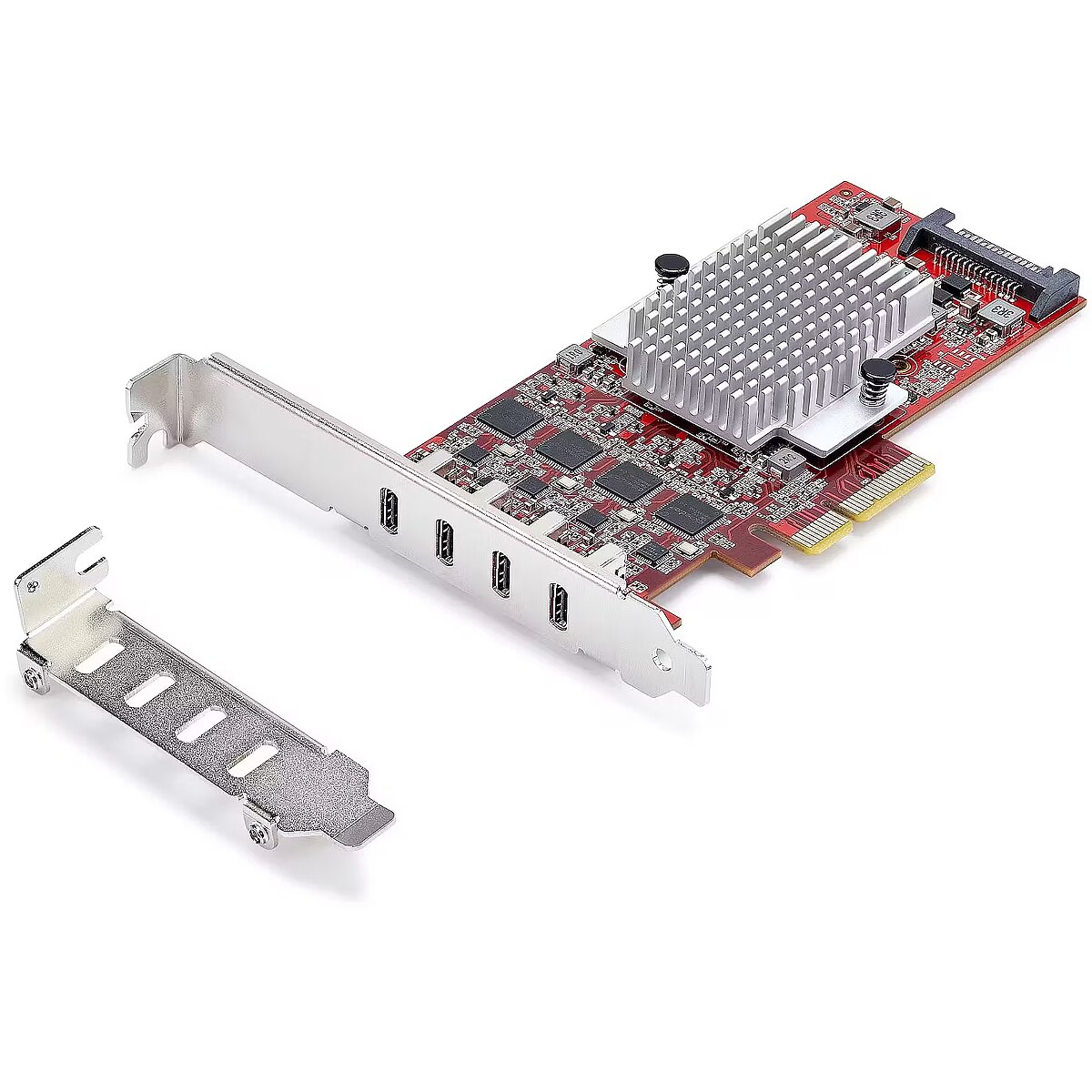

Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 170 mm
Packaging data - Package height - 30 mm
Packaging data - Package weight - 160 g
Packaging data - Package width - 142 mm
Packaging data - Quick installation guide - Yes
Ports & interfaces - Expansion card standard - PCI 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Internal SATA ports quantity - 1
Ports & interfaces - Output interface - USB Type-C
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 4
ProductName - 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant
ShortSummaryDescription - StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant, PCIe, USB Type-C, PCI 3.0, Red, ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X, 10 Gbit/s
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2019, Windows Server 2022
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Title - StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant
URL - https://www.startech.com/en-us/P10Q4C-USB-CARD
WarrantyInfo - 2 Years

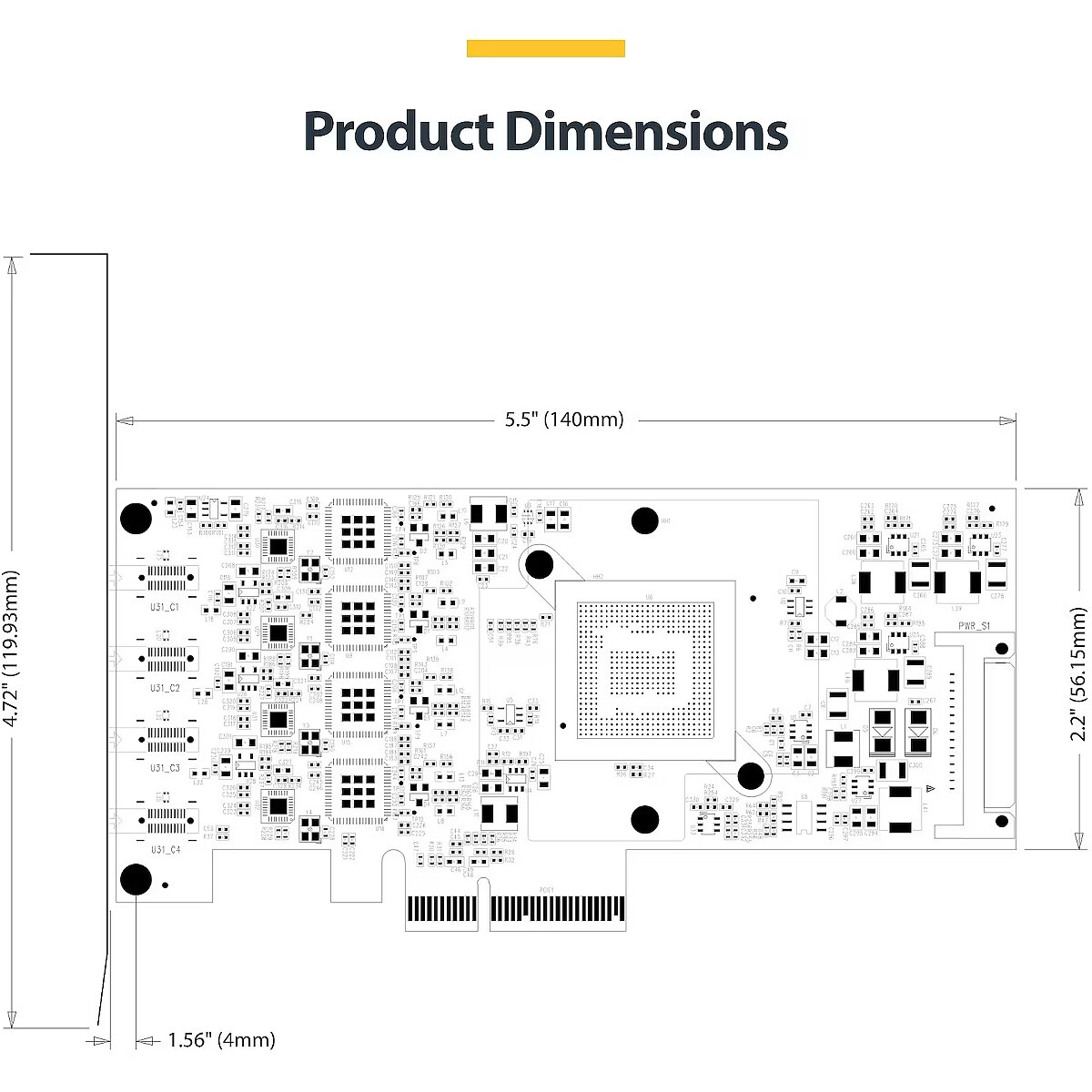

Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 119.9 mm
Weight & dimensions - Weight - 120 g
Weight & dimensions - Width - 56.2 mm
