ARTIKEL1 - 117B-USBC-MULTIPORT
ARTIKEL2 - USB-C TRIPLE-MONITOR ADAPTER
Brand - StarTech.com
BrandPartCode - 117B-USBC-MULTIPORT
Breite - 0
Category - Laptop Docks & Port Replicators
EANCode - 0065030896078
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 0065030896078
GTIN - 065030896078
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - 117B-USBC-MULTIPORT
Laenge - 0
Logistics data - Master (outer) case height - 235 mm
Logistics data - Master (outer) case length - 530 mm
Logistics data - Master (outer) case width - 290 mm
Logistics data - Products per master (outer) case - 24 pc(s)

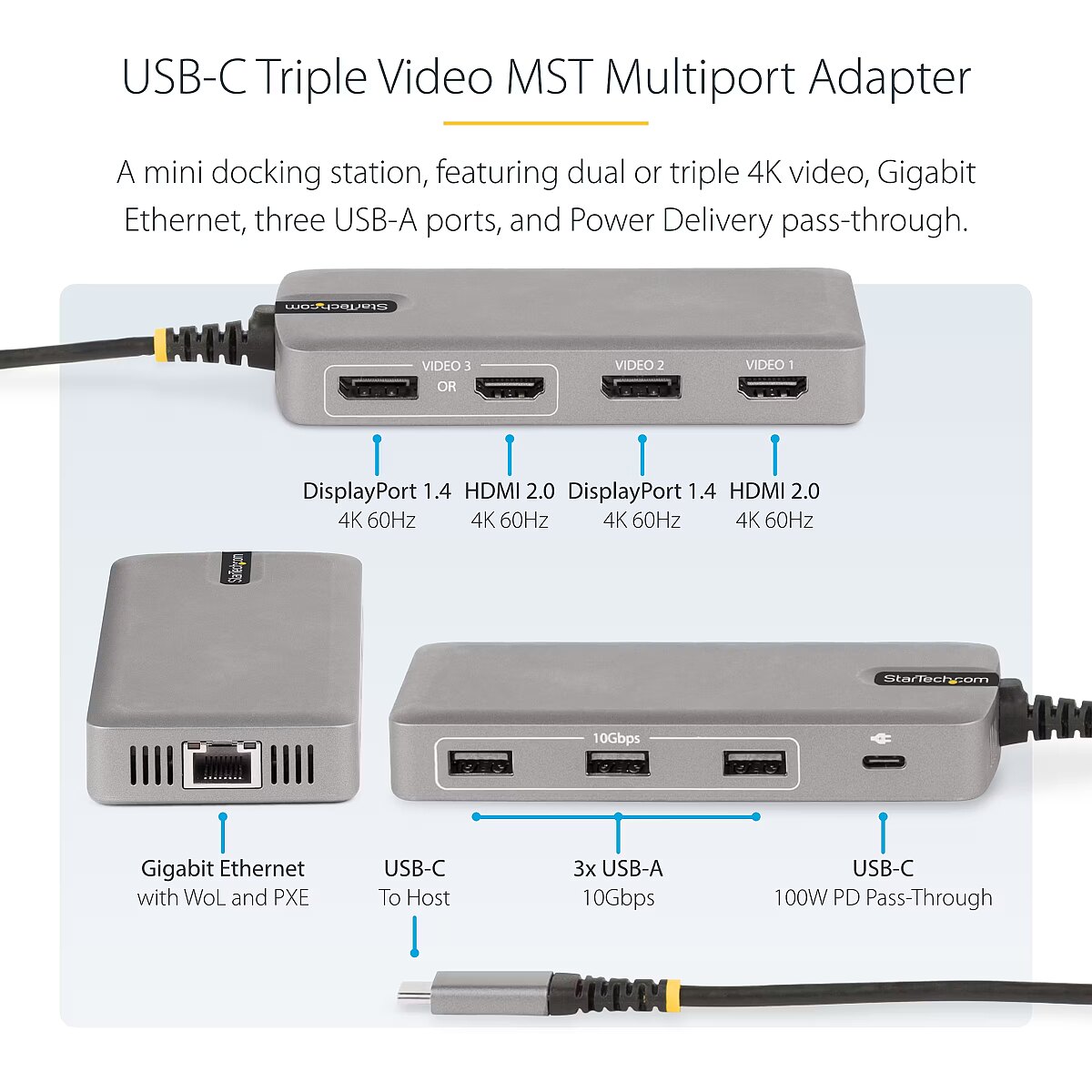

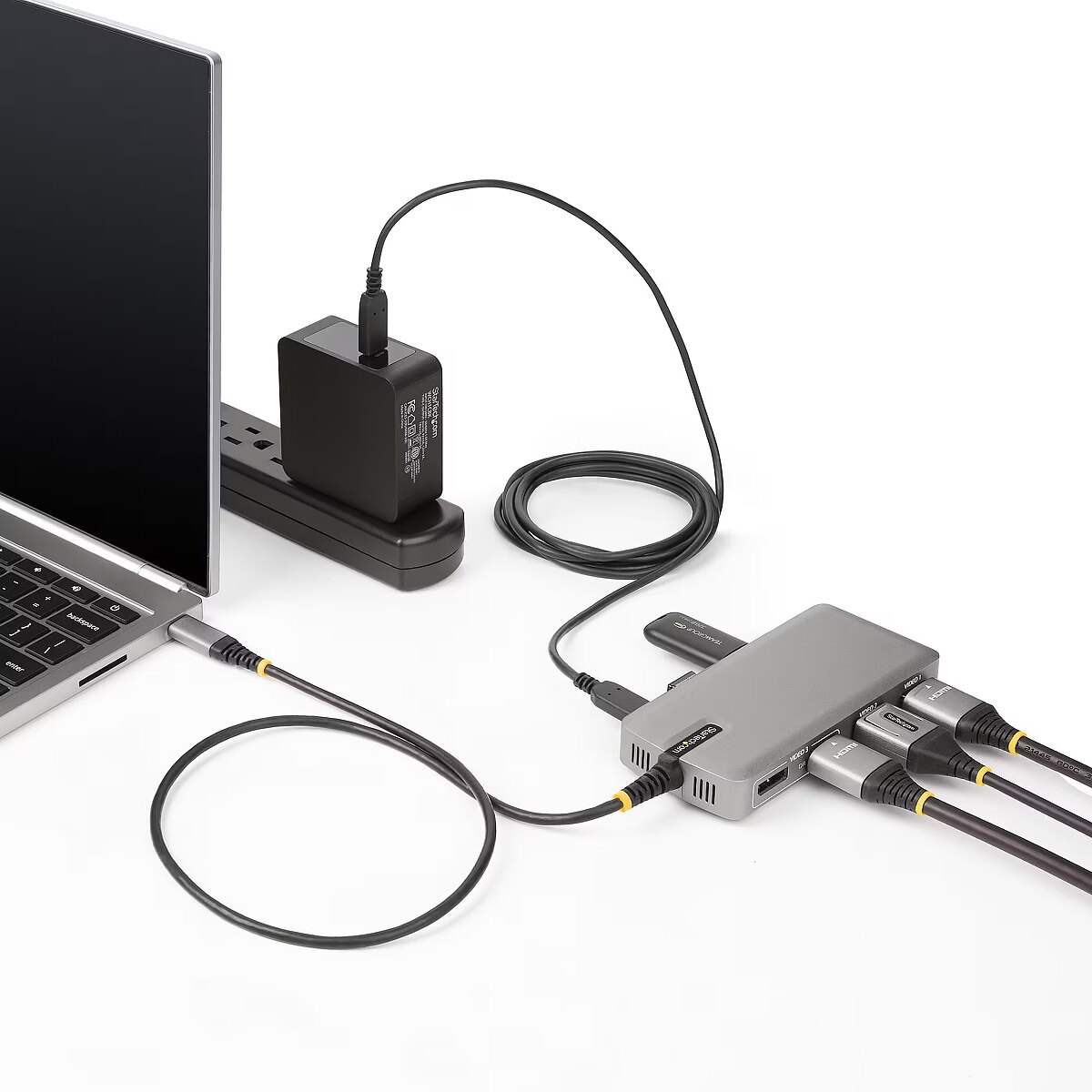

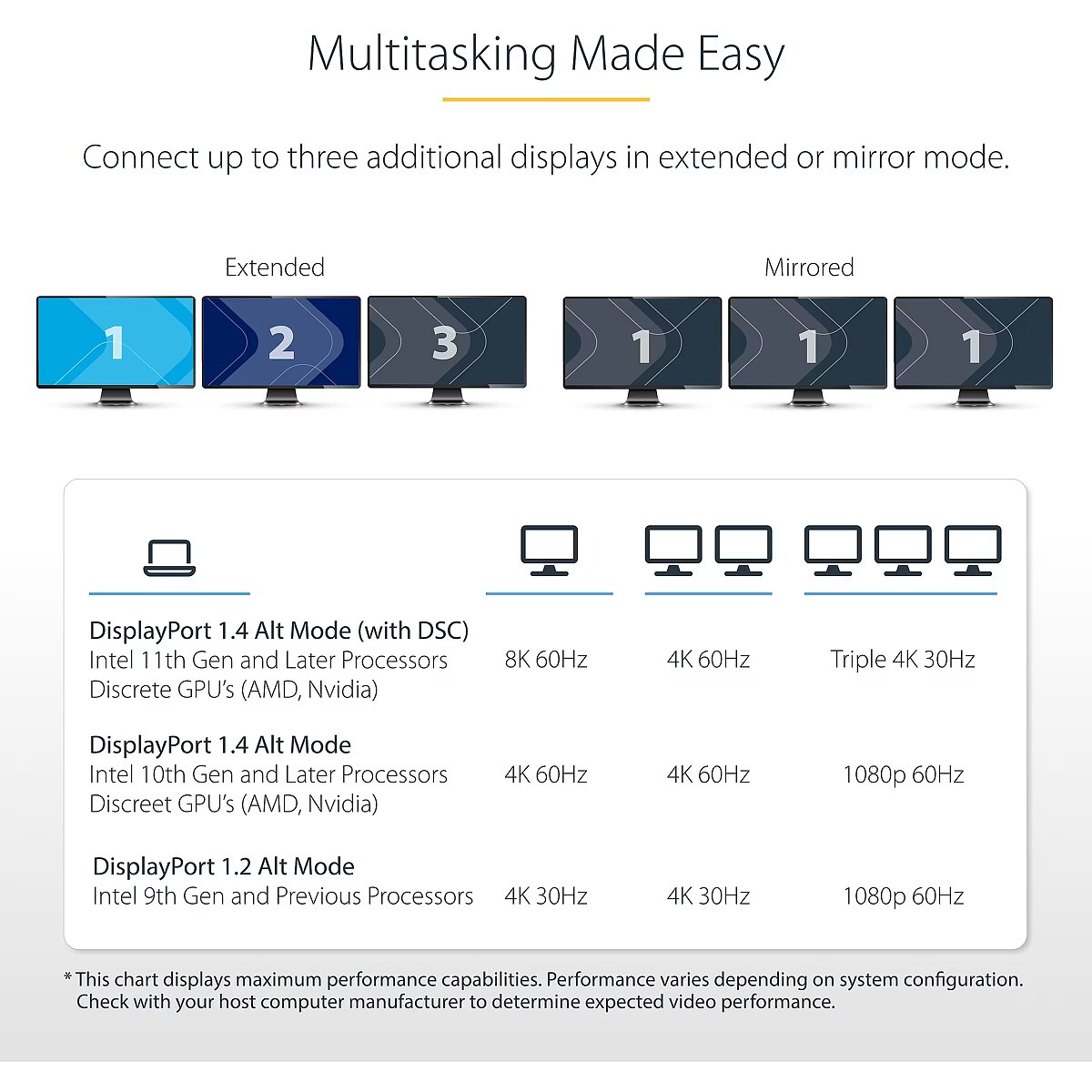

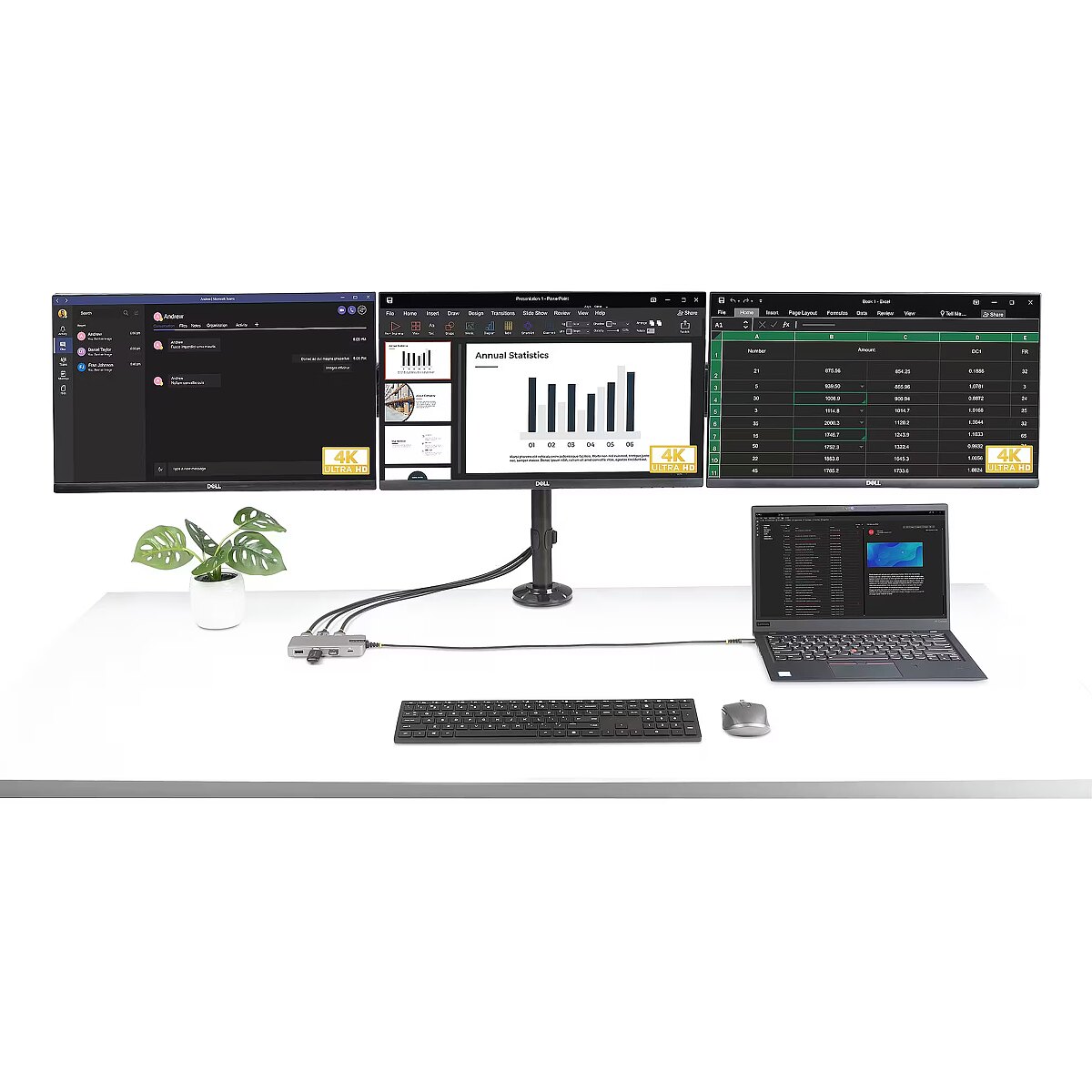

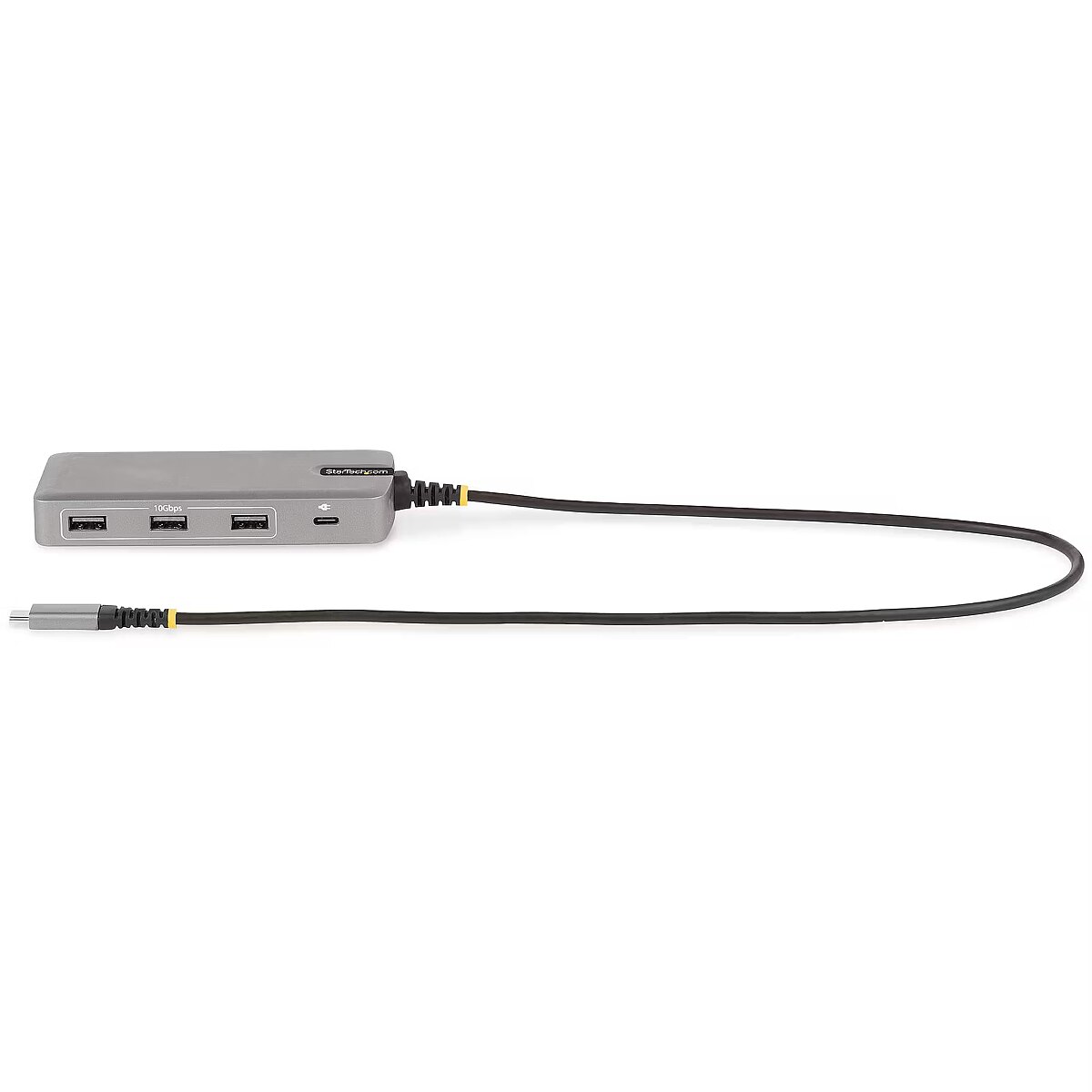

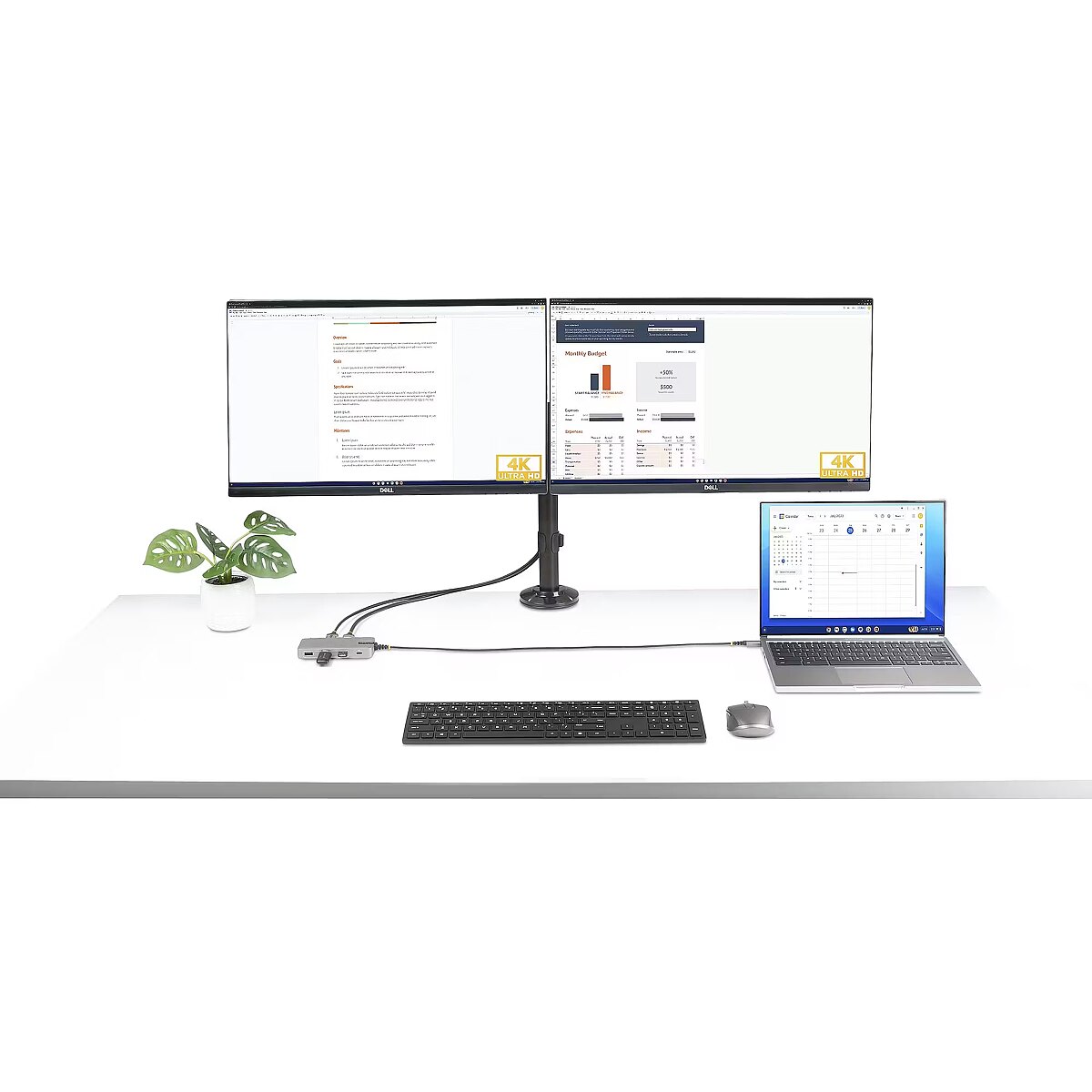

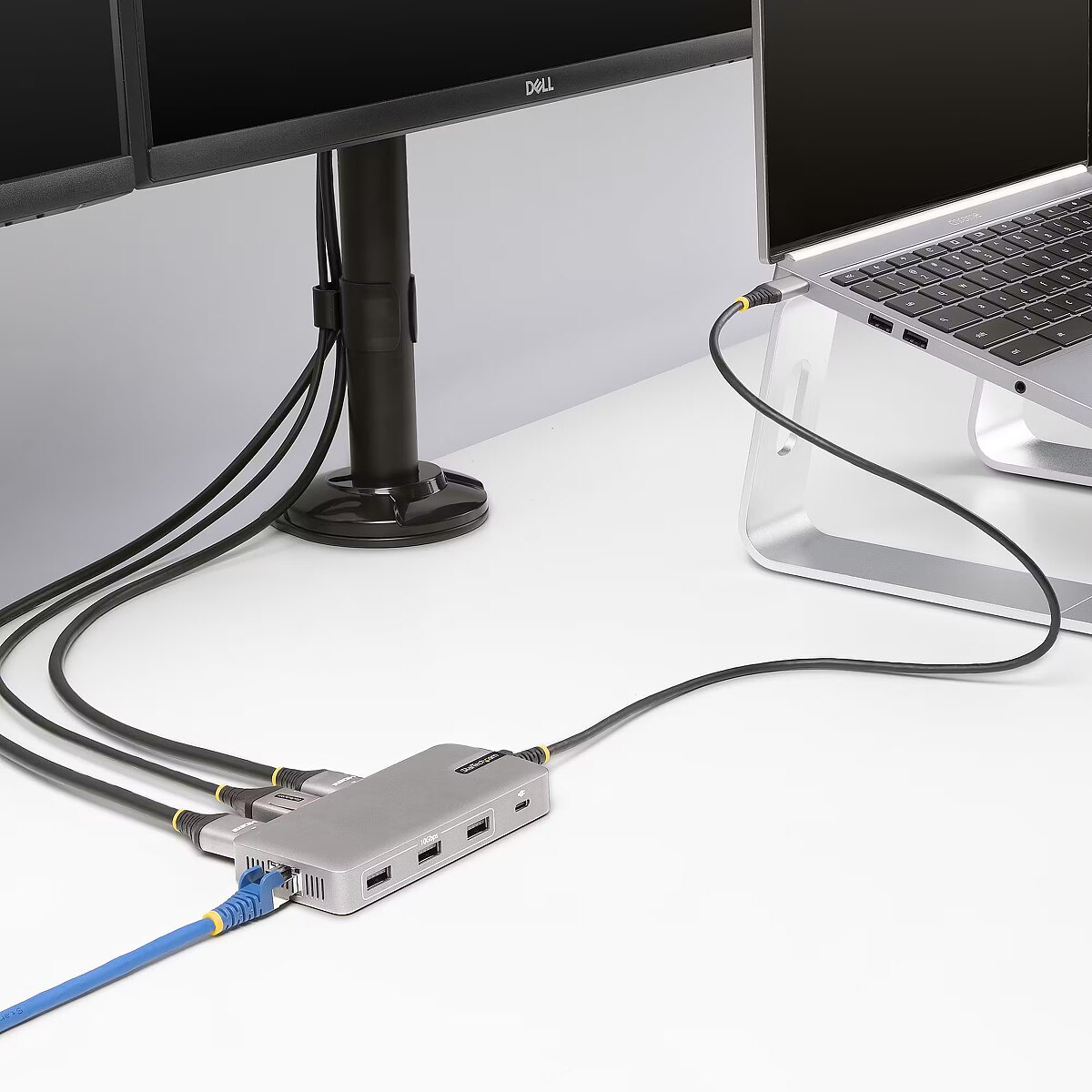

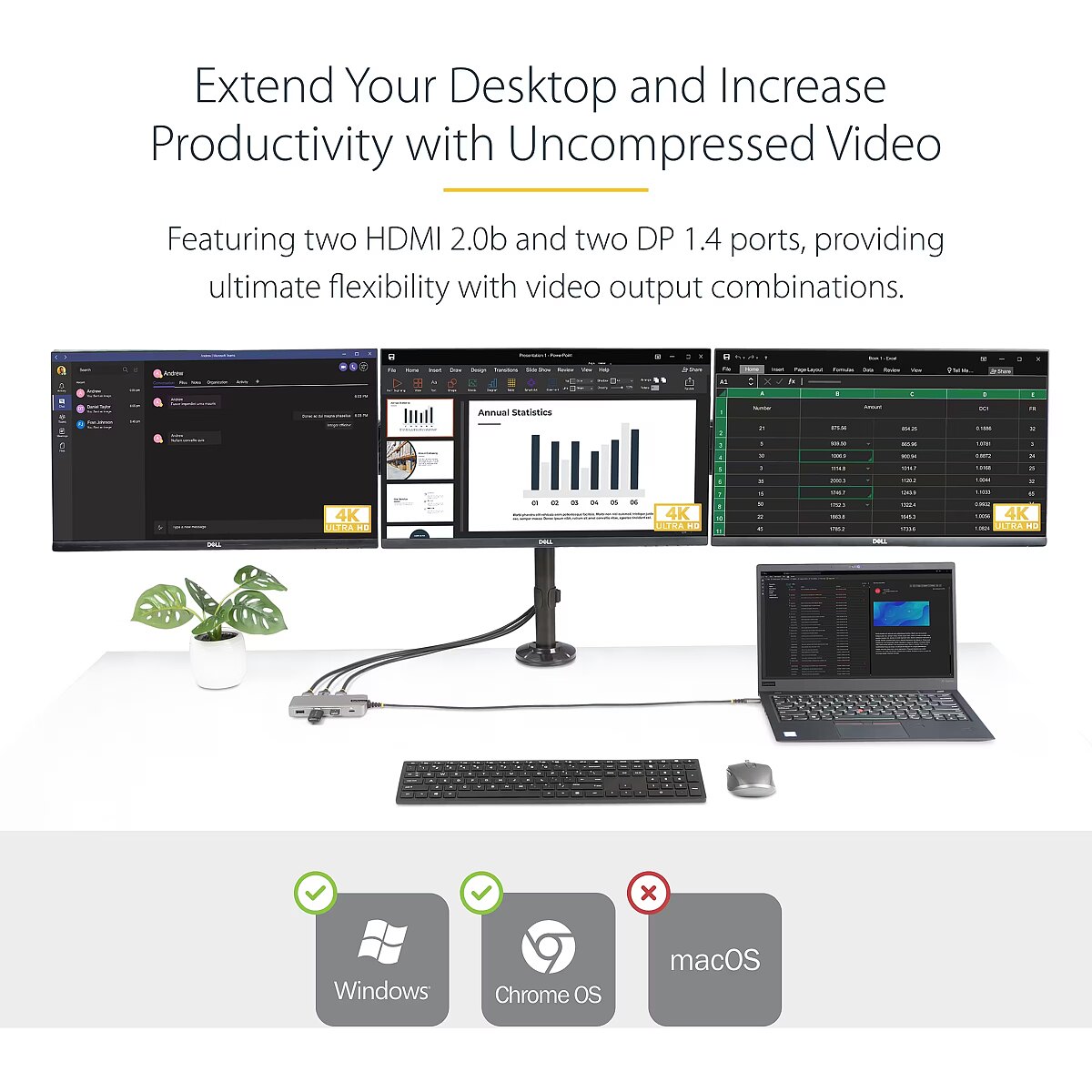

LongDesc - Create a mobile workstation with dual or triple 4K video via HDMI and/or DisplayPort (MST support required), three USB-A ports, Gigabit Ethernet and pass-through power delivery to charge the laptopThis USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.High-Performance Triple Video via MSTThe USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 60Hz and 2x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.Connect USB PeripheralsThe USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).Extra Long Cable & Durable BuildThe mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.100W Power DeliveryConnect a USB-C power adapter to the pass-through port in order to charge the host laptop.Reliable Network ConnectivityThe Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•MAC Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices.•Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe StarTech.com Advantage

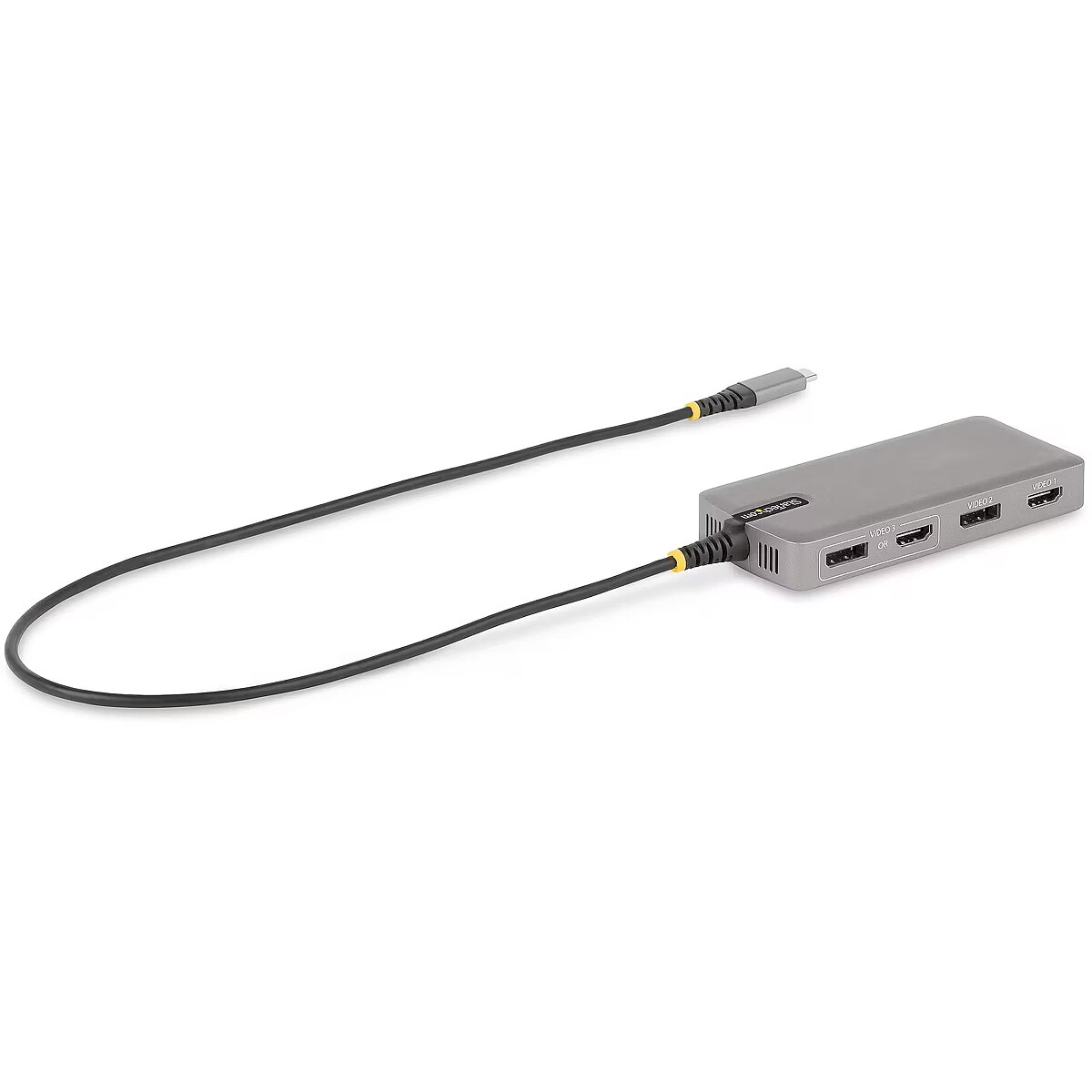

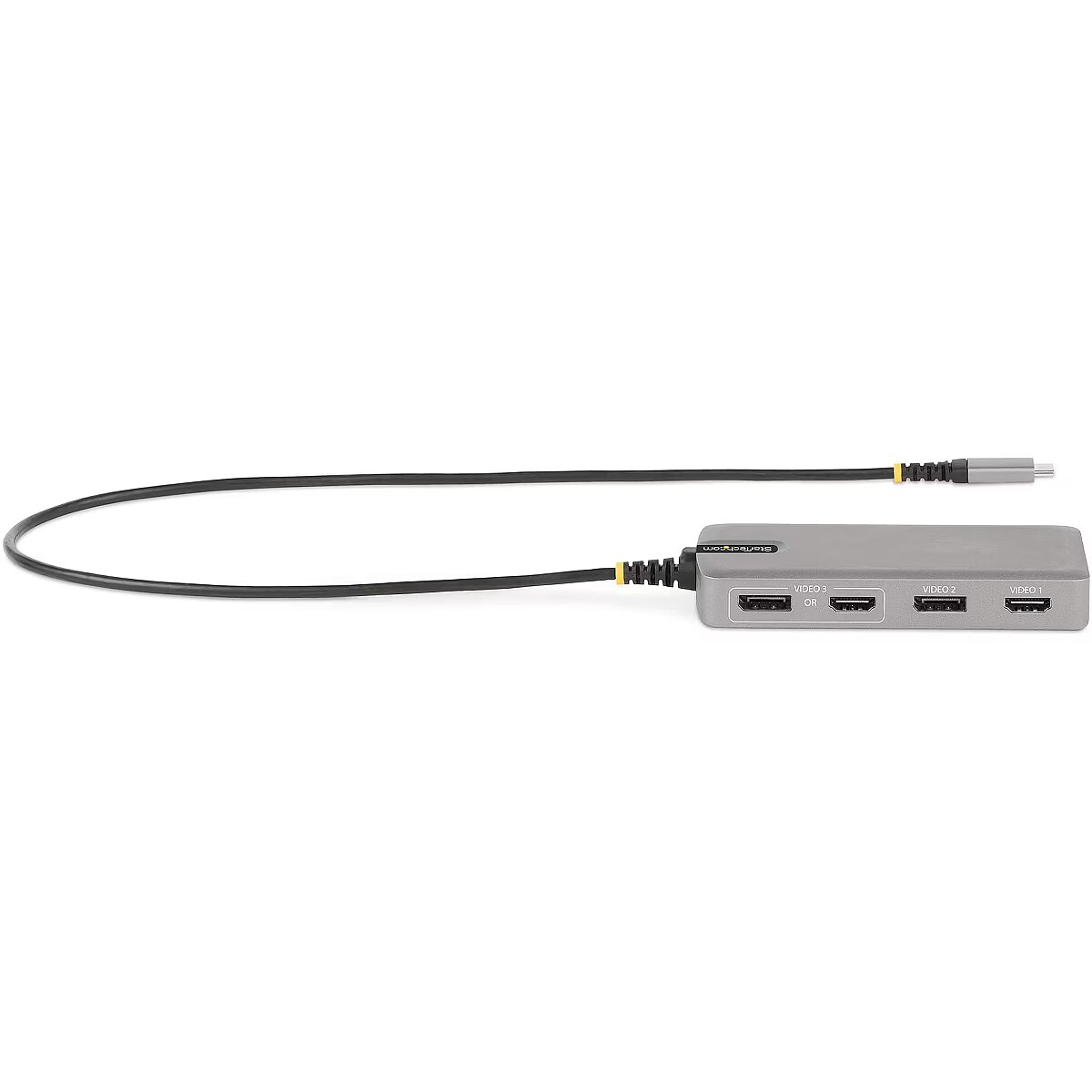

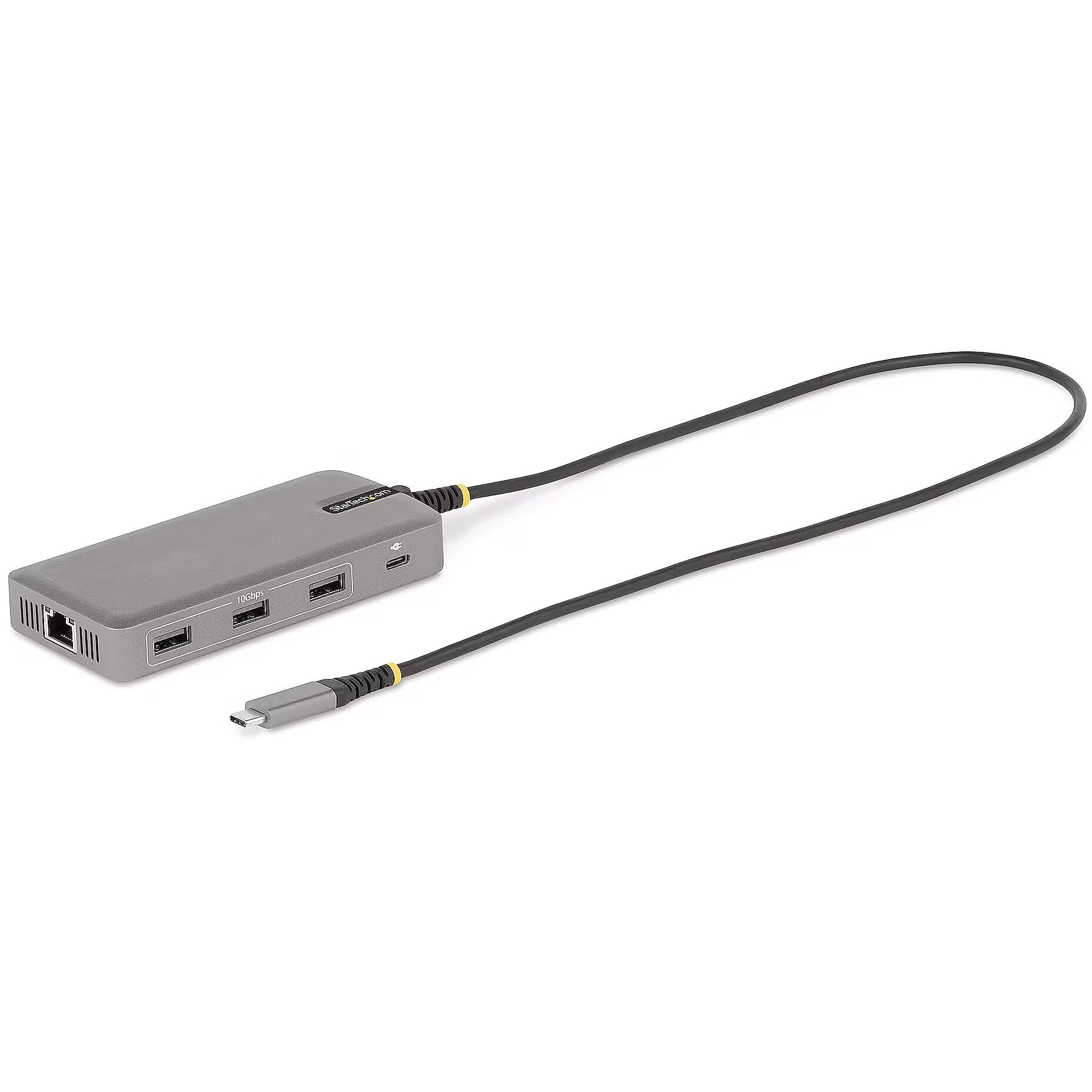

LongProductName - StarTech.com USB-C Triple-Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS (117B-USBC-MULTIPORT)
LongSummaryDescription - StarTech.com USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power consumption (typical): 15 W, USB cable length: 0.6 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Other operating systems supported: ChromeOS
Network - Ethernet LAN - Yes

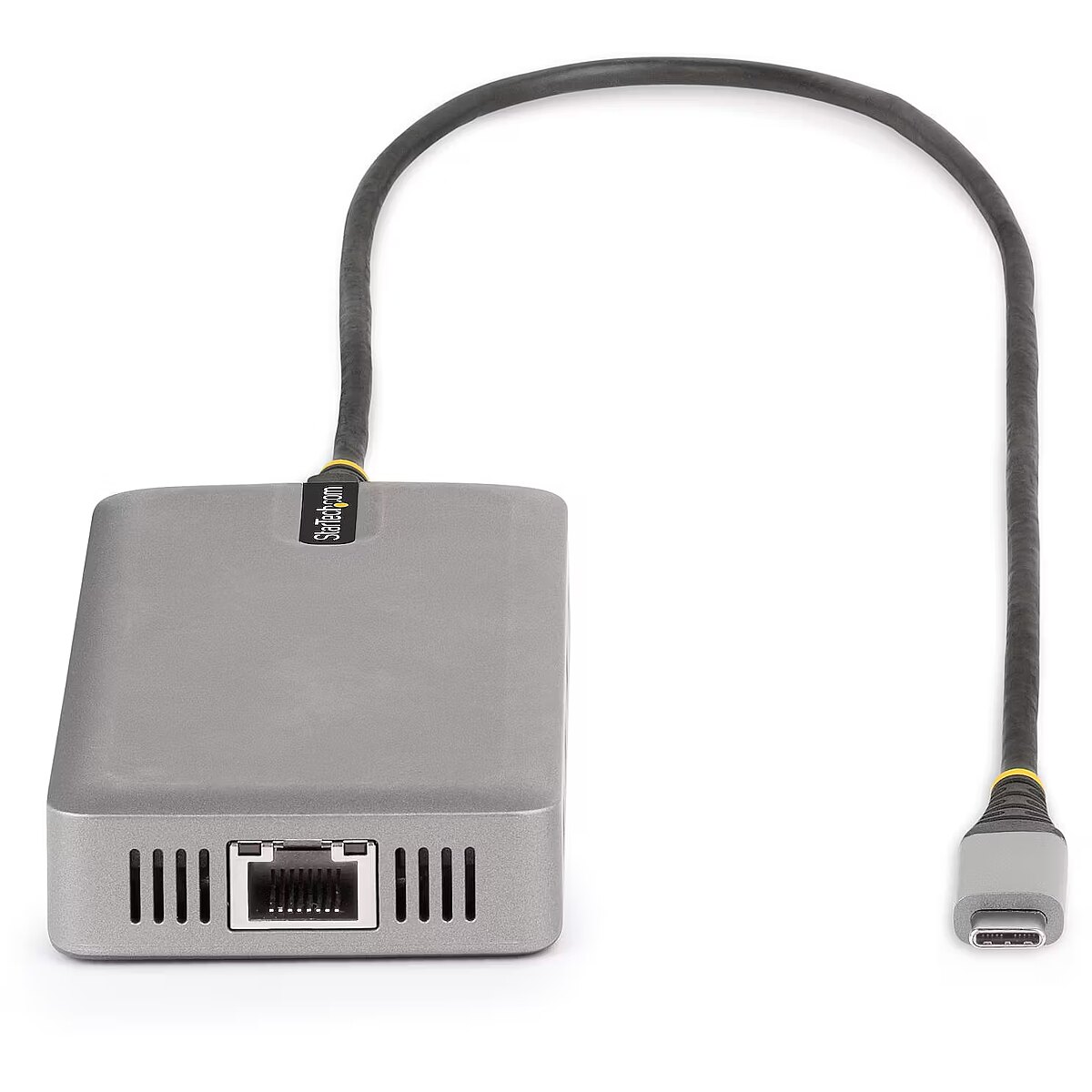

Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Network - Wake-on-LAN ready - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -10 - 70 °C
Other features - Chipset - Parade - PS8469, Synaptics - VMM5322, VIA - VL822, VIA - VL103, Realtek - RTL8153
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 241 mm
Packaging data - Package height - 32 mm
Packaging data - Package weight - 210 g
Packaging data - Package width - 124 mm
Performance - Card reader integrated - No
Performance - Data transfer rate - 10 Gbit/s
Performance - HD type - 4K Ultra HD
Performance - Housing material - Plastic
Performance - LED indicators - Yes
Performance - Maximum digital resolution - 3840 x 2160 pixels
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 3
Performance - Product colour - Grey
Performance - UASP support - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0b
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - Microphone in - No
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.0

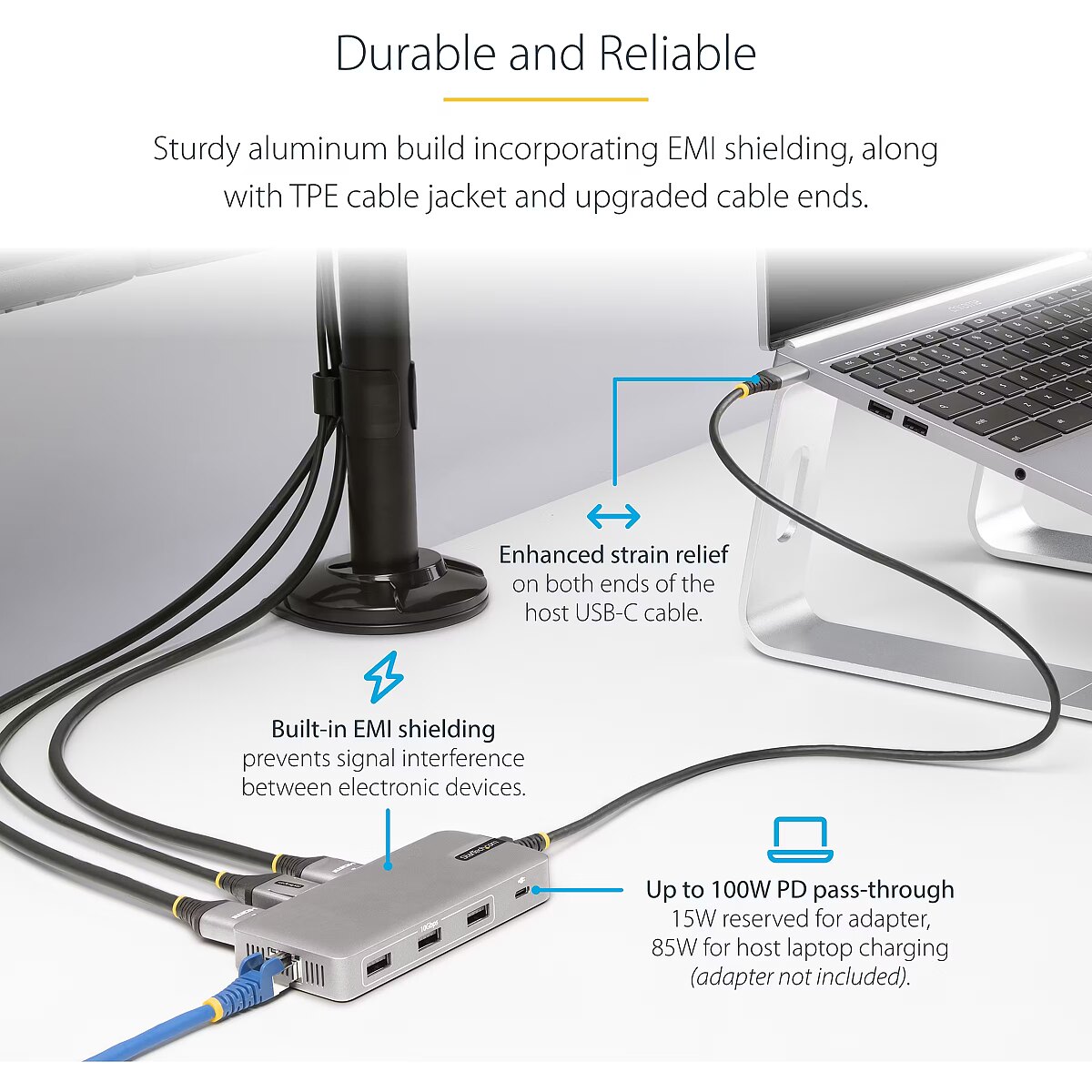

Ports & interfaces - USB Power Delivery up to - 100 W
Power - Power consumption (typical) - 15 W
Power - Power source type - USB

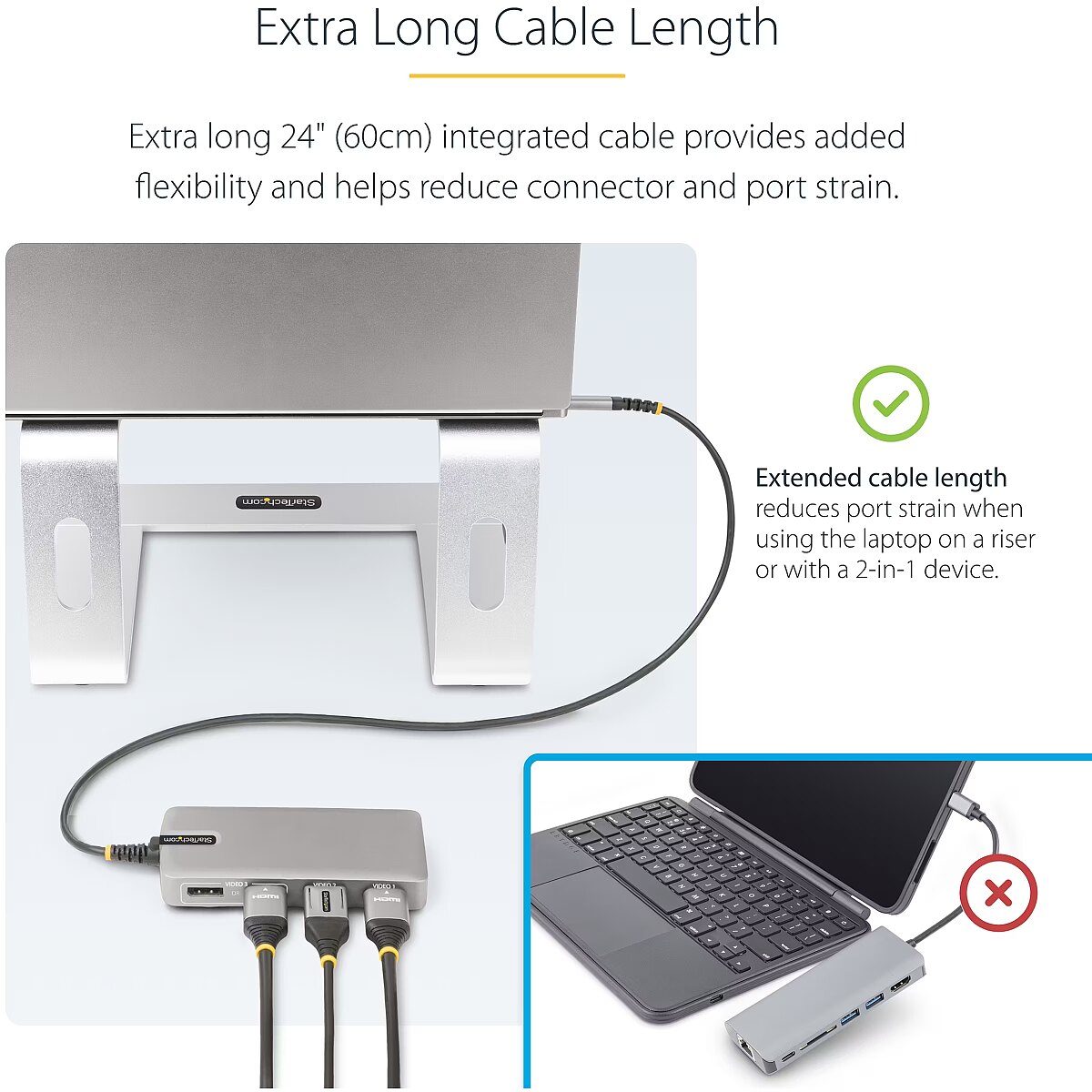

Power - USB cable length - 0.6 m
ProductName - USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS
ShortSummaryDescription - StarTech.com USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 2.0b, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Software - Other operating systems supported - ChromeOS
Software - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Title - StarTech.com USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS
URL - https://www.startech.com/
WarrantyInfo -

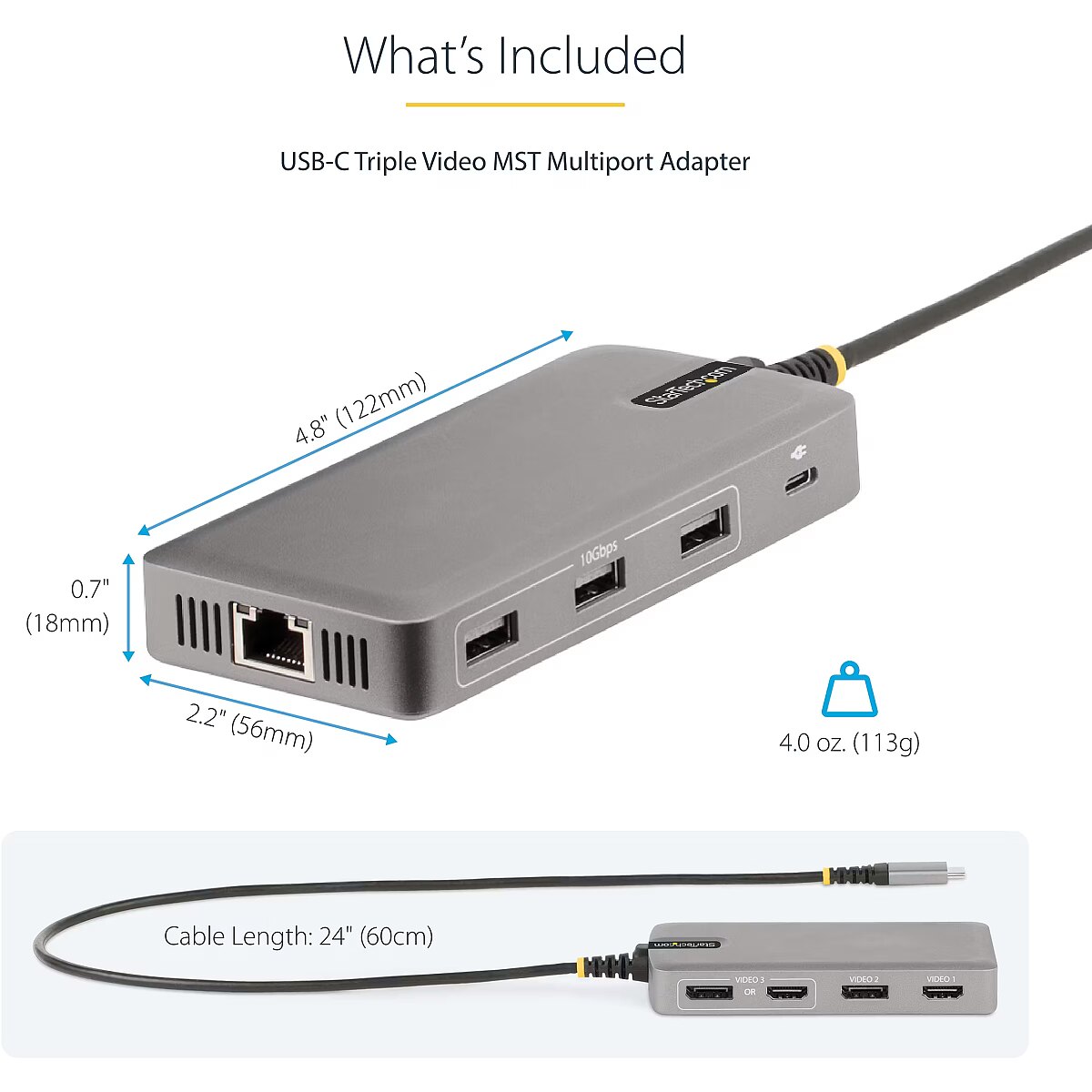

Weight & dimensions - Depth - 122 mm
Weight & dimensions - Height - 18 mm
Weight & dimensions - Weight - 113 g
Weight & dimensions - Width - 56 mm
