Axagon PCEM2-XS adapter intern al x16 M.2 heatsink NVM

Abbreviated Description - PCEM2-XS PCIe NVMe M.2 adapter
Accessories included - PCIe adapter for M.2 NVMe (PCI-Express) SSD with aluminum heat sink, thermal conductive pads, mounting kit and screwdriver, multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box with a hanging hole.
Box Weight Brutto (kg) - 7.8 kg
Brand - Axagon
BrandPartCode - PCEM2-XS
Built-in Devices - LED Indicator
Category - Interface Cards/Adapters
category - PC Components|Network & Adapter Cards|Adapter Cards|M.2
Category Code - HDA
Chipset type -
code - PCEM2-XS
Code - PCEM2-XS
Colour - Black
Controller type - SSD
Data Channel - NVMe

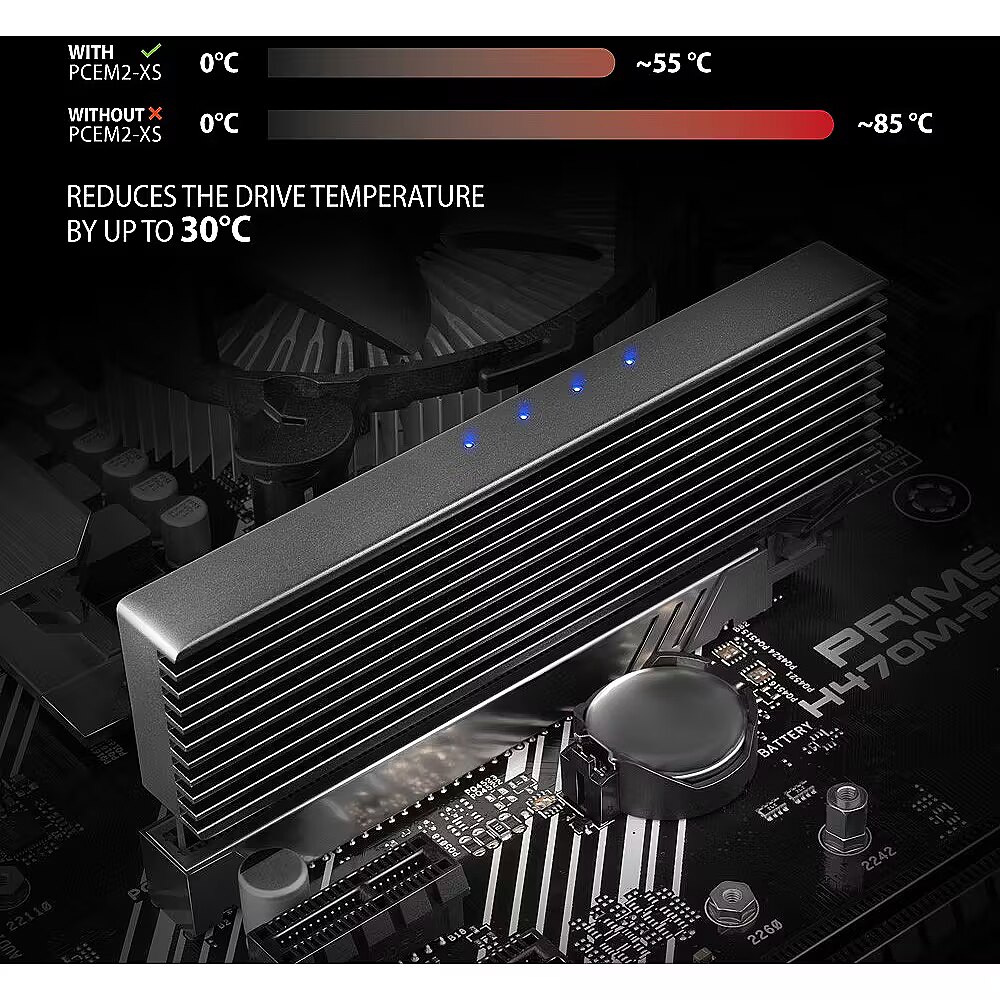

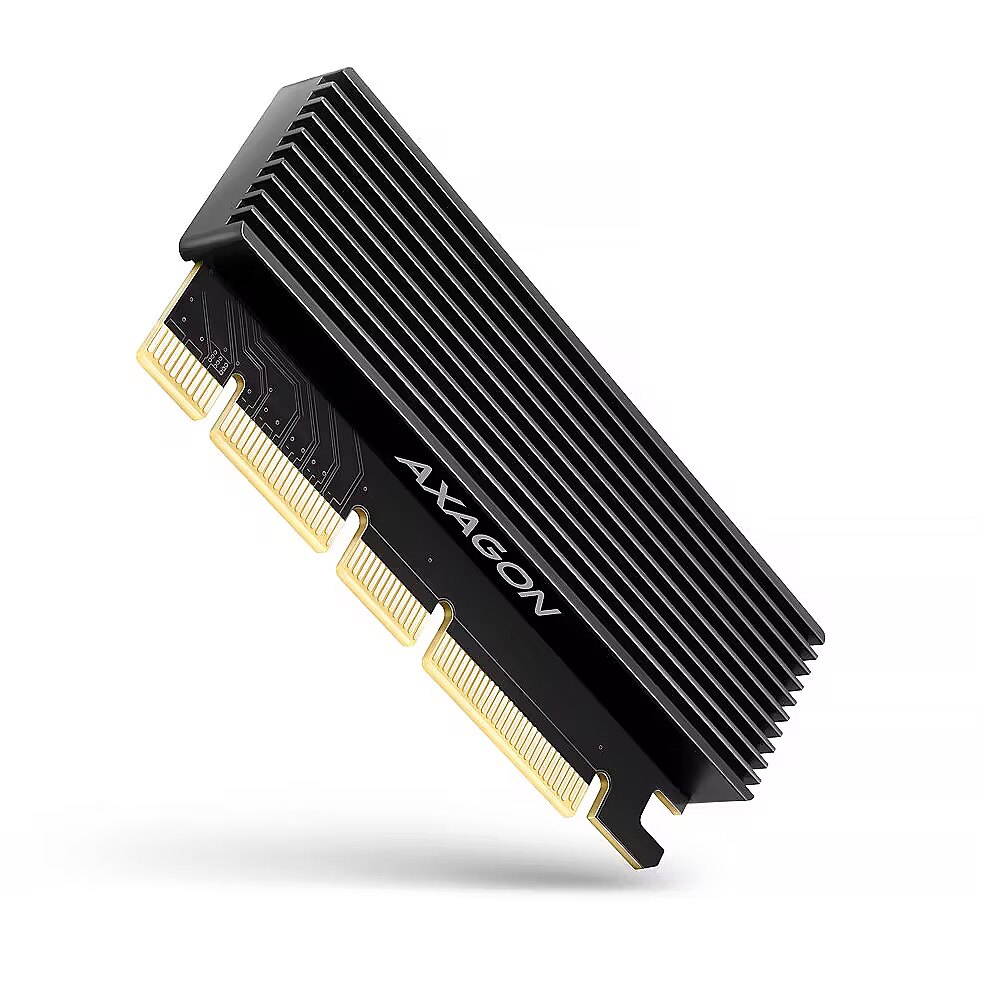

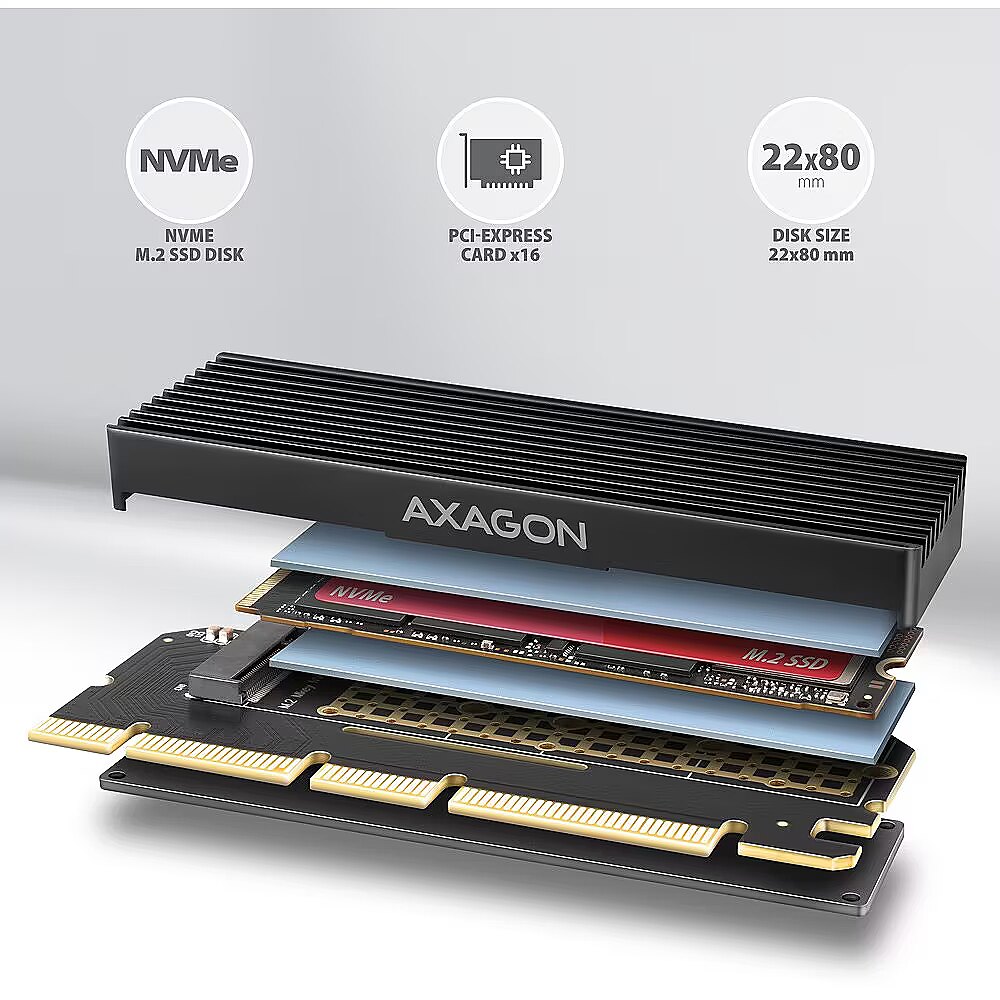

Description - PCEM2-XS PCIe NVMe M.2 adapter PCI-Express x16 adapter with cooler for connecting an NVMe M.2 SSD drive to a computer. The AXAGON PCEM2-XS internal adapter allows connecting an NVMe M.2 SSD disk to a desktop computer using a PCI-Express bus. Its high-quality workmanship, compact size, attractive design, and and sophisticated cooling make this adapter an ideal choice for upgrading a desktop computer not equipped with an M.2 slot. The adapter supports the use of single-sided and double-sided NVMe (PCI-Express) M.2 SSD drives. The reduction does not have a limit of SSD disk capacities and M.2 cards with dimensions of up to 22x80 mm can be used. Thanks to the PCI-Express interface, it is possible to achieve maximum transfer speeds. The LED indication indicates connection or data transfer in the M.2 slot. The adapter is equipped with a ribbed aluminum disc cover that serves as a passive heatsink. Thanks to the large cooling surface and supplied thermal pads, the cooler dissipates heat from both sides of the M.2 disk and thus achieves maximum cooling efficiency. This makes it ideal even for demanding PCIe 5.0 NVMe SSDs.
Description - The AXAGON PCEM2-XS internal adapter allows connecting an NVMe M.2 SSD disk to a desktop computer using a PCI-Express bus. Its high-quality workmanship, compact size, attractive design, and and sophisticated cooling make this adapter an ideal choice for upgrading a desktop computer not equipped with an M.2 slot. The adapter supports the use of single-sided and double-sided NVMe (PCI-Express) M.2 SSD drives. The reduction does not have a limit of SSD disk capacities and M.2 cards with dimensions of up to 22x80 mm can be used. Thanks to the PCI-Express interface, it is possible to achieve maximum transfer speeds. The LED indication indicates connection or data transfer in the M.2 slot.  The adapter is equipped with a ribbed aluminum disc cover that serves as a passive heatsink. Thanks to the large cooling surface and supplied thermal pads, the cooler dissipates heat from both sides of the M.2 disk and thus achieves maximum cooling efficiency. This makes it ideal even for demanding PCIe 5.0 NVMe SSDs. Input:
PCI-Express interface, compatible PCI-Express versions: 5.0 / 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a.
Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots. Output:
NGFF 75-pin M-key slot to install an NVMe (PCI-Express) M.2 SSD disk. Other features:
Full Plug and Play support.
Support of M.2 disks of these sizes 2230, 2242, 2260, and 2280 mm.
Support of M key or B+M key NVMe (PCI-Express) M.2 SSD disks without a maximum capacity limit.
Support of both one-sided and double-sided M.2 disks.

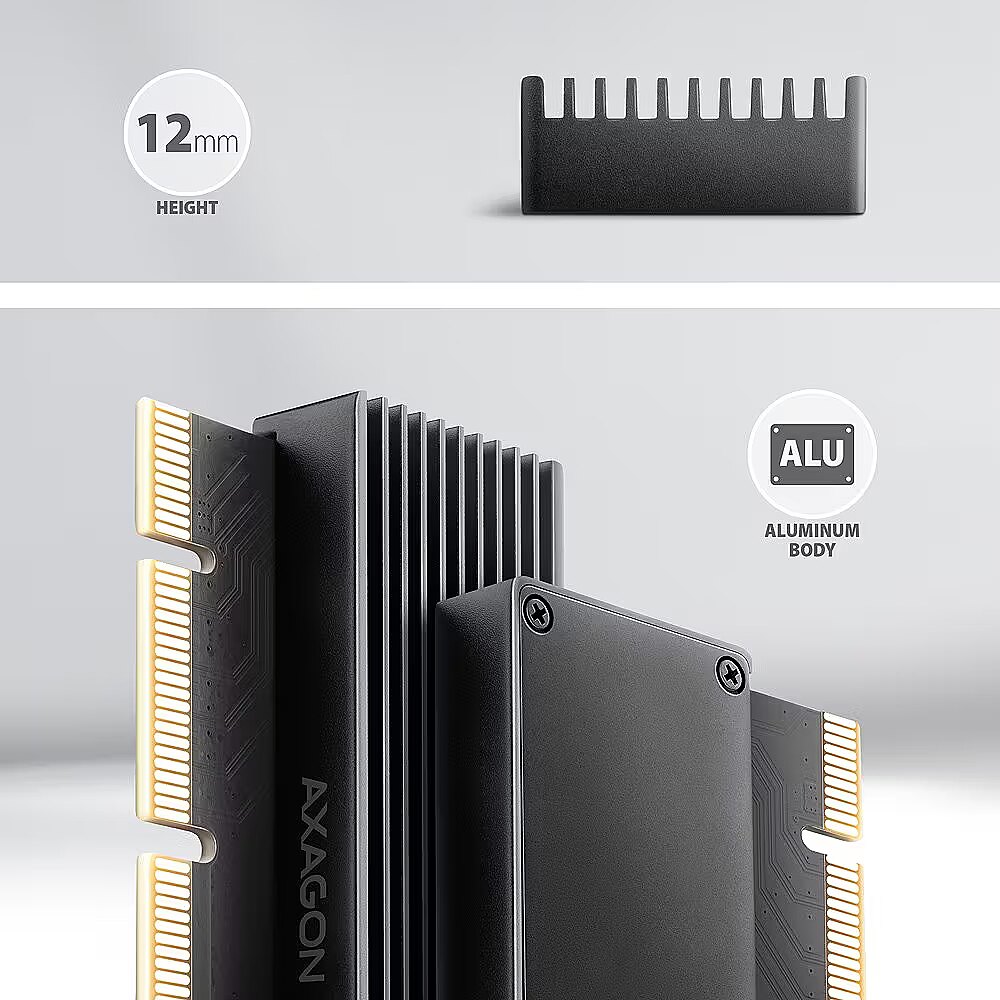

Better heat dissipation due to the coppered vents, heat-conductive pads, and aluminium cooler.
Support of booting from an SSD card.
Dimensions: 105 x 45 x 12 mm.
Weight 50 g.
No drivers need to be installed.  Power:
The adapter is powered directly from the PCI-Express bus, no external power supply required. Supported OS:
Windows, Linux.
Note: When Windows 7 is used, the support of this OS must be checked with the M.2 SSD disk manufacturer. Package contains:

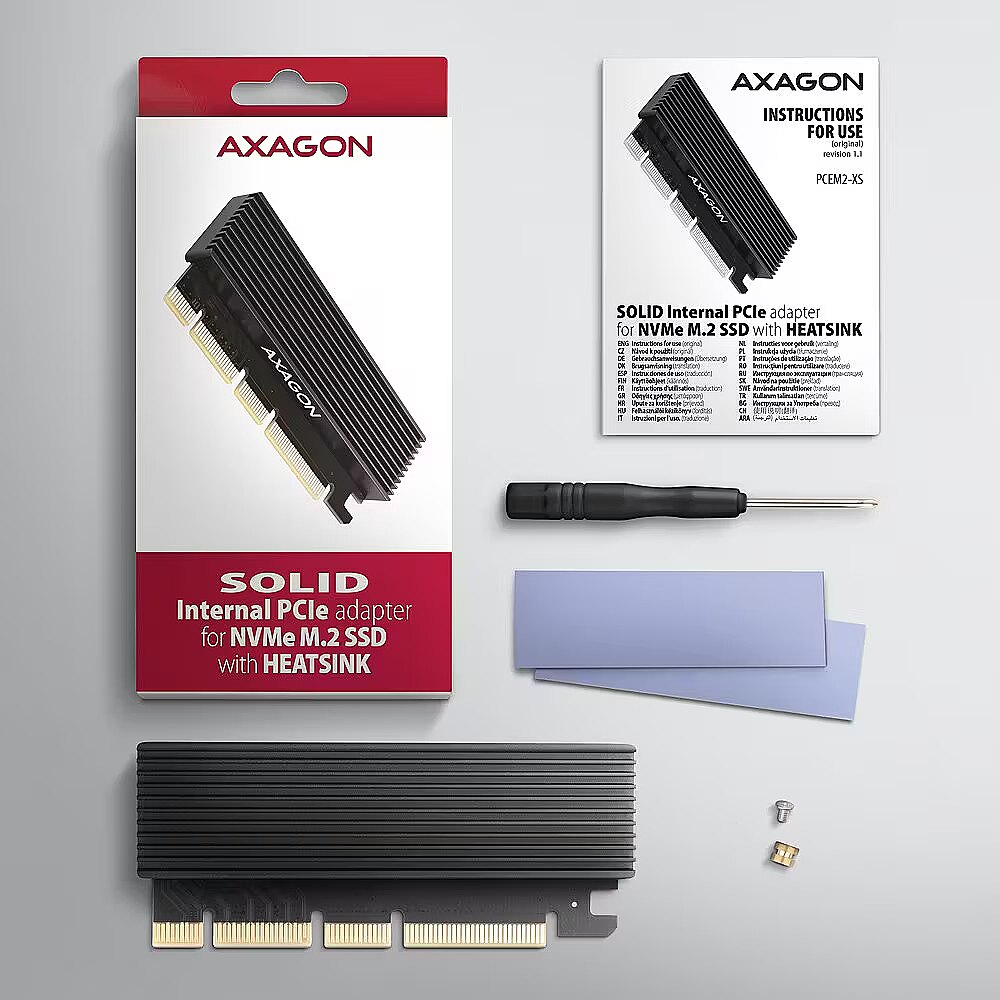

PCIe adapter for M.2 NVMe (PCI-Express) SSD with aluminum heat sink,
thermal conductive pads,
mounting kit and screwdriver,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box with a hanging hole.
Design - Certification - CE
Design - Cooling type - Passive
Design - Country of origin - China
Design - Easy to install - Yes
Design - Internal - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 10 mm
dimension height - 140 mm
Dimensions - 105 x 45 x 12 mm
dimension weight - 87 g
dimension width - 70 mm
Drive Cabinet Features - TRIM SupportBoot from Connected DiskPlug and Play
Drive Cabinet Type - Internal
EAN - 8595247907547
ean - 8595247907547
External Color - Melna
Features - Plug and Play - Yes
Form Factor - M.2
GTIN - 8595247907547
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250120210010617827.jpg
Included Accessories - • PCIe adapter for M.2 NVMe (PCI-Express) SSD with aluminum heat sink,
• thermal conductive pads,
• mounting kit and screwdriver
Interface - PCIe
Internal Data Interface - PCI-Express
Link - https://www.axagon.eu/en/produkty/pcem2-xs
LongDesc - The AXAGON PCEM2-XS internal adapter allows connecting an NVMe M.2 SSD disk to a desktop computer using a PCI-Express bus. Its high-quality workmanship, compact size, attractive design, and and sophisticated cooling make this adapter an ideal choice for upgrading a desktop computer not equipped with an M.2 slot.The adapter supports the use of single-sided and double-sided NVMe (PCI-Express) M.2 SSD drives. The reduction does not have a limit of SSD disk capacities and M.2 cards with dimensions of up to 22x80 mm can be used.Thanks to the PCI-Express interface, it is possible to achieve maximum transfer speeds. The LED indication indicates connection or data transfer in the M.2 slot. The adapter is equipped with a ribbed aluminum disc cover that serves as a passive heatsink. Thanks to the large cooling surface and supplied thermal pads, the cooler dissipates heat from both sides of the M.2 disk and thus achieves maximum cooling efficiency. This makes it ideal even for demanding PCIe 5.0 NVMe SSDs.Input:• PCI-Express interface, compatible PCI-Express versions: 5.0 / 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a.• Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots.Output:• NGFF 75-pin M-key slot to install an NVMe (PCI-Express) M.2 SSD disk.Other features:• Full Plug and Play support.• Support of M.2 disks of these sizes – 2230, 2242, 2260, and 2280 mm.• Support of M key or B+M key NVMe (PCI-Express) M.2 SSD disks without a maximum capacity limit.• Support of both one-sided and double-sided M.2 disks.• Better heat dissipation due to the coppered vents, heat-conductive pads, and aluminium cooler.• Support of booting from an SSD card.• Dimensions: 105 x 45 x 12 mm. • Weight 50 g. • No drivers need to be installed. Power:• The adapter is powered directly from the PCI-Express bus, no external power supply required.Supported OS:• Windows, Linux.• Note: When Windows 7 is used, the support of this OS must be checked with the M.2 SSD disk manufacturer.Package contains:• PCIe adapter for M.2 NVMe (PCI-Express) SSD with aluminum heat sink,• thermal conductive pads,• mounting kit and screwdriver,• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,• packed in a cardboard box with a hanging hole.
LongProductName - PCI-Express 3.0, 8 GB/s, 75-pin M.2 M-key
LongSummaryDescription - Axagon PCEM2-XS. Host interface: PCIe, Output interface: M.2, Host interface gender: Male. Product colour: Black, Cooling type: Passive, Country of origin: China. Width: 105 mm, Depth: 45 mm, Height: 12 mm. Quantity per pack: 1 pc(s), Package width: 140 mm, Package depth: 67 mm
M.2 - 1 (M.2 (Key M));
Model - PCEM2-XS
name - AXAGON PCEM2-XS PCI-E 3.0 16x - M.2 SSD NVMe, 80 mm SSD - low profile
Name - AXAGON PCI-Express x16 adapter with cooler for connecting an NVMe M.2 SSD drive to a computer | PCEM2-XS
name - PCEM2-XS adapter intern al x16 M.2 heatsink NVM
Number of bays - 1
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 140.00 mm
Package features > Gross height (mm) - 16.00 mm
Package features > Gross width (mm) - 67.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 11514 pc(s)
Package features > Paper/Pasteboard - 24.00 g
Package features > Plastic (No PET) - 6.00 g
Package features > Tare weight (kg) - 0.03 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Manual - Yes
Packaging data - Package depth - 67 mm
Packaging data - Package height - 16 mm
Packaging data - Package type - Hanging box
Packaging data - Package weight - 80 g
Packaging data - Package width - 140 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 90
Pack Weight Brutto (kg) - 0.8 kg
Pack Weight Netto (kg) - 0.8 kg
Pieces in pack - 1
Ports - 1 x M.2 PCIe
Ports & interfaces - Expansion card form factor - Low-profile
Ports & interfaces - Expansion card standard - PCIe 5.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Host interface gender - Male
Ports & interfaces - Number of M.2 (M) slots - 1
Ports & interfaces - NVMe - Yes
Ports & interfaces - Output interface - M.2
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=231129072214649360&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - PCEM2-XS
ProductDescription - AXAGON PCEM2-XS PCI-E 3.0 16x - M.2 SSD NVMe, up to 80mm SSD, low profile, heatsink
ProductName - PCEM2-XS
Product Net Weight - 0.05 kg
ProductType - Adaptors
Provides Internal Drive Bay Dimension - M.2 (2280)
Requires Operating System - LinuxWindows
Retail Packaging Net Weight Carton - 8 kg
Retail Packaging Net Weight Plastic - 0.9 kg
ShortSummaryDescription - Axagon PCEM2-XS, PCIe, M.2, Male, Low-profile, PCIe 5.0, Black
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.08 kg
Technical details > Net weight - 0.05 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - PCI-Express x16 adapter with cooler for connecting an NVMe M.2 SSD drive to a computer
Technical details > Producer product name - PCEM2-XS
Title - Axagon PCEM2-XS interface cards/adapter Internal M.2
Unit Box Height - 0.14
Unit Box Length - 0.015
Unit Box Width - 0.07
Unit Calculated Volume - 0.000147 cubm
Unit Calculated Weight - 0.08 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/pcem2-xs
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/pcem2-xs?ami=220
vendpn - PCEM2-XS
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 50 g
Weight & dimensions - Depth - 45 mm
Weight & dimensions - Height - 12 mm
Weight & dimensions - Weight - 50 g
Weight & dimensions - Width - 105 mm
