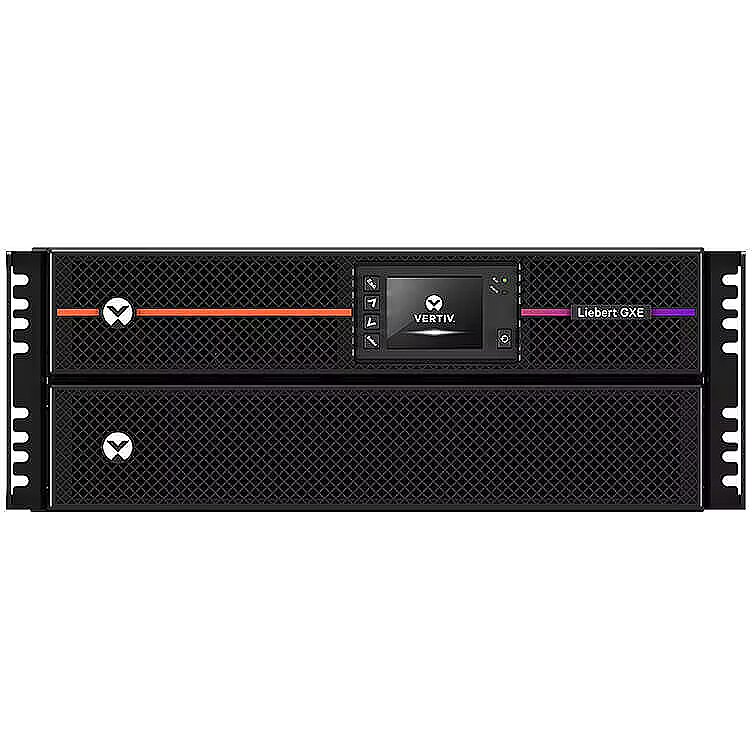

Vertiv GXE UPS 6KVA

Accessories included - Liebert GXE UPS Quick Installation Guide Safety instructions Adjustable 4-point rack mounting kit Rack mounting brackets/hardware USB type A-B cable (1.2 m) Stabiliser feet for free-standing configuration Free Vertiv Power Assist software for local status and UPS shutdown management or VertivPower Insight for remote network management
Active power - 6000 W
Apparent power - 6 kVA
Backup time (100% load) - 5 min
Battery - Battery life (max) - 5 year(s)
Battery - Battery technology - Sealed Lead Acid (VRLA)
Brand - Vertiv
BrandPartCode - GXE3-6000IRT4UXL
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, UKCA, Morocco, RCM, CB report, EAC
Certificates - Compliance certificates - REACH, RoHS, WEEE
Charging time - 3 h
Chassis type - Desktop
Chassis type - Rack
Color - Black
Description - The Vertiv Liebert GXE UPS is a cost-effective and efficient online double-conversion solution that provides power protection and deployment and operational flexibility. The unit output power factor (1.0) of the Liebert GXE single-phase UPS provides continuous and reliable power to a larger number of connected devices, protecting them from multiple AC mains disturbances thanks to online double conversion technology and input surge protection. The high performance of the mains operation and eco mode of the economical UPS also provides energy and operating cost savings. Available in 6 or 10 kVA power ratings, it provides the flexibility to be installed in both stand-alone and rack-mounted versions, along with mission-critical IT equipment for any application. In addition, the ability to expand with external battery enclosures provides scalable back-up time for applications requiring extended back-up time in the event of AC mains failure. In addition to extended battery runtime, the unit is equipped with multiple monitoring options, making the compact UPS provide best-in-class power protection for equipment deployed at the network edge or at remote sites.
Design - Display type - LCD
Design - Form factor - Tower
Design - Product colour - Black
Design - Rack capacity - 4U
Designation - CE+WEEE
dimension depth - 330 mm
dimension height - 670 mm
Dimensions - 430 x 750 x 173 mm
dimension weight - 171500 g
dimension width - 870 mm
ean - 767041035094
Environment requirements - Operating temperature (°C) 0 to 40°C Storage temperature (°C, without battery inside) -20°C to +70°C  Relative humidity (operating, non-condensing) 5% to 95% Maximum operating altitude (m), not derated 2000 Audible noise level (linear mode)
Features - Audible alarm(s) - Yes
Features - Efficiency (ECO mode) - 98%
Features - Efficiency (On-line mode) - 94%
Features - Emergency Power Off (EPO) - Yes
Features - EMI/RFI noise filtering - 55 dB
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 288 V
Features - Input operation voltage (min) - 178 V
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 6000 W
Features - Output power capacity - 6 kVA
Features - Power protection features - Overload
Features - Surge energy rating - 600 J
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
Filters / protection - No
GTIN - 0767041035094
GTIN - 767041035094
guarantee - 24
guarantee_type - external
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - Input terminal
Logistics data - Country of origin - China
LongDesc - "The Vertiv Liebert GXE UPS is an affordable, efficient UPS designed for delivering best-in-class power protection to equipment at the edge of networks or in remote sites. This 6000 VA UPS offers online double conversion solution. Its unity output power factor (1.0) enables continuous and reliable power to more connected devices. The high efficiency in both online and ECO modes of operation (up to 98% in ECO mode) for this already affordable UPS further drives energy and operational costs savings. Additional external battery cabinets provide scalable runtime for those applications requiring longer period of backup in case of AC mains failures. This single-phase UPS can be mounted as a tower or placed inside a rack cabinet, with a gravity sensing LCD display to allow rack/tower configurations. It has remote management capability with optional network management cards. With proven reliability, it is ideal for critical applications in financial, government, and manufacturing industries."
LongProductName - Liebert GXE UPS 6kVA/6kW 230V Online Double Conversion Rack/Tower UPS
LongSummaryDescription - Vertiv Liebert GXE3-6000IRT4UXL. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 6000 W. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Rack capacity: 4U. Compliance certificates: REACH, RoHS, WEEE, Certification: CE, UKCA, Morocco, RCM, CB report, EAC. Cables included: USB cable
name - UPS GXE3-6000IRT4UXL 6000 VA/6000 W 230V 4U
No. of batteries - 1
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features -
Output power ports - Output terminals
Packaging content - Cables included - USB cable
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 800 mm
Packaging data - Package height - 530 mm
Packaging data - Package weight - 102 kg
Packaging data - Package width - 600 mm
Ports & interfaces - USB port - Yes
producer - Vertiv
ProductName - GXE3-6000IRT4UXL
ShortSummaryDescription - Vertiv Liebert GXE3-6000IRT4UXL, Double-conversion (Online), 6 kVA, 6000 W, Pure sine, 178 V, 288 V
Software - Free Vertiv Power Assist software for local status and UPS shutdown management or VertivPower Insight for remote network management
Special functions -
The shape of the output voltage - Full sine wave
Title - Vertiv Liebert GXE3-6000IRT4UXL uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W
UPS Architecture - on-line double conversion
URL - https://www.vertiv.com/en-us/
vendpn - GXE3-6000IRT4UXL
Voltage - 230 V
WarrantyInfo - 2 Year
Weight - 70 kg
Weight & dimensions - Depth - 700 mm
Weight & dimensions - Height - 217 mm
Weight & dimensions - Weight - 80 kg
Weight & dimensions - Width - 430 mm
