Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - Gigabyte
BrandPartCode - B760 DS3H AX
category - Mainboards Intel Mainboards
Category - Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
code - B760 DS3H AX
Code - B760 DS3H AX
Description - - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Hybrid 8+2+1 Phases Digital VRM Solution - Dual Channel DDR5:4*DIMMs XMP Memory Module Support - Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors - EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design - Fast Networks:GbE LAN & Wi-Fi 6E 802.11ax - Extended Connectivity:Rear USB-C® 20Gb/s, DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
DisplayPort Input/Output connectors - 1
EAN - 4719331852757
ean - 4719331852757
EAN_code - 4719331852757
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 slots - 5
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Form Factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|2xRF-Out|SATA|Bluetooth|WiFi|Video|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.20 kg
GTIN - 4719331852757
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B760-DS3H-AX-rev-1x#kf
LongDesc - UNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.8+2+1 Phases Hybrid Digital VRM Design- 8+2+1 Phases Low RDS(on) MOSFETs- Premium Choke and Capacitors to improve transient response and minimize oscillationGIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.Shielded Memory RoutingAll memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.Impedance Optimized TopologyBy optimizing memory trace width, length and style from HPC simulation to actual implementation, overall impedance is lowered between CPU memory controller and memory modules to achieve higher DDR5 speed.Low Signal Loss PCBServer grade mid-loss or low-loss PCB material is chosen to lower signal loss inside PCB and maintain DDR5 high speed signal transmission.GIGABYTE PerfDrivePerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.Smart Fan 6 BIOS UI1. Improve fan curve UIWe increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.2. Slope/Stair dual graph modeFan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.3. Manual InputFor advanced users, we provide fan speed manual input for more precise control.4. EZ TuningUse can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.5. Fan curve profileFan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.CONNECTIVITYGIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.802.11ax Wi-Fi 6ELatest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmissionBenefit of Wi-Fi 6E1. Dedicated spectrum in 6GHz band for less interference2. 5.5X throughput than 802.11ac 1x13. 4X better network capacity, no traffic jams especially in those dense area with lots of devices4. Network efficiency increase for better user experienceGbE LAN with Bandwidth ManagementGbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.Connecting the Future - USB 3.2 Gen 2x2 Type-C®Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.RGB Fusion Multi-Zone Light Show DesignNow offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.Friendly User InterfaceThe EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.My FavoritesAdd constantly used items into the favorite menu for quick access.Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.- Unified software platform for all Gigabyte supported products- Intuitive user interface for an eased experience- Modularized control components only for installed hardware- Auto update function to keep system up to date and support future productsMulti-KeyA multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.- RGB SwitchTurn off all lighting effect on motherboard.- Direct-To-BIOSBoot into BIOS menu directly without pressing any keyboard button.- Safe ModeBoot into BIOS safe mode to change specific option without losing other BIOS settings.PCIe EZ-LatchUnlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.Q-Flash PlusUpdate the BIOS easily without installing the CPU, memory and graphics card.With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
LongProductName - ATX, LGA 1700 socket, Intel B760 Express chipset, 4x DDR5 DIMM, Wi-Fi 6E, Bluetooth 5.3, AMI UEFI BIOS
LongSummaryDescription - Gigabyte B760 DS3H AX. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer_code - B760 DS3H AX
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory slots - 4
Memory type - DDR5
Model - B760 DS3H AX 1.1
name - GIGABYTE B760 DS3H AX, Intel B760 Mainboard - Sockel 1700, DDR5
Name - GIGABYTE B760 DS3H AX - Socket 1700 - motherboard
Name - Gigabyte B760 DS3H AX 1.x M/B Processor family Intel Processor socket LGA1700 DDR5 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel B760 Express ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 350.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 4
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel B760 Express
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer product name - B760 DS3H AX 1.x M/B
ProductName - B760 DS3H AX
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10

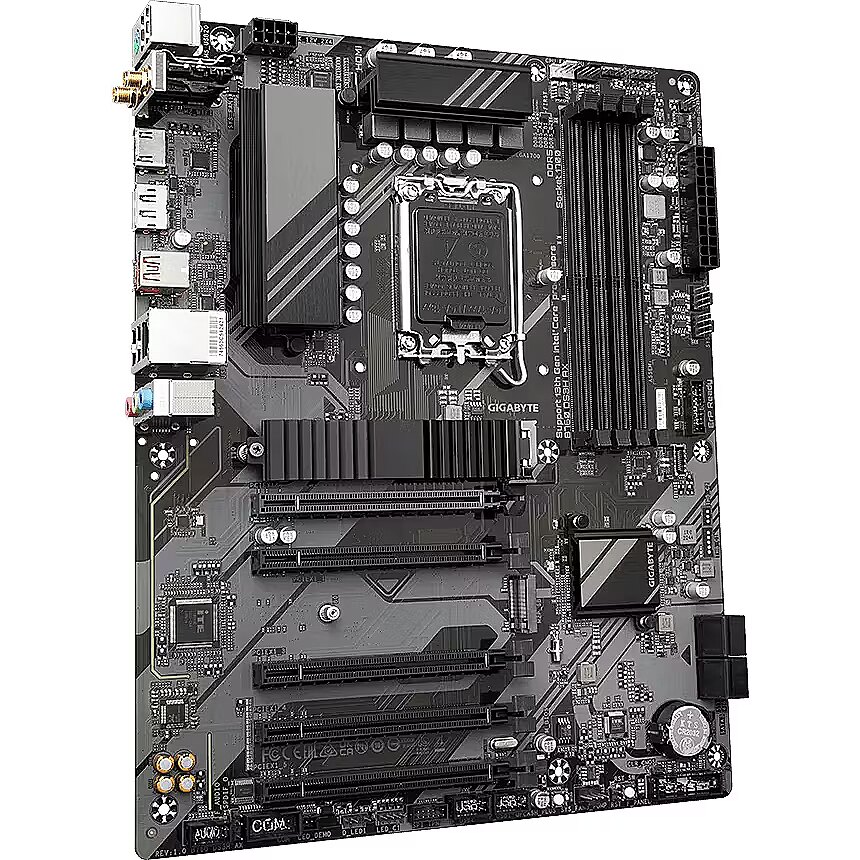

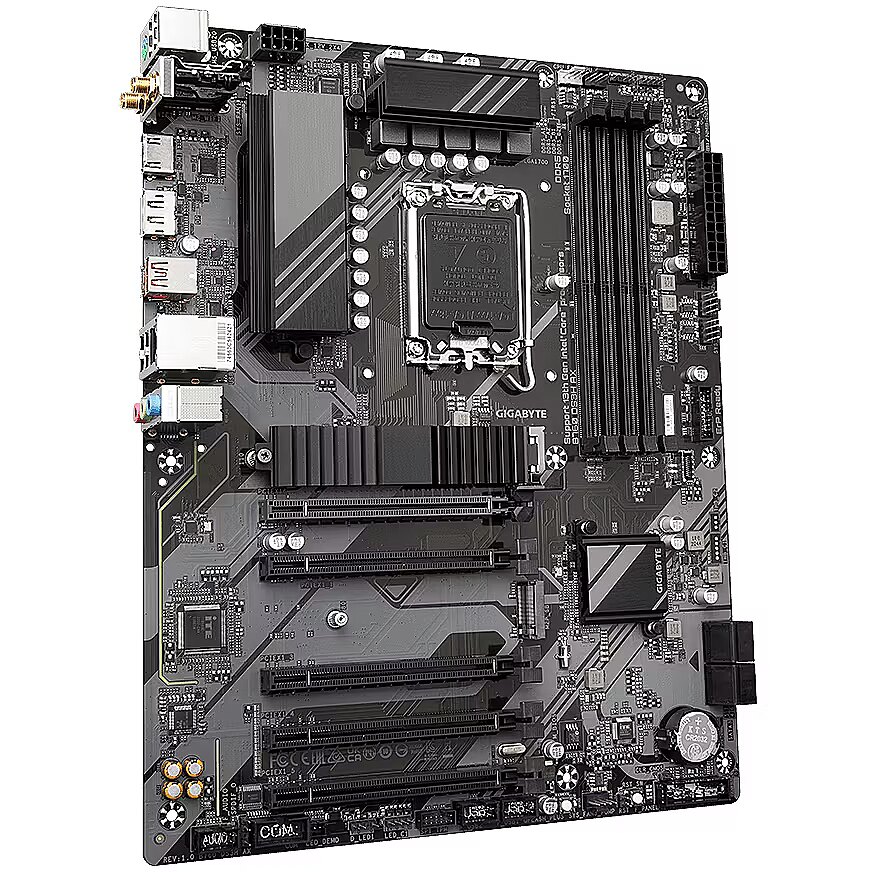

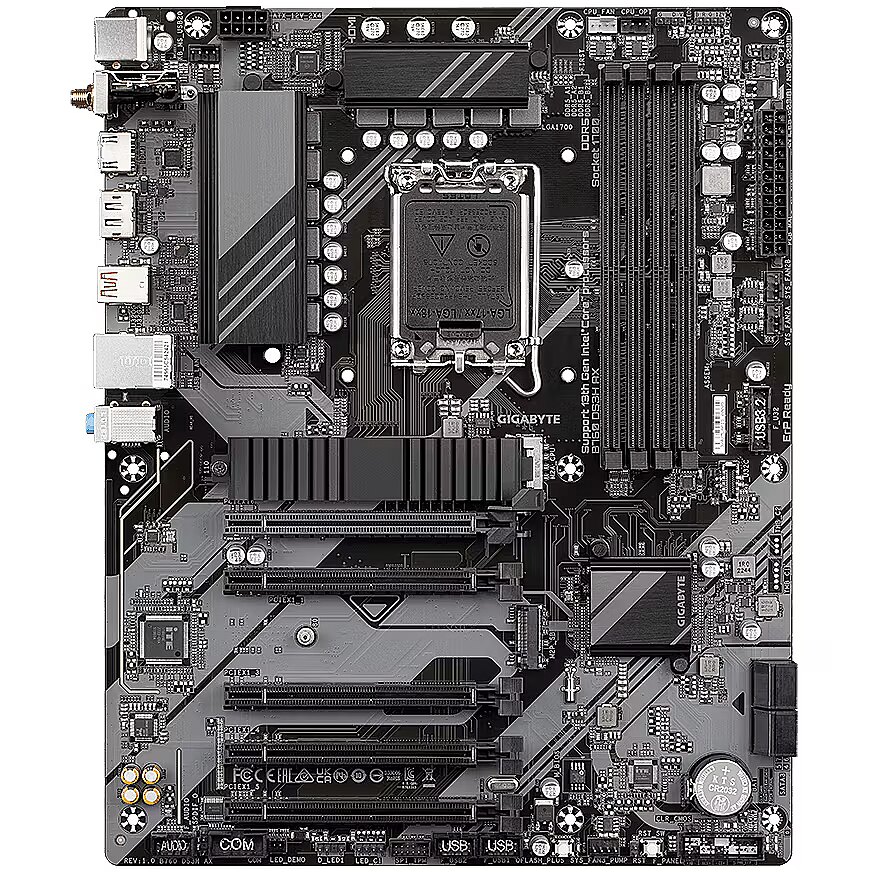

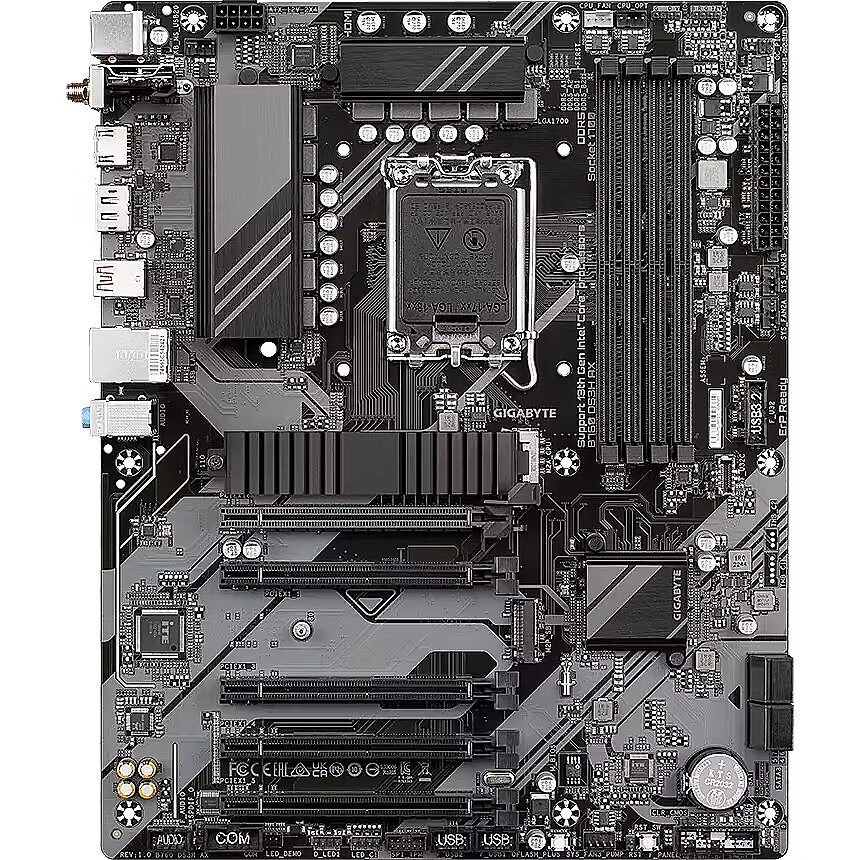

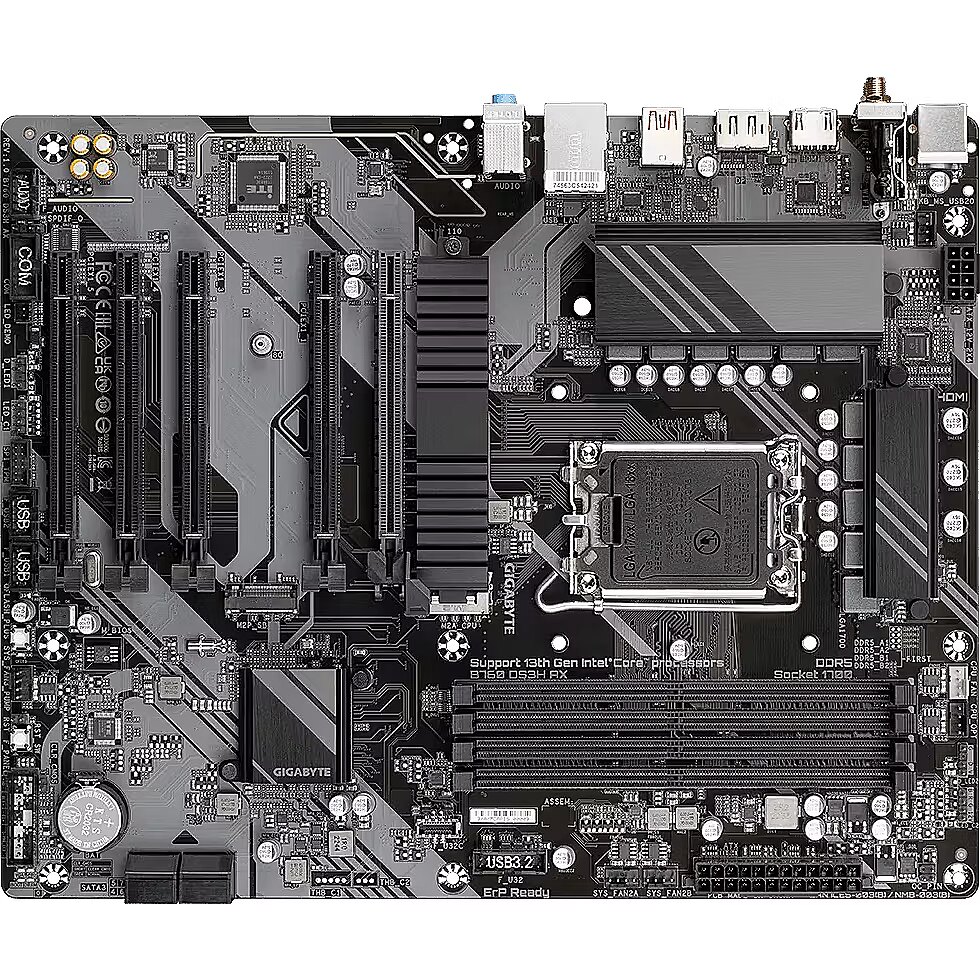

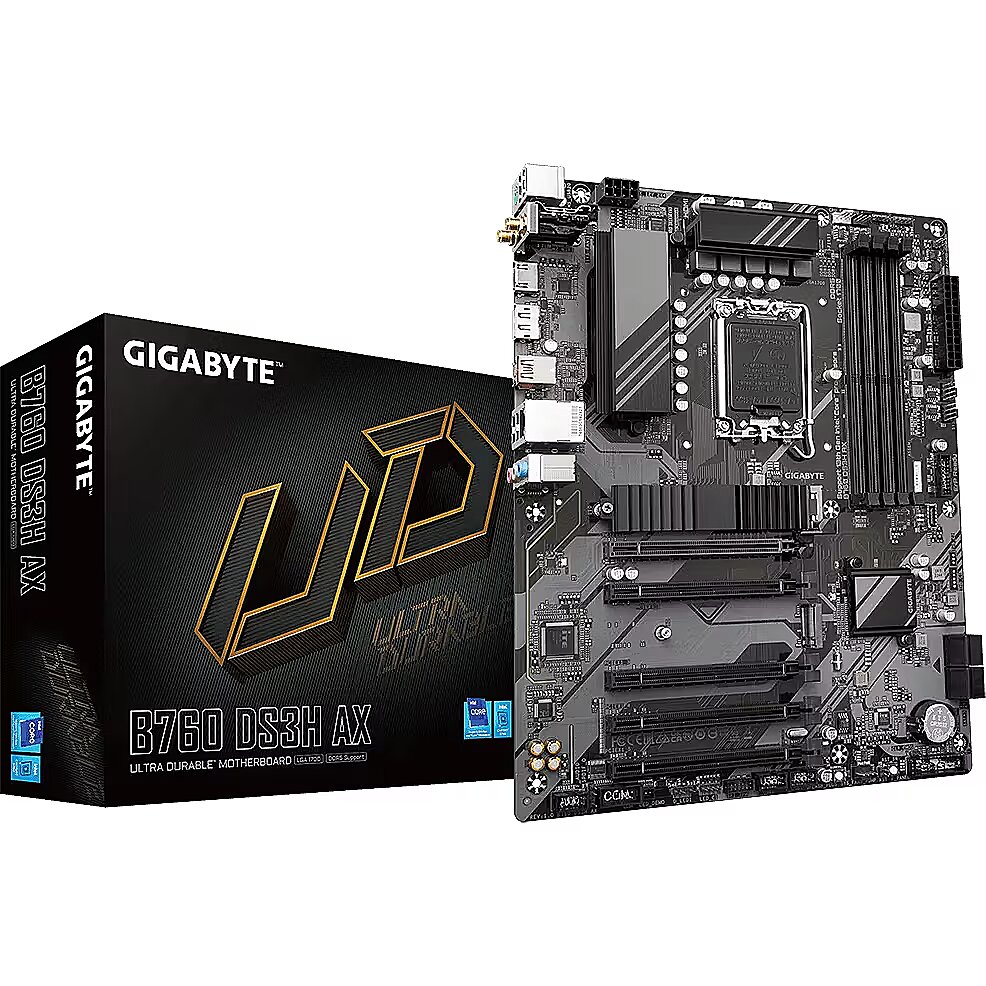

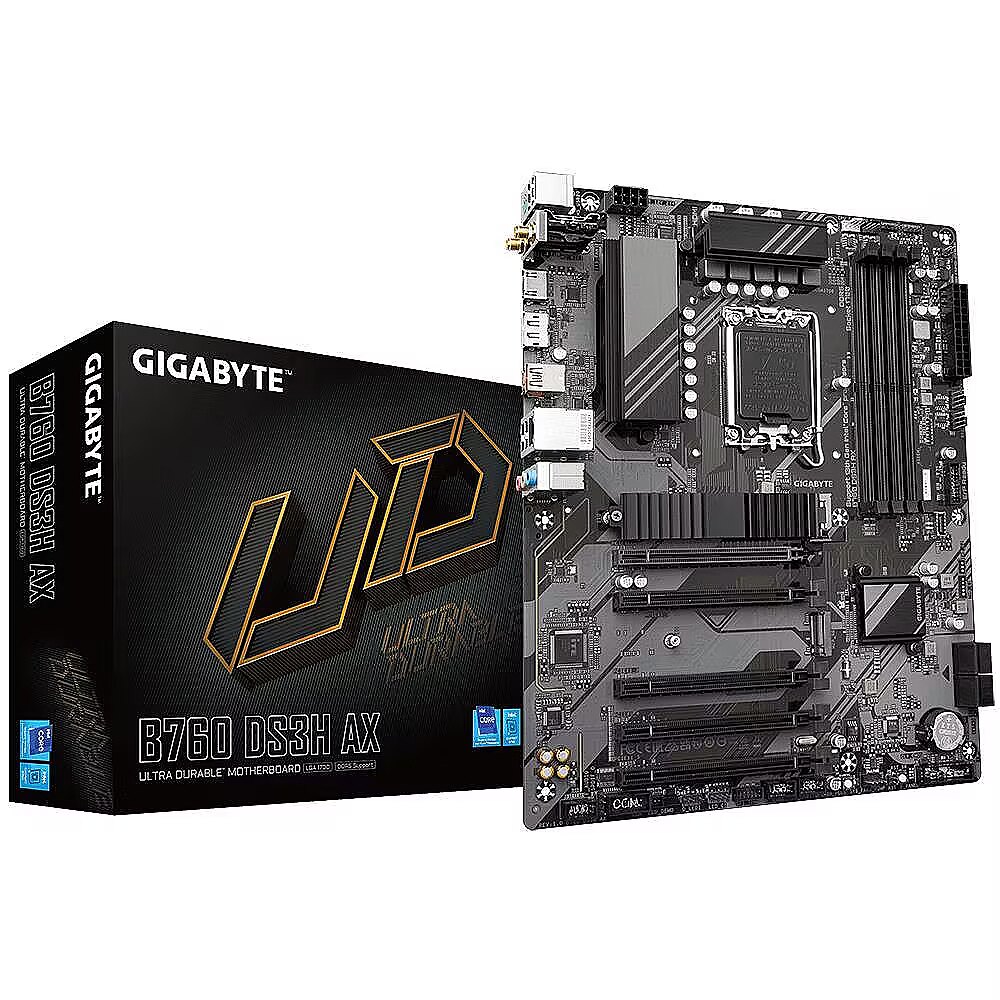

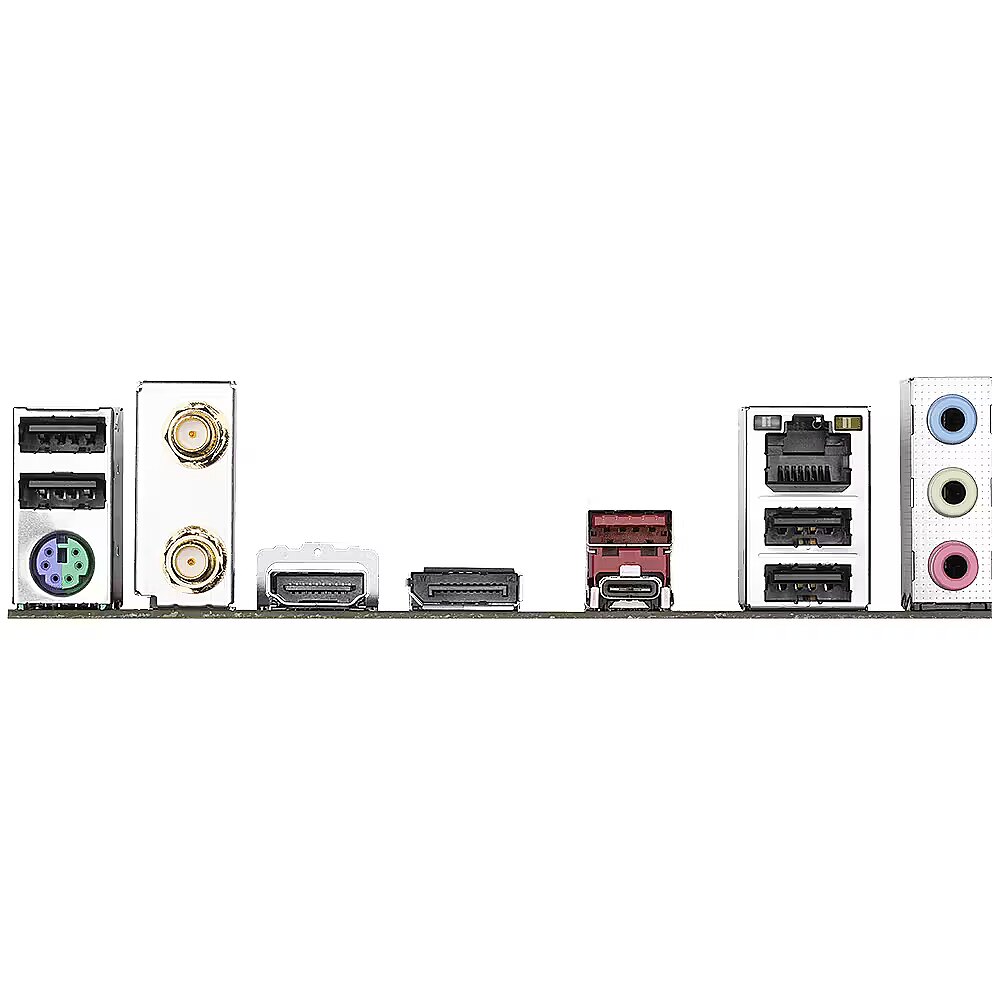

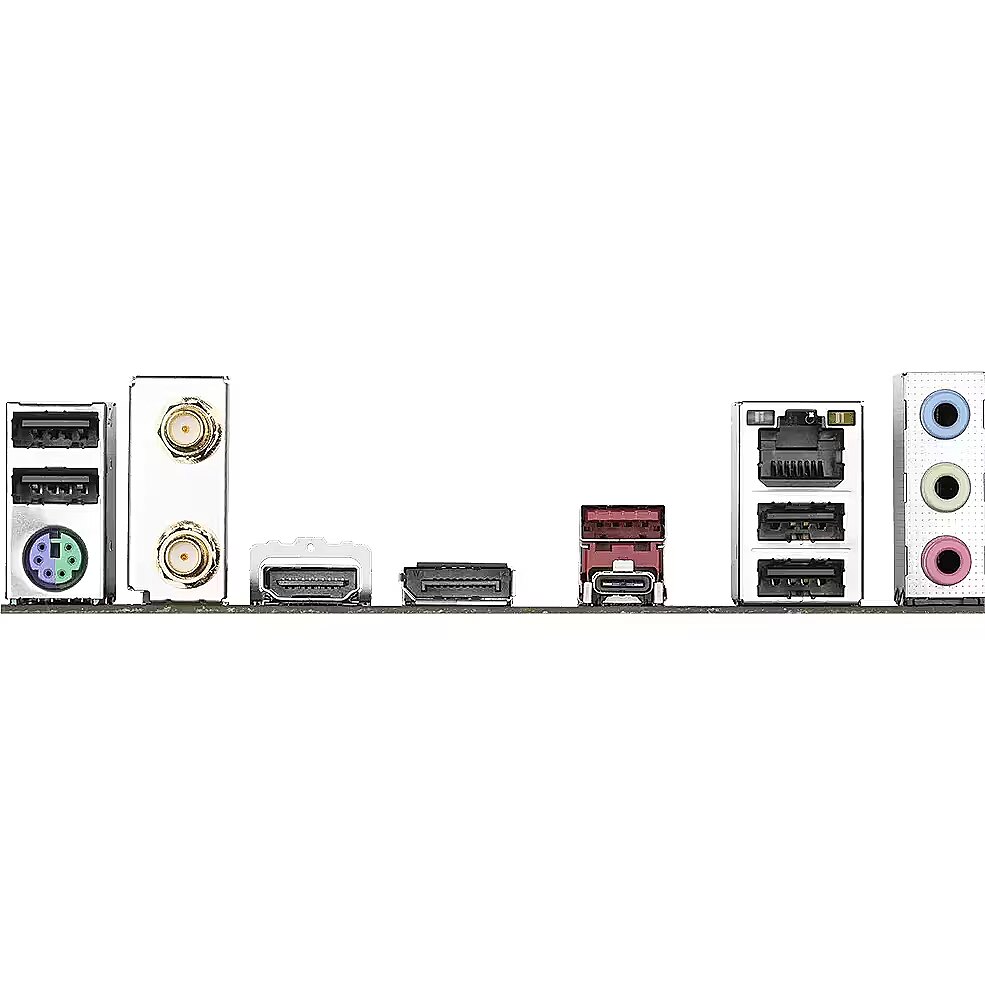

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RF-Out Input/Output connectors - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 8.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.35 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortSummaryDescription - Gigabyte B760 DS3H AX, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
Socket - LGA1700
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.00 kg
Title - Gigabyte B760 DS3H AX motherboard Intel B760 Express LGA 1700 ATX
TPM - Header
Unit Box Height - 0.085
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.007803 cubm
Unit Gross Weight - 1.35 kg
Unit Net Weight - 0.9 kg
URL - https://www.gigabyte.com/Motherboard/B760-DS3H-AX-rev-1x
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 1
Vendor Homepage - www.gigabyte.com/Motherboard/B760-DS3H-AX-rev-1x
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 1,30
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
