Accessories included -
Audio port Input/Output connectors - 5
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1BJ0-M0EAY0
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD X670
Chipset manufacturer - AMD
Chipset type - AMD X670
CnCode CnCode - 84733020
code - 90MB1BJ0-M0EAY0
Code - 90MB1BJ0-M0EAY0
COM connector / port - Yes
CPU socket - Socket AM5
Description - ASUS TUF GAMING X670E-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Description - Gamingowa płyta główna formatu ATX AMD AM5 X670E (Ryzen 7000), 16 zgrupowanych stopni zasilania, PCIe 5.0, pamięć DDR5, cztery gniazda M.2, Realtek 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, złącze USB 3.2 Gen 2 TypeC do panelu przedniego, SATA 6 Gb/s, gniazdo Thunderbolt (USB4) i oświetlenie Aura Sync RGB Gniazdo AMD AM5:kompatybilne z procesorami desktopowymi AMD Ryzen z serii 7000 Udoskonalony układ zasilania: zgrupowane stopnie zasilania w konfiguracji 14+2, ośmiowarstwowa płytka drukowana, 8+8 gniazd ProCool, dławiki ze stopu metalu i wytrzymałe kondensatory dla stabilnego dostarczania zasilania Połączenia następnej generacji: PCIe 5.0, USB 3.2 Gen2x2 Type-C, złącze USB 3.2 Gen 2 Type-C do panelu przedniego, obsługa złącza Thunderbolt (USB4) Stworzona pod kątem rozgrywki: Realtek 2,5 Gb Ethernet i TUF LANGuard Dwukierunkowa redukcja szumów wspomagana SI: redukuje szumy z tła z sygnałów mikrofonu i wyjścia dźwiękowego, zapewniając krystalicznie czystą komunikację głosową podczas rozgrywki i wideokonferencji Zaawansowany układ chłodzenia: powiększone radiatory układów VRM i PCH, radiatory gniazd M.2, hybrydowe gniazda na wentylatory oraz oprogramowanie narzędziowe Fan Xpert 4 w Armoury Crate Efekty oświetlenia Aura Sync RGB: stylowe oświetlenie krawędzi, adresowalne gniazda na oświetlenie RGB i obsługa podłączania pasków świetlnych RGB.
Detailed data on disk/drive interfaces - Łącznie obsługuje 4 gniazda M.2 i 4 porty SATA 6 Gb/s*
Procesory do komputerów stacjonarnych AMD Ryzen z serii 7000 Gniazdo M.2_1 (Key M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4) Gniazdo M.2_3 (Key M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x4) Chipset AMD X670 Gniazdo M.2_2 (Key M), typ 2242/2260/2280/22110 (obsługuje tryby PCIe 3.0 x4 i SATA)** Gniazdo M.2_4 (Key M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x4) 4 porty SATA 6 Gb/s *Technologia AMD RAID Xpert obsługuje zarówno NVMe RAID 0/1/10, jak i SATA RAID 0/1/10.
** Gniazdo M.2_2 współdzieli przepustowość z SATA6G_1&2. Gdy M.2_2 działa w trybie PCIe x4, SATA6G_1&2 zostanie wyłączony.
dimensionalWeight - 1309
dimension depth - 68 mm
dimension height - 270 mm
Dimensions - 30,5 x 24,4 cm
dimension weight - 1930 g
dimension width - 337 mm
DisplayPort Input/Output connectors - 1
EAN - 4711081905608
ean - 4711081905608
Eans - 4711081905608
EAN_code - 4711081905608
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x4 slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.1 Type-C
External connectors - 3 x USB 3.1
External connectors - 5 x USB 3.0
Features - Audio chip - Realtek S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X670
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz
Full Description Line - AMD X670|SAM5|ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|8xUSB 3.2|2xUSB-C|1xRJ45|5xAudio port|USB 2.0|USB 3.2|SATA 3.0|Video Depending on CPU|Audio|LAN 2.5 Gigabit
Graphics - 1 port DisplayPort 1 port HDMI Obsługuje max. 8K@60Hz, jak określono w DisplayPort 1.4. Obsługuje 4K@60Hz, jak określono w HDMI 2.1.
Graphics - Maximum resolution - 7680 x 4320 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.30 kg
Gross Weight Kg - 1,5
GTIN - 4711081905608
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x670e-plus/
LongDesc - ASUS TUF GAMING X670E-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLComprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING X670E motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Overclocking TechnologiesWhether you’re looking to crush benchmarks or fine-tune your system for daily driving, TUF GAMING offers unique tools that let you exploit the intricacies of the latest Ryzen architecture.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.AI Cooling IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.Armoury CrateThe ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING X670E-PLUS is the perfect foundation for your next high-core-count AMD battle rig.Teamed Power Stages14+2 power stages are each rated to handle 70 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.Eight-Layer PCB DesignThe multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.8+8 PIN ProCool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.TUF ComponentsTUF ChokesCertified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.TUF CapacitorsThe TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.DRAM Overclocking PerformanceDDR5 OC 6400Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the TUF GAMING X670E-PLUS, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.PCIe 5.0 SupportThe TUF GAMING X670E-PLUS also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe and SATA RAID configurations to take advantage of the latest available speeds.Cooler By DesignThe TUF GAMING X670E-PLUS is armed with a 3X enlarged VRM, PCH and three M.2 slots with heatsinks that provide the perfect balance of mass and surface area for heat dissipation.Comprehensive Fan ControlsTUF GAMING X670E motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.A dedicated header supplies more than 3 amps* for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.*AIO Pump header supports 1 amp, and Water Pump+ header supports 3 amps.A dedicated integrated circuit protects each fan header from excess heat and electrical currents.All onboard chassis fan headers support auto-detection of PWM or DC fans.ConnectivityThe TUF-GAMING X670E-PLUS reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.EASY PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Build With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.SafeSlot Core+ & SafeDIMMPCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.Stainless Steel Back I/O PanelTUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.M.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.Removable Captive ScrewsSpecialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.IMMERSIVE GAMINGTUF GAMING X670E motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.2.5 Gb Ethernet2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.Two-Way AI Noise CancelationThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.Realtek 7.1 Surround SoundS1220A CodecTUF GAMING X670E series utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.DTS Audio ProcessingDTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.Outshine The CompetitionA well-tuned system deserves a matching aesthetic. TUF GAMING X670E series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.Addressable Gen 2 RGB HeaderThree addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.THIS CHANGES EVERYTHINGFROM THIS NEW PLATFORM,YOU CAN SEE THE FUTUREBuild your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
LongProductName - TUF GAMING X670E-PLUS Mainboard Sockel AMD AM5 (Ryzen 7000, ATX, PCIe 5.0, DDR5-Speicher, 4x M.2, USB 3.2 Gen 2x2 Typ-C, Aura Sync)
LongSummaryDescription - ASUS TUF GAMING X670E-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - Asus
Manufacturer Code - 90MB1BJ0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB1BJ0-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 6400 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - TUF GAMING X670E-PLUS
Model - TUF GAMING X670E-PLUS
Name - ASUS TUF GAMING X670E-PLUS
name - ASUS TUF Gaming X670E-Plus, AMD X670E-Mainboard - Sockel AM5
Name - ASUS TUF GAMING X670E-PLUS, Motherboard - AM5
Name - Asus | TUF GAMING X670E-PLUS | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD X670 | ATX
name - Motherboard TUF GAMING X670E-PLUS AM5 4DDR5 HDMI ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 6
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB 3.1
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Packaging content - Cables
2 x SATA 6Gb/s cables
Miscellaneous
2 x Rubber packages for M.2
2 x Screw packages for M.2 SSD
Documentation
1 x TUF certification card
1 x User guide
Other features - Special features - TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 314 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 2.35 kg
Packaging data - Package width - 338 mm
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - AMD X670
Performance > Motherboard form factor - ATX
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Compatible processor series - Supports AMD Ryzen 7000 Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
producer - Asus
Producer - Asus
producerCode - 90MB1BJ0-M0EAY0
ProducerCode - TUF GAMING X670E-PLUS
Producer product name - TUF GAMING X670E-PLUS
productName - ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ProductName - TUF GAMING X670E-PLUS
productSize - Normal
RAID - Yes

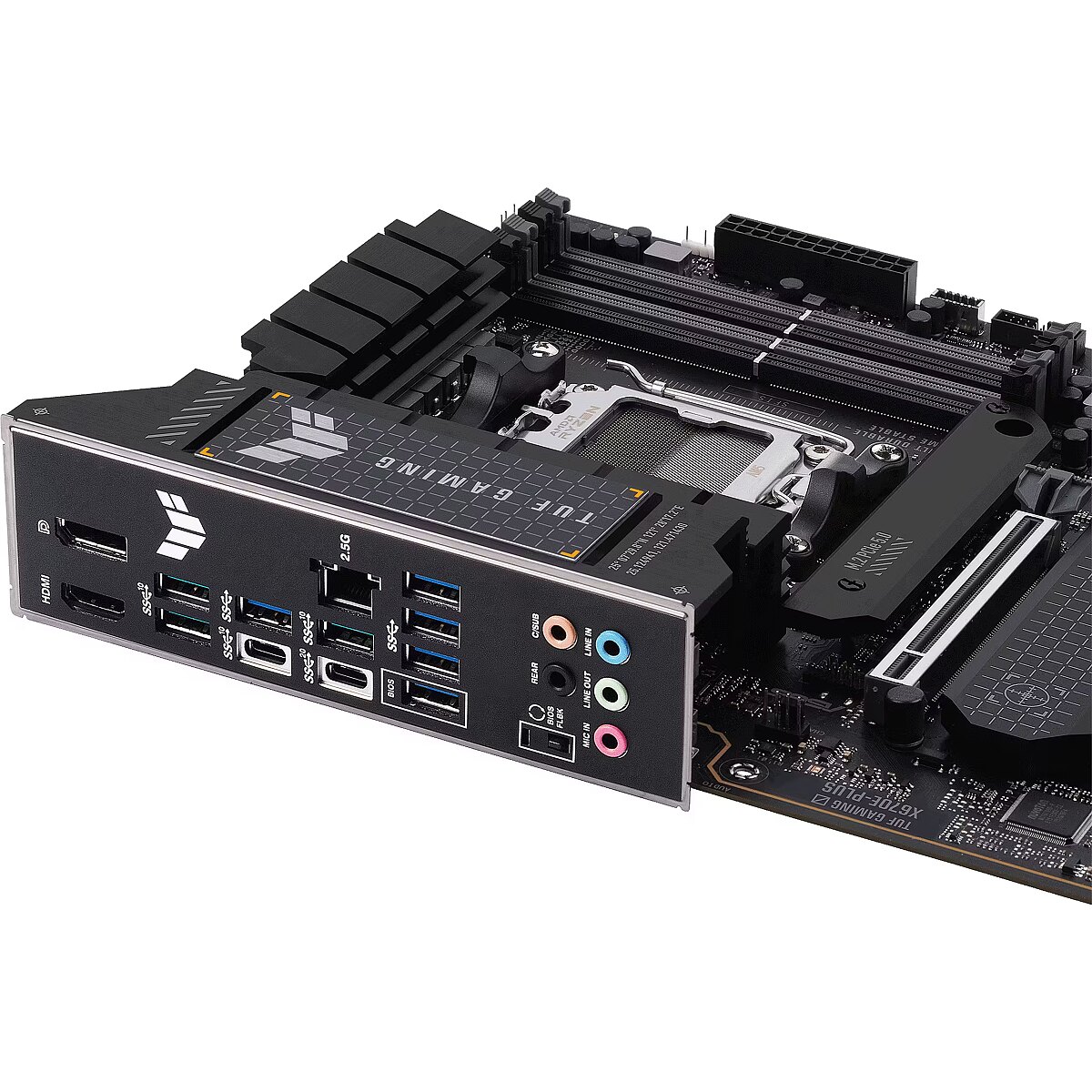

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.93 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm

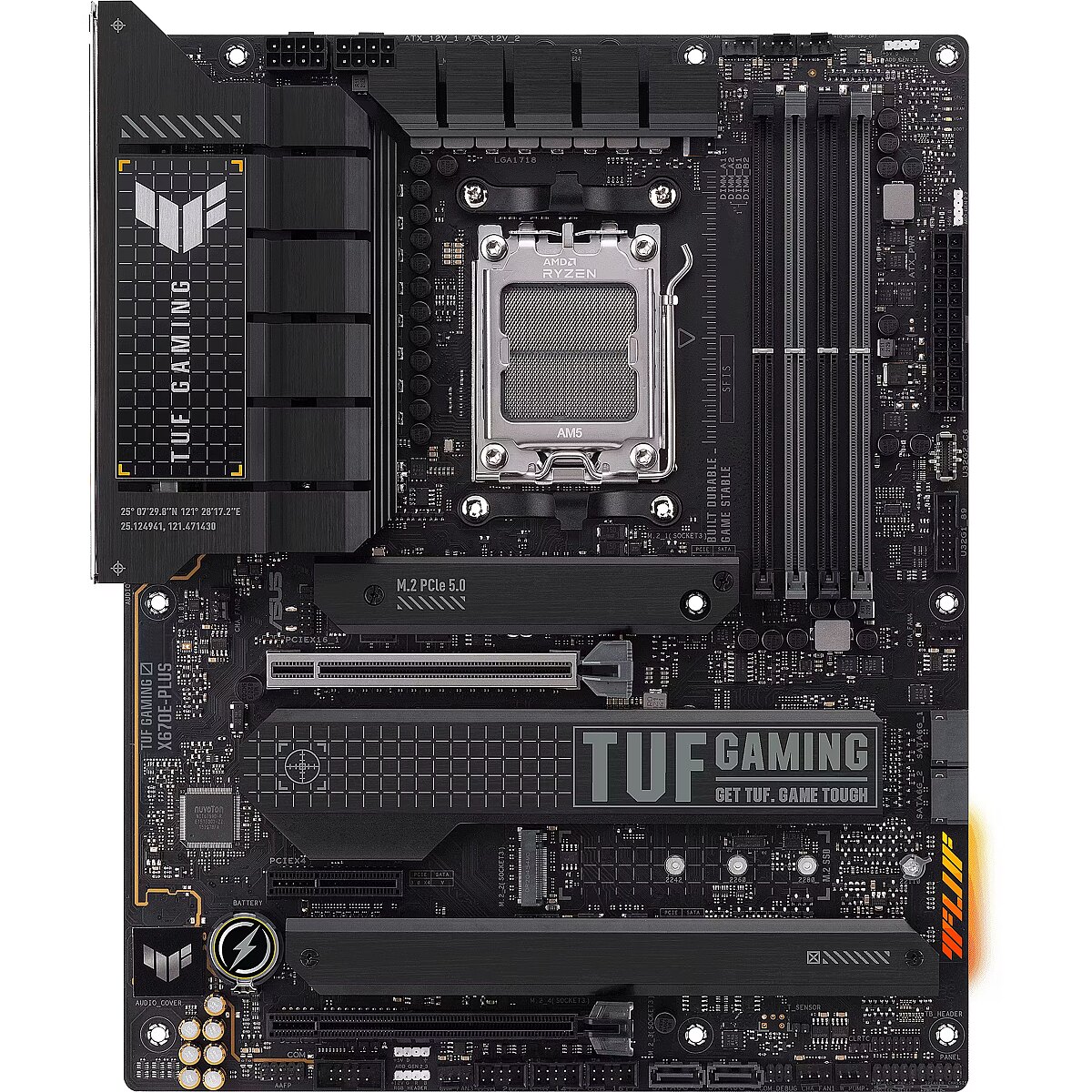

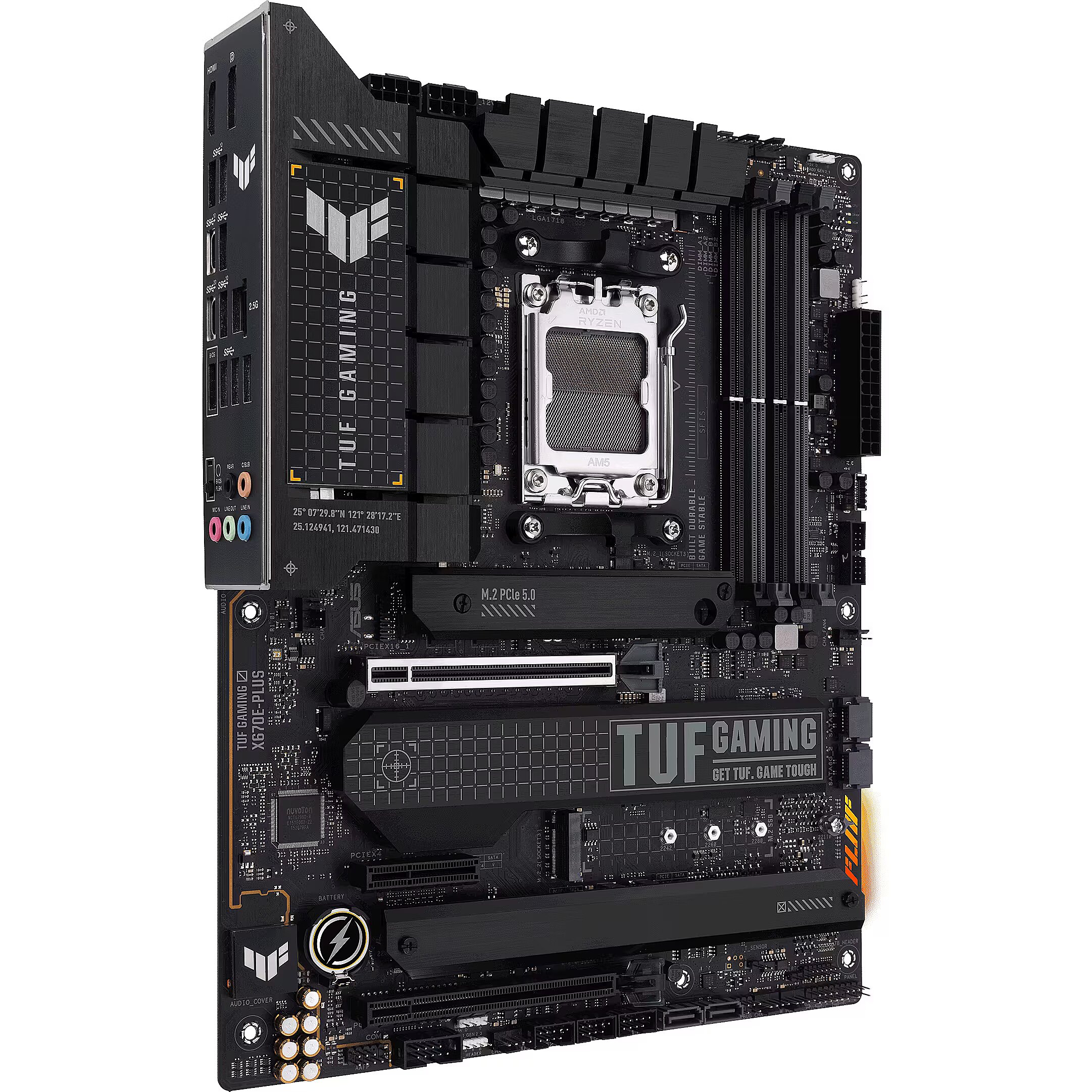

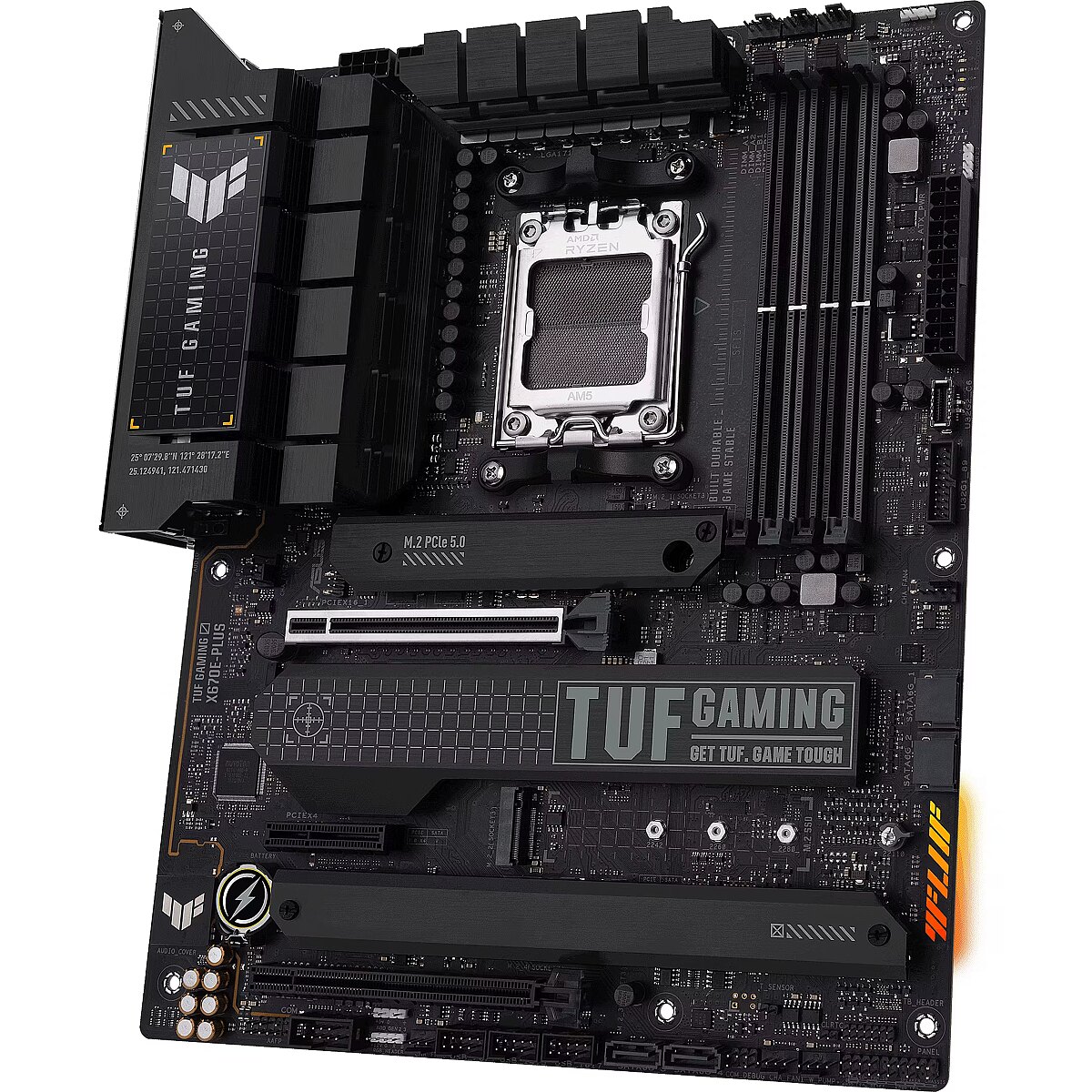

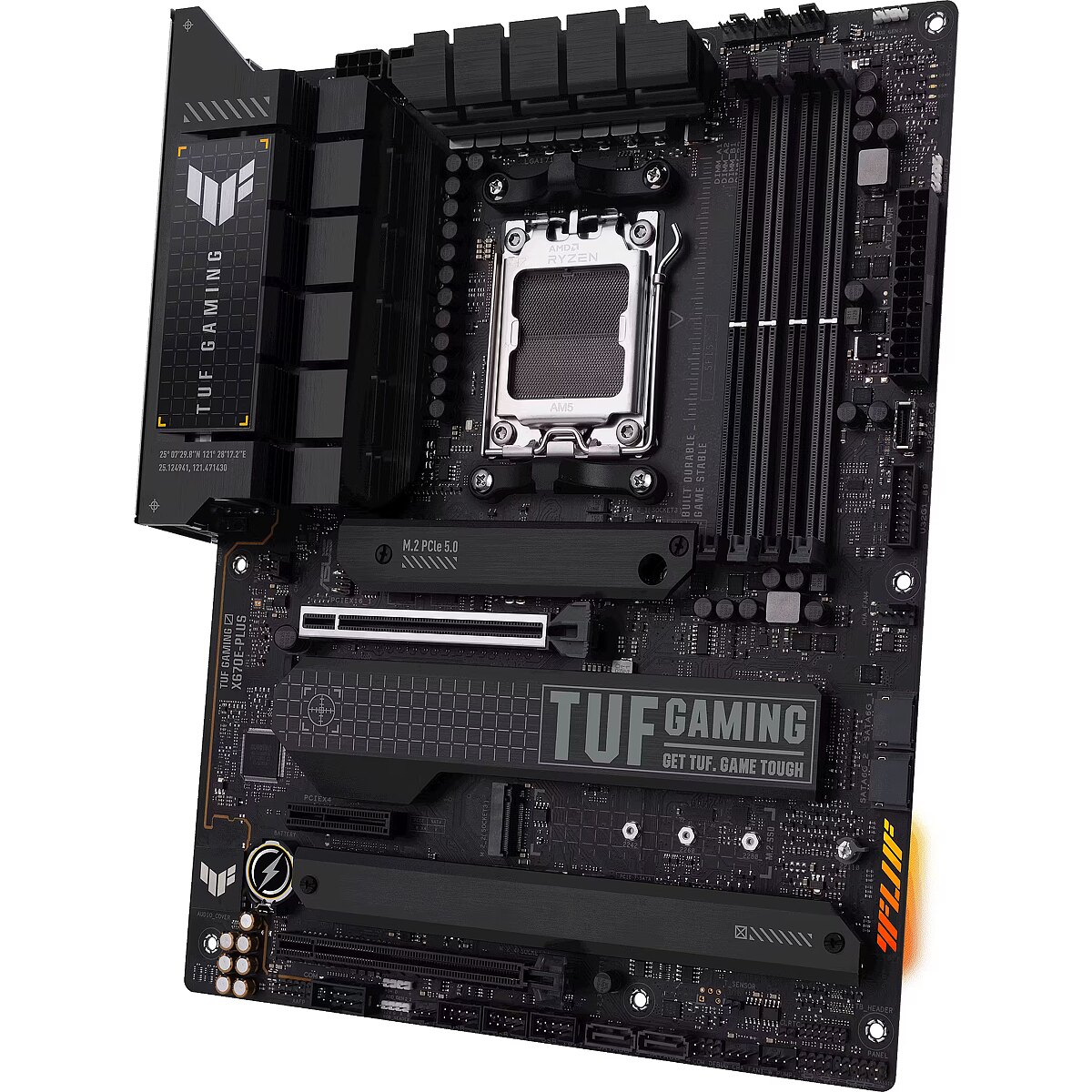

Short description - ASUS TUF GAMING X670E-PLUS X670E/AM5/ATX
ShortDescription - Socket AM5 | Chipset AMD X670E | DDR5
ShortSummaryDescription - ASUS TUF GAMING X670E-PLUS, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 128 GB, DIMM
sizeX - 275
sizeY - 340
sizeZ - 70
Socket - SAM5
Software - ASUS Exclusive Software
Armoury Crate AURA Sync Fan Xpert 4 (with AI Cooling II) Power Saving Two-Way AI Noise Cancellation AI Suite 3 Easy Optimization DIGI+ VRM Turbo app PC Cleaner TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode FlexKey
Sound card - Realtek S1220A Kodek dźwięku przestrzennego 7.1 High Definition Audio* Czujnik impedancji dla przednich i tylnych wyjść słuchawkowych Wewnętrzny wzmacniacz audio zapewniający najwyższą jakość dźwięku w słuchawkach i głośnikach Obsługuje: wykrywanie gniazd, przesyłanie wielu strumieni, zmianę przeznaczenia gniazd na panelu przednim Wysokiej jakości wyjście stereo 120 dB SNR i wejście nagrywania 113 dB SNR (wejście liniowe) Obsługuje odtwarzanie do 32 bitów/192 kHz* Funkcje audio Ekranowanie dźwięku Kondensatory audio klasy premium Dedykowane warstwy PCB audio Okładka audio Unikalny obwód de-pop * Ze względu na ograniczenia szerokości pasma HDA, 32-bitowy/192 kHz nie jest obsługiwany w przypadku dźwięku przestrzennego 7.1.
Special functions - TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) ESD Guards LANGuard Overvoltage Protection Safeslot Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Clear CMOS header ProCool Pre-mounted I/O shield SafeSlot SafeDIMM AURA Sync AURA RGB header Addressable Gen 2 headers
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.00 kg
Technical details > Producer - Asus
Technical details > Warranty - 36 month(s)
Title - ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
Unit Box Height - 0.07
Unit Box Length - 0.345
Unit Box Width - 0.275
Unit Brutto Volume - 0.006641 cubm
Unit Gross Weight - 1.93 kg
Unit Net Weight - 1.6 kg
URL - https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-X670E-PLUS/
USB-C Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 8
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 9
Vendor Homepage - www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-X670E-PLUS/
vendpn - TUF GAMING X670E-PLUS
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,97
weight - 1950
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
