15pin D-sub Input/Output connectors - 1
Accessories included - Quick Installation Guide Support CD I/O Shield SATA Data Cables x 2 Screws for M.2 Sockets x 2
ARTIKEL1 - B450M-HDV R4.0 AM4 2 DDR4
ARTIKEL2 - 4XSATA3 M2 PCIE 3 X16 7.1 CH
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support DRAM Voltage multi-adjustment
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
Breite - 0.25
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Chipset - AMD B450
Chipset manufacturer - AMD
Chipset type - AMD Promontory B450
Code - B450M-HDV R4.0
COM connector / port - Yes
CPU socket - Socket AM4
Description - AMD AM4 Socket - 2 DIMMs, Supports DDR4 3200+(OC)* - 1 PCIe 3.0 x16, 1 PCIe 2.0 x1 - Graphics Output : HDMI, DVI-D, D-Sub - 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps - 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)* - 6 USB 3.1 Gen1 (2 Front, 4 Rear) - Realtek Gigabit LAN
Description - Motherboard B450M-HDV R4.0 AM4 2DDR4 VGA/DVI/HDMI/M.2 uATX
description_en - Manufacturer: ASRock
Motherboard Bus: AMD B450
Processor socket: Socket AM4
Motherboard Form Factor: Micro ATX
Supported memory types: DDR4-SDRAM
description_lv - Ražotājs: ASRock
Mātes plates kopne: AMD B450
Procesora ligzda: Ligzda AM4
Mātes plates formas faktors: mikro ATX
Atbalstītās atmiņas veidi: DDR4-SDRAM
description_ru - Производитель: ASRock
Шина материнской платы: AMD B450
Разъем процессора: Разъем AM4
Форм-фактор материнской платы: Micro ATX
Поддерживаемые типы памяти: DDR4-SDRAM.
Detailed data on disk/drive interfaces - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4
dimensionalWeight - 825
dimension depth - 58 mm
dimension height - 275 mm
Dimensions - 23.0 cm x 20.1 cm
dimension weight - 743 g
dimension width - 240 mm
DVI-D Input/Output connectors - 1
EAN - 4717677337617
ean - 4717677337617
EANCode - 4717677337617
Eans - 4717677337617
Expansion slots - 1 x PCIe 2.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - PCI Express x1 (Gen 2.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3
External connectors - 1 x D-Sub
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC887
Features - Audio output channels - 7.1 channels
Features - Certification - - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Features - Motherboard chipset - AMD B450
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 Education x64
Features - Windows operating systems supported - Windows 10 Enterprise x64
Features - Windows operating systems supported - Windows 10 Home x64
Features - Windows operating systems supported - Windows 10 Pro x64
Features - Windows operating systems supported - Windows 10 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933/3200 MHz
Full Description Line - AMD B450|SAM4|Micro-ATX|DDR4|3200/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 2.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xUSB 2.0|4xUSB 3.1|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.1|Serial|Video|Audio Realtek ALC887|LAN Gigabit|RAID SATA 0, 1, 5, 10|TPM Header
Gewicht - 0.78
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP 1.4 with DVI-D and HDMI Ports Supports 4K Ultra HD (UHD) playback with HDMI Port
Graphics - DirectX version - 12.0
Graphics - Graphics card family - AMD
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - Yes
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.14 kg
gross_weight - 0.54 kg
GRUPPE1 - Memory & Processors
GRUPPE2 - Mainboard
guarantee - 24
guarantee_type - normal
HDMI Input/Output connectors - 1
HERSTELLER - ASROCK
Hoehe - 0.06
HSTNUMMER - 90-MXB9N0-A0UAYZ
Included Accessories - - Quick Installation Guide, Support CD, I/O Shield;
- 2 x SATA Data Cables;
- 1 x Screw for M.2 Socket
Integrated audio - Realtek ALC887
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Laenge - 0.28
Link - https://www.asrock.com/mb/AMD/B450M-HDV%20R4.0/index.asp
Logistics data - Harmonized System (HS) code - 84733020
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 32 GB
Memory - Maximum internal memory - 32 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - 90-MXB9N0-A0UAYZ
Model - B4B450M-HDV R4.0
MPN - 90-MXB9N0-A0UAYZ

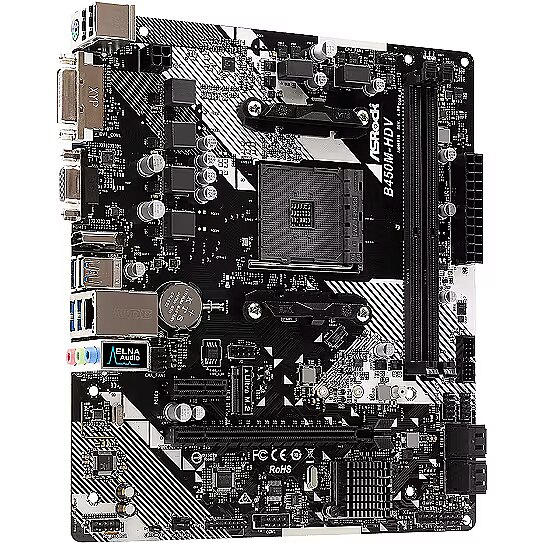

Name - AM4 ASRock B450M-HDV R4.0 mATX
Name - ASRock B450M-HDV R4.0
Name - ASRock | B450M-HDV R4.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD Promontory B450 | Micro ATX
name - Motherboard B450M-HDV R4.0 AM4 2DDR4 VGA/DVI/HDMI/M.2 uATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 3pin Chassis fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Quick installation guide - Yes
Other features - Utilities included - Yes
Other features - Weight - 465 g
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 382.00 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 320.00 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 94.00 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 150 pc(s)
Package features > Paper/Pasteboard - 380.00 g
Package features > Plastic (No PET) - 95.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Bundled software - AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 2.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
Performance > Chipset - AMD Promontory B450
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 5
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Athlon
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor > Compatible processor series - Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
producerCode - B450M-HDV R4.0
ProducerCode - B450M-HDV R4.0
Producer product name - B450M-HDV R4.0
productName - Asrock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 61 cm
Shipping Box Height Shipping/Package Box Dimensions - 50 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 16.18 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortDescription - Socket AM4 | Chipset AMD B450
sizeX - 275
sizeY - 60
sizeZ - 250
Socket - SAM4
Software - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Sound card - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection ELNA Audio Caps
Special functions - Software ASRock A-Tuning ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock Instant Flash ASRock Easy RAID Installer
Stck_Kart - 20
Stck_Pal - 80
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Storno - N
Supported operating systems - Windows 10
Technical details > Net weight - 0.67 kg
Technical details > Producer - ASRock
Technical details > Warranty - 24 month(s)
title_en - ASRock B450M-HDV R4.0 AMD AM4 MATX 2xDDR4 1xM.2 Motherboard
title_lv - ASRock B450M-HDV R4.0 AMD AM4 MATX 2xDDR4 1xM.2 Pamatplate
title_ru - ASRock B450M-HDV R4.0 AMD AM4 MATX 2xDDR4 1xM.2 Материная плата
TPM - Header
Unit Box Height - 0.24
Unit Box Length - 0.06
Unit Box Width - 0.275
Unit Brutto Volume - 0.004423 cubm
Unit Gross Weight - 0.809 kg
Unit Net Weight - 0.7 kg
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.1 Input/Output connectors - 4
USB 3.1 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/MB/AMD/B450M-HDV%20R4.0/index.asp
vendpn - B450M-HDV R4.0
Warranty - 24
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 0.5 kg
Weight - 0.751
weight - 790
Weight & dimensions - Depth - 201 mm
Weight & dimensions - Height - 70 mm
Weight & dimensions - Width - 230 mm
