15pin D-sub Input/Output connectors - 1
Audio port Input/Output connectors - 3
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB17F0-M0EAY0
Category - Datortehnika :: Datoru komponentes :: Pamatplates
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD A520
Code - 90MB17F0-M0EAY0
code - 90MB17F0-M0EAY0
Desc - Mikroshēmu tips | chipset: AMD A520, Plates formfaktors: Micro ATX, Procesora ražotājs: AMD, Ligzda: AM4, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, Integrēta audio karte: Realtek ALC897 Audio Codec, LAN: Realtek GbE LAN chip (10/100/1000 Mbit), WiFi: Ir, M.2 Pieslēgumi: 1, Garantija: 2 gadi
Description - AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, 802.11ac Wi-Fi, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers - AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors - Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+ - Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology - Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
DisplayPort Input/Output connectors - 1
EAN - 4711081154273
ean - 4711081154273
Eans - 4711081154273
EAN_code - 4711081154273
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC887 / Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD A520
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800/4866 MHz
Full Description Line - AMD A520|SAM4|Micro-ATX|DDR4|4866/4800/4600/4466/4400/4266/4133/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.309 kg
GTIN - 4711081154273
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_76492_1.png

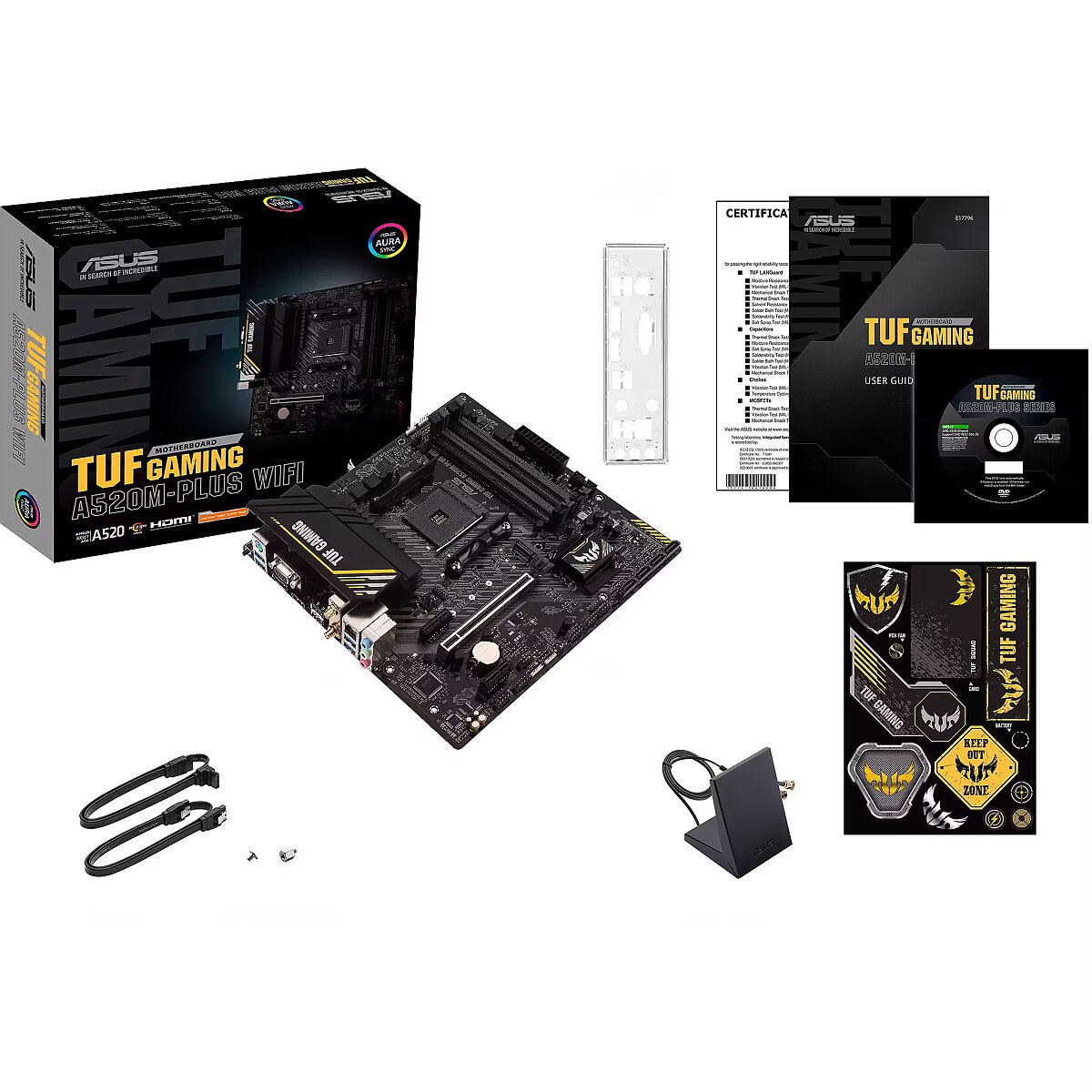

Included Accessories - Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual
Integrated audio - Yes
Integrated LAN - Realtek (Gigabit)
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LargeDescHTML -
Link - https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-A520M-PLUS/
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - DURABLE. STABLE. RELIABLE.TUF Gaming A520M-Plus WIFI distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus WIFI is the perfect foundation for your next high-core-count battle rig.Stack Cool 3+2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.TUF COMPONENTSTUF CHOKESCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.TUF CAPACITORSProprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.Digi+ VRMThe integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.Cooler by design1. VRM HEATSINKA large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.COMPREHENSIVE FAN CONTROLSTUF Gaming A520M-Plus WIFI features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS.32Gbps M.2 SupportM.2 slot supports up to 2280 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.USB 3.2 GEN 1 TYPE ANumerous USB ports support gaming rigs loaded with peripherals, including USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.EASY PC DIYTUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.Build with confidenceTUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.SafeSlot Core+SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.ESD guardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.KEYBOARDS AND MOUSE CONNECTORSAdditional on-circuit ESD transient-voltage-suppression.VGA PROTECTIONAdditional on-circuit ESD TVS diodes to protect VGA output functionality.USB CONNECTORSTVS diode for surface-mount and dual in-line package.TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.DRAM overvoltage protectionOnboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.Stainless-steel back I/O panelTUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.BIOS FlashBack™BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.Armoury CrateArmoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.IMMERSIVE GAMINGTUF Gaming A520M-Plus WIFI provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.802.11ac Wi-FiTUF GAMING A520M-PLUS WIFI has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps transfer speeds to ensure that every connected user experiences the best wireless and online speeds!Outshine the CompetitionA well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.Addressable Gen 2 RGB HeaderThe addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
LongProductName - microATX, AMD A520 chipset, Socket AM4, 4xDDR4 DIMM slots, 7.1ch audio, Gigabit LAN, Wi-Fi, Bluetooth
LongSummaryDescription - ASUS TUF GAMING A520M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
M.2 Expansion slots - 1
Manufacturer - Asus
Manufacturer_code - 90MB17F0-M0EAY0
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4
Memory slots - 4
Memory type - DDR4

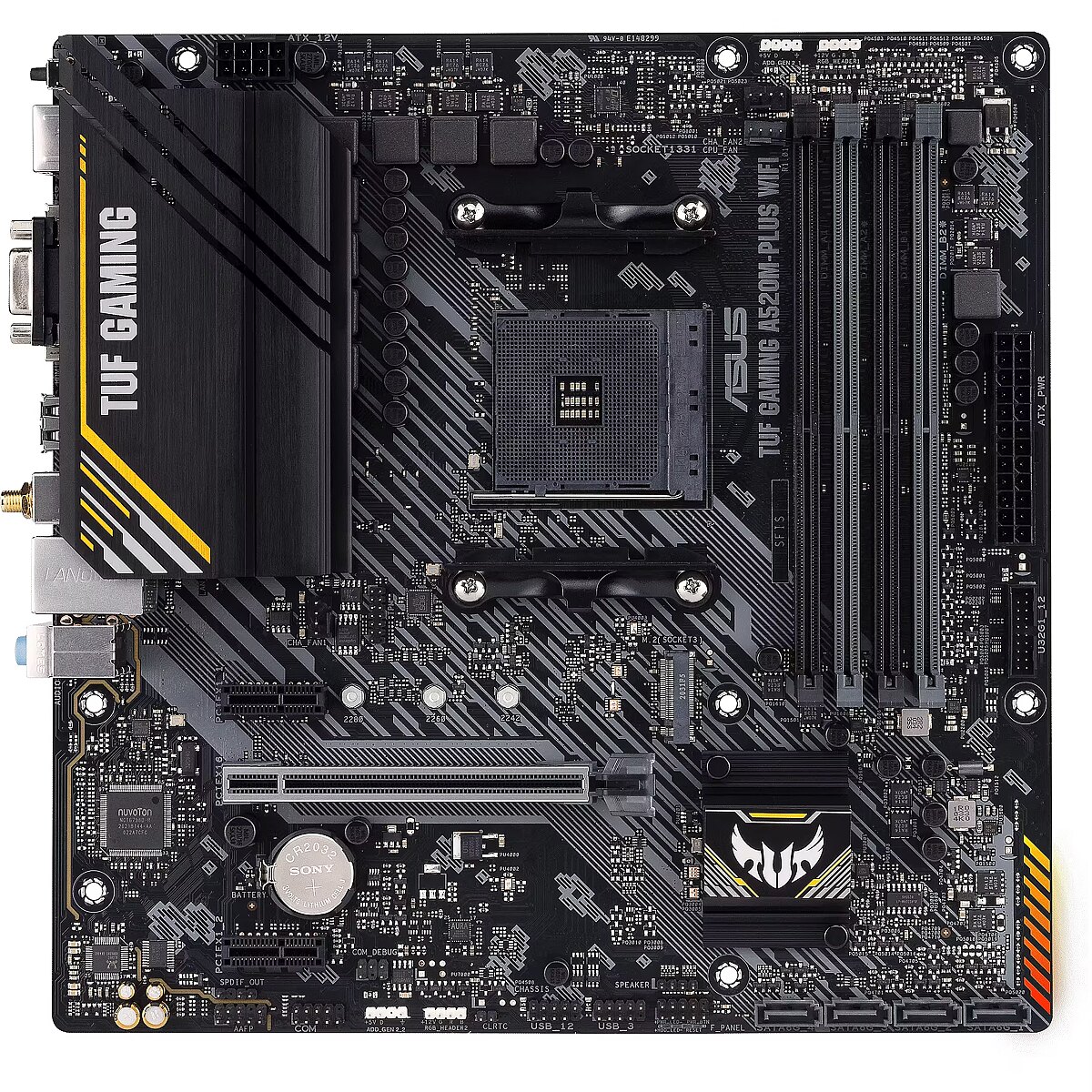

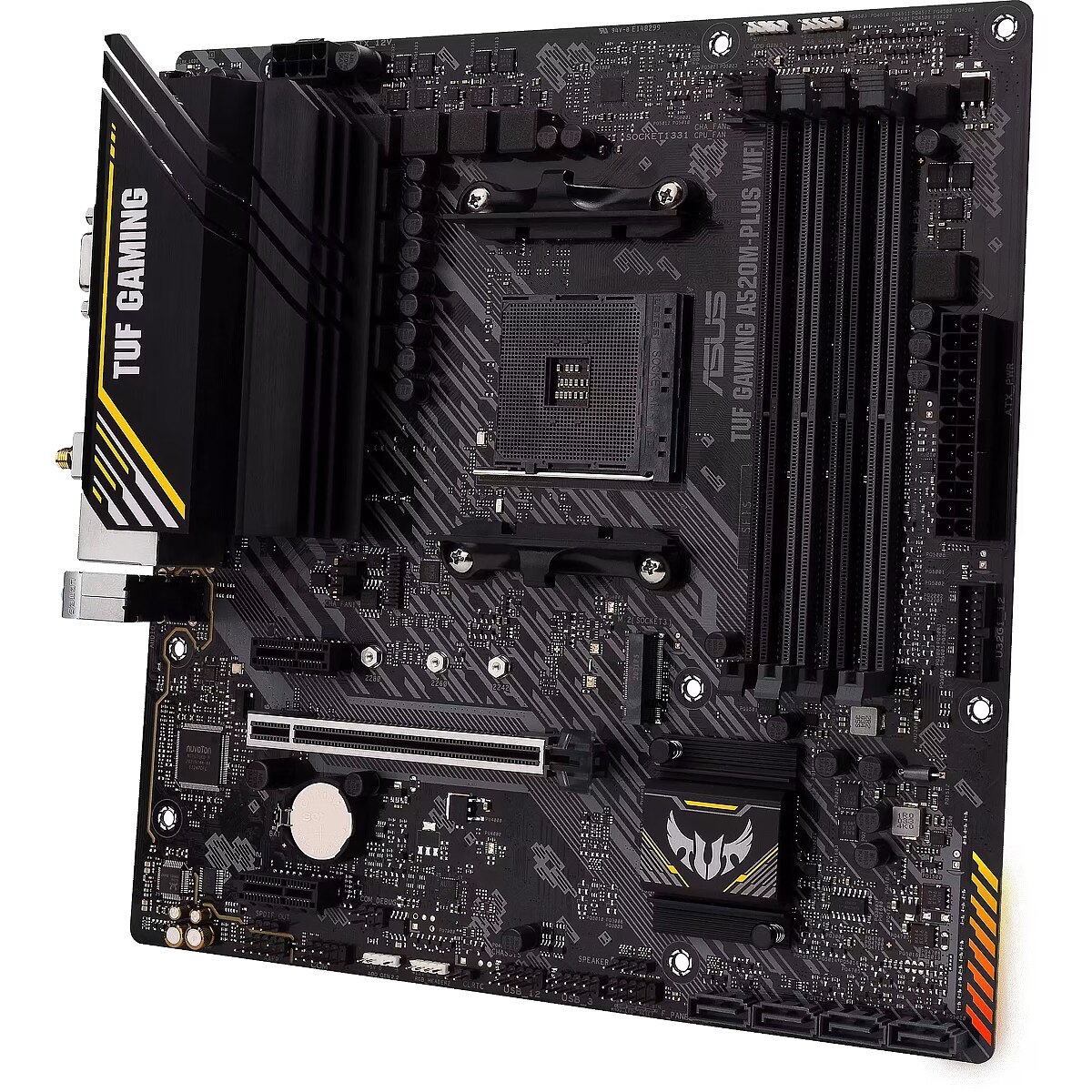

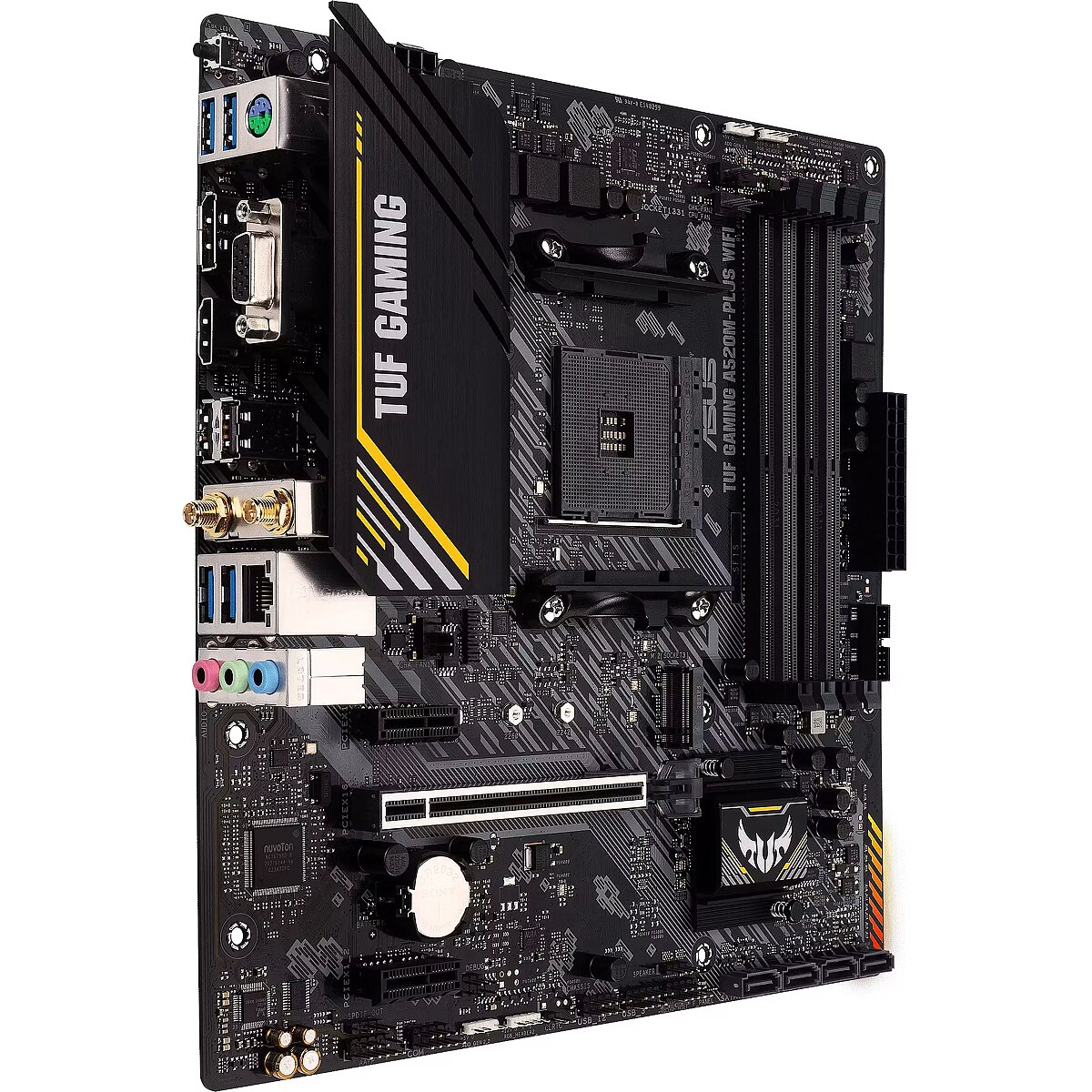

Model - TUF GAMING A520M-PLUS WIFI
Name - Asus TUF GAMING A520M-PLUS WIFI
Name - ASUS TUF GAMING A520M-PLUS WIFI
name - ASUS TUF Gaming A520M-Plus WiFi, AMD A520 Mainboard - Sockel AM4
Name - Asus TUF GAMING A520M-PLUS WIFI - Socket AM4
Name - Asus | TUF GAMING A520M-PLUS | Processor family AMD | Processor socket AM4 | DDR4 | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD A520 | Micro ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network - WLAN controller model - Realtek RTL8821CE
Other features - Weight - 900 g
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 277 mm
Package features > Gross depth master carton - 570 mm
Package features > Gross height (mm) - 275 mm
Package features > Gross height master carton - 305 mm
Package features > Gross width (mm) - 69 mm
Package features > Gross width master carton - 365 mm
Package features > Net weight master carton - 13.09 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 270 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.3 kg
Package features > Tare weight master carton - 1.079 kg
Package features > Volume (m3) - 0.005256075 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
Performance > Chipset - AMD A520
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Producer - Asus
ProducerCode - TUF GAMING A520M-PLUS WIFI
Producer product name - TUF GAMING A520M-PLUS
ProductName - TUF GAMING A520M-PLUS WIFI
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10

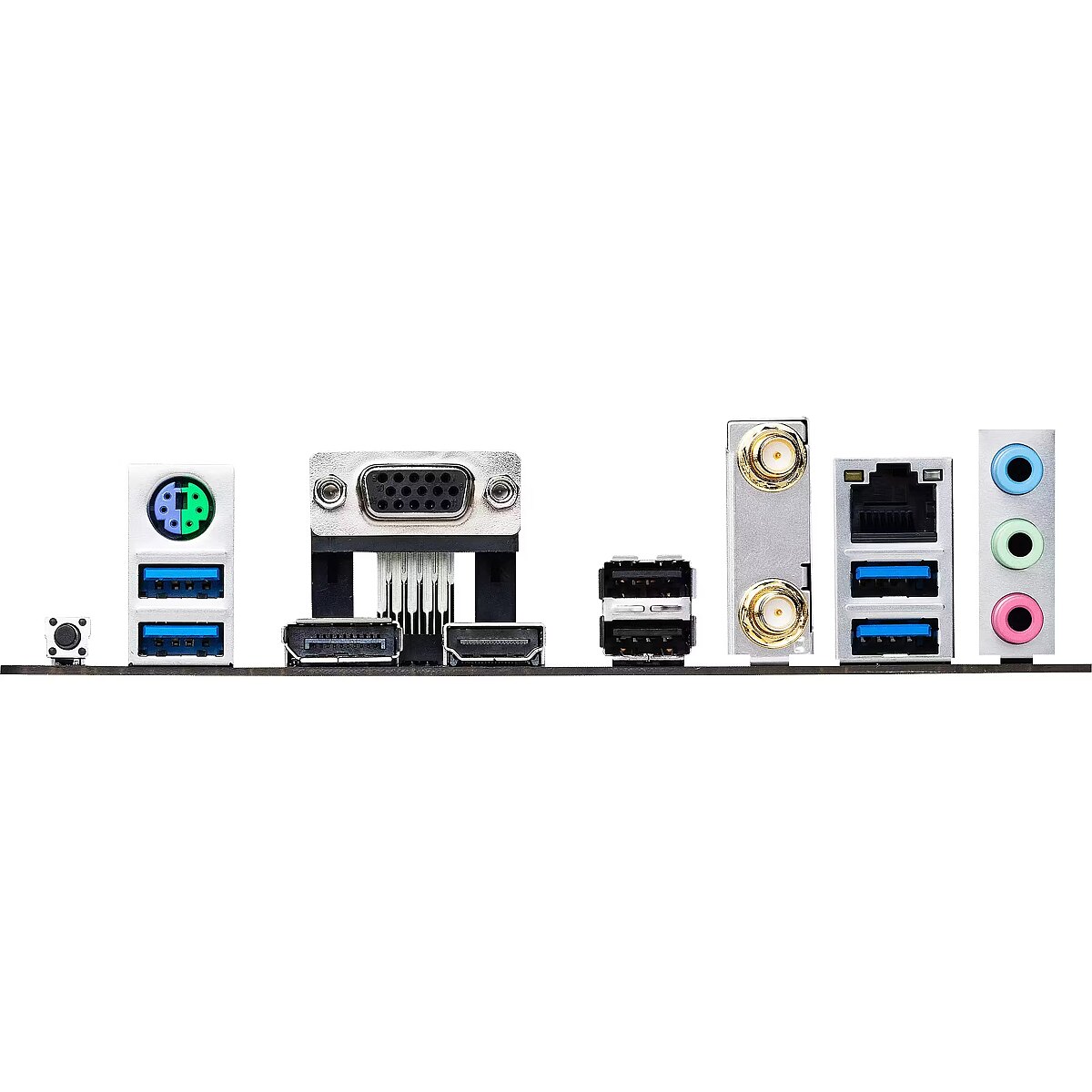

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 30.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 14.27 kg
Shipping Box Width Shipping/Package Box Dimensions - 37 cm
ShortDescription - Socket AM4 | Chipset AMD A520
ShortSummaryDescription - ASUS TUF GAMING A520M-PLUS WIFI, AMD, Socket AM4, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, Socket AM4, DDR4-SDRAM, 128 GB
Socket - SAM4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.009 kg
Technical details > Producer - Asus
Technical details > Warranty - 36 month(s)
Title - ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Socket AM4 micro ATX
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.275
Unit Brutto Volume - 0.006489 cubm
Unit Gross Weight - 1.43 kg
Unit Net Weight - 0.8 kg
URL - https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-A520M-PLUS-WIFI/
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a520m-plus-wifi/
Warranty - 36
Warranty - 36 months
WarrantyInfo -
Weight - 1,30
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 67 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
