Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB19Y0-M0EAY0
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
CnCode CnCode - 84733020
code - 90MB19Y0-M0EAY0
Code - 90MB19Y0-M0EAY0

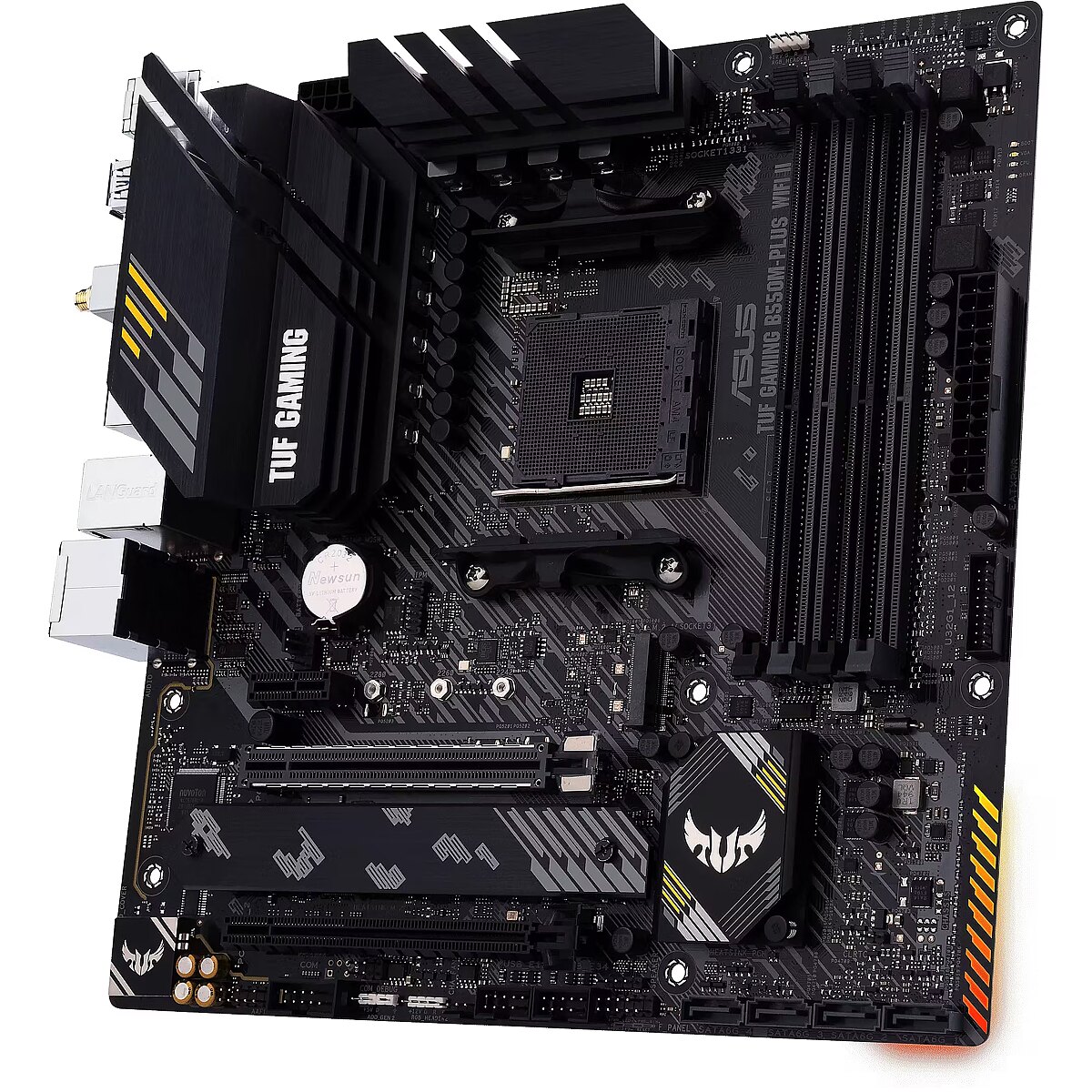

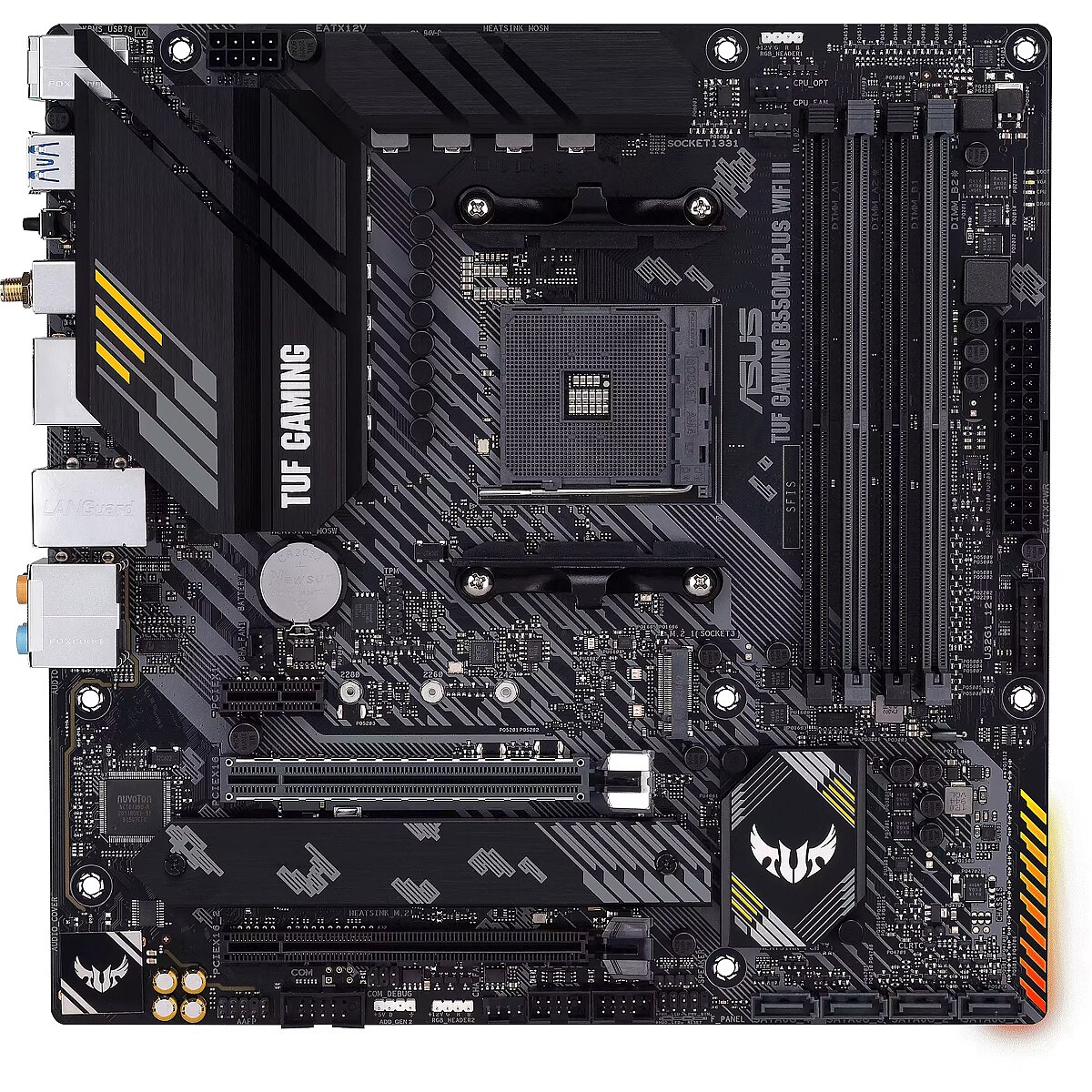

Description - AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support - AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors - Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability - Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility - Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® support - Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard - Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
DisplayPort Input/Output connectors - 1
EAN - 4711081305705
ean - 4711081305705
Eans - 4711081305705
EAN_code - 4711081305705
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4800/4600/4466/4400/4266/4133/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|Serial|SATA 3.0|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.441 kg
GTIN - 4711081305705
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Link - https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550M-PLUS-WIFI-II/
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - DURABLE. STABLE. RELIABLE.TUF Gaming B550M-Plus WIFI II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-Plus WIFI II is the perfect foundation for your next high-core-count battle rig.Power DesignDrMOSThe onboard VRM of TUF Gaming B550M-Plus WIFI II utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Processors demand.Stack Cool 3+2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.ProCool SocketENHANCED 8-PIN CONNETOR- Extreme durability- Prevent hotspots and connector failureCompared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.TUF COMPONENTSTUF CHOKESCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.TUF CAPACITORSProprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.Digi+ VRMThe integrated DIGI+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.EASY PC DIYTUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.TUF PROTECTIONSafeSlotSafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.ESD guardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.KEYBOARDS AND MOUSE CONNECTORSAdditional on-circuit ESD transient-voltage-suppression.VGA PROTECTIONAdditional on-circuit ESD TVS diodes to protect VGA output functionality.USB CONNECTORSTVS diode for surface-mount and dual in-line package.TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.DRAM overvoltage protectionOnboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.Stainless-steel back I/O panelTUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.EASY CONFIGURATIONBIOS FlashBack™BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.Armoury CrateArmoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. You can also turn on the Two-Way AI Noise Cancelation function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.IMMERSIVE GAMINGTUF Gaming B550M-Plus WIFI II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.WiFi 6The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.EXCLUSIVE 2.5 GIGABIT ETHERNET2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.MyASUSMyASUS offers a variety of support features to help you contact customer service, troubleshoot issues and optimize product performance. You can also use MyASUS to enable the WiFi SmartConnect function to automatically connect to the wireless router with the best signal.TWO-WAY AI NOISE CANCELATIONTwo-way AI noise cancelation software is exclusively featured on ASUS motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.Gaming audioDTS® Custom for gaming headsetsHone your battle skills with exclusive DTS® Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS® Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.AERIAL MODEExperience audio as though hovering above the game world, with sound coming from ahead — perfect for MOBA, RTA, strategy and sports titles!SOUNDSCAPE MODEThe ideal audio envelope for MMO, RPG, action and horror games — your ears will put you in the center of the action!TACTICAL MODEShhh — is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!Outshine the CompetitionA well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.Addressable Gen 2 HeaderThe addressable Gen 2 header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.
LongProductName - microATX, AMD B550 chipset, AMD AM4 Socket, 4xDDR4 DIMM slots, 7.1 ch audio, 2.5-Gigabit LAN, Wi-Fi 6, Bluetooth 5.2, AMI UEFI BIOS
LongSummaryDescription - ASUS TUF GAMING B550M-PLUS WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB19Y0-M0EAY0
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4
Memory slots - 4
Memory type - DDR4
Name - ASUS TUF GAMING B550M-PLUS (WI-FI) II
name - ASUS TUF Gaming B550M-Plus Wi-Fi II, AMD B550 Mainboard - Sockel AM4
Name - Asus TUF GAMING B550M-PLUS WI-FI II B550 - Socket AM4
Name - Asus | TUF GAMING B550M-PLUS WIFI II | Processor family AMD | Processor socket AM4 | DDR4 | Memory slots 4 | Number of SATA connectors | Chipset B550 | microATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 845 g
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 274 mm
Package features > Gross depth master carton - 575 mm
Package features > Gross height (mm) - 71 mm
Package features > Gross height master carton - 302 mm
Package features > Gross width (mm) - 277 mm
Package features > Gross width master carton - 360 mm
Package features > Net weight master carton - 14.41 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 270 pc(s)
Package features > Paper/Pasteboard - 280.00 g
Package features > PET - 2.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 1.063 kg
Package features > TI weight (kg) - 0.005 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.005388758 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - B550
Performance > Motherboard form factor - microATX
Processor - Compatible processor series - AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Supports Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series Desktop processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Producer - Asus
ProducerCode - TUF GAMING B550M-PLUS WIFI II
Producer product name - TUF GAMING B550M-PLUS WIFI II
ProductName - TUF GAMING B550M-PLUS WIFI II
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10

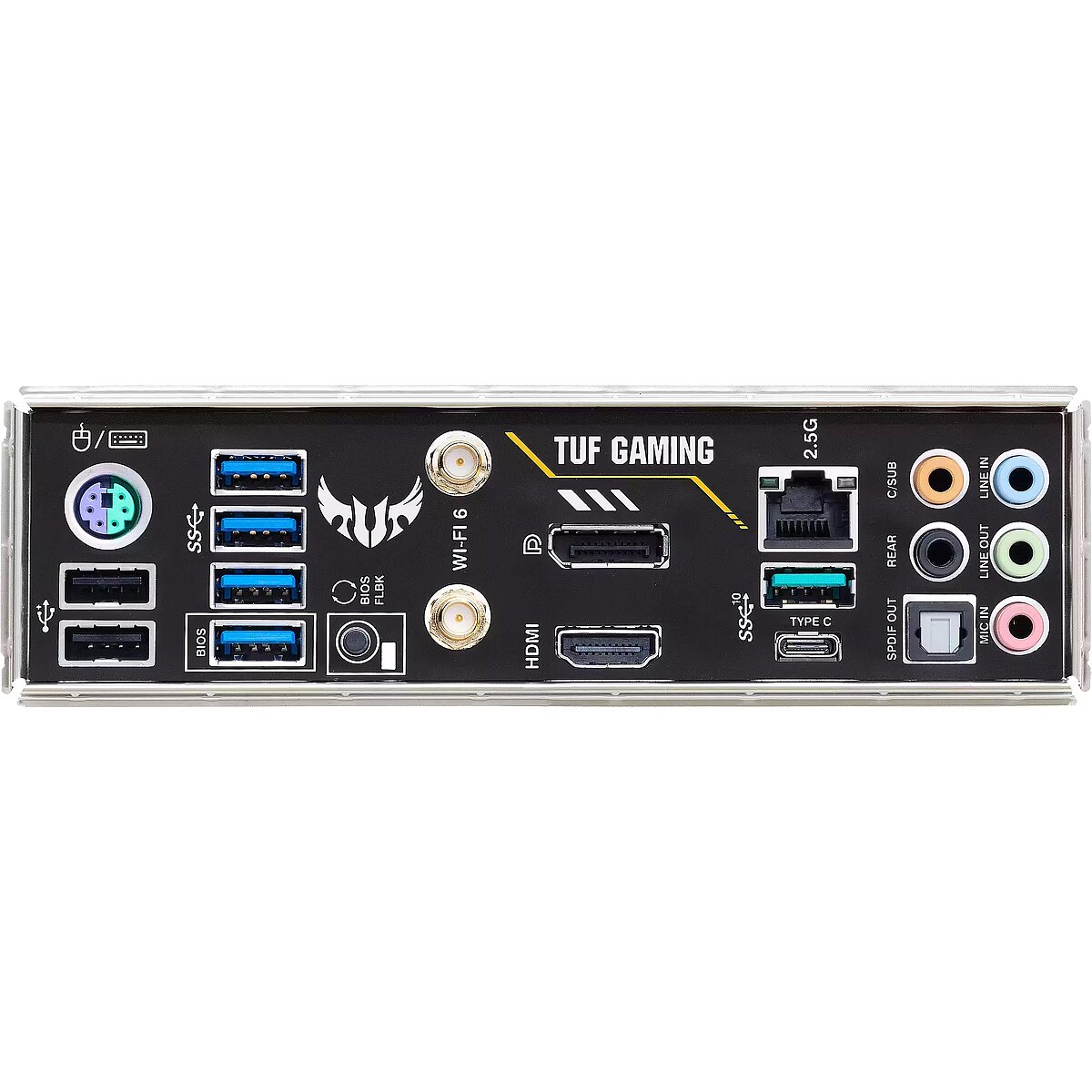

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 5
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.437 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription - Socket AM4 | Chipset AMD B550
ShortSummaryDescription - ASUS TUF GAMING B550M-PLUS WIFI II, AMD, Socket AM4, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, Socket AM4, DDR4-SDRAM, 128 GB
Socket - SAM4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.141 kg
Technical details > Producer - Asus
Technical details > Warranty - 36 month(s)
Title - ASUS TUF GAMING B550M-PLUS WIFI II AMD B550 Socket AM4 micro ATX
Unit Box Height - 0.07
Unit Box Length - 0.28
Unit Box Width - 0.275
Unit Brutto Volume - 0.00539 cubm
Unit Gross Weight - 1.437 kg
Unit Net Weight - 1.1 kg
URL - https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550M-PLUS-WIFI-II/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550M-PLUS-WIFI-II/
Warranty - 36
Warranty - 36 months
WarrantyInfo -
Weight - 1,44
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 67 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
