2.5GbE LAN Ports - 1
100/1000M LAN Ports - 3
Accessories included - Main unit RT6600ax Power supply RJ-45 LAN cable Quick Installation Guide
Activity Status indicators - Yes
Antenna - Fixed external
Antenna - Antenna design - External
Antenna > Antenna type - External antenna x 6
Available bandwidth - 2533 Mbps
Category - Root/Smarthome/Networks and communication/Routers
Category Code - WRO
Code - RT6600ax
Color - Black
Colour - Black

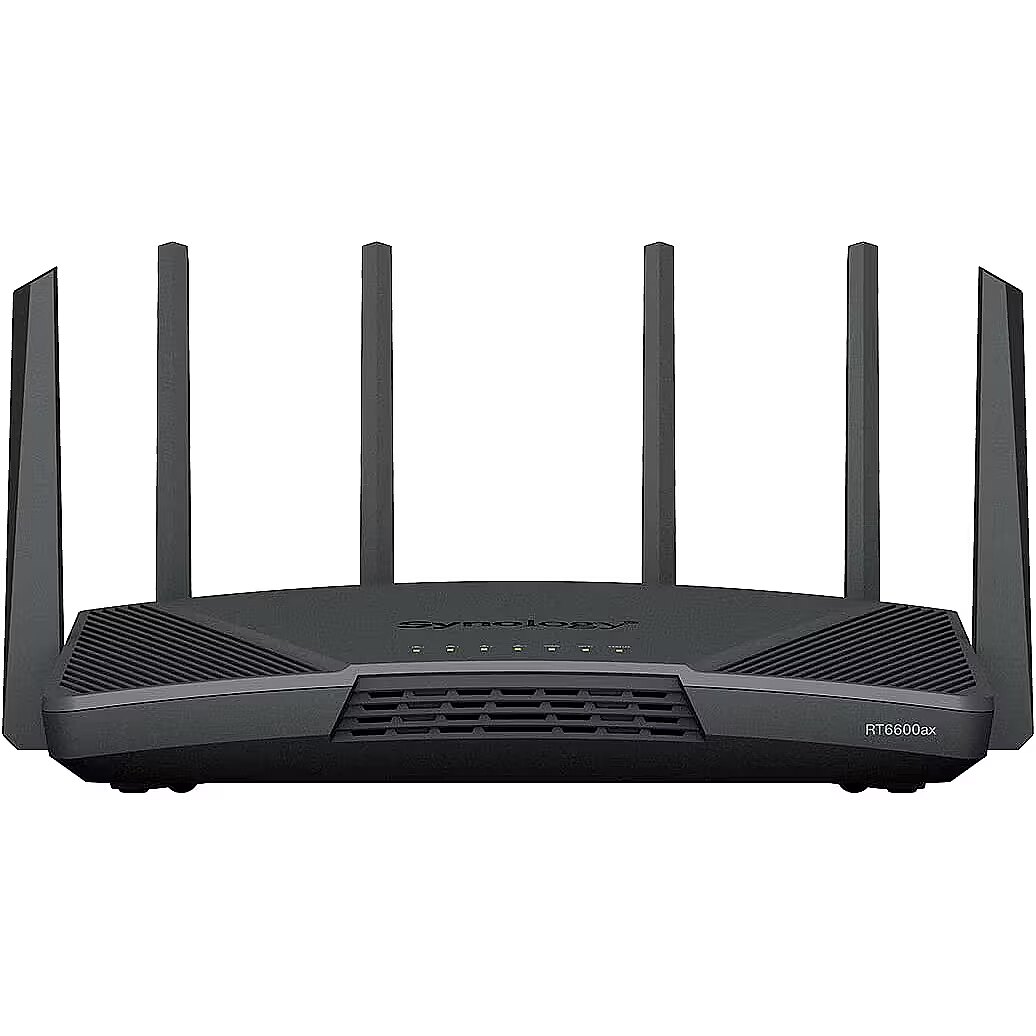

Description - Synology RT6600ax Tri-Band Wi-Fi 6 Router.
Description - Tri-band Wi-Fi Router 6 RT6600ax Ultrafast and secure wireless router for homes and small offices Built on the new Wi-Fi 6 standard, the RT6600ax tri-band router can provide up to 6.6 Gbps1 of total wireless throughput. The three radios work together with a configured 2.5 GbE WAN/LAN port to ensure maximum connection speeds for each device. Featuring the ever-evolving Synology Router Manager operating system, the RT6600ax is designed to provide simple security and network management options. Key features: Enhanced charging performance: Extended 5.9 GHz support spectrum provides additional 80 and 160 MHz high-speed channels. Built for high-speed networking: 2.5 GbE port supports the fastest ISPs and can be optionally configured as a LAN port. Secure Network Foundation: Create and define up to 5 separate networks to isolate and isolate vulnerable devices. Detailed management tools: Parental controls, web filters, traffic control and threat prevention give you control over your network. Simple remote access: A comprehensive VPN server solution with remote desktop and site-to-site tunneling provides flexible and secure remote connections.
Design - Product colour - Black
Design - Product type - Portable router
dimensionalWeight - 2039
dimension depth - 100 mm
dimension height - 370 mm
Dimensions - 175 mm x 320 mm x 200 mm
Dimensions - 175 mm x 320 mm x 200 mm (antennas in upright position)
dimension weight - 1851 g
dimension width - 260 mm
EAN - 4711174724673
ean - 4711174724673
Eans - 4711174724673
Features - Certification - FCC
CE
BSMI
VCCI
RCM
KC
iDA
TELEC
JATE
IC
Features - Processor cores - 4
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
Full Description Line - RT6600AX|Wireless Router|Available bandwidth 2533 Mbps|IEEE 802.11a/b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|USB 3.2|3x100/1000M|1x2.5GbE|WPA - Wi-Fi Protected Access|WPA2 - Wi-Fi Protected Access|WPA3|Number of antennas 6|Activity|Link|Power|Included Accessories AC Power Adapter X 1,RJ-45 LAN Cable X 1,Quick Installation Guide X 1|Power supply requirements 100 V to 240 V AC|Colour Black|Dimensions 175 mm x 320 mm x 200 mm
Gross Weight Kg - 0,8
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100/1000 Mbit/s
I/O ports - 1 x 10/100/1000/2500 RJ-45 port (WAN)
I/O ports - 1 x USB 3.0 Type A
I/O ports - 1 x WAN (RJ-45)
IEEE 802.11a/b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
Important -
Included Accessories - AC Power Adapter X 1,
RJ-45 LAN Cable X 1,
Quick Installation Guide X 1
LAN \ WAN ports - 1
Link - https://www.synology.com/en-global/products/RT6600ax
Link Status indicators - Yes
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration - Custom speed per device, traffic monitoring, limits per application and advanced usage reports Application layer (layer 7) monitoring and management
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features - WPS push button - Yes
Manufacturer Code - RT6600AX
Manufacturer Name - Synology
Mobile network - 3G - Yes
Mobile network - 4G - Yes
Model - RT6600ax
Model name - RT6600AX
Name - Synology RT6600ax
Name - Synology RT6600ax Ultra-fast and Secure Wireless Router for Homes Synology Ultra-fast and Secure Wireless Router for Homes RT6600ax 802.11ax 4800 Mbit/s Ethernet LAN (RJ-45) ports 5 Mesh Support No MU-MiMO Yes No mobile broadband Antenna type External antenna x 6
name - Wireless router RT6600ax WiFi 6 4x1,8Ghz 1GB DDR3 1x2,5GbE 1xUSB 3.2.1
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.11k
Network - Networking standards - IEEE 802.11r
Network - Networking standards - IEEE 802.11v
Network - Static route - Yes
Network - VPN server - WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site
Network architecture - GigabitEthernet
Network Device Type - Wireless Router
Number of antennas - 6
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 5 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Certifications: Wi-Fi certified, CE, UKCA, TELEC, VCCI, iDA, BSMI, JATE, FCC, NCC, RCM Environmental protection: RoHS compliant Warranty: 2 years
Other features > Ethernet LAN (RJ-45) ports - 5
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 368 mm
Package features > Gross depth master carton - 540 mm
Package features > Gross height (mm) - 100 mm
Package features > Gross height master carton - 293 mm
Package features > Gross width (mm) - 258 mm
Package features > Gross width master carton - 390 mm
Package features > Net weight master carton - 9.255 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 140 pc(s)
Package features > Paper/Pasteboard - 443 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.463 kg
Package features > Tare weight master carton - 1.049 kg
Package features > Volume (m3) - 0.0094944 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/1/4/2/4/6/3/0616479e5801f8ec133bee1c2d4a9809/original.pdf
Performance > Wi-Fi data rate (max) - 4800 Mbit/s
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB port - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power source type - AC
Power Status indicators - Yes
Power supply -
Power supply requirements - 100 V to 240 V AC
producer - Synology
Producer - Synology
producerCode - RT6600ax
ProducerCode - RT6600ax
Producer product family - Ultra-fast and Secure Wireless Router for Homes
Producer product name - RT6600ax
productName - Synology RT6600ax Router WiFi6 1xWAN 3xGbE 1x2.5Gb wireless router Tri-band (2.4 GHz / 5 GHz / 5 GHz) Black
productSize - Normal
Security - Protection against denial of service (DoS) attacks and automatic IP address blocking mechanism SSL certificates with Let's Encrypt integration Synology Security Advisor Two-factor authentication
Security - DMZ support - Yes
Security - Filtering - Yes
Security - MAC address filtering - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.837 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
ShortDescription -
Short description - Synology Router RT6600ax WLAN-AC 1xWAN 3xLAN USB
sizeX - 370
sizeY - 260
sizeZ - 106
Software -
Special functions - Parental Controls: Configurable internet scheduling per device, allowed/blocked lists, DNS-based internet filter with built-in database, YouTube, Google and Bing search integration, Google Safe Browsing support DHCP: Server/client mode, client list, MAC address reservation Network separation: Maximum number of VLANs: 5 File service: SMB, AFP, FTP/FTPS, WebDAV FTP server: Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP access, FTP SSL/TLS and SFTP, transfer logs iOS/Android apps: DS router, VPN Plus, DS cloud, DS file, DS get (Android) Access from anywhere: Synology QuickConnect and Dynamic DNS (DDNS) Printer support: Maximum number of printers: 1, Printing Protocols: LPR, CIFS, IPP Advanced Features: Dual WAN load balancing and failover, policy-based routing, static routing, network address translation (NAT), SNMP, SSH, LAN/WLAN IGMP snooping, PPPoE relay
Standards - 802.11a
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11k
Standards - 802.11n
Standards - 802.11r
Standards - 802.11v
Supported operating systems - Android
Supported operating systems - Chrome OS
Supported operating systems - iOS
Sustainability - Sustainability certificates - RoHS
System Requirements - Google Chrome, Firefox, Microsoft Edge, Safari 13 and later and Safari (iOS 13.0 and later) on iPad devices, Chrome (Android 11.0 and later) on tablets
Technical details > Gross weight - 1.851 kg
Technical details > Net weight - 1.388 kg
Technical details > Other features - Antenna type: 4x4 MIMO Omni-directional high-gain dipole (5GHz); 2x2 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)
Technical details > Warranty - 24 month(s)
Type - xDSL
Unit Box Height - 0.1
Unit Box Length - 0.37
Unit Box Width - 0.26
Unit Brutto Volume - 0.00962 cubm
Unit Gross Weight - 1.84 kg
Unit Net Weight - 1.6 kg
USB 3.2 Fixed ports - Yes
Vendor Homepage - www.synology.com/en-global/products/RT6600ax
vendpn - RT6600ax
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - Ethernet WAN - Yes
WAN connection - WAN connection type - RJ-45
Warranty - 24
Warranty - 24 months
warrantyLength - 24
warrantyType - G
weight - 1850
Weight & dimensions - Depth - 200 mm
Weight & dimensions - Height - 175 mm
Weight & dimensions - Weight - 1.6 kg
Weight & dimensions - Width - 320 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Wireless LAN features - Wi-Fi band - Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (max) - 4800 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11a/b/g/n/ac/ax
WPA - Wi-Fi Protected Access Security - Yes
WPA2 - Wi-Fi Protected Access Security - Yes
WPA3 Security - Yes
