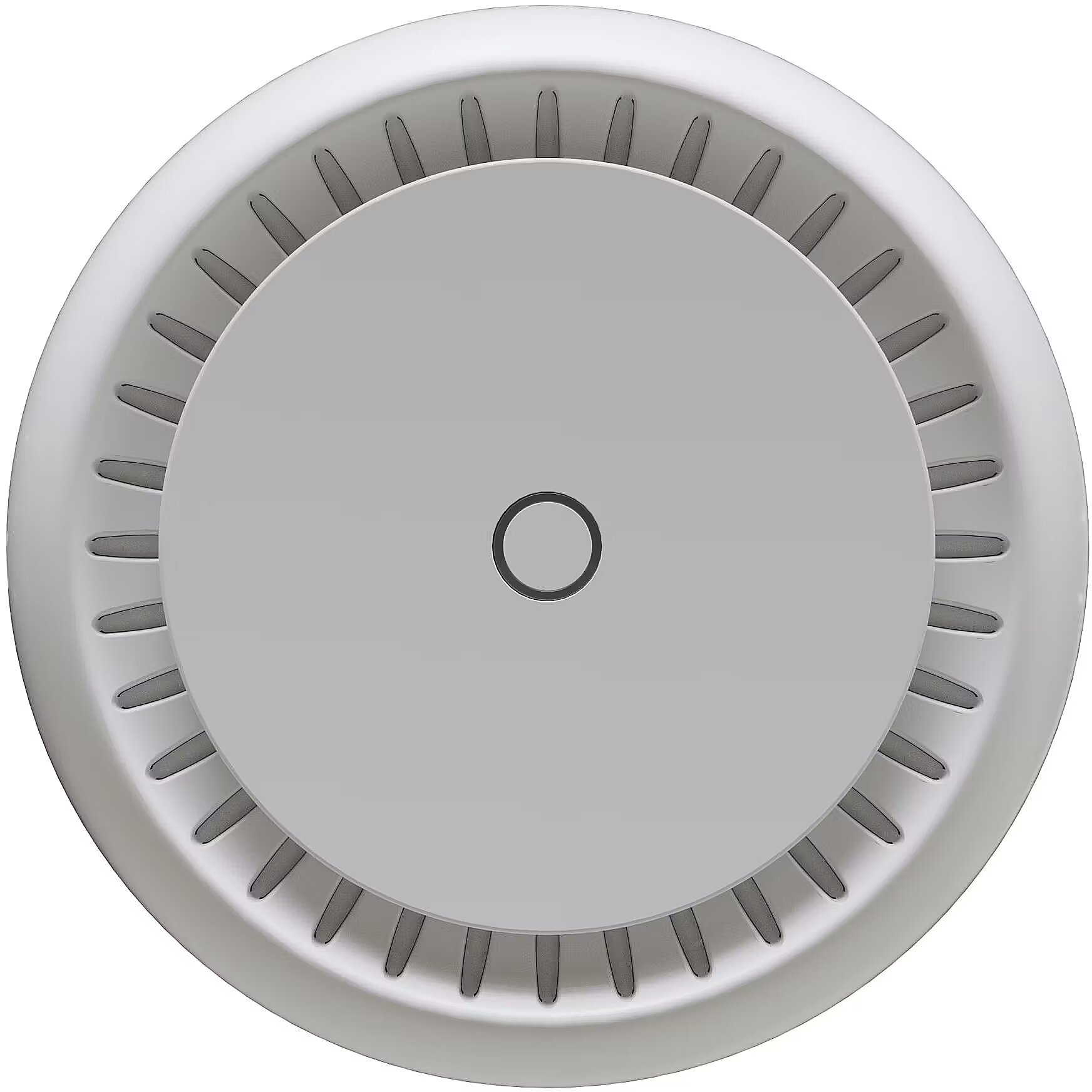

MikroTik cAP XL ac

10Base-T / 100Base-TX / 1000Base-T Ports - 2
Accessories included -
Antenna - Antenna type - Internal
Antenna gain - 5.5 dBi
brand - MikroTik
category - MikroTik > Wi-Fi mājai un ofisam > cAP
Category - Root/Electronics/Networks and communication/Access points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAP
CnCode CnCode - 85176200
Code - RBcAPGi-5acD2nD-XL
Color - White
Data transmission speed - 867 Mbps
Description - cAP XL ac The ceiling AP on steroids! Our bestseller cAP is back – juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%! Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises. The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models! The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc. Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
Description - Potrzebujesz ładnie wyglądającego punktu dostępowego, który nie będzie Ci przeszkadzał? A może zarządzasz siecią w zatłoczonym miejscu i nie chcesz, aby każdy miał fizyczny dostęp do urządzenia? Tak czy inaczej - Sufit jest odpowiedzią! Samo urządzenie jest bardzo zgrabne - jego niski profil przyciąga mniej uwagi niż czujnik dymu. Twoi klienci, goście czy współpracownicy nawet go nie zauważą. Ale na pewno zauważą szybkie połączenie bezprzewodowe w całym budynku. Nowa konstrukcja charakteryzuje się większą anteną o wysokim zysku, wyższą czułością i wbudowanym reflektorem. Te ulepszenia pozwalają zwiększyć obszar pokrycia nawet o 100% w porównaniu z poprzednimi modelami cAP!
Design - Placement - Ceiling, Wall
Design - Product colour - White
Design - WPS push button - Yes
Designation - CE+WEEE
dimensionalWeight - 871
dimension depth - 50 mm
dimension height - 310 mm
Dimensions - 191 x 42 mm
Dimensions - D191 x 42 mm
dimension weight - 700 g
dimension width - 240 mm
EAN - 4752224007278
ean - 4752224007278
Eans - 4752224007278
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Bluetooth - No
Features - Cabling technology - 10/100/1000Base-T(X)
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Frequency band - 2 - 5.5 GHz
Features - Maximum data transfer rate - 867 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 300 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 867 Mbit/s
Features - Mean time between failures (MTBF) - 100000 h
Features - Networking standards - IEEE 802.3af
Features - Networking standards - IEEE 802.3at
Features - Transmitting power (CE) - 26 dBm
Features - Wi-Fi data rate (max) - 867 Mbit/s
Full Description Line - cAP XL ac|Type Wireless Access Point|Data transmission speed 867 Mbps|Wireless Frequency Range 2.4 and 5 GHz|Power supply requirements PoE; adapter|Dimensions D191 x 42 mm
guarantee - 12
guarantee_type - normal
height - 0.065 m
I/O ports - 2 x 10/100/1000 Mbit/s
length - 0.31 m
Link - https://mikrotik.com/product/cap_xl_ac#fndtn-specifications
Management, monitoring, configuration -
Manufacturer - MikroTik
Model name - cAP XL ac
mpn - RBcAPGi-5acD2nD-XL
MPN - RBcAPGi-5acD2nD-XL
name - Access point 2.4/5 GHz 2GbE RBcAPGi-5acD2nD-XL
Name - cAP XL ac | RBcAPGi-5acD2nD-XL | 802.11ac | 867 Mbit/s | Ethernet LAN (RJ-45) ports 2
Name - MikroTik RBcAPGi-5acD2nD-XL
Network architecture - GigabitEthernet
Network Device Type - Wireless Access Point
Networking > CPU frequency - 716 MHz
Networking > PoE in - 802.3af/at
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions > Operating temperature (T-T) - -40°C to 70 °C
Other features - Procesor: IPQ-4018 Liczba rdzeni procesora: 4 Częstotliwość nominalna procesora: 716 MHz System operacyjny: RouterOS Rozmiar pamięci RAM: 128 MB Rozmiar przechowywania: 16 MB MTBF: Około 100 000 godzin w 25C
Other features - Wireless technology - Wi-Fi 5
Other features > Ethernet LAN (RJ-45) ports - 2
Other features > Input voltage - 18-57 V
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310 mm
Package features > Gross height (mm) - 235 mm
Package features > Gross width (mm) - 50 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 60 pc(s)
Package features > Paper/Pasteboard - 337 g
Package features > Plastic (No PET) - 37 g
Package features > Tare weight (kg) - 0.37 kg
Package features > Volume (m3) - 0.0036425 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance - Built-in processor - Yes
Performance - Chipset - IPQ-4018
Performance - Flash memory - 128 MB
Performance - Internal memory - 16 MB
Performance - Operating system installed - RouterOS
Performance - Processor frequency - 716 MHz
Performance - Processor model - IPQ4018
Performance - Security update term - IPsec hardware acceleration
Performance > 2.4 GHz - Yes
Performance > 5 GHz - Yes
Performance > Processor cores - 4
Performance > Wi-Fi data rate (max) - 867 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces > DC-in jack - 1
Power - AC input voltage - 17 - 57 V
Power - DC voltage range - 24 V
Power - Input current - 1.2 A
Power - Power consumption (max) - 24 W
Power - Power consumption (typical) - 11 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Passive PoE
Power > Power consumption (max) - 24 W
Power supply - Liczba wejść DC: 1 (PoE-IN) Maksymalne zużycie energii: 24 W
Power supply requirements - PoE; adapter
Processor > Processor model - IPQ-4018
producer - Mikrotik
Producer - MikroTik
producerCode - RBcAPGi-5acD2nD-XL
ProducerCode - RBcAPGi-5acD2nD-XL
Producer product family - cAP XL ac
Producer product name - RBcAPGi-5acD2nD-XL
productName - Mikrotik cAP XL ac 867 Mbit/s White Power over Ethernet (PoE)
Product Net Weight - 0.7 kg
productSize - Normal
Security -
Security - Security features - IPsec hardware acceleration
Shipping Box Depth Shipping/Package Box Dimensions - 31 cm
Shipping Box Height Shipping/Package Box Dimensions - 5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 23.5 cm
ShortDescription - MikroTik cAP ac | Punkt dostępowy | RBcAPGi-5acD2nD, Dual Band, 2x RJ45 1000Mb/s
sizeX - 242
sizeY - 316
sizeZ - 57
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Storage > Flash memory - Yes GB
Storage > Total storage capacity - 16 Mb GB
System Requirements -
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.858 kg
Technical details > Net weight - 0.484 kg
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS (License: 4)
title - MikroTik cAP XL ac
Unit Box Height - 0.05
Unit Box Length - 0.31
Unit Box Width - 0.235
Unit Calculated Volume - 0.003642 cubm
Unit Calculated Weight - 0.85 kg
Units per Shipping Box - 1
Vendor Homepage - mikrotik.com/product/cap_xl_ac
vendpn - RBcAPGi-5acD2nD-XL
Video -
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 12
warrantyType - G
Weight - 0.86
weight - 1 kg
weight - 860
Weight & dimensions - Height - 42 mm
Weight & dimensions - Width - 191 mm
width - 0.24 m
Wireless Frequency Range - 2.4 and 5 GHz
Wireless LAN features > Wi-Fi band - 802.11ac
Wireless LAN features > Wi-Fi standards - 802.11b/g/n/a/n/ac
