Accessories included - EAP235-Wall Instrukcja instalacji Wkręty do montażu
Antenna - Antenna features - Integrated antenna
Antenna - Antenna gain level (max) - 4 dBi
Antenna - Antennas quantity - 2
Antenna - Antenna type - Internal
ARTIKEL1 - AC1200 WALL-PLATE WI-FI AP
ARTIKEL2 - DUAL-BAND OMADA SDN CONTROLLER
Brand - TP-Link
BrandPartCode - EAP235-WALL
Breite - 0.12
Category - Wireless Access Points
Category Code - WAP
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Code - EAP235-Wall
Color - White
Colour - White
Data transmission speed - 1200 Mbps
Description - EAP235-Wall Bezprzewodowy, gigabitowy, naścienny punkt dostępowy Omada, MU-MIMO, AC1200 Elegancki wygląd: ultracienka obudowa o grubości 15 mm i uniwersalna konstrukcja sprawiają, że urządzenie wtapia się w każde otoczenie - sprawdzi się w pokoju hotelowym, szpitalu oraz biurze, a także w akademiku i w każdym innych wnętrzu Łatwy montaż i obsługa PoE: Konstrukcja umożliwiająca szybki montaż zapewnia bezproblemową instalację urządzenia w standardowej puszcze przyłączeniowej, a obsługa PoE zapewnia większą swobodę wyboru lokalizacji dla punktu dostępowego Porty: 4 gigabitowe porty Ethernet do mostkowania (1 port uplink + 3 porty downlink), w tym jeden port downlink z obsługą PoE pass-through, przeznaczony do zasilania urządzeń przewodowych Wysoka wydajność: Dwa pasma w standardzie 802.11ac Wave 2 z technologią 2x2 MU-MIMO zapewniają prędkości sięgające 1,200 Mb/s oraz zgodność z wieloma urządzeniami Możliwość zarządzania w chmurze oraz poprzez aplikację Omada to niezwykła wygoda i oszczędność czasu Zabezpieczenia klasy biznesowej chronią sieć Wi-Fi przed atakami Bezpieczeństwo sieci dla gości zapewnia uwierzytelnianie poprzez usługę Facebook Wi-Fi lub z wykorzystaniem wiadomości SMS oraz zaawansowana technologia zabezpieczeń sieci bezprzewodowej
Description - Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point - Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.† - Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device. - Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. - Centralized Management: Cloud access and Omada app for ultra convenience and easy management. - Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments. - Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support. - Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. - Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
Design - Cable lock slot - Yes
Design - LED indicators - LAN
Design - LED indicators - LAN, Power, Status, WAN, WLAN
Design - LED indicators - Power
Design - LED indicators - Status
Design - LED indicators - WAN
Design - LED indicators - WLAN
Design - Placement - Wall
Design - Product colour - White
Design - Reset button - Yes
Design > Mounting type - Wall Plate Mounting
dimensionalWeight - 148
dimension depth - 35 mm
dimension height - 130 mm
Dimensions - 143 × 86 × 20 mm
dimension weight - 415 g
dimension width - 220 mm
EAN - 6935364088972
ean - 6935364088972
EANCode - 6935364088972
EAN_code - 6935364088972
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Automatic channel scanning - Yes
Features - Automatic channel selection - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Cabling technology - 10/100/1000Base-T(X)
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000
Features - Frequency band - 2.4 - 5 GHz
Features - Maximum data transfer rate - 1167 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 300 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 867 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.1x
Features - Networking standards - IEEE 802.3af
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - Transmitting power (CE) - 20 - 23 dBm
Features - Transmitting power (FCC) - 21 dBm
Features - Virtual LAN features - Port-based VLAN
Features - Virtual LAN features - Port-based VLAN, VLAN mapping
Features - Virtual LAN features - VLAN mapping
Features - VLAN support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Features - Wireless isolation - Yes
Features > MU-MiMO - Yes
Full Description Line - Omada|EAP235-Wall|Type Wireless Access Point|Data transmission speed 1200 Mbps|IEEE 802.11a|IEEE 802.11 b/g|IEEE 802.11n|IEEE 802.11ac|Power supply requirements 802.3af/802.3at PoE|Colour White|Dimensions 143 × 86 × 20 mm
Gewicht - 0.34
Gross Weight Kg - 0,35
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0845973088972
GTIN - 845973088972
GTIN - 6935364006341
GTIN - 6935364088972
guarantee - 36
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0.04
HSTNUMMER - EAP235-WALL

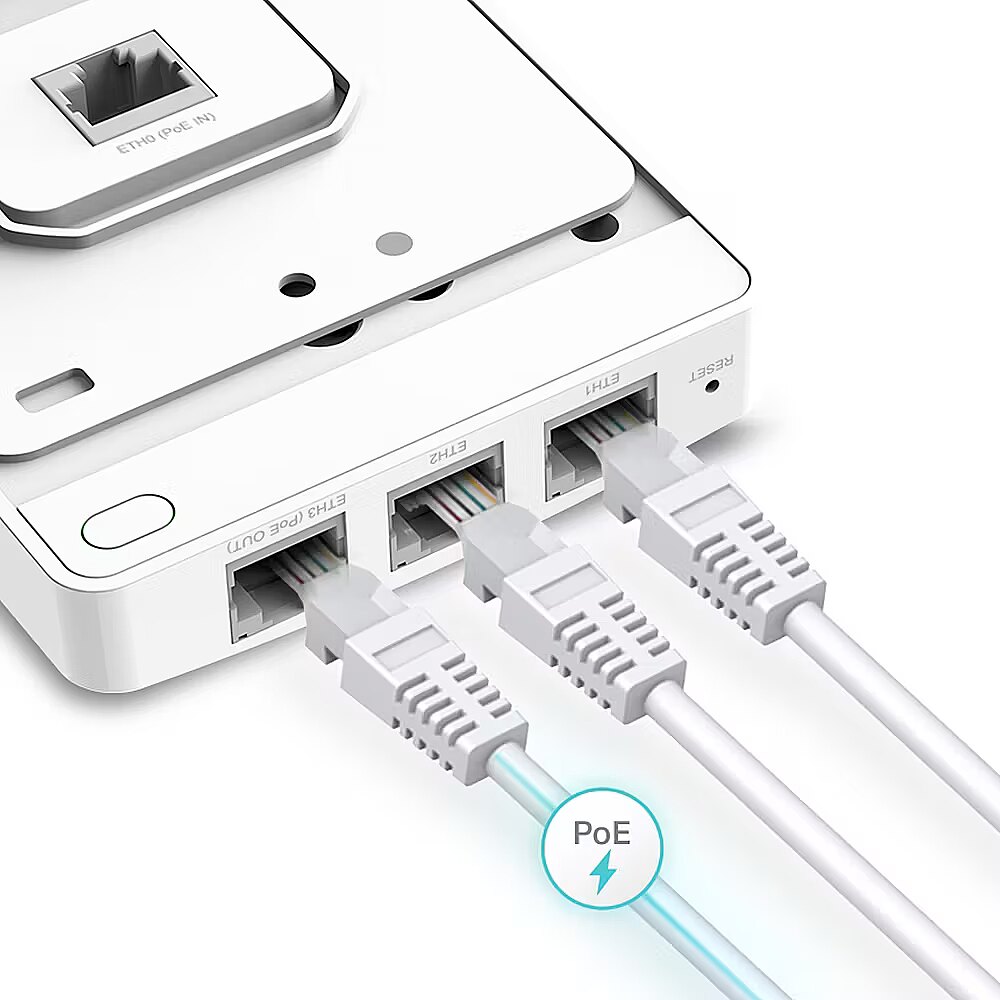

I/O ports - 1 x 10/100/1000 Mbit/s PoE
I/O ports - 3 x 10/100/1000 Mbit/s
IEEE 802.11 b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11a Network standard - Yes
IEEE 802.11n Network standard - Yes
Laenge - 0.18
Link - https://www.tp-link.com/us/business-networking/omada-sdn-access-point/eap235-wall/#overview
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Dedicated Complete, Private Wi-Fi Network in Each RoomAn EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.MU-MIMO + Dual-Band: Connect Faster and More802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.Absolute Thinnest, Inconspicuous DesignThe thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.Effortless Deployment with PoE PoweredWith 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.Quick, Simplified InstallationEAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.Full Gigabit Ports to Bridge NetworkEquipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.Cloud Centralized Management Anytime, AnywhereOmada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.Easy Management with the Omada AppFollow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
LongProductName - AC1200 Wireless MU-MIMO, 4 x Gigabit Ethernet, WLAN 802.11a/b/g/n/ac, 143 × 86 × 20mm
LongSummaryDescription - TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. Maximum data transfer rate: 1167 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,..., Service Set Identifier (SSID) features: Multiple SSIDs. WAN connection: Ethernet (RJ-45). Power over Ethernet (PoE) type supported: Active PoE, Passive PoE, Power consumption (typical): 24.4 W. Placement: Wall, Product colour: White, LED indicators: LAN, Power, Status, WAN, WLAN
Management, monitoring, configuration -
Management features - Syslog - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - EAP235-WALL
Manufacturer Name - TP-LINK
Manufacturer_code - EAP235-WALL
Model name - EAP235-Wall
name - EAP235-Wall 1GE PoW AC1200
Name - TP-Link EAP235-WALL 3FE / AC1200 / AP
Name - TP-LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall 802.11ac 2.4 GHz/5 GHz 867+300 Mbit/s 10/100/1000 Mbit/s Ethernet LAN (RJ-45) ports 4 MU-MiMO Yes PoE in
Network architecture - GigabitEthernet
Network Device Type - Wireless Access Point
Networking > Wi-Fi - Yes
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - 5 GHz: do 867 Mb/s 2,4 GHz: do 300 Mb/s
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 184.00 mm
Package features > Gross height (mm) - 33.00 mm
Package features > Gross width (mm) - 117.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1216 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 184 mm
Packaging data - Package height - 33 mm
Packaging data - Package type - Box
Packaging data - Package weight - 300 g
Packaging data - Package width - 117 mm
Performance - Compatible operating systems - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Frequency band - 2.4 GHz/5 GHz
Performance > Wi-Fi data rate (max) - 867+300 Mbit/s
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - WAN connection - Ethernet (RJ-45)
Ports & interfaces > Ethernet LAN (RJ-45) ports - 4
Ports & interfaces > POE - PoE in
Power - Power consumption (typical) - 24.4 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Active PoE
Power - Power over Ethernet (PoE) type supported - Active PoE, Passive PoE
Power - Power over Ethernet (PoE) type supported - Passive PoE
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) > Power over Ethernet (PoE) ports quantity - 1
Power supply -
Power supply requirements - 802.3af/802.3at PoE
producer - TP-LINK
producerCode - EAP235-WALL
Producer product family - Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
Producer product name - EAP235-Wall
ProductName - Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
productName - TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
productSize - Normal
Protocols - Universal Plug and Play (UPnP) - Yes
Security - Uwierzytelnianie przy pomocy strony powitalnej Kontrola dostępu Filtrowanie adresów MAC Izolacja klientów sieci bezprzewodowej Mapowanie SSID do VLAN Sieć VLAN oparta na portach lokalnych LAN Wykrywanie nieautoryzowanych AP Obsługa 802.1X Szyfrowanie 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Security - Access Control List (ACL) - Yes
Security - MAC address filtering - Yes
Security - Number of SSID supported - 16
Security - Remote Authentication Dial-In User Service (RADIUS) - Yes
Security - Security algorithms - 64-bit WEP
Security - Security algorithms - 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Security - Security algorithms - 128-bit WEP
Security - Security algorithms - 152-bit WEP
Security - Security algorithms - 802.1x RADIUS
Security - Security algorithms - HTTPS
Security - Security algorithms - SNMP
Security - Security algorithms - SNMPv3
Security - Security algorithms - SSH
Security - Security algorithms - WPA
Security - Security algorithms - WPA-Enterprise
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-Enterprise
Security - Security algorithms - WPA2-PSK
Security - Service Set Identifier (SSID) features - Multiple SSIDs
Series - Omada
Shipping Box Depth Shipping/Package Box Dimensions - 18.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 3.4 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.35 kg
Shipping Box Width Shipping/Package Box Dimensions - 11.7 cm
Short description - TP-LINK WLAN AC1200 Access Point Dualband EAP235-Wall
ShortSummaryDescription - TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, 1167 Mbit/s, 300 Mbit/s, 867 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af,...
sizeX - 130
sizeY - 30
sizeZ - 190
Software -
Special functions - 16 SSIDdo 8 SSID na każdym paśmie Wyłączanie sieci bezprzewodowej Automatyczny wybór kanału Kontrola mocy transmisji QoS (WMM) MU-MIMO Sterowanie pasmem Beamforming Równoważenie obciążenia pasma Limit prędkości Harmonogram restartu Harmonogram sieci bezprzewodowej Statystyki sieci bezprzewodowej w oparciu o SSID/AP/klienta
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 40
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability certificates - CE
Sustainability - Sustainability certificates - CE, Federal Communications Commission (FCC), RoHS
Sustainability - Sustainability certificates - Federal Communications Commission (FCC)
Sustainability - Sustainability certificates - RoHS
Sustainability - Sustainability compliance - Yes
System Requirements - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Technical details > Gross weight - 0.41 kg
Technical details > Net weight - 0.31 kg
Technical details > Other features - Wi-Fi Standard: 802.11a/b/g/n/ac; FCC, RoHS Certifications; 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices
Title - TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
Unit Box Height - 0.034
Unit Box Length - 0.185
Unit Box Width - 0.117
Unit Brutto Volume - 0.0007359 cubm
Unit Gross Weight - 0.35 kg
Unit Net Weight - 0.32 kg
URL - https://www.tp-link.com/en/business-networking/wall-plate-ap/eap235-wall/
Vendor Homepage - www.tp-link.com/baltic/business-networking/omada-sdn-access-point/eap235-wall/
vendpn - EAP235-Wall
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo - Lifetime
warrantyLength - 60
warrantyType - G
Weight - 0,34
weight - 344
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 20 mm
Weight & dimensions - Width - 143 mm
Wireless LAN features > Wi-Fi band - 802.11ac
