Accessories included - RUTX09 router 18W power supply 2 x LTE antenna (swivel, SMA male) GNSS antenna (adhesive, SMA male, 3 m cable) SIM Adapter kit Ethernet cable (1.5 m) Brief user manual RMS leaflet
Aero2 support - No
Antenna - Detachable external
Card reader - None
Category - Root/Smarthome/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Certificates -
Color - Aluminium
Data transmission - LTE

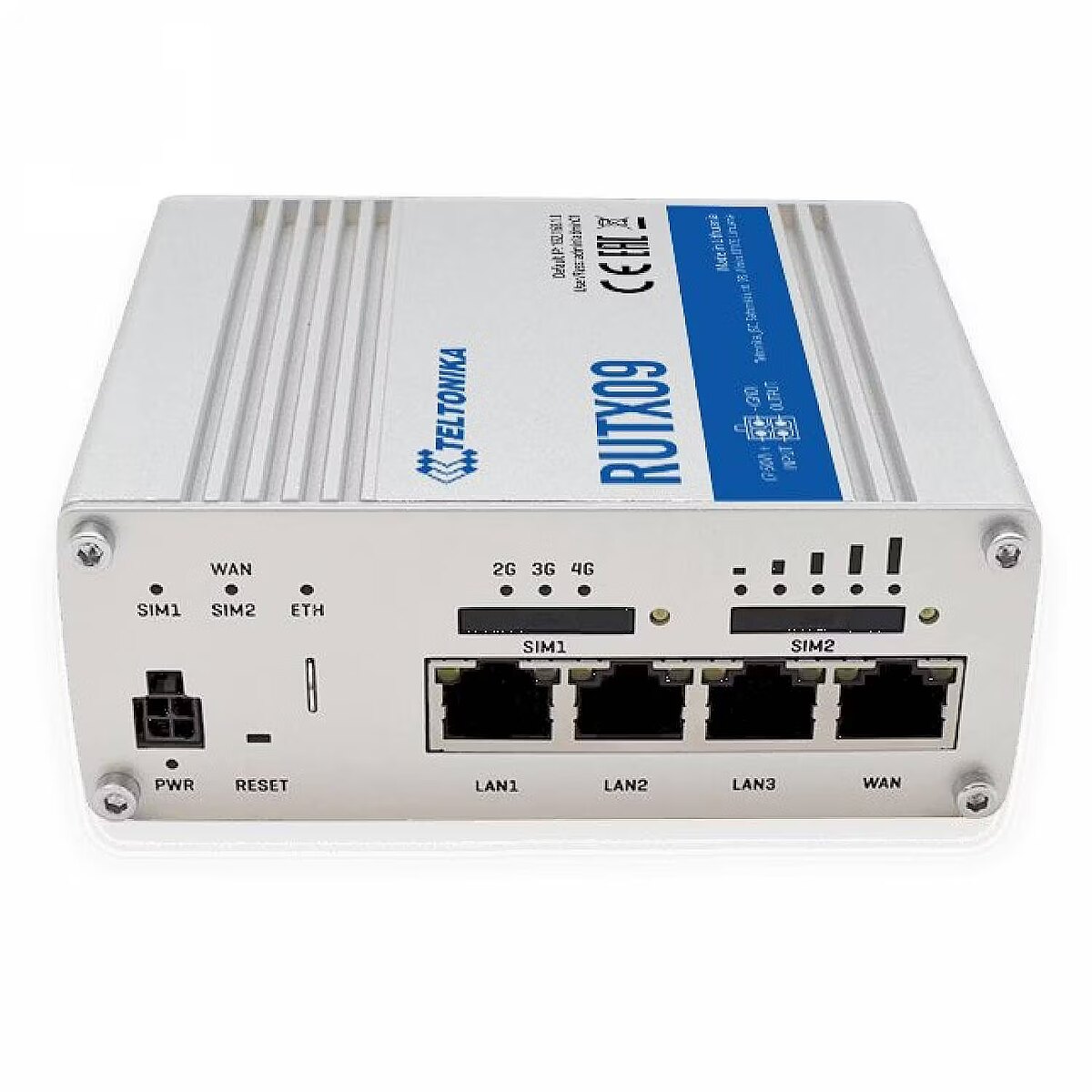

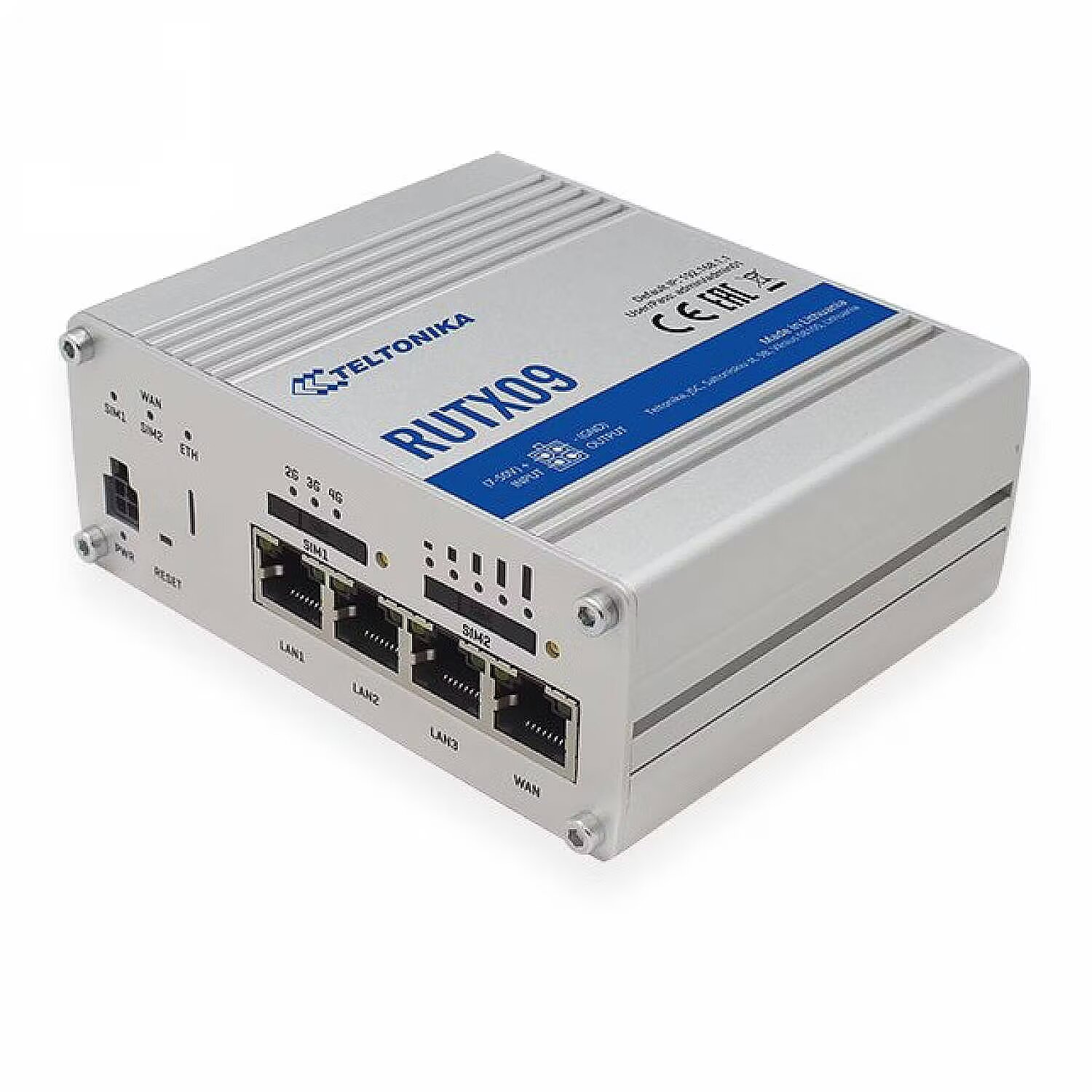

Description - RUTX09 router RUTX09 is a LTE-A Cat 6 mobile IoT router with dual SIM slots, carrier aggregation and 4 Gigabit Ethernet interfaces. RUX09 can achieve speeds of up to 300 Mbps and is suitable as a primary, backup Internet source in solutions that require a reliable Internet connection and high data throughput. The RutOS operating system based on Open WRT provides support for many applications and security functions: firewall, VPN, Ipsec, SNMP, content filtering and many others. This product is compatible with our Remote Control System (RMS) for convenient monitoring, maintenance and data collection.
Description - TELTONIKA IOT ROUTER RUTX09 LTE+ETH
dimension depth - 60 mm
dimension height - 175 mm
Dimensions - 115 x 44 x 95 mm
dimension weight - 870 g
dimension width - 355 mm
ean - 4779027312460
EAN - 4779027312460
Eans - 4779027312460
Environment requirements - Operating temperature: -40 C to 75 C Humidity during operation: 10% to 90% non-condensing
guarantee - 24
guarantee_type - normal
Height - 60.000000
I/O ports - 1 x USB 2.0
I/O ports - 2 x SIM card slot
I/O ports - 4 x 10/100/1000 Mbit/s
Length - 360.000000
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1500 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management, monitoring, configuration - Cellular features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits Network protocols: SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet Network: Failover (Network backup), VLAN, QoS, Load Balancing Management and monitoring: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Moble operator GNSS: NMEA forwarding, AVL, Geofencing Services: DDNS, VRRP, Wake On Lan (WOL), WEB lter, UPNP, Network shares (Samba), Trac Logging Administration: Multi user, Conguration proles, Diagnostics, logs, Conguration backup
Manufacturer - TELTONIKA
Manufacturer - Teltonika
ManufacturerPartNumber - RUTX09000000
Model - RUTX09
MPN - RUTX09000000
name - Router LTE RUTX09 (Cat 6), 4xGbE, GNSS
Name - Teltonika RUTX09
Name - Teltonika RUTX09 LTE Cat6 Giagabit Industrial Router
Number of antennas - 3-złącza na anteny
Other features - Network support: 4G/LTE (Cat 6), 3G CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz Memory: 256 MBytes Flash, 256 MBytes RAM GNSS support: GPS, GLONASS, BeiDou, Galileo, QZSS Status LED: 3 x WAN type, 2 x connection type, 5 x signal strength, 8 x Ethernet, power
PeriodofWarranty - 2 Y
Power supply - 4pin power socket, 9-50 VDC
producer - TELTONIKA
Producer - Teltonika
ProducerCode - RUTX09
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation Mobile quota control: Custom data limits for both SIM cards WEB filter: Blacklist for blocking unwanted out websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
ShortDescription - Teltonika RUTX09 Router 4G LTE Cat6, 1x WAN/LAN + 3x LAN Gigabit, 2x SIM, VPN, GPS
SIM card - Mini
Software - RutOS (OpenWrt based Linux OS)
Special functions -
Standards - 802.3
Standards - 802.3az
Standards - 802.3u
System Requirements -
Type - GSM 3G/4G
UMTS network - 850 MHz
UMTS network - 900 MHz
UMTS network - 1800 MHz
UMTS network - 2100 MHz
vendpn - RUTX09 000000
Weight - 0.896
Weight - 0.850000
Weight - 455 g
Width - 170.000000
