Accessories included -
Brand - Gigabyte
BrandPartCode - GV-R76GAMING OC-8GD
Card's length - > 280 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Chipset - AMD Radeon RX 7600
Chipset - Radeon RX 7600
Chipset manufacturer - AMD
Cooling - Active
Core Boost frequency - 2755 MHz
Core frequency - 2355 MHz
Description -
Description - - Powered by Radeon™ RX 7600 - Integrated with 8GB GDDR6 128-bit memory interface - WINDFORCE cooling system - RGB Fusion - Protection metal back plate
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimensionalWeight - 1713
dimension depth - 405 mm
dimension height - 240 mm
Dimensions - 50 x 115 x 282 mm
Dimensions - L=282 W=115 H=50 mm
dimension weight - 1350 g
dimension width - 90 mm
DisplayPort Input/Output connectors - 2
ean - 4719331313425
EAN - 4719331313425
Eans - 4719331313425
Full Description Line - AMD Radeon RX 7600|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 4.0 16x|Memory CLK 18 Gbps|GPU boost clock 2755 MHz|7680x4320|2xHDMI|2xDisplayPort|Included Accessories Quick guide
GPU boost clock - 2755 MHz
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
Gross Weight Kg - 1,2
GTIN - 4719331313425
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 2
Included Accessories - Quick guide
LongDesc - WINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.RGB FUSIONWith 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.AMD Radeon™ Anti-LagMinimizes input lag so you can game like a champion.AMD Radeon™ BoostDelivers extra performance and responsiveness when you need it most.AMD Radeon™ Image SharpeningImproves in-game visuals with virtually no impact to performance.AMD Radeon™ Super ResolutionIn-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.AMD Noise SuppressionReduces background audio noise from your surrounding environment for clearer communication.AMD LinkConnect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
LongProductName - 8 GB GDDR6, 18 Gbps, 128 bit, PCI-E 4.0, ATX, 550W
LongSummaryDescription - Gigabyte GAMING Radeon RX 7600 OC 8G. Graphics processor family: AMD, Graphics processor: Radeon RX 7600, Processor frequency: 2355 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - Gigabyte
Manufacturer Code - GV-R76GAMING OC-8GD
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory bus - 128 bit
Memory bus - 128-bit
Memory CLK - 18 Gbps
Memory frequency - 18 Gbps
Memory type - DDR6
Model - GV-R76GAMING OC-8GD
Model - Radeon RX 7600 Gaming OC
MPN - GV-R76GAMING OC-8GD

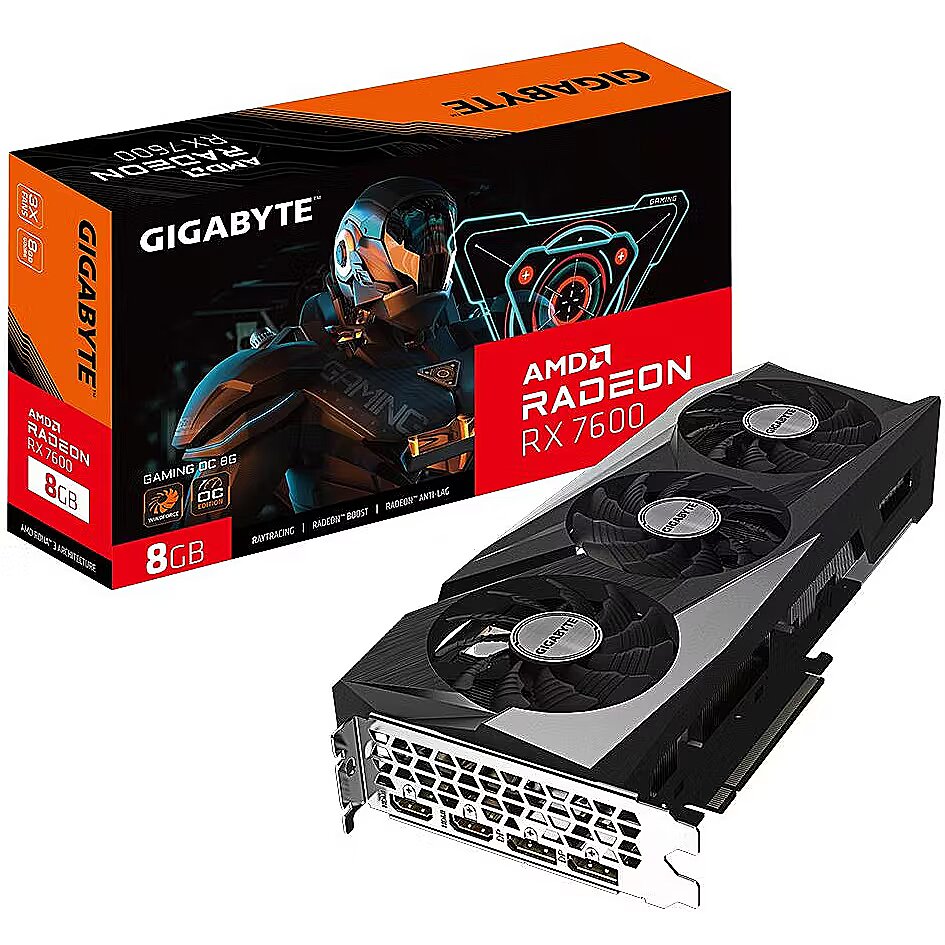

Name - Gigabyte Radeon RX 7600 GAMING OC 8GB
name - Graphics card Radeon RX 7600 Gaming OC 8G GDDR6 128bit 2DP/2HDMI
Name - RX 7600 8GB Gigabyte Gaming OC GDDR6
Other features -
Other information -
Packaging content - User guide - Yes
Packaging data - Package type - Box
Performance - AMD FreeSync - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces - USB Type-C ports quantity - 1
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 7600
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2755 MHz
Processor - Processor frequency - 2355 MHz
Processor - Stream processors - 2048
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-R76GAMING OC-8GD
ProducerCode - GV-R76GAMING OC-8GD
productName - Gigabyte GAMING Radeon RX 7600 OC 8G AMD 8 GB GDDR6
ProductName - Radeon RX 7600 GAMING OC 8G
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 40.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.352 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
ShortDescription - Chipset AMD 7600 | 8GB
Short description - GIGA VGA 8GB Radeon RX7600 GAMING OC-8G 2xDP/2xHDMI Radeon RX 7600 GAMING OC 8G
ShortSummaryDescription - Gigabyte GAMING Radeon RX 7600 OC 8G, Radeon RX 7600, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 405
sizeY - 90
sizeZ - 235
Stream processors - 2048
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
System requirements - Windows operating systems supported - Windows 11 x64
Title - Gigabyte GAMING Radeon RX 7600 OC 8G AMD 8 GB GDDR6
Unit Box Height - 0.09
Unit Box Length - 0.405
Unit Box Width - 0.24
Unit Brutto Volume - 0.008748 cubm
Unit Gross Weight - 1.35 kg
Unit Net Weight - 0.8 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-R76GAMING-OC-8GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-R76GAMING-OC-8GD#kf
vendpn - GV-R76GAMING OC-8GD
Version - Box
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 8 GB
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.34
weight - 1340
Weight & dimensions - Depth - 287 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 115 mm
