Brand - Gigabyte
BrandPartCode - GV-R79XTXGAMING OC-24GD
Card's length - > 280 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Chipset - AMD Radeon RX 7900 XTX

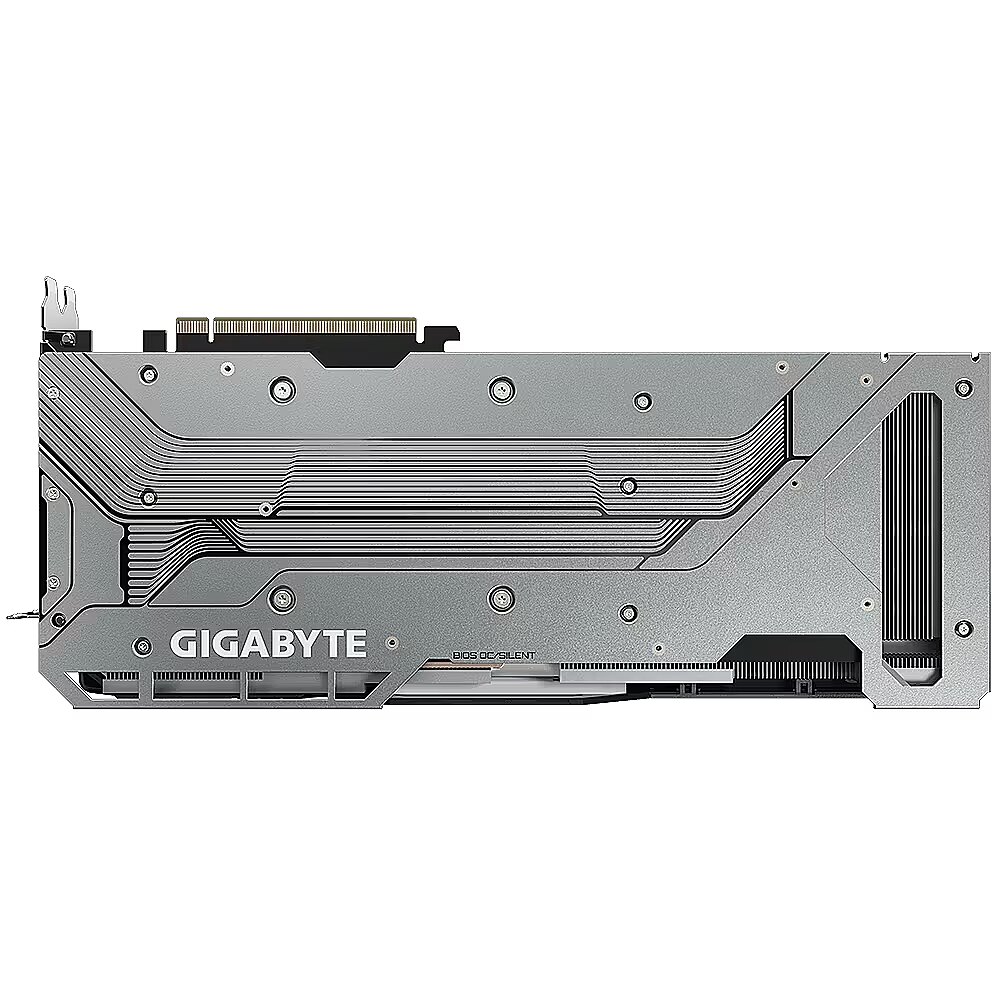

Description - - Powered by Radeon™ RX 7900 XTX - Integrated with 24GB GDDR6 384-bit memory interface - WINDFORCE Cooling System - RGB Fusion - Dual BIOS - Protection metal back plate - Anti-sag bracket
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Fan diameter - 10 cm
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimensionalWeight - 2160
Dimensions - L=331 W=138 H=50 mm
DisplayPort Input/Output connectors - 2
EAN - 4719331312626
Eans - 4719331312626
Full Description Line - AMD Radeon RX 7900 XTX|Graphics memory size 24 GB|GDDR6|384 bit|PCIE 4.0 16x|Memory CLK 20 Gbps|GPU boost clock 2525 MHz|7680x4320|2xHDMI|2xDisplayPort|Included Accessories 1. Quick guide2. Anti-sag bracket3. Anti-sag bracket installation guide
GPU boost clock - 2525 MHz
Graphic card features - Gaming/Overclock Edition
Graphics connector - PCIE 4.0 16x
Graphics memory size - 24 GB
Graphics memory type - GDDR6
Gross Weight Kg - 3
GTIN - 4719331312626

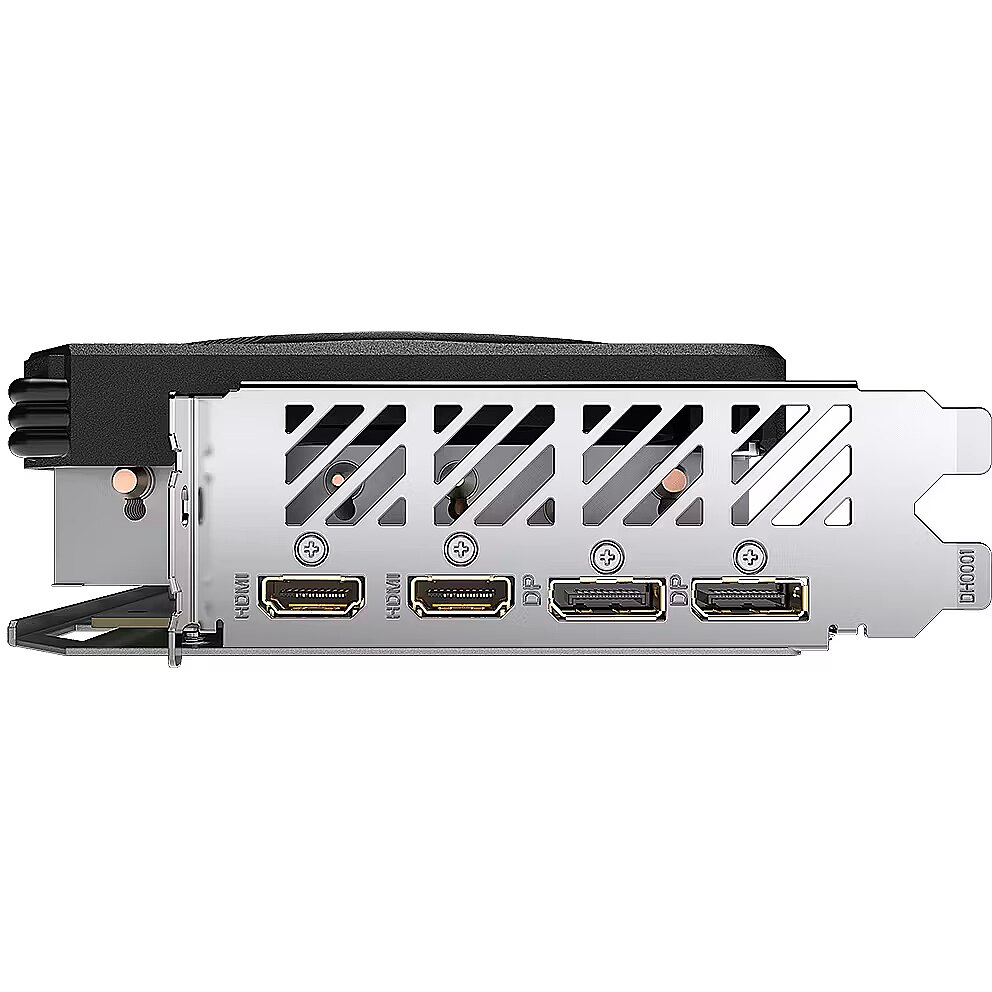

HDMI Input/Output connectors - 2
Included Accessories - 1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide
LongDesc - WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.LARGE VAPOR CHAMBER & HEAT-PIPEThe large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.RGB FUSIONWith 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.EXCELLENT IN ESSENTIALPROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.DUAL BIOSThe factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.ANTI-SAG BRACKETThe new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.BUILT STRONGULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.AMD Radeon™ Anti-LagMinimizes input lag so you can game like a champion.AMD Radeon™ BoostDelivers extra performance and responsiveness when you need it most.AMD Radeon™ Image SharpeningImproves in-game visuals with virtually no impact to performance.AMD Radeon™ Super ResolutionIn-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.AMD Noise SuppressionReduces background audio noise from your surrounding environment for clearer communication.AMD LinkConnect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
LongProductName - 24 GB, GDDR6, 384-bit, PCI Express 4.0, 2525 MHz boost clock, 2x HDMI, 2x DisplayPort, 2x 8-pin, RGB
LongSummaryDescription - Gigabyte GAMING Radeon RX 7900 XTX OC 24G. Graphics processor family: AMD, Graphics processor: Radeon RX 7900 XTX. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer Code - GV-R79XTXGAMING OC-24GD
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 24 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 384 bit
Memory - Number of pipelines - 9
Memory bus - 384 bit
Memory CLK - 20 Gbps
Model - GV-R79XTXGAMING OC-24GD
Name - Gigabyte Radeon RX 7900 XTX GAMING OC 24G
Packaging content - User guide - Yes
Packaging data - Package type - Box
Packaging data - User guide - Yes
Performance - AMD FreeSync - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 2x 8-pin
Power connectors - 8+8 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 7900 XTX
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2525 MHz
Processor - Stream processors - 6144
Producer - Gigabyte
producerCode - GV-R79XTXGAMING OC-24GD
ProducerCode - GV-R79XTXGAMING OC-24GD
productName - Gigabyte GAMING Radeon RX 7900 XTX OC 24G AMD 24 GB GDDR6
ProductName - Radeon RX 7900 XTX GAMING OC 24G
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 45 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.333 kg
Shipping Box Width Shipping/Package Box Dimensions - 9.5 cm
ShortDescription - Chipset AMD 7900XTX | 24GB
Short description - GIGA VGA 24GB Radeon RX7900XTX GAMING OC-24GD 2xDP/2xHDMI Radeon RX 7900 XTX GAMING OC 24G
ShortSummaryDescription - Gigabyte GAMING Radeon RX 7900 XTX OC 24G, Radeon RX 7900 XTX, 24 GB, GDDR6, 384 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 240
sizeY - 100
sizeZ - 450
Stream processors - 6144
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
System requirements - Windows operating systems supported - Windows 11 x64
Title - Gigabyte GAMING Radeon RX 7900 XTX OC 24G AMD 24 GB GDDR6
Unit Box Height - 0.24
Unit Box Length - 0.45
Unit Box Width - 0.095
Unit Brutto Volume - 0.01026 cubm
Unit Gross Weight - 2.33 kg
Unit Net Weight - 1.7 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-R79XTXGAMING-OC-24GD
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-R79XTXGAMING-OC-24GD#kf
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2300
Weight & dimensions - Depth - 331 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 138 mm
