Brand - Gigabyte
BrandPartCode - GVR65XTE-00-10
Card's length - 160 to 200 mm
Category - Graphics Cards
Category Code - VGP
CUDA Cores - 1024
Description - Radeon™ RX 6500 XT EAGLE 4G GV-R65XTEAGLE-4GD Powered by AMD RDNA™ 2 Radeon™ RX 6500 XT Integrated with 4GB GDDR6 64-bit memory interface WINDFORCE 2X Cooling System with alternate spinning fans Graphene nano lubricant
Design - Cooling technology - GIGABYTE WINDFORCE 2X
Design - Cooling type - Active
Design - Number of fans - 2 fan(s)
Design - Product colour - Grey
DisplayPort Input/Output connectors - 1
Full Description Line - Graphics memory size 4 GB|GDDR6|64 bit|PCIE 4.0 16x|Memory clock 18000 MHz|GPU clock 2610 MHz|7680x4320|1xHDMI|1xDisplayPort
GPU clock - 2610 MHz
Graphics connector - PCIE 4.0 16x
Graphics memory size - 4 GB
Graphics memory type - GDDR6
GTIN - 4719331310554
HDMI Input/Output connectors - 1
Logistics data - Harmonized System (HS) code - 84733020

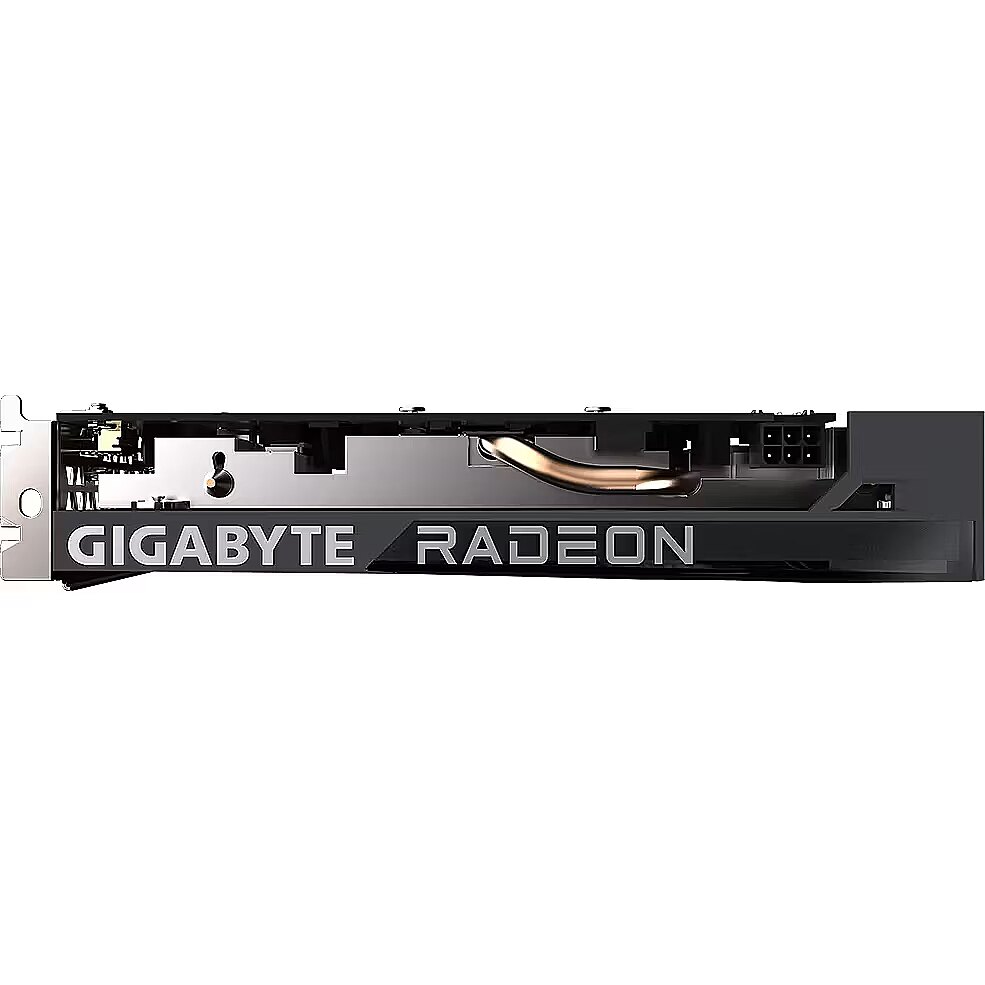

LongDesc - WINDFORCE 2X COOLING SYSTEMThe WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGAlternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.SMOOTH AIRFLOWGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.HEAT PIPES AND COPPER PLATEThe shape of the pure copper heat pipe contacts with the GPU through a copper plate.ULTRA COOLINGLower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.LOW POWER LOSSMetal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.LONGER LIFELower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.AORUS ENGINEThe cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
LongProductName - Radeon RX 6500 XT, 4 GB, GDDR6, 64 bit, PCI-E 4.0, 7680x4320, 400W, 1x 6 pin
LongSummaryDescription - Gigabyte EAGLE Radeon RX 6500 XT 4G. Graphics processor family: AMD, Graphics processor: Radeon RX 6500 XT. Discrete graphics card memory: 4 GB, Graphics card memory type: GDDR6, Memory bus: 64 bit, Memory clock speed: 18000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 4 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 144 GB/s
Memory - Memory bus - 64 bit
Memory - Memory clock speed - 18000 MHz
Memory bus - 64 bit
Memory clock - 18000 MHz
Packaging content - User guide - Yes
Packaging data - Package type - Box
Performance - AMD FreeSync - Yes
Performance - DirectX version - 12 Ultimate
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 400 W
Power - Supplementary power connectors - 1x 6-pin
Power connectors - 6 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 6500 XT
Processor - Graphics processor family - AMD
Processor - Lithography - 6 nm
Processor - Maximum displays per videocard - 2
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2815 MHz
Processor - Processor boost clock speed (Gaming mode) - 2610 MHz
Processor - Stream processors - 1024
ProductName - Radeon RX 6500 XT EAGLE 4G
Shipping Box Depth Shipping/Package Box Dimensions - 30 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.641 kg
Shipping Box Width Shipping/Package Box Dimensions - 21.5 cm
ShortSummaryDescription - Gigabyte EAGLE Radeon RX 6500 XT 4G, Radeon RX 6500 XT, 4 GB, GDDR6, 64 bit, 7680 x 4320 pixels, PCI Express 4.0

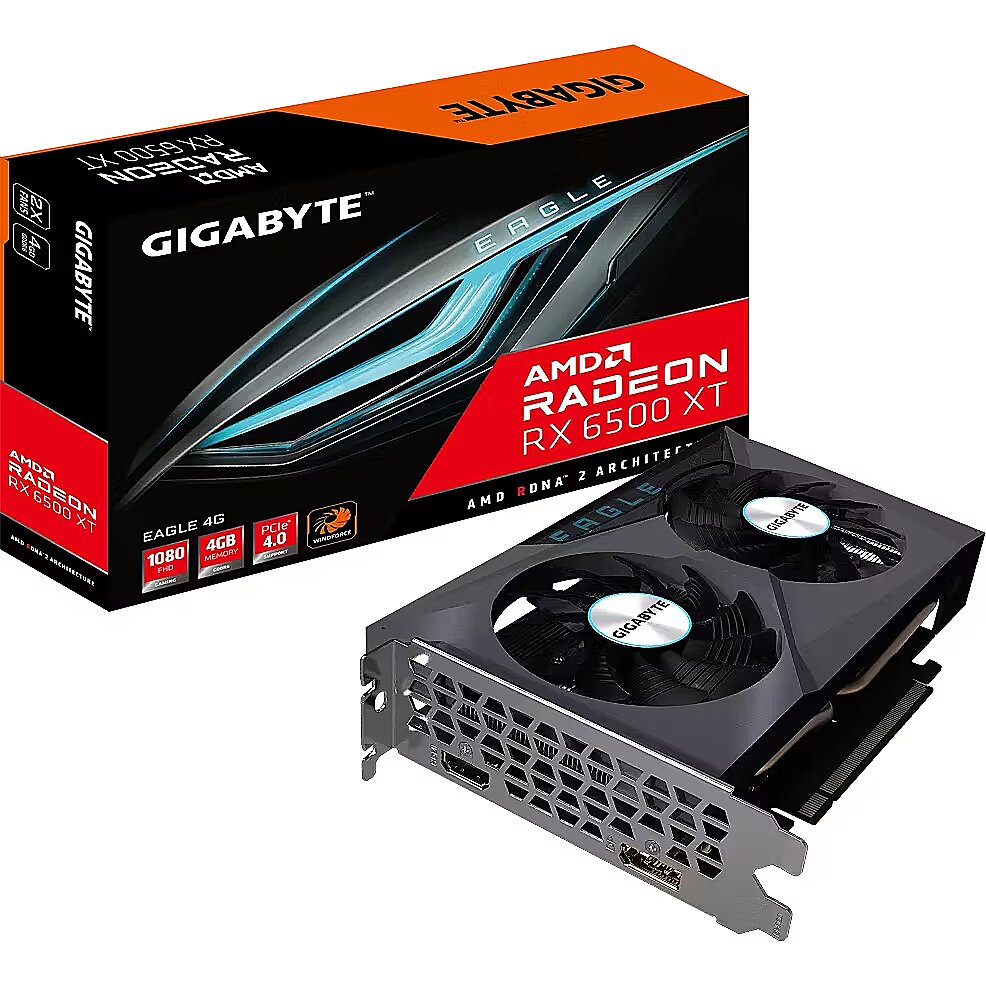

Title - Gigabyte EAGLE Radeon RX 6500 XT 4G AMD 4 GB GDDR6
Unit Box Height - 0.055
Unit Box Length - 0.3
Unit Box Width - 0.215
Unit Brutto Volume - 0.003547 cubm
Unit Gross Weight - 0.641 kg
Unit Net Weight - 0.48 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-R65XTEAGLE-4GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-R65XTEAGLE-4GD#kf
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 117 mm
Weight & dimensions - Height - 38 mm
Weight & dimensions - Width - 192 mm
