Brand - ASUS
BrandPartCode - 90YV0JJ1-M0NA00
Card's length - 240 to 280 mm
Category - Graphics Cards
Category Code - VGP
Chipset - AMD Radeon RX 7800 XT
CnCode CnCode - 84718000
Cooling system - Dual Slot Fansink

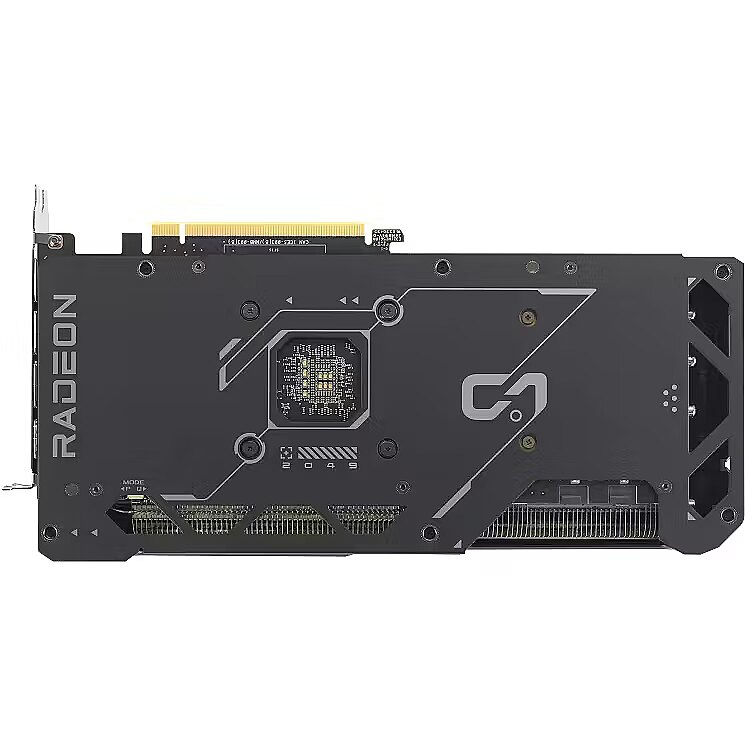

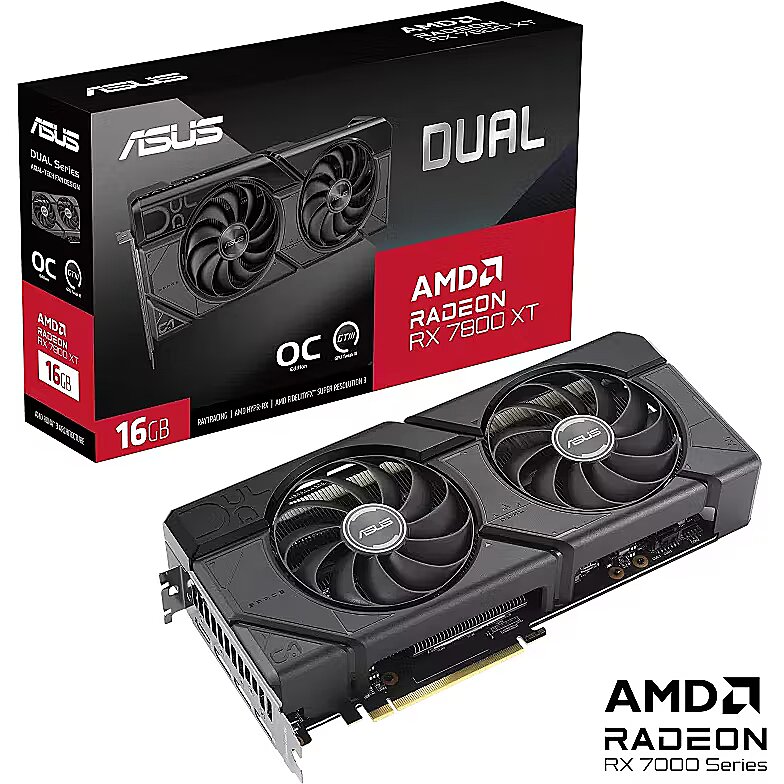

Description - ASUS Dual Radeon™ RX 7800 XT OC Edition 16GB GDDR6 ASUS Dual Radeon™ RX 7800 XT OC Edition 16GB GDDR6 is armed to dish out frames and keep vitals in check - OC Mode: up to 2520 MHz (Boost Clock)/up to 2213 MHz (Game Clock) - Dual ball fan bearings can last up to twice as long as sleeve bearing designs. - Auto-extreme technology uses automation to enhance reliability. - A protective backplate prevents PCB flex and trace damage. - GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.47
Design - Product colour - Black
Dimensions - 279.9 x 133.9 x 49.3 mm
DisplayPort Input/Output connectors - 3
Full Description Line - AMD Radeon RX 7800 XT|Graphics memory size 16 GB|GDDR6|256 bit|PCIE 4.0 16x|Memory CLK 19.5 Gbps|GPU boost clock 2475 MHz|7680x4320|Cooling Dual Slot Fansink|1xHDMI|3xDisplayPort|Included Accessories 1 x Thank you card1 x Speedsetup Manual
GPU boost clock - 2475 MHz
Graphic card features - HDCP/Overclock Edition
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6
GTIN - 0197105436176
GTIN - 197105436176
GTIN - 4711387436165
HDMI Input/Output connectors - 1

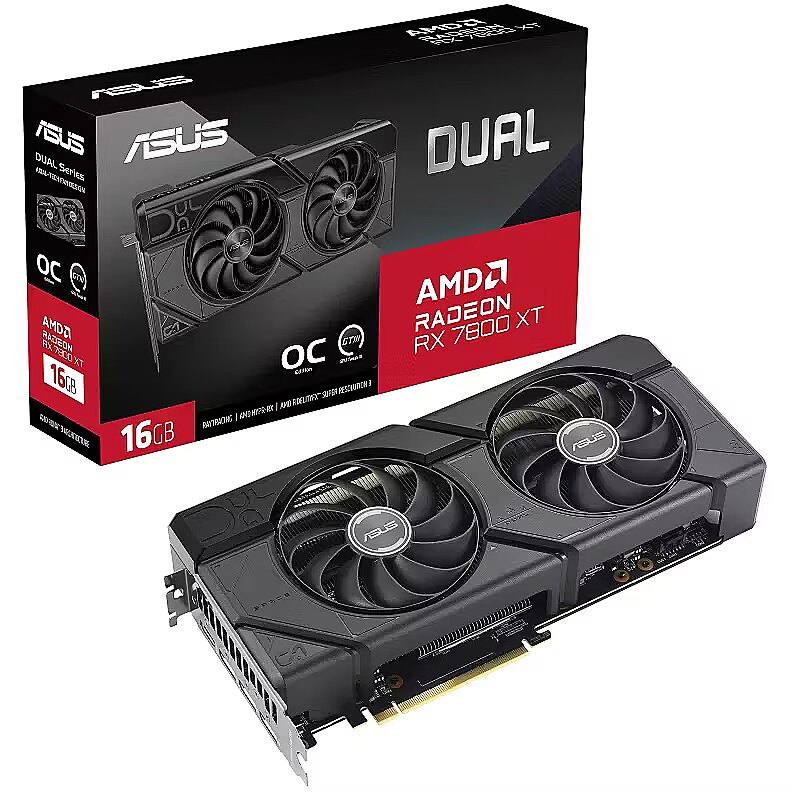

Included Accessories - 1 x Thank you card
1 x Speedsetup Manual
LongDesc - 2x Fans. 2x Fun.Delivering the latest AMD RDNA™ 3 architecture experience in its purest form, the ASUS Dual Radeon™ RX 7800 XT OC Edition melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.Axial-tech Fan DesignBetter, faster, strongerTwo tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.Auto-Extreme TechnologyPrecision automated manufacturingAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.GPU TWEAK IIIMonitor, tweak, and tuneThe ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG Thor, ROG Loki or ROG Strix AURA power supply for ultimate performance.
LongProductName - Dual Radeon RX 7800 XT OC Edition 16GB GDDR6 is armed to dish out frames and keep vitals in check
LongSummaryDescription - ASUS Dual -RX7800XT-O16G. Graphics processor family: AMD, Graphics processor: Radeon RX 7800 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Max resolution - 7680x4320
Memory - Data transfer rate - 19.5 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Memory bus - 256 bit
Memory CLK - 19.5 Gbps
Model - DUAL-RX7800XT-O16G
Packaging data - Manual - Yes
Packaging data - Package depth - 233 mm
Packaging data - Package height - 88.5 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.7 kg
Packaging data - Package width - 405 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

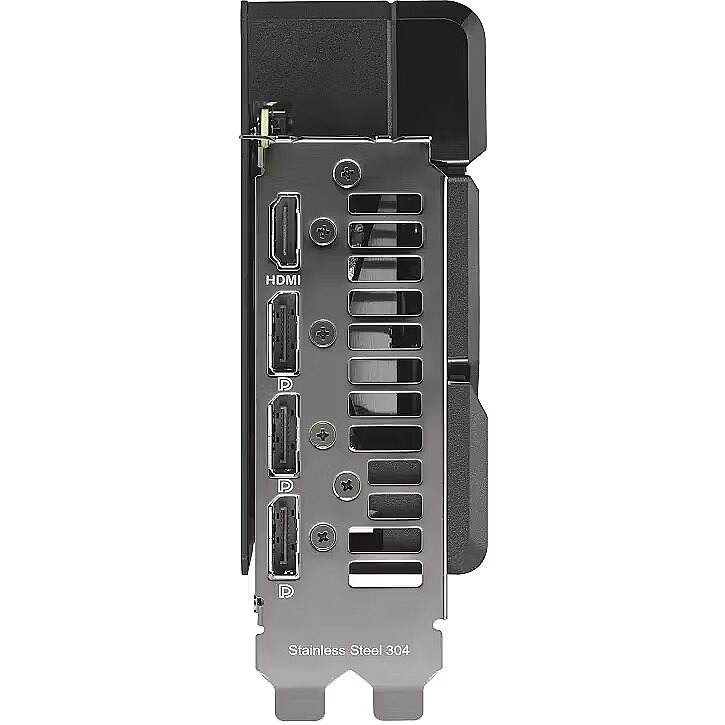

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 2x 8-pin
Power connectors - 8+8 pin
Processor - Graphics processor - Radeon RX 7800 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2475 MHz
Processor - Processor boost clock speed (Gaming mode) - 2169 MHz
Processor - Processor boost clock speed (OC mode) - 2520 MHz
Processor - Stream processors - 3840
ProductName - DUAL-RX7800XT-O16G
Shipping Box Depth Shipping/Package Box Dimensions - 47.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 43.2 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 9.55 kg
Shipping Box Width Shipping/Package Box Dimensions - 24.5 cm
ShortSummaryDescription - ASUS Dual -RX7800XT-O16G, Radeon RX 7800 XT, 16 GB, GDDR6, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
Stream processors - 3840
Title - ASUS Dual -RX7800XT-O16G AMD Radeon RX 7800 XT 16 GB GDDR6
Unit Box Height - 0.09
Unit Box Length - 0.406
Unit Box Width - 0.235
Unit Brutto Volume - 0.01005 cubm
Unit Gross Weight - 1.91 kg
Unit Net Weight - 1.6 kg
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rx7800xt-o16g/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/dual/dual-rx7800xt-o16g/techspec/
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 133.9 mm
Weight & dimensions - Height - 49.3 mm
Weight & dimensions - Weight - 933 g
Weight & dimensions - Width - 279.9 mm
