Accessories included -
Brand - Gigabyte
BrandPartCode - GV-N3050OC-6GL
Card's length - 160 to 200 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Chipset - GeForce RTX 3050
Chipset - NVIDIA GeForce RTX 3050
Chipset manufacturer - NVIDIA
Code - GV-N3050OC-6GL 1.0
Cooling - Active
Cooling system - Dual Slot Fansink
Core Boost frequency - 1477 MHz
CUDA Core - 2304
CUDA Cores - 2304
Description -
Description - GeForce RTX™ 3050 OC Low Profile 6GKey Features Specification Support Gallery Buy KEY FEATURE - NVIDIA Ampere Streaming Multiprocessors - 2nd Generation RT Cores - 3rd Generation Tensor Cores - Powered by GeForce RTX™ 3050 - Integrated with 6GB GDDR6 96-bit memory interface - Low Profile Design with 181mm card length - Supports up to 4 displays CORE CLOCK - 1477 MHz (Reference Card: 1470 MHz)
Design - Cooling type - Active
Design - Form factor - Full-Height/Half-Length (FH/HL)
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
dimensionalWeight - 697
dimension depth - 50 mm
dimension height - 295 mm
Dimensions - 36 x 69 x 181 mm
Dimensions - 181 x 69 x 36 mm
dimension weight - 545 g
dimension width - 210 mm
DisplayPort Input/Output connectors - 2
EAN - 4719331354268
ean - 4719331354268
Eans - 4719331354268
Full Description Line - NVIDIA GeForce RTX 3050|Graphics memory size 6 GB|GDDR6|96 bit|PCIE 4.0 16x|Memory clock 14000 MHz|GPU clock 1470 MHz|7680x4320|Cooling Dual Slot Fansink|2xHDMI|2xDisplayPort|Included Accessories 1. Quick guide2. Low Profile Bracket
GPU clock - 1470 MHz
Graphic card features - Gaming/Low profile
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 6 GB
Graphics memory type - GDDR6
GTIN - 4719331354268
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 2
Included Accessories - 1. Quick guide
2. Low Profile Bracket
LongDesc - GIGABYTECUSTOM-DESIGNED COOLING SYSTEMGIGABYTE's custom-designed cooling system delivers effective heat dissipation capacity, featuring copper heat pipe that makes direct contact with the GPU. This facilitates enhanced heat transfer to the heatsink, allowing for higher performance at lower temperatures.LOW PROFILE DESIGNAt just 181mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.AMPLE CONNECTIVITYEnjoy versatile display options with two DisplayPort and two HDMI ports, supporting up to 4 displays simultaneously.ULTRA DURABLEULTRA COOLINGLower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.LOW POWER LOSSMetal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.LONGER LIFELower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 3050, 1477MHz, 6GB GDDR6, 96 bit, 14000MHz, PCI Express 4.0, 2 x HDMI (2.1), 2 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - Gigabyte GeForce RTX 3050 OC Low Profile 6G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3050, Processor frequency: 1477 MHz. Discrete graphics card memory: 6 GB, Graphics card memory type: GDDR6, Memory bus: 96 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 6 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 96 bit
Memory - Memory clock speed - 14000 MHz
Memory bus - 96 bit
Memory bus - 96-bit
Memory clock - 14000 MHz
Memory frequency - 14000 MHz
Memory type - DDR6
Model - GeForce RTX 3050
Model - GV-N3050OC-6GL
Name - Gigabyte GeForce RTX 3050 6GB Low Profile
Name - GIGABYTE GV-N3050OC-6GL 1.0
name - Graphics card GeForce RTX 3050 OC 6GB GDDR6 96bit
Other features -
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 183.00 mm
Package features > Gross height (mm) - 38.00 mm
Package features > Gross width (mm) - 71.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 352 pc(s)
Package features > Paper/Pasteboard - 600 g
Package features > Plastic (No PET) - 200 g
Package features > Tare weight (kg) - 0.8 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Quick installation guide - Yes
Packaging content - User guide - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

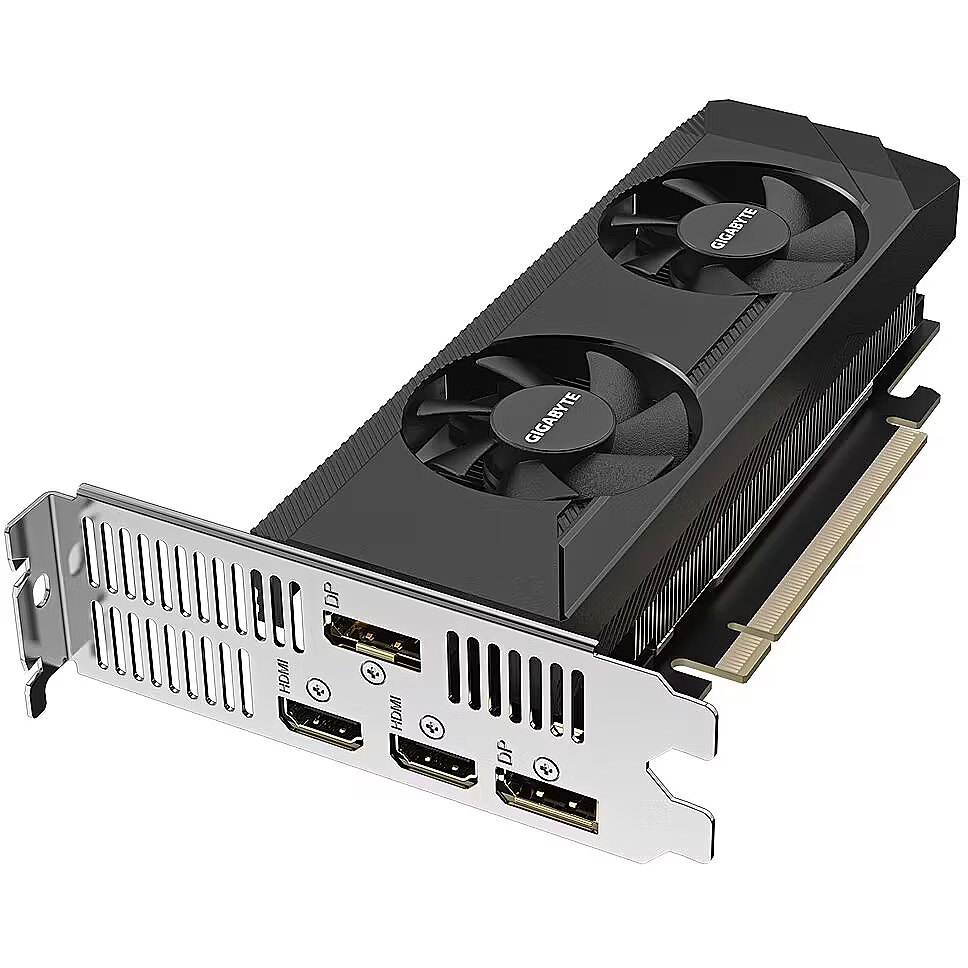

Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 300 W
Power consumption - 300 Watts
Processor - CUDA - Yes
Processor - CUDA cores - 2304
Processor - Graphics processor - GeForce RTX 3050
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor frequency - 1477 MHz
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-N3050OC-6GL
ProducerCode - GV-N3050OC-6GL
ProductName - GeForce RTX 3050 OC Low Profile 6G
productName - VGA GBT RTX3050 6GB OC Low Profile
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 54 cm
Shipping Box Height Shipping/Package Box Dimensions - 33 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 12.14 kg
Shipping Box Width Shipping/Package Box Dimensions - 45 cm
ShortDescription - Chipset NVIDIA RTX 3050 | 6GB | LP
ShortSummaryDescription - Gigabyte GeForce RTX 3050 OC Low Profile 6G, GeForce RTX 3050, 6 GB, GDDR6, 96 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 295
sizeY - 215
sizeZ - 55
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 2.84 kg
Technical details > Net weight - 2.04 kg
Technical details > Producer - Gigabyte
Title - Gigabyte GeForce RTX 3050 OC Low Profile 6G NVIDIA 6 GB GDDR6
Unit Box Height - 0.05
Unit Box Length - 0.3
Unit Box Width - 0.215
Unit Brutto Volume - 0.00401 cubm
Unit Gross Weight - 0.607 kg
Unit Net Weight - 0.54 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N3050OC-6GL#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N3050OC-6GL#kf
vendpn - GV-N3050OC-6GL
Version - Box
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 6 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 450
Weight & dimensions - Depth - 181 mm
Weight & dimensions - Height - 36 mm
Weight & dimensions - Width - 69 mm
