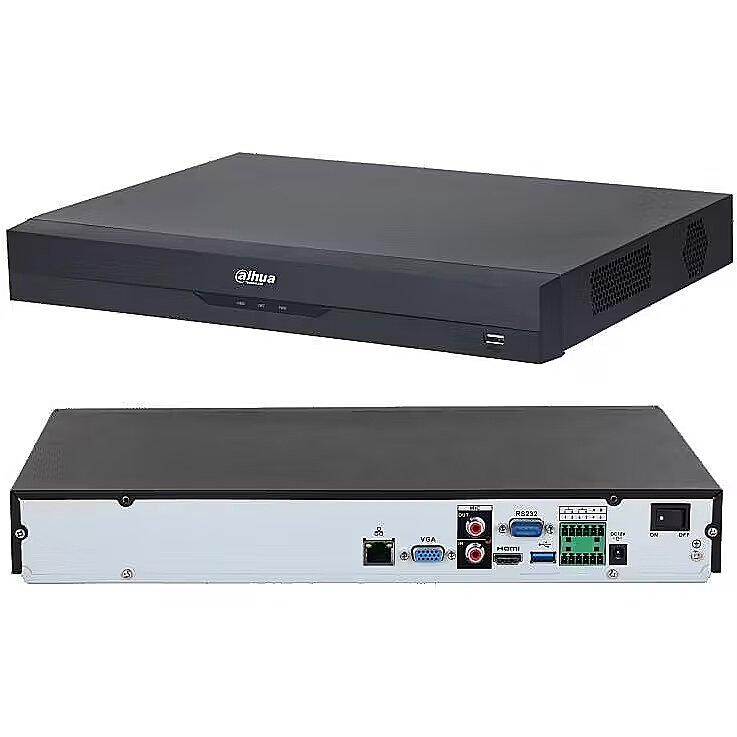

Dahua NET VIDEO RECORDER 32CH/NVR5232-EI

15pin D-sub Input/Output connectors - 1
Alarm In Input/Output connectors - 4
Alarm Out Input/Output connectors - 2
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - NVR5232-EI
Category - Network Video Recorders (NVR)
Category Code - NVR
CPU - Embedded Linux
Description - •32 IP channel max, up to 32MP resolution • up to 384 Mbps incoming bandwidth •VGA/HDMI up to 3840 × 2160 output •2 SATA interface up to 16 TB each •No front panel controls, 4/2 alarm I/O, RS232, RS485, 2 USB •1U 19” chassis, mouse included •Free IP monitoring software available •Smart capabilities support: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus • Support AcuPick with Max. 16-Channel
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 4469
Dimensions - 375.0 × 284.4 x 56.0mm
Features - Certification - CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Features - Certification - FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
Features - Product colour - Black
GTIN - 6923172586018
HDMI Input/Output connectors - 1
LongDesc - Launched by Dahua Technology, WizSense is a series of AI productsand solutions that adopt independent AI chip and deep learningalgorithm. It focuses on human and vehicle with high accuracy,enabling users to fast act on defined targets. Based on Dahua'sadvanced technologies, WizSense provides intelligent, simple andinclusive products and solutions.Series OverviewThe NVR5000-EI series offers outstanding performance and high-graderecording technology that make it ideal for IP video surveillanceapplications. It has a powerful processor, that offers high access andforwarding bandwidth and strong decoding capabilities that togetherproduce unimpeded streams. Thanks to its built-in AI chip and Dahua'sadvanced deep learning algorithms, the NVR supports a variety ofAI functions, such as high-precision face recognition and perimeterprotection. They shorten the response time to events and make videosmore interactive. This NVR is compatible with numerous third-partydevices, making it a great solution for surveillance systems that workwith Video Management Software (VMS).Functions- AcuPickThis industry-leading search technology effectively utilizes both frontend and back-end intelligence to help with searching through massivevideo data to quickly and conveniently locate targets with greaterprecision.- Perimeter ProtectionAutomatically filters out false alarms caused by animals, rustlingleaves, bright lights, etc. Enables system to act secondary recognitionfor the targets. Improves alarm accuracy.- Face DetectionFace detection is to detect if there is any human face appearing in thevideo. This technology adopts a deep learning algorithm to supportface detection, tracking, optimization and capturing, and then outputthe best face snapshot.- Face RecognitionDahua Face Recognition technology extracts the features of capturedfaces and compares them with that in face database.- Heat Map by CameraDahua heat map technology is used to display the crowd density andpeople appearance probability. Export and display the crowd status bydifferent colors. Generally, the crowd status is the statistics of peoplequantity in space and time dimensions.- ANPR by CameraWith deep learning algorithm, Dahua ANPR technology can recognizethe number plate information of vehicles in the image with ANPRcameras. Support blocklist/allowlist mode, searching target vehiclesfrom recorded video.- SMD PlusWith intelligent algorithm, Dahua Smart Motion Detection technologycan categorize the targets that trigger motion detection and filter themotion detection alarm triggered by non-concerned targets to realizeeffective and accurate alarm.
LongProductName - 32 channels, 3840 × 2160, RS-232, RS-485, USB x 2, HDMI, VGA, RJ-45, 375.0 × 284.4 x 56.0mm, 1.57 kg
LongSummaryDescription - Dahua Technology NVR5232-EI. Video input channels: 32 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 1080p. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search.... Product colour: Black, Certification: FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC.... Power consumption (typical): 10 W, Output current: 4 A, Output voltage: 12 V. Mobile operating systems supported: Android, iOS, Browser supported: Chrome; IE; Safari; Edge; Firefox
Number of Channels - 32
Number of drives/bays - 2
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Alarm input channels - 4
Performance - Alarm output channels - 2
Performance - Audio formats supported - G.711 A-law
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, PCM
Performance - Audio formats supported - G.711 μ-law
Performance - Audio formats supported - G.726
Performance - Audio formats supported - PCM
Performance - Face detection - Yes
Performance - Image formats supported - MJPEG
Performance - Input bandwidth - 384 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Multi-screen - Yes
Performance - Output bandwidth - 200 Mbit/s
Performance - Supported resolutions - 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264+
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video formats supported - H.265
Performance - Video formats supported - H.265+
Performance - Video input channels - 32 channels
Performance - Video recording modes - 1080p
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - Ethernet LAN data rates - 1000 Mbit/s
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Internal SATA ports quantity - 2
Ports & interfaces - Number of USB 3.0 ports - 1
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - DC input voltage - 12 V
Power - Output current - 4 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 10 W
Power - Rated current - 4 A
Power consumption - 10 Watts
Power supply requirements - 12 VDC, 4 A
Processor - Built-in processor - Yes
producerCode - NVR5232-EI
productName - DAHUA NVR5232-EI IP Video Recorder
ProductName - NVR5232-EI
Product Net Weight - 2 kg
productSize - Normal
Rack 1U Mounting Type - Yes
RJ45 Input/Output connectors - 1
RS-485 Input/Output connectors - 1
RS232 Input/Output connectors - 1
Safety warning - Warnings - Do not expose the device to moisture or extreme temperatures.
Safety warning - Warnings - The appliance should be installed by a qualified professional.
Safety warning - Warnings - The product must be disposed of properly in accordance with local regulations for the disposal of electronics.
SATA Interface - Yes
ShortSummaryDescription - Dahua Technology NVR5232-EI, 32 channels, 3840 x 2160 pixels, 1080p, G.711 A-law, G.711 μ-law, PCM, H.264, H.264+, H.265, H.265+, MJPEG
sizeX - 433
sizeY - 141
sizeZ - 366
Storage - HDD interface - SATA
Storage - Maximum storage capacity - 20 TB
Storage - Number of HDDs supported - 2
System requirements - Browser supported - Chrome; IE; Safari; Edge; Firefox
System requirements - Linux operating systems supported - Yes
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology NVR5232-EI network video recorder Black
Unit Box Height - 0.36
Unit Box Length - 0.43
Unit Box Width - 0.14
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 3 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5232-EI
USB 2.0 Input/Output connectors - 1
USB 3.0 Input/Output connectors - 1
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5232-EI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - F
weight - 2870
Weight & dimensions - Depth - 284 mm
Weight & dimensions - Depth - 284.4 mm
Weight & dimensions - Height - 56 mm
Weight & dimensions - Package depth - 141 mm
Weight & dimensions - Package height - 366 mm
Weight & dimensions - Package weight - 2.73 kg
Weight & dimensions - Package weight - 273 g
Weight & dimensions - Package width - 433 mm
Weight & dimensions - Weight - 1.57 kg
Weight & dimensions - Width - 375 mm
Wireless LAN features - Wi-Fi - No
