Accessories included - VIGI NVR1104H-4P recorder Charger HDD screws Mouse Quick Installation Guide
ARTIKEL1 - 4 CHANNEL POE NETWORK
ARTIKEL2 - VIDEO RECORDER
Audio compression - G.711
Audio compression - G.726
Brand - TP-Link
BrandPartCode - VIGI NVR1104H-4P
Breite - 0.26
Category - Network Video Recorders (NVR)
Channels - 4
Code - VIGI NVR1104H-4P
Connectors - 1 x D-Sub
Connectors - 1 x HDMI
Connectors - 2 x USB 2.0
Connectors - Audio in
Connectors - Audio out
Connectors - RJ-45
Description - VIGI 4-channel network video recorder with PoE+ power supply 4K HDMI video output and 16MP decoding capability: Crisp 8MP video and 4 channel display ensures you can capture every detail from any angle. Simplify deployment with PoE+: With an RJ45 Ethernet cable, you can provide network access and power to PoE cameras at the same time, without the need for an additional power supply. Easy HDD installation: Install and remove the HDD with convenient side access. 4-Channel Live View: Play streams from up to 4 cameras at the same time, speed up replays, and find events in the video schedule to conveniently review recordings. H.265+: The camera does not need to use excessive network bandwidth, the device transmits compressed video to save disk space and reduce network load. Compliance with ONVIF standards*: The design of the device is fully compliant with ONVIF standards, so connecting VIGI cameras or cameras from other manufacturers is not a problem and allows you to create a powerful and diverse network. Plug & Play: Allows you to automatically add new, unused VIGI IP cameras. Activation is instant and installation is faster than ever before. 24/7 recording: The material obtained from connected cameras is automatically saved on the disk (up to 10 TB), thanks to which access to recordings is quick and convenient. Remote Monitoring: The VIGI app is a convenient and easy-to-use app that gives you access to remote monitoring. Built-in speaker: Enjoy real-time audio output without the need for additional peripherals. Flexible Mounting: Choose the installation method that suits you by mounting the NVR on a wall, or placing it on or under a desk. Different perspectives on one screen 4K HDMI video output and 16MP decoding capability The clear 8MP image and 4 channel display ensures you can capture every detail from any angle. 4 Dedicated PoE+ ports (53W total power) for easy deployment of IP cameras The NVR is equipped with 4 10/100Mbps PoE+ ports, each offering up to 30W of power. The device is designed to simultaneously provide network access and PoE power via a single Ethernet cable. Thanks to this, it offers a convenient possibility to implement various monitoring installations for small businesses, such as shops, warehouses, restaurants or financial institutions. Easy installation of the HDD Install and remove the HDD with convenient side access Press and hold the side cover latch to remove it. Slide the HDD to place it in the HDD slot. Tighten the screws to secure the HDD using the appropriate mounting holes. Reinstall the side cover. Accessing your recordings is easier than ever before Simultaneous playback from 4 channels The device gives you the ability to simultaneously play recordings from up to 4 cameras, increase the preview speed and search for events in video schedules for faster viewing of the material. More compression. Space-saving. Same quality. The camera does not need to use excessive network bandwidth - the device sends a compressed video image to save disk space and reduce the load. Forget about long compatibility lists. Compliant with ONVIF standards Easily add VIGI IP cameras and third-party cameras to create a powerful and diverse network with barrier-free compatibility. Plug&Play Allows you to automatically add new, unused VIGI IP cameras. Activation is instant and installation is faster than ever before. Security for every day and every hour. 24/7 continuous recording The ability to store up to 10 TB of video from the cameras on the hard disk ensures safe, convenient and quick access to recordings. Keep an eye on everything, even when you're on the move. Remote monitoring. VIGI's dedicated application, web interface and VIGI Security Manager enable remote monitoring in an easy and convenient way. Greet guests at the entrance. Two-way audio. Thanks to voice intercom support, make two-way conversations while watching your channel from anywhere. One system. Full security. Run your business with peace of mind. The professional VIGI monitoring system from TP-Link will allow you to protect your company regardless of the place and time. Unique features, trustworthy quality, simple installation and convenient management are a combination that will ensure the security of your company.
dimension depth - 65 mm
dimension height - 250 mm
Dimensions - 200.3 × 200.3 × 43 mm
dimension weight - 1421 g
dimension width - 405 mm
Display - Built-in display - No
EAN - 4897098688786
ean - 4897098688786
EANCode - 4897098688786
Features - LED indicators - Yes
Features - Product colour - White
Features - Rack mounting - No
Gewicht - 1.41
GRUPPE1 - Security
GRUPPE2 - Recording Equipment
GTIN - 4897098688786
guarantee - 36
guarantee_type - normal
HDD interface - SATA
HERSTELLER - TP-LINK
Hoehe - 0.07
HSTNUMMER - VIGI NVR1104H-4P
Laenge - 0.41
Link - https://www.tp-link.com/co/business-networking/vigi-network-video-recorder/vigi-nvr1104h-4p/
LongDesc - Every angle all on one screen4K HDMI Video Output & 16MP Decoding CapacitySharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment.Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.Reviewing footage is faster than ever4-Channel Simultaneous Playback Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.More compression. More savings. Same qualityWithout using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
LongProductName - 4CH, PoE, RJ-45 10/100 Mbps, 2x USB 2.0, 200.3 x 200.3 x 43 mm
LongSummaryDescription - TP-Link VIGI NVR1104H-4P. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 4 channels. HDD interface: SATA. Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: White. Power consumption (typical): 4.82 W, Output current: 1.31 A, Output voltage: 53.5 V
Max. capacity of disks - 10 TB
Max. number of disks - 1
Name - TP-LINK | 1 | VIGI NVR1104H-4P | PoE+ Network Video Recorder | 4 Channel
name - VIGI NVR1104H-4 P 4 Chann PoE Net Recor
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Other features -
Other features > Number of SATA connectors - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 401.50 mm
Package features > Gross depth master carton - 250.00 mm
Package features > Gross height (mm) - 64.50 mm
Package features > Gross height master carton - 350 mm
Package features > Gross width (mm) - 251.50 mm
Package features > Gross width master carton - 80.00 mm
Package features > Net weight master carton - 11.14 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 133 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 1.063 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Quick installation guide - Yes
Performance - DHCP client - Yes
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Number of simultaneously playbacked channels - 4 channels
Performance - On Screen Display (OSD) - Yes
Performance - Output bandwidth - 60 Mbit/s
Performance - Supported resolutions - HDMI^ 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1024x768/60Hz, 1280x720/60Hz
VGA: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz,
1280x720/60Hz
Performance - Syslog - Yes
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 4 channels
Performance - Video recording modes - 720p, 1080p
Ports & interfaces - Audio output - 1
Ports & interfaces - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces - Ethernet LAN (RJ-45) ports - 5
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - Ethernet WAN - Yes
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Line-in - Yes
Ports & interfaces - Networking standards - IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 4
Ports & interfaces - Supported network protocols - TCP/IP, DHCP, DNS, NTP, UPnP
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.31 A
Power - Output voltage - 53.5 V
Power - Power consumption (typical) - 4.82 W
Power - Redundant power supply (RPS) support - Yes
Power - Total Power over Ethernet (PoE) budget - 53 W
producer - TP-LINK
Producer product family - PoE+ Network Video Recorder
Producer product name - VIGI NVR1104H-4P
ProductName - NVR1104H-4P
Recording modes - HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
Resolution - 3840 x 2160
ShortSummaryDescription - TP-Link VIGI NVR1104H-4P, 4 channels, 3840 x 2160 pixels, 4 channels, 720p, 1080p, HDMI^ 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz,..., H.264, H.264+, H.265, H.265+
Special functions -
Stck_Kart - 9998
Stck_Pal - 0
Storage - HDD interface - SATA
Storage - Number of HDDs supported - 1
Storno - Y
Technical details - Sustainability certificates - CE, EAC, Federal Communications Commission (FCC)
Technical details - Sustainability compliance - Yes
Technical details > Gross weight - 0.60 kg
Technical details > Net weight - 0.40 kg
Technical details > Other features - 24/7 Continuous Recording. 4-Channel Simultaneous Playback. Remote Monitoring. Onvif Ensure Compatibility. 80 Mbps Video Access Bandwidth
Technical details > Producer - TP-LINK

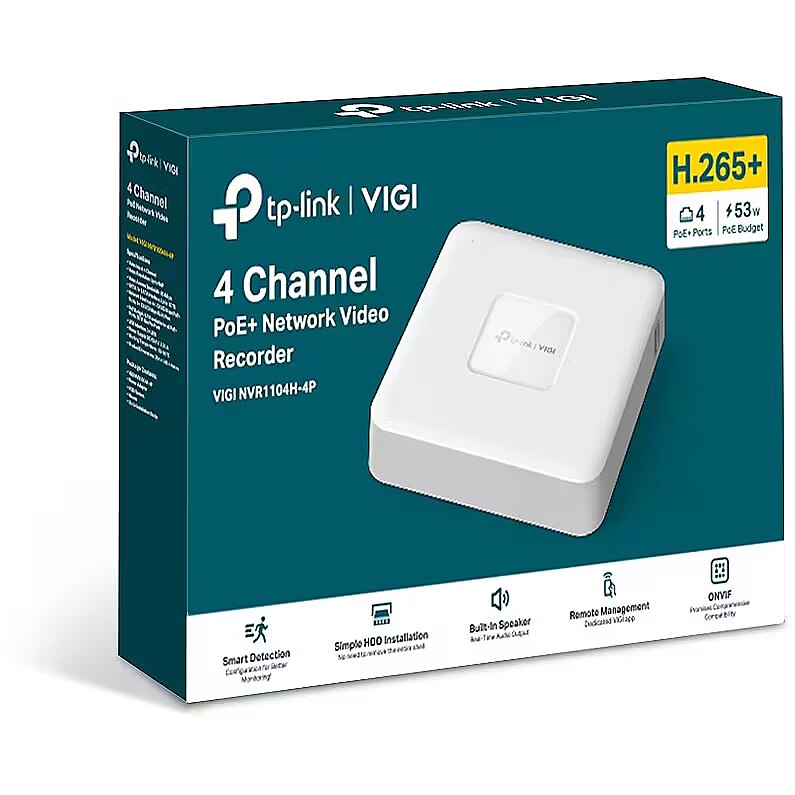

Title - TP-Link VIGI NVR1104H-4P White
URL - https://www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr1104h-4p/
vendpn - VIGI NVR1104H-4P
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Video input channels - 4 Channel
Viewing modes - Live View/Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 200.3 mm
Weight & dimensions - Height - 43 mm
Weight & dimensions - Package depth - 401.5 mm
Weight & dimensions - Package height - 64.5 mm
Weight & dimensions - Package weight - 1.37 kg
Weight & dimensions - Package width - 251.5 mm
Weight & dimensions - Width - 200.3 mm
Wireless LAN features - Wi-Fi - No
