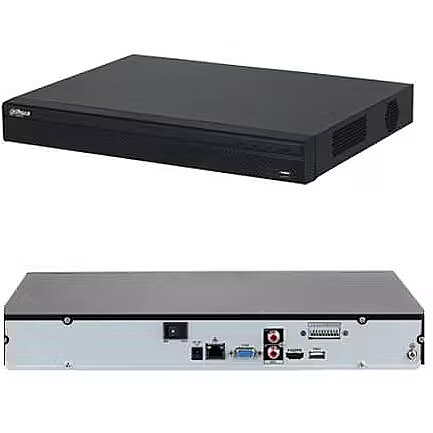

Dahua NET VIDEO RECORDER 8CH/NVR4208-4KS2/L

15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - NVR4208-4KS2/L
Category - Network Video Recorders (NVR)
Category Code - NVR
Description - 8 IP channel max, up to 8 MP resolution 160Mbps record rate, Smart H.265/H.265/Smart H.264/H.264/MJPE encoding VGA/HDMI up to 4K output Decoding Capability: 8 × 1080p@30 fps 2 SATA III ports, up to 10 TB for a single HDD, 10/100M/1G LAN No front panel control, 1/1 Audio I/O, 4/2 Alarm I/O, 2 USB Desktop mounted chassis (black), mouse included AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD Free IP monitoring software available ONVIF(profile T/S/G); CGI; SDK Other brands IP cameras supported by ONVIF; RTSP.
dimensionalWeight - 4384
Dimensions - 375 mm × 282.4 mm × 53 mm
Features - Certification - CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Full Description Line - Channels 8|Rack 1U|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements DC12 V, 4 A|Power consumption 10 Watts|Dim. 375 mm × 282.4 mm × 53 mm|Temp. range –10 °C to +55 °C
GTIN - 6939554981579
HDMI Input/Output connectors - 1
LongDesc - Dahua NVR4000-4KS2/L is introduced as the Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF Profile S, T, G protocol, enabling interoperability with IP cameras.
LongProductName - 8 Channel, 1U, 2xHDDs, 1080p@30 fps, 375 × 282.4 × 53 mm, 1.51 kg
LongSummaryDescription - Dahua Technology Lite DHI-NVR4208-4KS2/L. Video input channels: 8 channels, Maximum resolution: 1920 x 1080 pixels, Audio formats supported: AAC, G.711 A-law, G.711 μ-law, G.726. Maximum storage capacity: 10 TB, HDD interface: SATA III. Ethernet LAN data rates: 10,100,1000 Mbit/s. Rack capacity: 1U, Product colour: Black, Certification: CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B. Power consumption (typical): 10 W, Output current: 4 A, Output voltage: 12 V
Number of Channels - 8
Number of HDD - 2
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 30 - 85%
Operational conditions - Storage temperature (T-T) - 0 - 40 °C
Performance - Alarm input channels - 4
Performance - Alarm output channels - 2
Performance - Audio formats supported - AAC, G.711 A-law, G.711 μ-law, G.726
Performance - Face detection - Yes
Performance - Maximum frame rate - 30 fps
Performance - Maximum resolution - 1920 x 1080 pixels
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Multi-screen - Yes
Performance - Operating system installed - Embedded LINUX
Performance - Supported video modes - 4K
Performance - Supported video modes - 720p
Performance - Supported video modes - 1080p
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264+
Performance - Video formats supported - H.264, H.265, MJPG
Performance - Video formats supported - H.265
Performance - Video formats supported - H.265+
Performance - Video input channels - 8 channels
Performance - Video motion detection - Yes
Ports & interfaces - Alarm input channels - 4
Ports & interfaces - Alarm output channels - 2
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Supported network protocols - HTTP, H1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 4 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 10 W
Power consumption - 10 Watts
Power supply requirements - DC12 V, 4 A
Processor - Built-in processor - Yes
producerCode - NVR4208-4KS2/L
productName - Dahua Technology NVR4208-4KS2/LL network video recorder 1U Black
ProductName - DHI-NVR4208-4KS2/L
productSize - Normal
Rack 1U Mounting Type - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 43.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 36.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.73 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
ShortSummaryDescription - Dahua Technology Lite DHI-NVR4208-4KS2/L, 8 channels, 1920 x 1080 pixels, AAC, G.711 A-law, G.711 μ-law, G.726, H.264, H.265, MJPG, Embedded LINUX, 10 TB
sizeX - 435
sizeY - 360
sizeZ - 140
Storage - HDD interface - SATA III
Storage - HDD interface - Serial ATA
Storage - Maximum storage capacity - 10 TB
Storage - Number of HDDs supported - 2
Storage - Number of storage drives supported - 2
Title - Dahua Technology Lite DHI-NVR4208-4KS2/L 1U Black
Unit Box Height - 0.365
Unit Box Length - 0.435
Unit Box Width - 0.14
Unit Brutto Volume - 0.02223 cubm
Unit Gross Weight - 2.73 kg
Unit Net Weight - 1.51 kg
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4/L-Series/2HDD/NVR4208-4KS2L
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4/L-Series/2HDD/NVR4208-4KS2/L
Warranty - 36 months
WarrantyInfo - -
warrantyLength - 36
warrantyType - G
weight - 2720
Weight & dimensions - Depth - 282.4 mm
Weight & dimensions - Height - 53 mm
Weight & dimensions - Package depth - 366 mm
Weight & dimensions - Package height - 141 mm
Weight & dimensions - Package weight - 2.76 kg
Weight & dimensions - Package width - 433 mm
Weight & dimensions - Weight - 1.51 kg
Weight & dimensions - Width - 375 mm
Wireless LAN features - Wi-Fi - No
