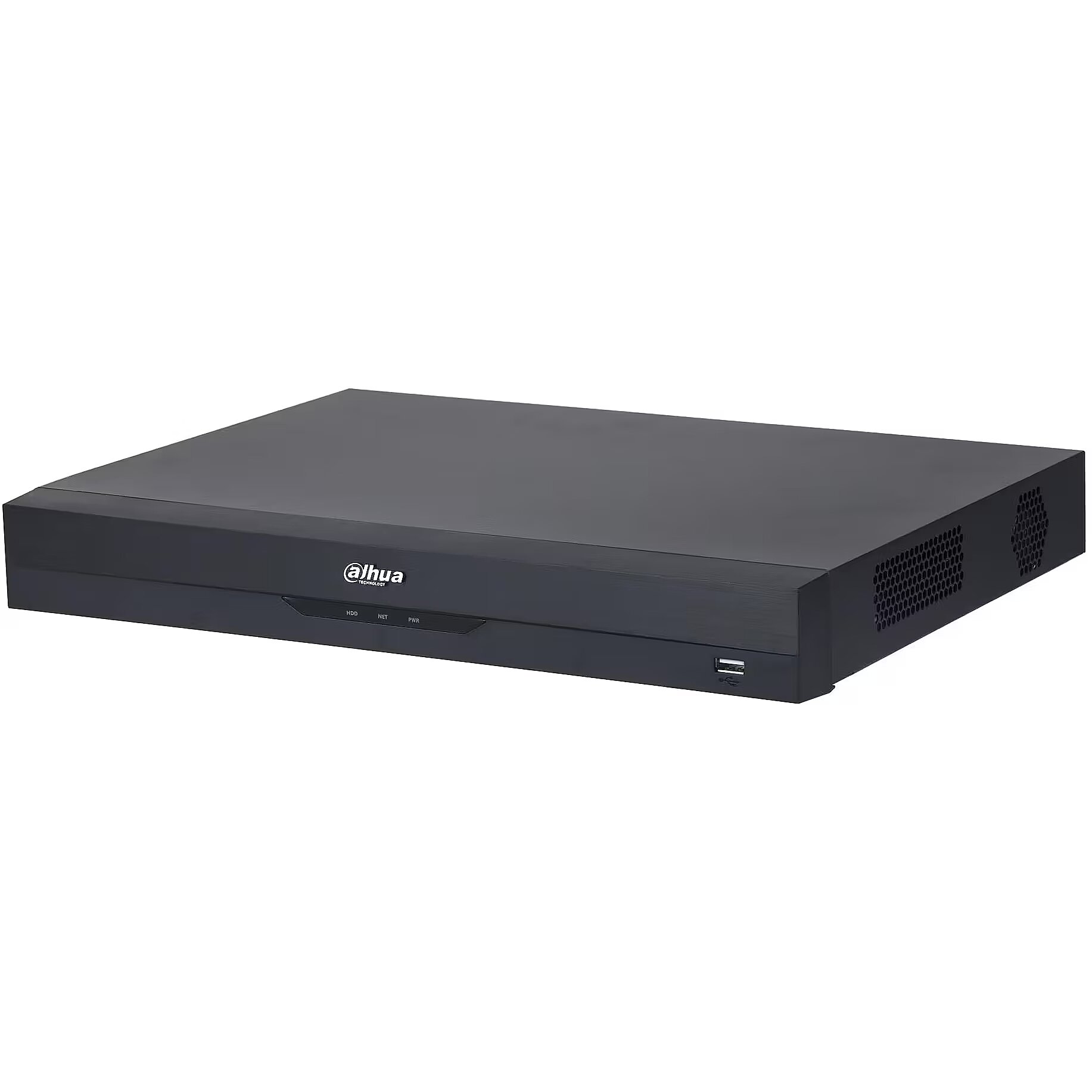

Dahua DVR 16CH HDCVI PENTABRID/XVR5216AN-4KL-I3/T

Audio formats supported Performance - G.711, G.711u, PCM
Audio input channels Performance - 16 channels
Audio output channels Performance - 1.0 channels
Backup function Performance - Yes
BNC input ports Ports & interfaces - 16
Brand - Dahua Technology
BrandPartCode - XVR5216AN-4KL-I3/T
Category - Digital Video Recorders (DVR)
Category Code - STD
Compliance certificates Technical details - CE
DC voltage Power - 12 V
Depth Weight & dimensions - 289.6 mm
Description - 16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder8-channel AcuPick for analog channels which improves the efficiency of target retrieval8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI4-channel face recognition for analog channels which supports face comparison16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videosSupports HDCVI, AHD, TVI, CVBS and IP video inputSupports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 MbpsSupports accessing Wi-Fi cameras, making it suitable for a wide range of scenesSmart H.265+ and H.265 dual-stream video compression
Dual stream support Performance - Yes
Ethernet interface type Network - Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports Network - 1
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Ethernet LAN Network - Yes
Graphical user interface (GUI) Performance - Yes
Hard drive - Maximum HDD capacity - 16 TB
Hard drive - Number of HDDs supported - 2
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 53 mm
LongDesc -
LongProductName - Desktop, 16 channels, 3840 x 2160, 16x BNC, 2x USB, 1x HDMI
LongSummaryDescription - Dahua Technology XVR5216AN-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB
Maximum HDD capacity Hard drive - 16 TB
Maximum video resolution Performance - 3840 x 2160 pixels
Multi-display modes Performance - 1, 4, 8, 9, 16, 25, 36
Multi-display supported Performance - Yes
Network - Ethernet interface type - Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Supported network protocols - HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
Number of HDDs supported Hard drive - 2
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating system installed Performance - Embedded LINUX
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Package depth Packaging data - 137 mm
Package height Packaging data - 356 mm
Package weight Packaging data - 2.9 kg
Package width Packaging data - 427 mm
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 137 mm
Packaging data - Package height - 356 mm
Packaging data - Package weight - 2.9 kg
Packaging data - Package width - 427 mm
Performance - Audio formats supported - G.711, G.711u, PCM
Performance - Audio input channels - 16 channels
Performance - Audio output channels - 1.0 channels
Performance - Backup function - Yes
Performance - Dual stream support - Yes
Performance - Graphical user interface (GUI) - Yes
Performance - Maximum video resolution - 3840 x 2160 pixels
Performance - Multi-display modes - 1, 4, 8, 9, 16, 25, 36
Performance - Multi-display supported - Yes
Performance - Operating system installed - Embedded LINUX
Performance - Playback modes - Instant, General, Event, Smart, Tag
Performance - Product colour - Black
Performance - Rack capacity - 1U
Performance - USB connectivity - Yes
Performance - Video compression formats - H.264, H.264+, H.265, H.265+
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
Playback modes Performance - Instant, General, Event, Smart, Tag
Ports & interfaces - BNC input ports - 16
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Ports & interfaces - Video input channels - 16 channels
Ports & interfaces - Video RCA outputs - 1
Power - DC voltage - 12 V
Power - Power consumption (typical) - 15 W
Power - Power supply type - DC
Power consumption (typical) Power - 15 W
Power supply type Power - DC
Product colour Performance - Black
ProductName - XVR5216AN-4KL-I3/T
Quick start guide Packaging content - Yes
Rack capacity Performance - 1U
RS-485 ports Ports & interfaces - 1
ShortSummaryDescription - Dahua Technology XVR5216AN-4KL-I3/T, Black, 3840 x 2160 pixels, H.264, H.264+, H.265, H.265+, G.711, G.711u, PCM, Instant, General, Event, Smart, Tag, Embedded LINUX
Storage temperature (T-T) Operational conditions - -20 - 60 °C
Summary - Dahua Technology XVR5216AN-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB
Supported network protocols Network - HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
Technical details - Compliance certificates - CE
Title - Dahua Technology XVR5216AN-4KL-I3/T digital video recorder (DVR) Black
Unit Box Height - 0.355
Unit Box Length - 0.43
Unit Box Width - 0.135
Unit Calculated Volume - 0.02061 cubm
Unit Calculated Weight - 3.1 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/4K-Value5MP-Series/XVR5216AN-4KL-I3/T
USB 2.0 ports quantity Ports & interfaces - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 1
USB connectivity Performance - Yes
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/4K-Value5MP-Series/XVR5216AN-4KL-I3/T
VGA (D-Sub) output ports Ports & interfaces - 1
Video - Video resolutions - 3840 x 2160,1920 x 1080,1280 x 720
Video compression formats Performance - H.264, H.264+, H.265, H.265+
Video input channels Ports & interfaces - 16 channels
Video loss detection Performance - Yes
Video motion detection Performance - Yes
Video RCA outputs Ports & interfaces - 1
Video resolutions Video - 3840 x 2160,1920 x 1080,1280 x 720
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 289.6 mm
Weight & dimensions - Height - 53 mm
Weight & dimensions - Weight - 1.75 kg
Weight & dimensions - Width - 375 mm
Weight Weight & dimensions - 1.75 kg
Width Weight & dimensions - 375 mm
