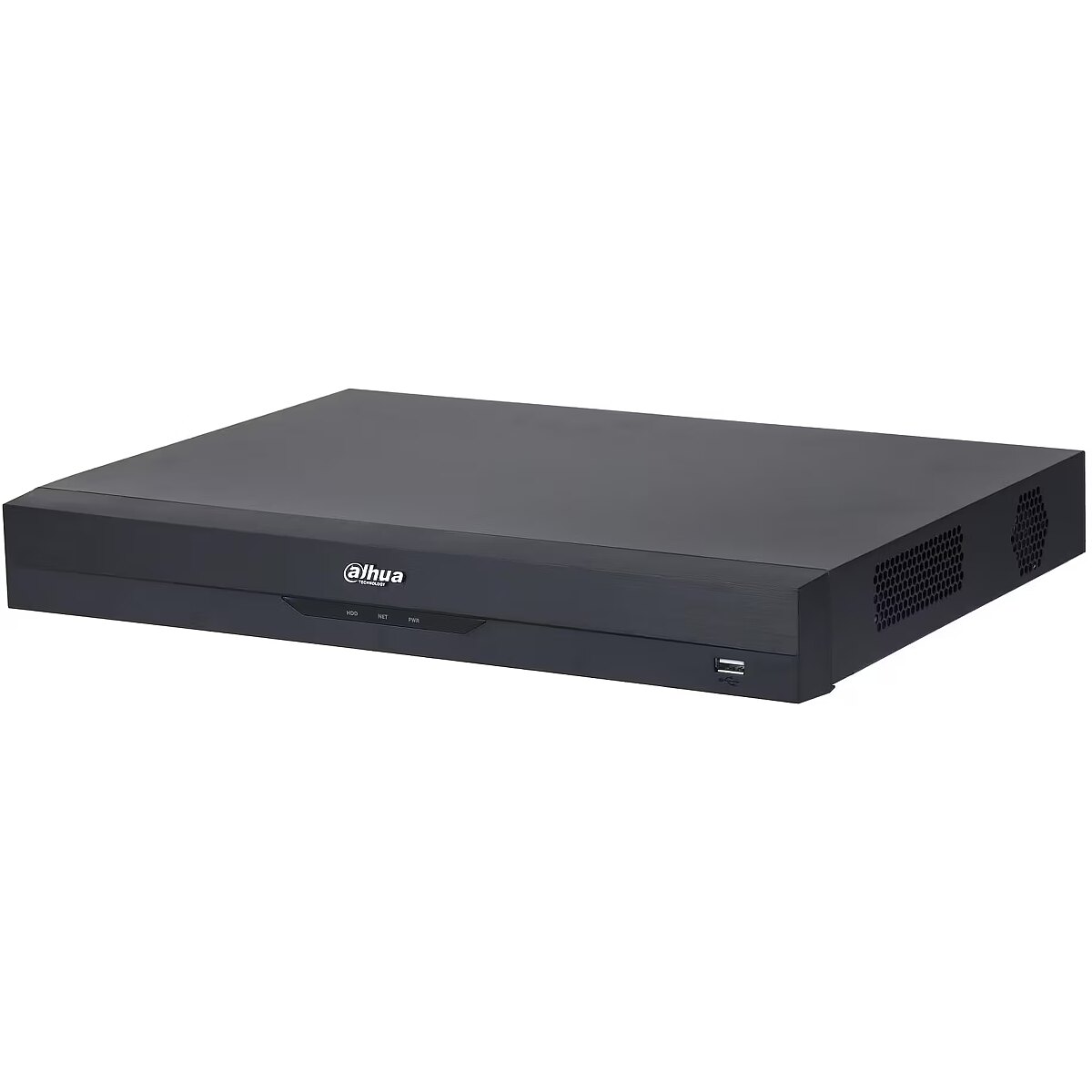

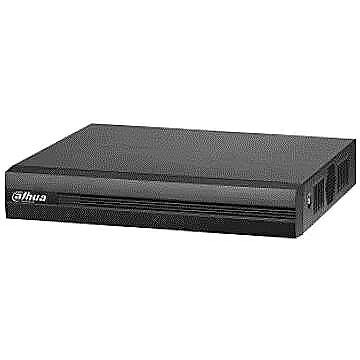

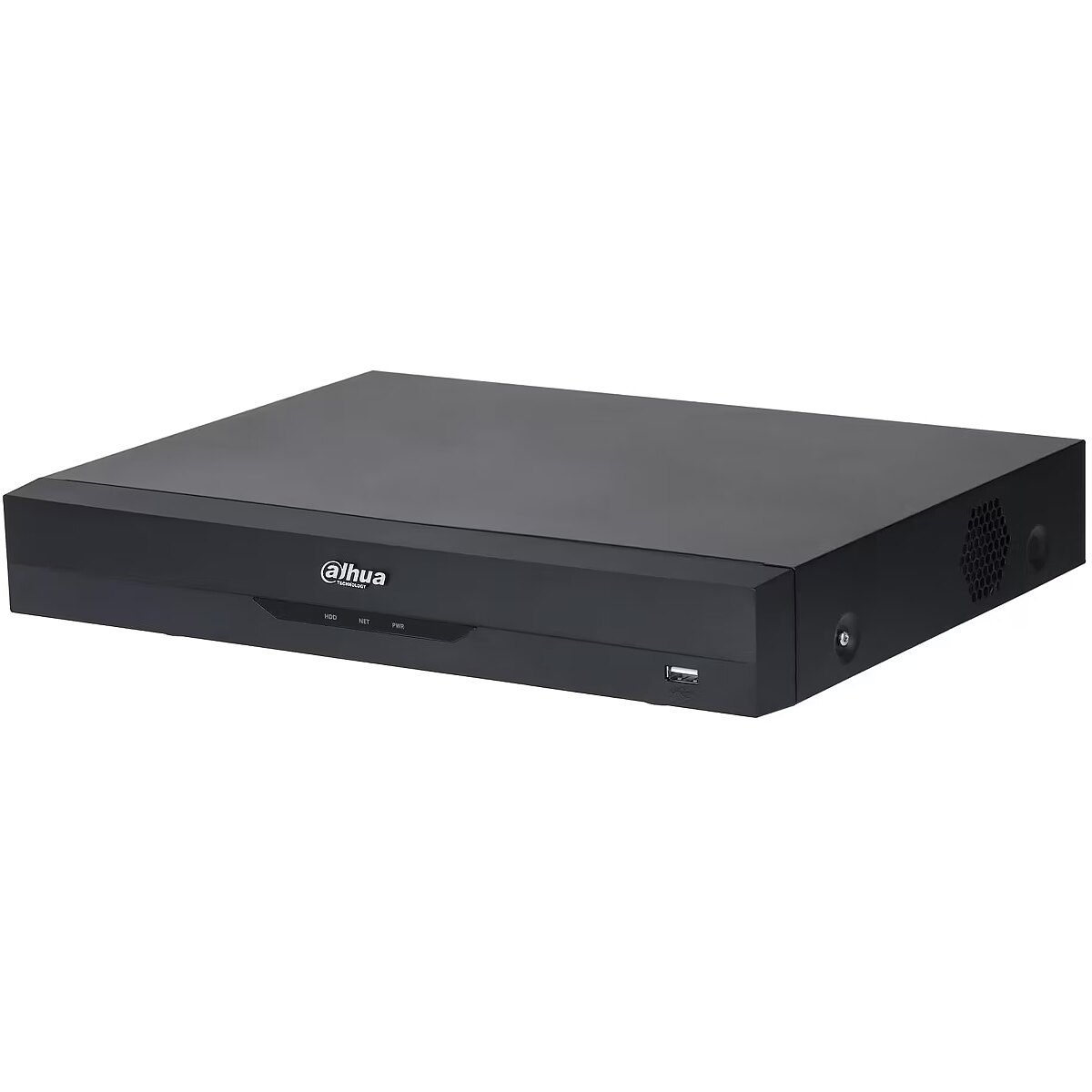

Dahua DVR 16CH HDCVI PENTABRID/XVR1B16-I

15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - DH-XVR1B16-I
Camera Compatibility - HDCVI 1080P/HDCVI 720P
Category - Digital Video Recorders (DVR)
Category Code - STD
Colour - Black
Description - "16 Channels Penta-brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder > H.265+/H.265 dual-stream video compression > Supports Full-channel AI-Coding > Supports HDCVI/AHD/TVI/CVBS/IP video inputs > Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth > Long transmission distance over coax cable > Up to 8 channels video stream (analog channel) SMD Plus
dimensionalWeight - 1843
Dimensions - 260.0 × 231.4 × 47.6 mm
DVR type - 16 Channel
Full Description Line - 16 Channel|Camera Compatibility HDCVI 720P/HDCVI 1080P|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|12 VDC, 2 A|Colour Black
GTIN - 6939554919299
Hard drive - Built-in memory - No
Hard drive - HDD interface - SATA
Hard drive - HDD interface - SATA, SATA II, SATA III
Hard drive - HDD interface - SATA II
Hard drive - HDD interface - SATA III
Hard drive - Maximum HDD capacity - 6 TB
Hard drive - Number of HDDs supported - 1
HDMI Input/Output connectors - 1
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, Cooper Series featuring SMD Plus to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.SMD PlusSMD Plus, referred to as Smart Motion Detection Plus, which is an upgrading version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm. It analyzes person and vehicle shapes based on motion detection and send alarms only when person and vehicle intrudes.*SMD Plus takes effect when SMD or IVS&SMD is selected in AI Mode.AI CodingCompared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details.Smart H.265+Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.HDCVI/AHD/TVI/CVBS Auto-detectThe XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.High Definition Camera InputThe XVR supports up to 1080p HDCVI camera and 6MP IP camera input.Coaxial Audio/Upgrade/AlarmThe integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.Long Distance TransmissionThe HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p.
LongProductName - 16 channels, BNC, 1080p, RCA, HDMI, VGA, RJ-45, USB 2.0, SATA, DC 12V, 1U, 260x231.4x47.6 mm
LongSummaryDescription - Dahua Technology XVR1B16-I. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm..., Number of users: 128 user(s). HDD interface: SATA, SATA II, SATA III, Maximum HDD capacity: 6 TB. DC voltage: 12 V, Power consumption (typical): 10 W
Model - XVR1B16-I
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Number of users - 128 user(s)
Network - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Performance - AI Coding - Yes
Performance - Analog signal format system - NTSC
Performance - Analog signal format system - NTSC, PAL
Performance - Analog signal format system - PAL
Performance - Audio formats supported - G.711
Performance - Audio formats supported - G.711, PCM
Performance - Audio formats supported - PCM
Performance - Audio system - 2-way
Performance - Bit rate - 4096 Kbit/s
Performance - Certification - FCC: 15 B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130;
EN 55024
UL: UL 60950-1
Performance - Certification - FCC: 15 BCE: CE-LVD: EN 60950-1/IEC 60950-1CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130;EN 55024UL: UL 60950-1
Performance - Face detection - Yes
Performance - Face recognition - Yes
Performance - Maximum video resolution - 1920 x 1080 pixels
Performance - Motion detection - Yes
Performance - Operating system installed - Embedded LINUX
Performance - People counting function - Yes
Performance - Playback resolutions supported - 1920 × 1080, 1280 × 1024, 1280 × 720
Performance - Product colour - Black
Performance - PTZ control - Yes
Performance - Rack capacity - 1U
Performance - Shooting distance - Up to 1200 m (via coaxial cable)
Performance - Supported cameras - AHD
Performance - Supported cameras - CVBS
Performance - Supported cameras - HDCVI
Performance - Supported cameras - IP
Performance - Supported cameras - TVI
Performance - Video capturing speed - 30 fps
Performance - Video compression formats - H.264
Performance - Video compression formats - H.264+
Performance - Video compression formats - H.264, H.264+, H.265, H.265+
Performance - Video compression formats - H.265
Performance - Video compression formats - H.265+
Performance - Video motion detection - Yes
Performance - Video streaming - Yes
Ports & interfaces - Audio input - 1
Ports & interfaces - Audio output - 1
Ports & interfaces - BNC input ports - 16
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Ports & interfaces - Video input channels - 16 channels
Power - DC voltage - 12 V
Power - Power consumption (typical) - 10 W
Power supply requirements - 12 VDC, 2 A
Processor - Built-in processor - Yes
producerCode - XVR1B16-I
productName - Dahua Technology XVR1B16-I Black
ProductName - XVR1B16-I
productSize - Normal
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 33.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.43 kg
Shipping Box Width Shipping/Package Box Dimensions - 8.5 cm
ShortSummaryDescription - Dahua Technology XVR1B16-I, Black, 1920 x 1080 pixels, H.264, H.264+, H.265, H.265+, G.711, PCM, 30 fps, 1920 × 1080, 1280 × 1024, 1280 × 720
sizeX - 334
sizeY - 89
sizeZ - 310
Title - Dahua Technology XVR1B16-I Black
Unit Box Height - 0.31
Unit Box Length - 0.335
Unit Box Width - 0.085
Unit Brutto Volume - 0.008827 cubm
Unit Gross Weight - 1.43 kg
Unit Net Weight - 0.89 kg
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/Cooper-I-Series/XVR1B16-I
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Cooper-I-Series/XVR1B16-I
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1430
Weight & dimensions - Depth - 231.4 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Weight - 890 g
Weight & dimensions - Width - 260 mm
