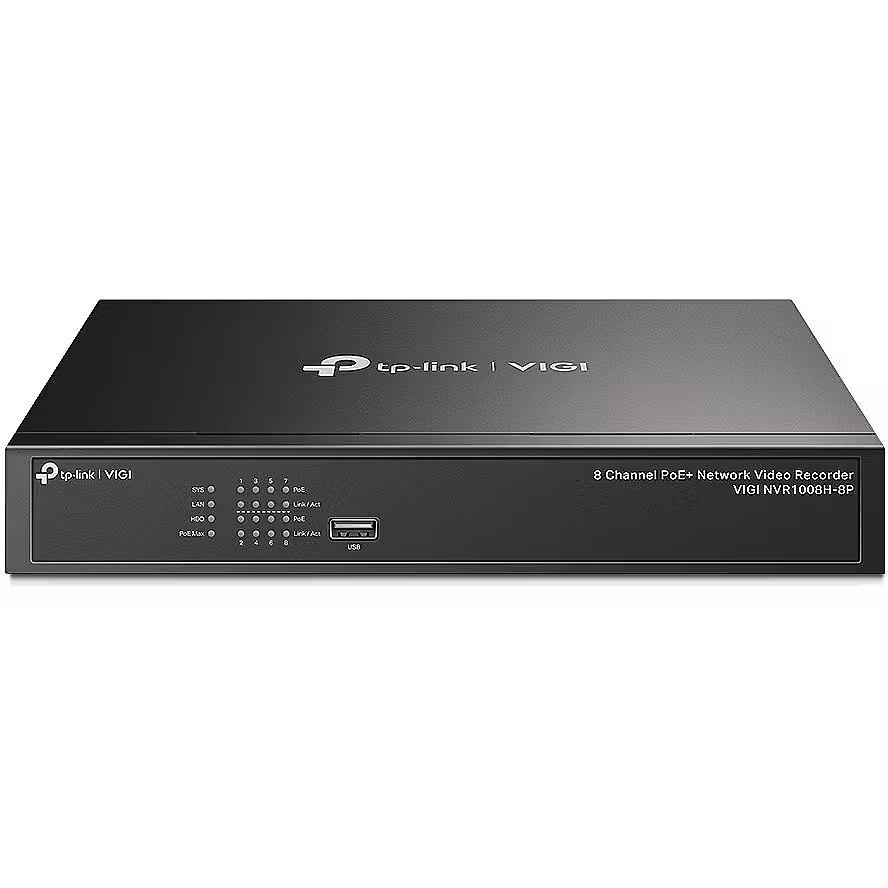

TP-LINK VIGI NVR1008H-8 P 8 Channel Video Recor

15pin D-sub Input/Output connectors - 1
Accessories included - VIGI NVR1008H-8P recorder Charger HDD screws Mouse Quick installation guide
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - TP-Link
BrandPartCode - VIGI NVR1008H-8P
Category - Network Video Recorders (NVR)
Category Code - NVR
Channels - 8
Code - VIGI NVR1008H-8P
Colour - Black
Connectors - 1 x D-Sub
Connectors - 1 x HDMI
Connectors - 2 x 3,5 mm minijack
Connectors - 2 x USB 2.0
Connectors - RJ-45
Description - VIGI 8 Channel PoE+ Network Video Recorder 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡. Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before. 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access. Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience. Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience. Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
Description - VIGI NVR1008H-8P VIGI 8-channel network video recorder with PoE+ power supply 4K HDMI video output and 16MP decoding capability: Clear 8MP video and 8-channel display ensures you can capture every detail from any angle. Simplified deployment with PoE+: Using an RJ45 Ethernet cable, you can simultaneously provide network access and power to PoE cameras, without the need for an additional power supply. 8 Channel Simultaneous Playback*: Play streams from up to 8 cameras at the same time, speed up replays, and find events in your video schedule for convenient viewing. H.265+: The camera does not have to use excessive network bandwidth - the device transmits compressed video to save disk space and reduce network load. Compatibility with ONVIF standards: Connecting VIGI cameras or cameras from other manufacturers is not a problem and allows you to create a powerful and diverse network thanks to high compatibility. Plug & Play: Allows you to automatically add new, unused VIGI IP cameras. Activation is immediate and installation is faster than ever before. 24/7 recording: Material obtained from connected cameras is automatically saved on disk (up to 10 TB), making safe access to recordings quick and convenient. Remote monitoring: Dedicated VIGI application, graphical Web interface and VIGI Security Manager enable remote monitoring in a simple and convenient way. Easy installation: Choose the placement method that suits you, mounting it in a rack, on or under a desk. Two-way audio transmission: Thanks to intercom support, you can have two-way conversations from anywhere while seeing the image from the camera. Different perspectives on one screen 4K HDMI video output and 8× 2MP decoding capability Clear image resolution up to 8MP on one channel and the possibility of total decoding of 16MP on all channels. 8 dedicated PoE+ ports (53 W total power) designed for easy deployment of IP cameras. The NVR is equipped with 8 10/100Mb/s PoE+ ports, each of which offers up to 30 W of power supply. The device is designed to simultaneously provide network access and PoE power via one Ethernet cable. Thanks to this, it offers a convenient option to implement various monitoring installations for small businesses, such as shops, warehouses, restaurants, or financial institutions. Access to recordings is easier than ever before. Simultaneous playback of 8 channels The device enables simultaneous playback of recordings from up to 8 cameras, increasing viewing speed and searching for events in video schedules for faster viewing of the material. Forget about long compatibility lists. Compliance with ONVIF standards Connecting VIGI cameras or cameras from other manufacturers is not a problem and allows you to create a powerful and diversified network thanks to high compatibility. Plug & Play. It allows you to automatically add new, unused VIGI IP cameras. Activation is immediate and installation is faster than ever before. Safety for every day and hour. Continuous recording 24/7 The material obtained from the connected cameras is automatically saved on the disk (up to 10 TB), making safe access to the recordings quick and convenient. Keep an eye on everything, even when you're on the move. Remote monitoring The dedicated VIGI application, Web interface and VIGI Security Manager enable remote monitoring in an easy and convenient way. Flexible installation options Choose the method of placing the device that suits you - mounting it in a rack, on a desk or under it. Greet guests before they enter. Two-way audio transmission Thanks to intercom support, you can have two-way conversations from anywhere while viewing the camera image at the same time. One ecosystem. Complete security. Run your business with peace of mind The professional TP-Link VIGI monitoring system will enable you to protect your company regardless of the place and time. Unique functions, trustworthy quality, simple installation and convenient management are a combination that will ensure the security of your company.
dimension depth - 80 mm
dimension height - 250 mm
Dimensions - 294 × 180 × 44 mm
dimension weight - 1650 g
dimension width - 400 mm
EAN - 4895252503111
ean - 4895252503111
Features - LED indicators - HDD, LAN, PoE, System
Features - Product colour - Black
Features - Rack mounting - Yes
GTIN - 4895252503111
guarantee - 36
guarantee_type - normal
HDD interface - SATA
HDMI Input/Output connectors - 1
Integrated LAN - Gigabit
Link - https://www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr1008h-8p/#overview
LongDesc - Security Never Shuts Down8 Channel PoE+ Network Video RecorderEvery angle all on one screen.4K HDMI Video Output & 8× 2MP Decoding CapacityShows more details with up to 8MP resolution for one channel and 16MP decoding capacity in total for all channels Dedicated 8 PoE+ ports (53 W budget) for simplified IP camera deployment .Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutionsReviewing footage is faster than ever.8-Channel Simultaneous PlaybackReplay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.No need to check long compatibility lists.ONVIF Ensures CompatibilityEasily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibilityPlug & Play.Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.Security for every hour and every day.24/7 Continuous RecordingStores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.Keep an eye on things even when you are on the move.Remote MonitoringThe dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.Flexible installation gives you more convenience.Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk.Greet your visitors before they enter.Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - 8 Ch. PoE+ , 80 Mbps In/60 Mbps Out, H.265+/H.265/ H.264+/H.264, 3840 x 2160
LongSummaryDescription - TP-Link VIGI NVR1008H-8P. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 8 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP. LED indicators: HDD, LAN, PoE, System, Product colour: Black. Power consumption (max): 12.94 W, Output current: 1.31 A, Output voltage: 53.5 V
Max. capacity of disks - 10 TB
Max. number of disks - 1
Model - VIGI NVR1008H-8P
name - TP-Link VIGI NVR1008H-8 P 8 Channel Video Recor
Name - TP-LINK | 1 | VIGI NVR1008H-8P | VIGI 8 Channel PoE+ Network Video Recorder | 8-Channel
Number of Channels - 8
Number of drives/bays - 1
Operating temperature range - -10–55 °C
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Other features -
Other features > Number of SATA connectors - 1
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 294.00 mm
Package features > Gross depth master carton - 250.00 mm
Package features > Gross height (mm) - 44.00 mm
Package features > Gross height master carton - 350 mm
Package features > Gross width (mm) - 180.00 mm
Package features > Gross width master carton - 80.00 mm
Package features > Net weight master carton - 11.14 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 357 pc(s)
Package features > Paper/Pasteboard - 290.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 1.063 kg
Package features > TI weight (kg) - 0.2 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Quick installation guide - Yes
Performance - Audio system - 2-way
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Number of simultaneously playbacked channels - 8 channels
Performance - Output bandwidth - 60 Mbit/s
Performance - Supported resolutions - 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024,
102 4x 768, 1280 x 720
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 8 channels
Performance - Video recording modes - 720p, 1080p
Performance > Capacity - Up to 10 TB
PoE+ ports - 8
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Networking standards - IEEE 802.3af, IEEE 802.3at
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 8
Ports & interfaces - Supported network protocols - TCP/IP, DHCP, DNS, NTP, UPnP
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.31 A
Power - Output voltage - 53.5 V
Power - Power consumption (max) - 12.94 W
Power - Total Power over Ethernet (PoE) budget - 53 W
Power consumption - 12.94 Watts
Power supply requirements - 53.5V DC/1.31 A
producer - TP-LINK
Producer product family - VIGI 8 Channel PoE+ Network Video Recorder
Producer product name - VIGI NVR1008H-8P
ProductName - VIGI NVR1008H-8P
Recording modes - 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Resolution - 1920 x 1080 (FHD 1080)
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.14 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
ShortSummaryDescription - TP-Link VIGI NVR1008H-8P, 8 channels, 3840 x 2160 pixels, 8 channels, 720p, 1080p, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 102 4x 768, 1280 x 720, H.264, H.264+, H.265, H.265+
Special functions -
Storage - HDD interface - SATA
Storage - Maximum storage capacity - 10 TB
Storage - Number of HDDs supported - 1
Technical details > Gross weight - 2.80 kg
Technical details > Net weight - 2.50 kg
Technical details > Other features - 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle. Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. 8-Channel Simultaneous Playback: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
Technical details > Producer - TP-LINK
Title - TP-Link VIGI NVR1008H-8P network video recorder Black
Unit Box Height - 0.08
Unit Box Length - 0.4
Unit Box Width - 0.25
Unit Brutto Volume - 0.008 cubm
Unit Gross Weight - 2.14 kg
Unit Net Weight - 1.8 kg
URL - https://www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr1008h-8p/
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr1008h-8p/
vendpn - VIGI NVR1008H-8P
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Video input channels - 8-Channel
Viewing modes - HDMI output resolution: 1 channel, resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA output resolution: 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz,
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Package type - Box
Weight & dimensions - Width - 294 mm
Wireless communication - WiFi
