2N ADAPTER IP OVER 2 WIRES POE/MASONRY HELIOS IP 9159014EU

Category Code - NCC

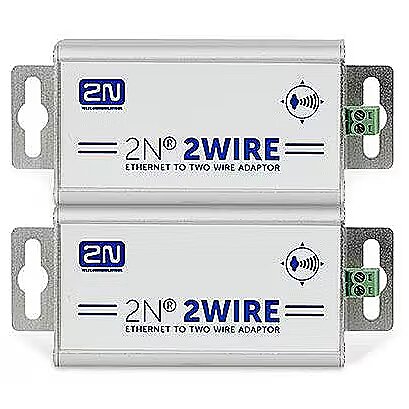

Description - 2N® 2Wire 2N® 2Wire is a set of two convertor units that lets you connect any IP device installed at locations with no IP infrastructure to your network. Connect the device, such as an IP intercom, to one unit and a switch to the other unit. Then connect both convertor units to each other using the existing analogue wiring. This will transmit audio and video as well as supply power. Ethernet including PoE over 2 wires Long reach Up to four sets per installation Product features Using legacy analog 2 wire cabling for IP intercom connection including PoE power supply Saves cost for UTP cabling and makes possible to install IP intercoms on legacy infrastructure Alternatively one leader unit can support up to four followers Long range Ethernet extension over 2 wires or coax IEEE 802.3 af/at Compliant 40 Watt PoE+ for IP intercom power supply Easy configuration, no IP address and network setup required, plug&play Calculated MTBF = 340,000 hours
Dimensions - 75 x 40 x 40 mm
Model - 9159014EU
Operating temperature range - -10°C to +50°C
Product Net Weight - 0.24 kg
Product Type - Adapter
Unit Box Height - 0.054
Unit Box Length - 0.24
Unit Box Width - 0.164
Unit Calculated Volume - 0.002125 cubm
Unit Calculated Weight - 0.8 kg
Units per Shipping Box - 1
Vendor Homepage - www.2n.com/en_US/products/intercoms/2n-2wire
Warranty - 60 months
