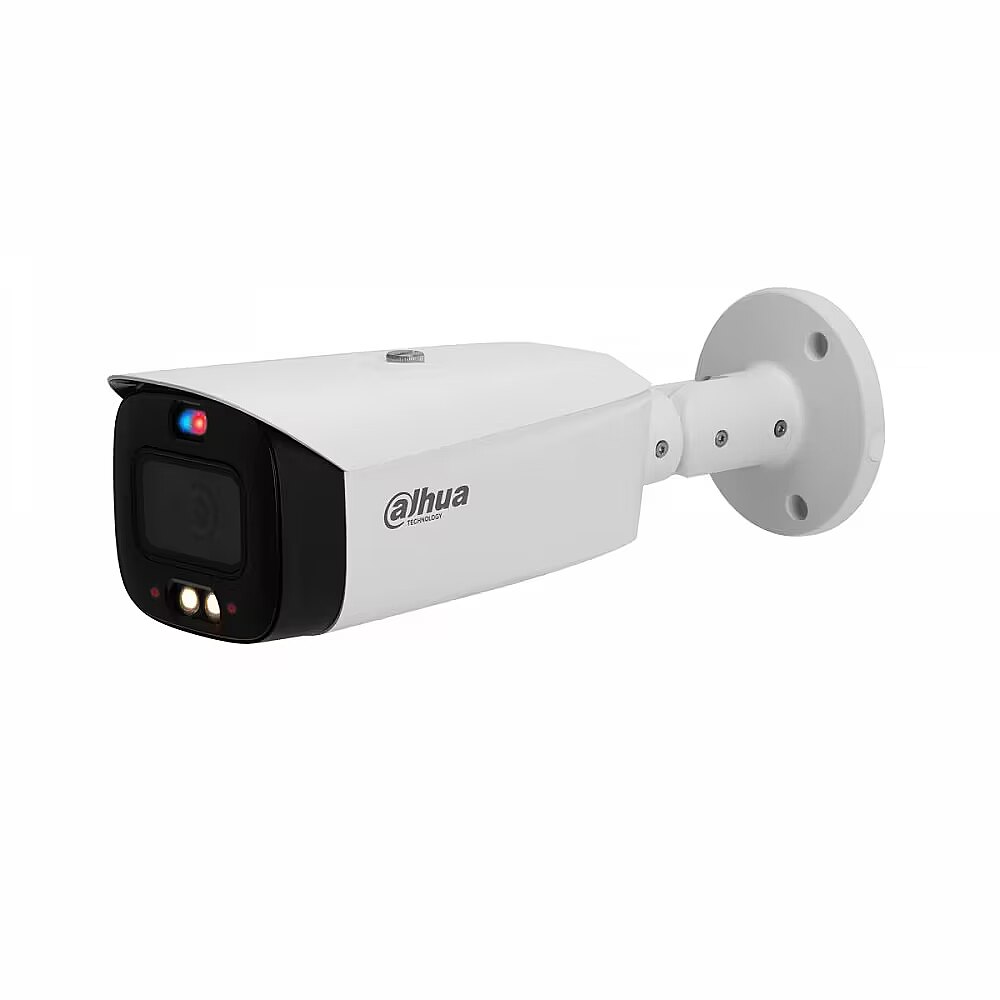

Dahua HFW3549T1-AS-PV-0280B-S4, 1620p, White

Accessories included -
Audio - Audio codecs - G.711a / G.711Mu / G.723 / G.726 / PCM
Audio - Audio input channels - 1 channels
Audio - Audio output channels - 1 channels
Audio - Built-in loudspeaker - Yes
Audio - Built-in microphone - Yes
Audio - Number of microphones - 2
Audio - Two-way talk - Yes
Audio - Voice codecs - AAC
Audio - Voice codecs - G.711a
Audio - Voice codecs - G.711Mu
Audio - Voice codecs - G.723
Audio - Voice codecs - G.726
Audio - Voice codecs - PCM
Camera - Adjustment shutter speed - Auto/Manual
Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Camera tilt control - Yes
Camera - Horizontal rotation angle - 0 - 360°
Camera - Lens viewing angle, diagonal - 129°
Camera - Lens viewing angle, horizontal - 97°
Camera - Lens viewing angle, horizontal - 98°
Camera - Lens viewing angle, vertical - 70°
Camera - Lens viewing angle, vertical - 71°
Camera - Minimum illumination - 0.003 lx
Camera - Motion detection - Yes
Camera - Pan range - 0 - 360°
Camera - People detection - Yes
Camera - Tilt angle range - 0 - 90°
Camera - Vertical rotation angle - 0 - 90°
Camera - Viewing angle, diagonal - 128°
Camera - White balance - Auto
Camera - White balance - Custom modes
Camera - White balance - Manual
Camera - White balance - Natural
Camera - White balance - Outdoor
Color - White
Connectors - RJ-45
Description - WizSense is a series of AI (artificial intelligence) products and solutions introduced by Dahua Technology. They use an independent AI system and deep learning algorithms. The series focuses on recognizing people and vehicles with high accuracy, allowing users to quickly respond to specific targets. Based on Dahua's advanced technologies, WizSense offers intelligent, simple and comprehensive products and solutions.
Design - Form factor - Bullet
Design - Form factor - Tube/dome
Design - Housing material - Metal
Design - Housing material - Metal, Plastic
Design - Housing material - Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Mounting type - Wall/ceiling
Design - Product colour - White
dimensionalWeight - 466
dimensionalWeight - 1878
dimension depth - 165 mm
dimension height - 165 mm
Dimensions - 288.4 × 94.4 × 84.7 mm
dimension weight - 1306 g
dimension width - 345 mm
ean - 6923172580085
guarantee - 24
guarantee_type - normal
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Image sensor - Sensor type - HD CMOS
Lens - 2.8 mm
Lens system - Aperture type - Permanent
Lens system - Closest focusing distance - 1.2 m
Lens system - Closest focusing distance - 1.5 m
Lens system - Detect distance - 67.4 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Focal length range - 2.8 mm
Lens system - Identify distance - 6.7 m
Lens system - Lens type - Fixed focal length lens
Lens system - Maximum aperture number - 1
Lens system - Number of lenses - 1
Lens system - Observe distance - 27 m
Lens system - Recognize distance - 13.5 m
Management, monitoring, configuration -
Management features - Web-based management - Yes
Management features - Web browser - Yes
Memory card reader - Yes
Memory standard - SD
Memory standard - SDHC
Memory standard - SDXC
Microphone - built-in
Minimum illuminance - 0.003 lx
Mobile support - Android
Mobile support - iOS
Motion detection - Yes
name - Camera HFW3549T1-AS-PV-0280B-S4
Network - 4G LTE - N
Network - Bluetooth - No
Network - Ethernet interface type - 10 Megabit Ethernet
Network - Ethernet interface type - 100 Megabit Ethernet
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3af
Network - Number of users - 20 user(s)
Network - Quality of Service (QoS) support - Yes
Network - Wi-Fi - No
Network protocols -
Night mode - Yes
Night vision - LED type - IR
Night vision - LED type - IR / White light LED
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 2 / 2
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Other features -
Packaging content - Number of cameras - 1
Performance - Alarm input/output - Yes
Performance - Certification - CE-LVD: EN62368-1
CE-EMC: 2014/30/EU
FCC: 47 CFR FCC 15, B
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Outdoor
Performance - Signal-to-Noise Ratio (SNR) - 56 dB
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - 120 dB
Performance - Wide Dynamic Range (WDR) - Yes

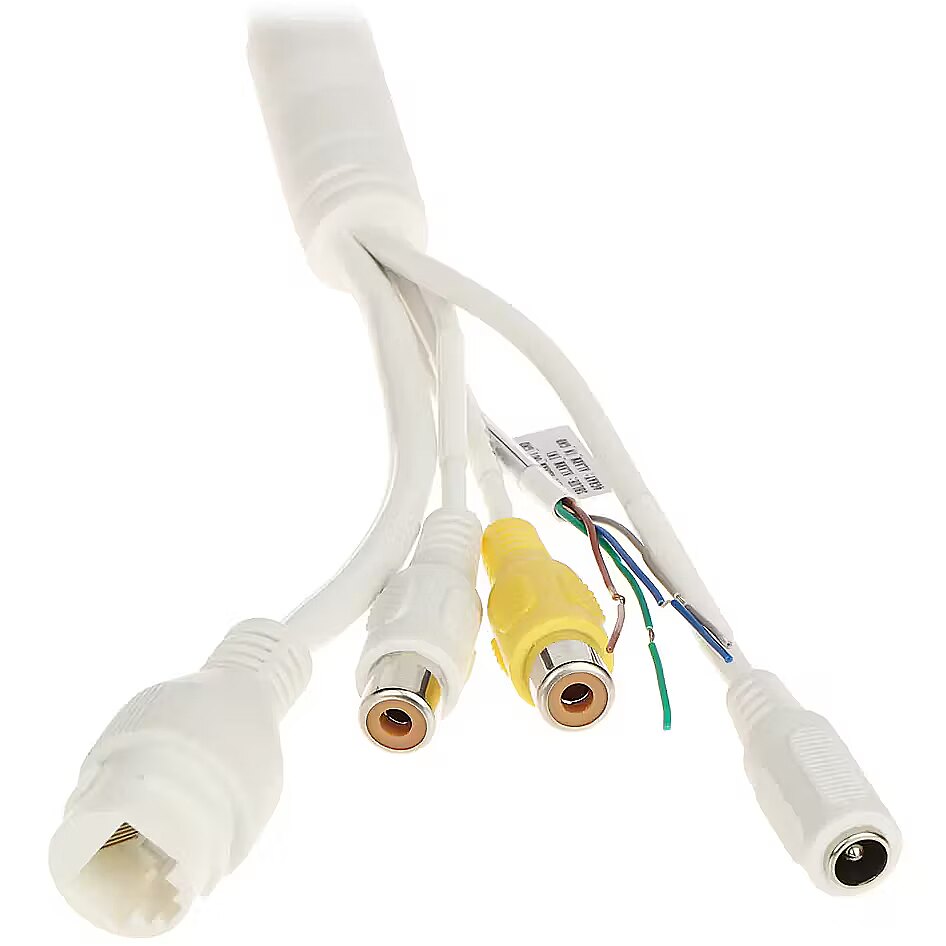

Ports & interfaces - Alarm input/output - Yes
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Compatible memory cards - MicroSD (TransFlash)
Ports & interfaces - Compatible memory cards - MicroSDHC
Ports & interfaces - Compatible memory cards - MicroSDXC
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Maximum memory card size - 256 GB
Ports & interfaces - Number of memory card slots - 1
Ports & interfaces - RCA input - 1
Power - DC output voltage - 12
Power - DC output voltage - 12, 48
Power - Power consumption (max) - 6.8 W
Power - Power consumption (max) - 7.9 W
Power - Power consumption (Power over Ethernet (PoE)) - 8.2 W
Power - Power consumption (Power over Ethernet (PoE)) - 9.7 W
Power - Power consumption (typical) - 3.3 W
Power - Power source type - DC, PoE
Power supply - 12 VDC/PoE
producer - Dahua
producerCode - IPC-HFW3549T1-AS-PV-0280B-S3
producerCode - IPC-HFW3549T1-AS-PV-0280B-S4
productName - Dahua Technology WizSense IPC-HFW3549T1-AS-PV-0280B-S3 Bullet IP security camera Outdoor 2592 x 1944 pixels Ceiling/wall
productName - IP Camera DAHUA IPC-HFW3549T1-AS-PV-0280B-S4 White
productSize - Normal
Protection class - IP67
Resolution - 2960 x 1668
Security -
Security - Intelligent Video Surveillance (IVS) system features - Intrusion
Security - Intelligent Video Surveillance (IVS) system features - Tripwire
Security - Mirror - Yes
Security - Video motion detection - Yes
Sensor - 1/2.7" CMOS
sizeX - 289
sizeX - 345
sizeY - 95
sizeY - 165
sizeZ - 85
sizeZ - 165
Speakers built-in - Yes
Special functions -
Storage - Built-in HDD - No
Storage - Internal memory - 512 MB
Storage - RAM capacity - 512 MB
Storage - ROM capacity - 128 MB
System Requirements -
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - iOS
Two-way transmission - Yes
type - Fixed bullet type camera
vendpn - 6923172580085
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 32 - 8192 Kbps, 12 - 8192 Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Frame rate - 20 fps
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2592 x 1944 pixels
Video - Maximum resolution - 2960 x 1668 px
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 704 x 480
Video - Supported graphics resolutions - 704 x 576
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1280 x 960
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2304 x 1296
Video - Supported graphics resolutions - 2560 x 1440
Video - Supported graphics resolutions - 2592 x 1944
Video - Supported graphics resolutions - 2688 x 1520
Video - Total megapixels - 5 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.264B
Video - Video compression formats - H.264H
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
Video - Video streaming - Yes
Viewing angle, horizontal - 97 °
Viewing angle, vertical - 70 °
warrantyLength - 36
warrantyType - F
warrantyType - G
Weight - 1 kg
weight - 1310
weight - 1400
Weight & dimensions - Depth - 84.7 mm
Weight & dimensions - Depth - 288 mm
Weight & dimensions - Length - 288.4 mm
Weight & dimensions - Package weight - 1.23 kg
Weight & dimensions - Weight - 1 kg
Weight & dimensions - Width - 94.4 mm
Wireless communication - No
