Axis M4308-PLE, 2880p, WDR, Lightfinder 2.0, 12MP, Object Analytics, White

Active tampering alarm Security - Yes
Alarm input/output Performance - Yes
Alert notification type Security - E-mail, Text alert message
ARTIKEL1 - AXIS M4308-PLE
ARTIKEL2 - OUTDOOR-READY MINI DOME DESIGNED
Audio detection Audio - Yes
Audio formats supported Audio - AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS
Auto focus Lens system - No
Bluetooth Network - No
Breite - 0.17
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Camera pan control Camera - Yes
Camera shutter speed Camera - 1/22000 - 1 s
Camera tilt control Camera - Yes
Card reader integrated Storage - Yes
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - FNC
Certification Performance - EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A,
RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835
Compatible memory cards Storage - MicroSD (TransFlash), MicroSDHC, MicroSDXC
Connectivity technology Performance - Wired
Day/night mode Performance - Yes

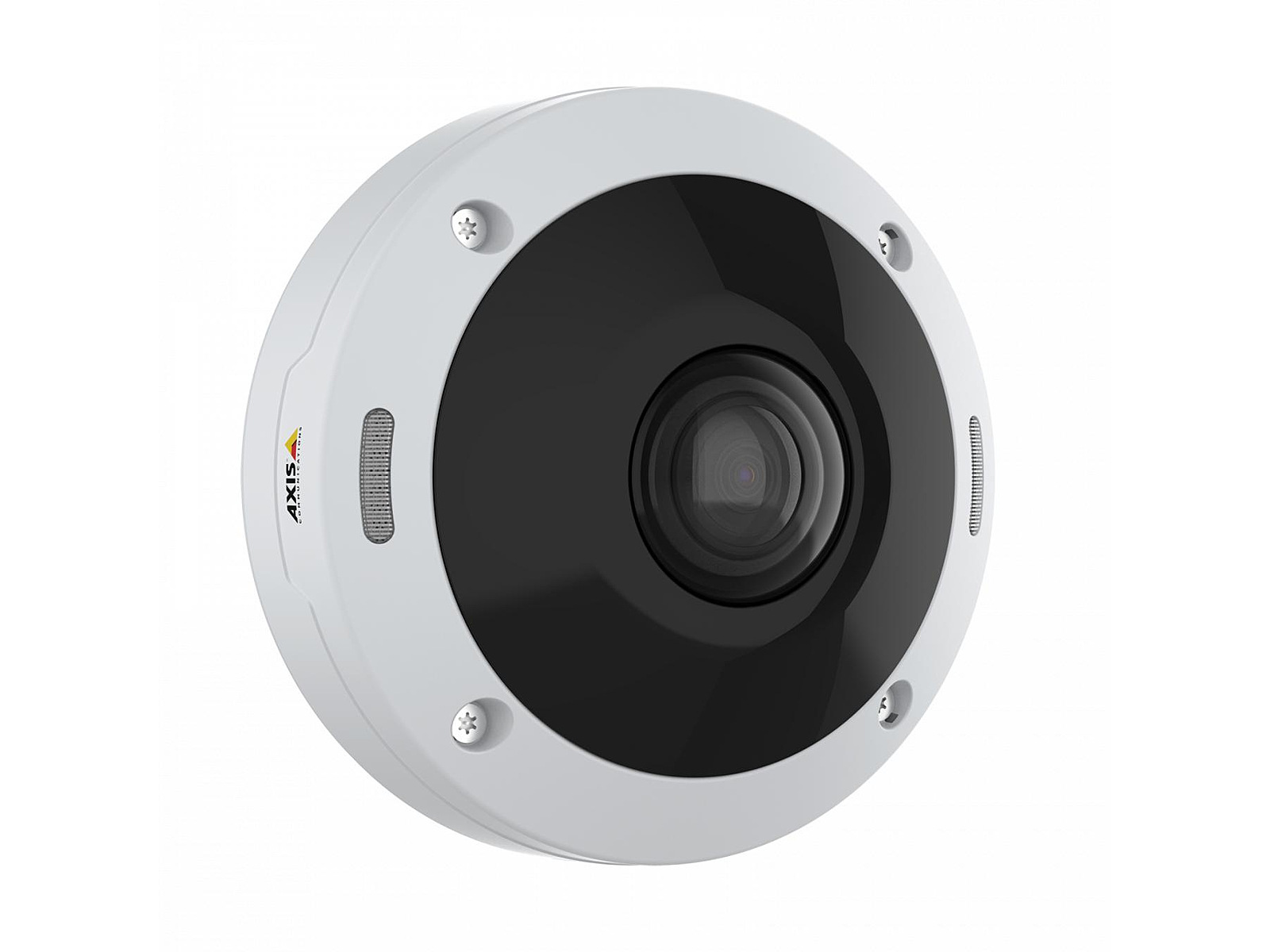

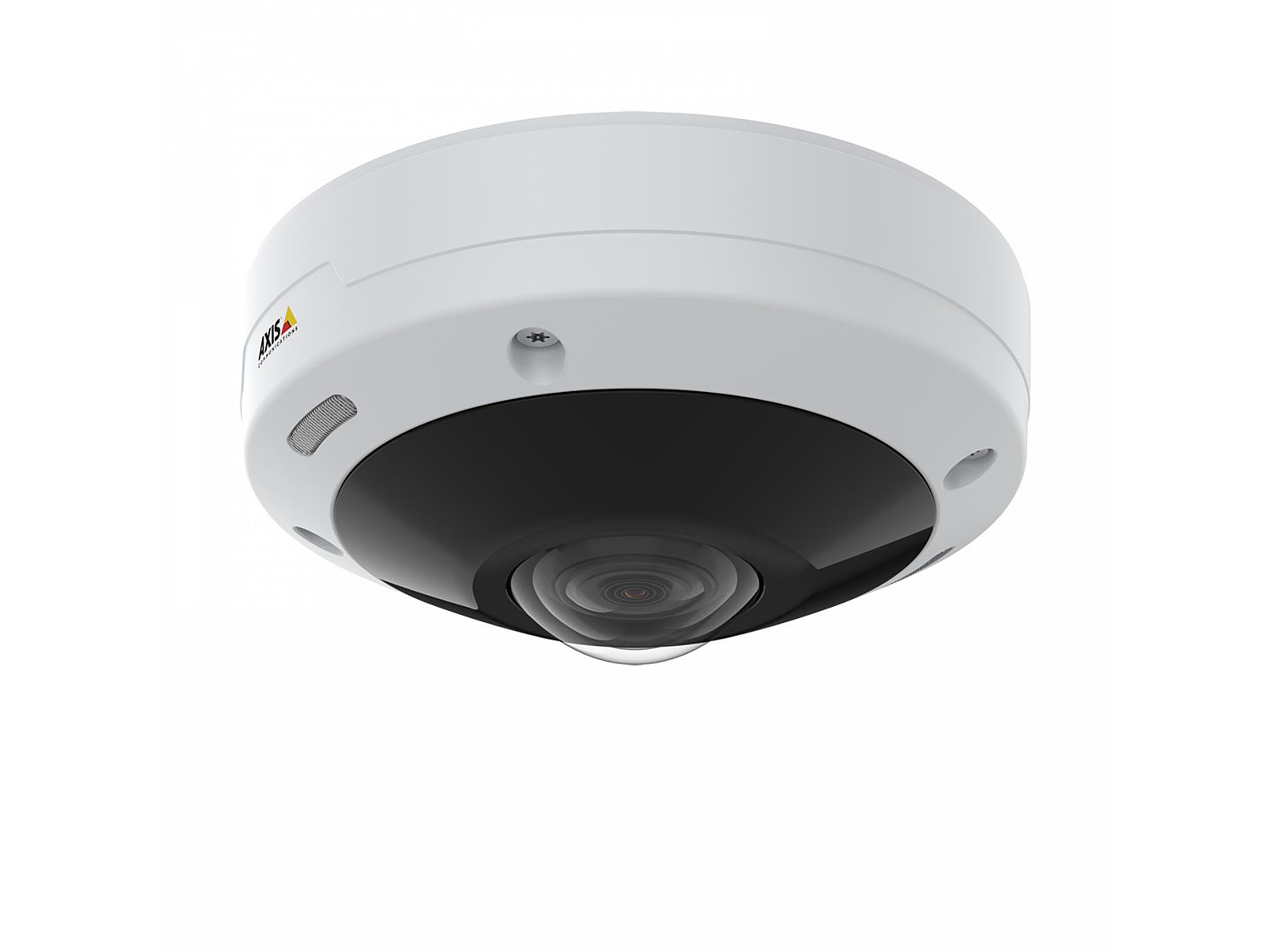

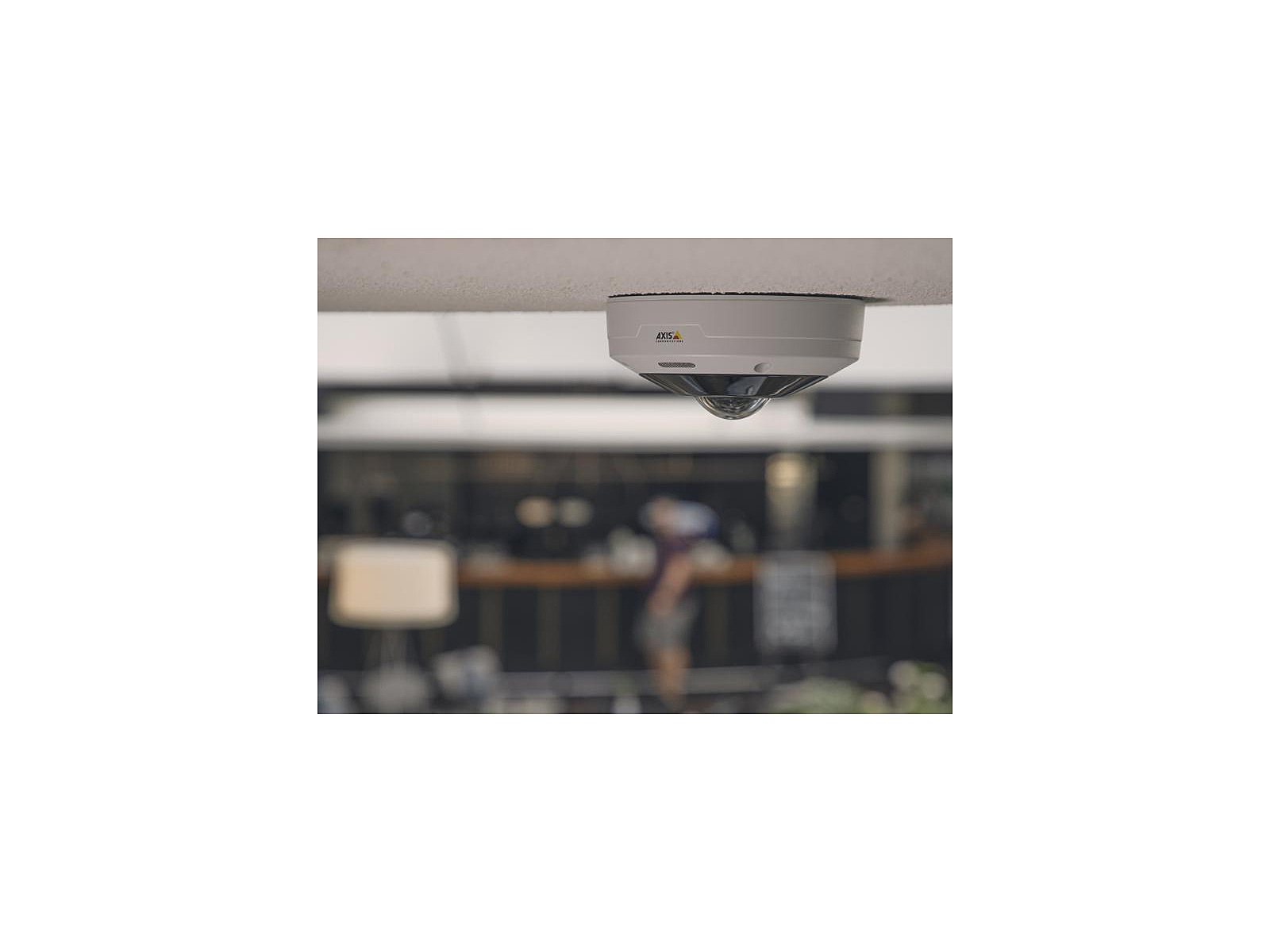

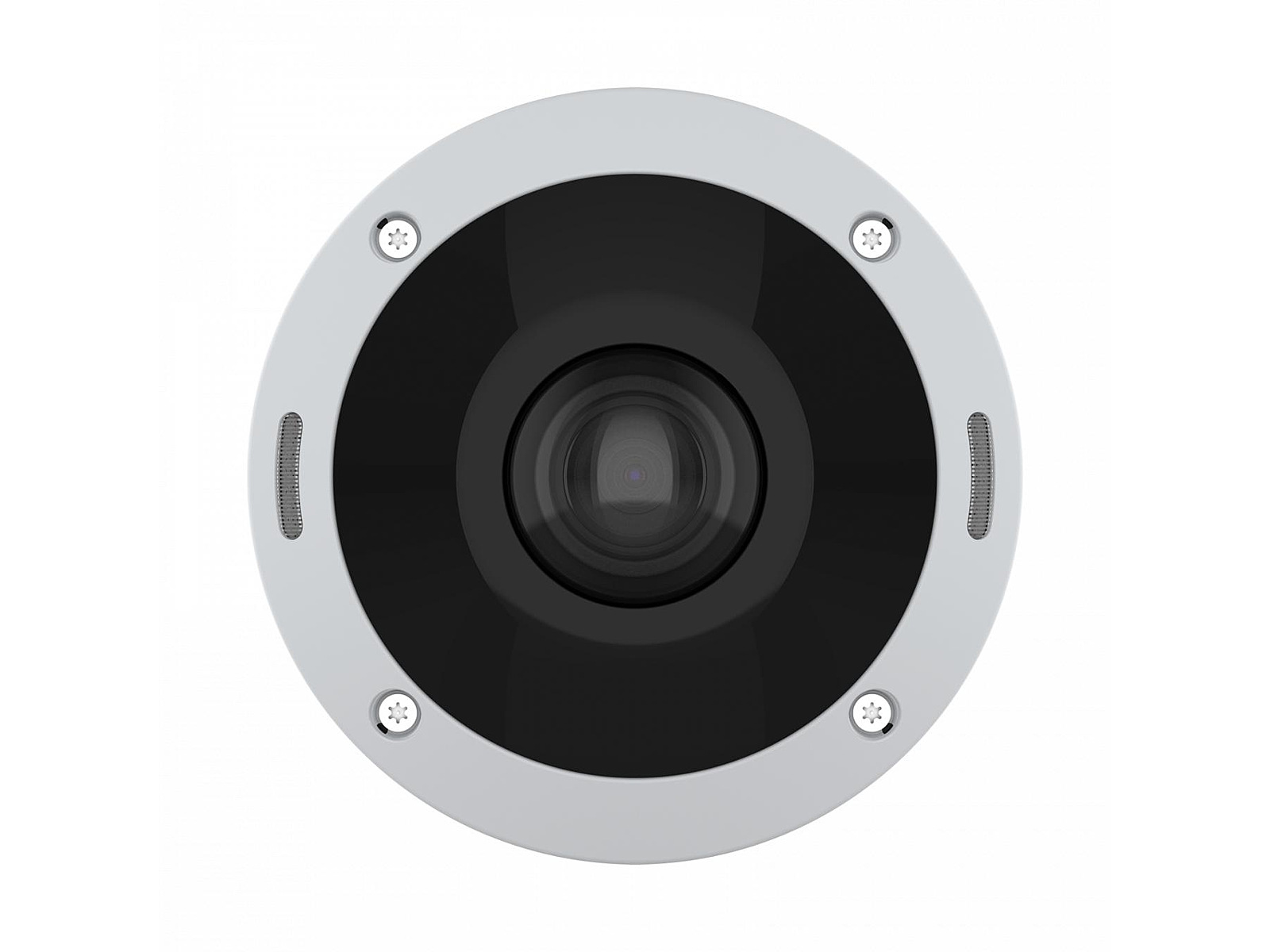

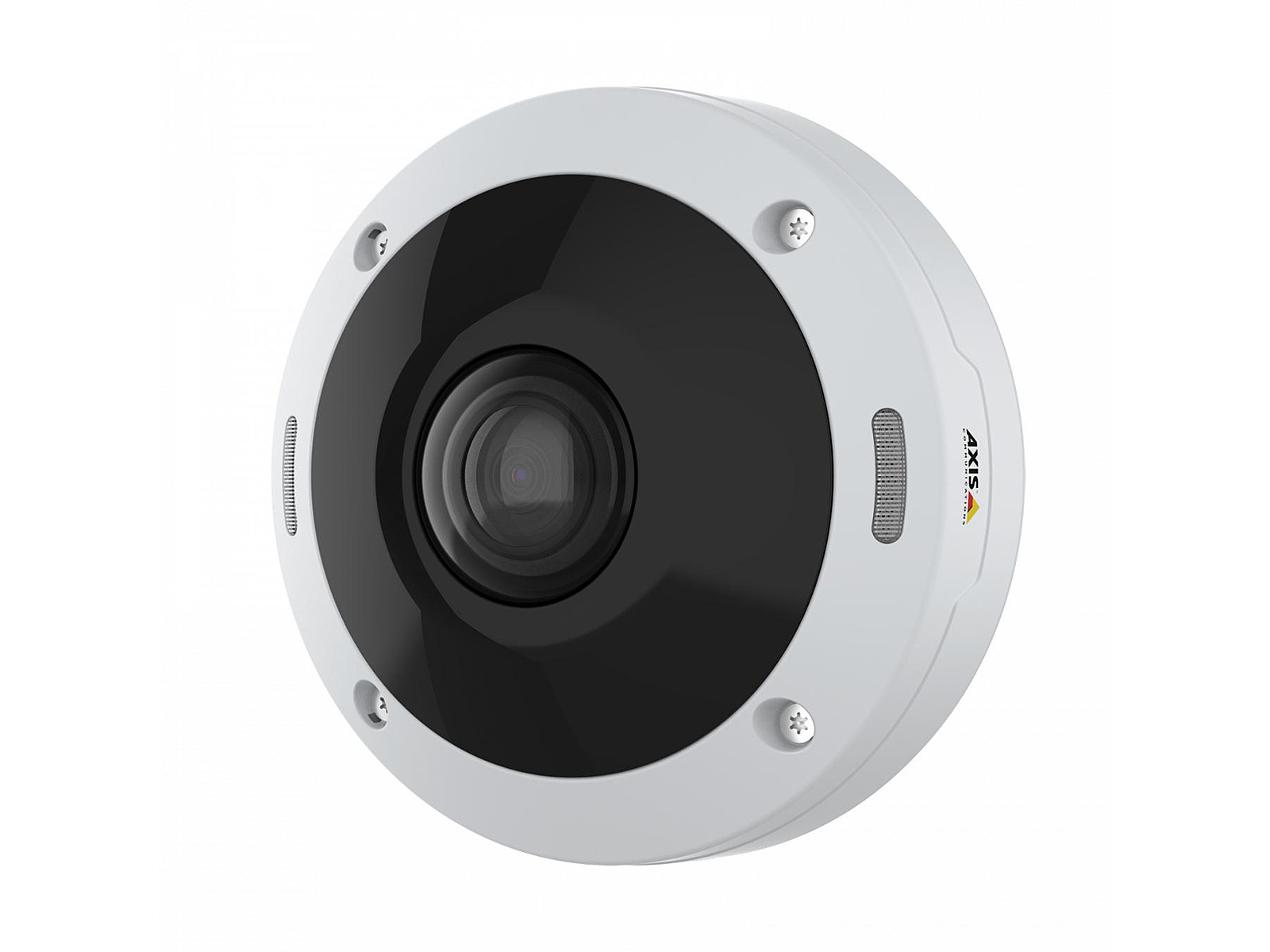

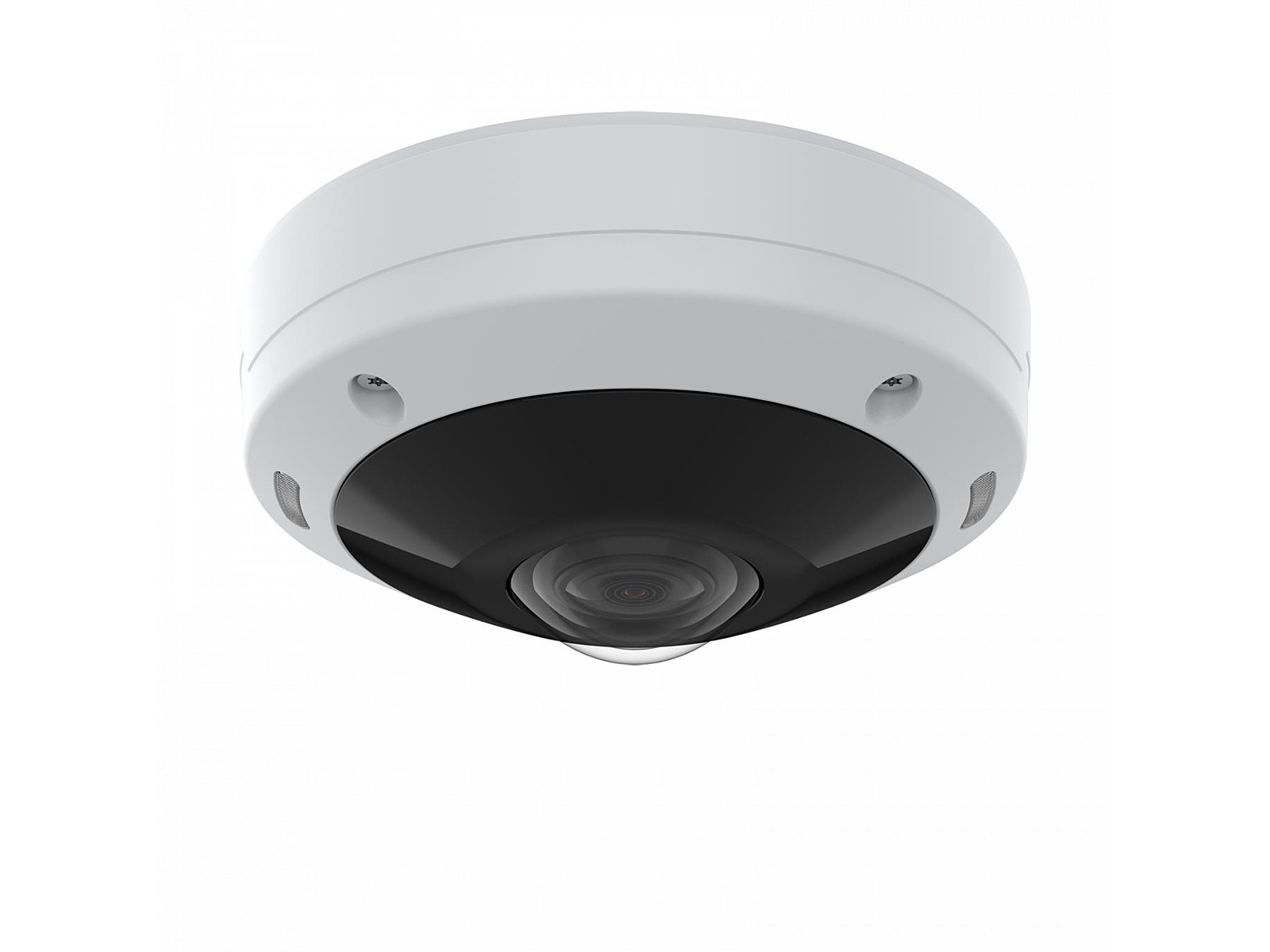

Description - AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.12 MP sensor with 360° overview; 4 microphones with voice enhancer; Lightfinder, Forensic WDR, OptimizedIR; Stereographic lens and Sharpdome 360; Support for analytics with deep learning
Diameter Weight & dimensions - 14.9 cm
Digest authentication Security - Yes
Drilling template included Packaging content - Yes
EAN - 7331021072534
EANCode - 7331021072534
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Field of view (FOV) angle Camera - 183°
Fixed focus Lens system - Yes
Flash memory Storage - 1000 MB
Focal length range Lens system - 1.3 mm
Form factor Design - Dome
Frame rate Video - 30 fps
Gewicht - 1.06
GRUPPE1 - Security
GRUPPE2 - Camera
Harmonized System (HS) code Logistics data - 85258900
Height Weight & dimensions - 69 mm
HERSTELLER - AXIS
Hoehe - 0.09
Housing material Design - Aluminium
HSTNUMMER - 02100-001
HTTPS encryption Security - Yes
IK code Design - IK10
Image quality adjustment Video - Brightness, Contrast
Infrared (IR) cut-off filter Performance - Yes
Internal memory Storage - 2000 MB
International Protection (IP) code Design - IP66
IP address filtering Security - Yes
Laenge - 0.18
Languages support Performance - Simplified Chinese, Traditional Chinese, German, English, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
LED indicators Design - Yes
LED type Night vision - IR
Lens viewing angle, horizontal Camera - 183°
Manual Packaging content - Yes
Manufacturer - Axis
Maximum resolution Video - 2880 x 2880 pixels
Minimum illumination Camera - 0.04 lx
Mounting brackets included Packaging content - Yes
Mounting kit Packaging content - Yes
Mounting type Design - Ceiling/wall
MPN - 02100-001
Name - Axis Netzwerkkamera Panorama Mini Fix Dome M4308-PLE 180/360°
Networking standards Network - IEEE 802.3at
Night vision Night vision - Yes
Number of cameras Packaging content - 1
Number of languages Performance - 12
Number of lenses Lens system - 1
Number of sensors Image sensor - 1
Operating relative humidity (H-H) Operational conditions - 10 - 100%
Operating temperature (T-T) Operational conditions - -40 - 50 °C
Optical sensor size Image sensor - 25.4 / 1.7 mm (1 / 1.7")
Pixel counter Security - Yes
Placement supported Performance - Indoor & outdoor
Power consumption (max) Power - 15.5 W
Power consumption (typical) Power - 7.9 W
Power source type Power - PoE
Privacy masking Video - Yes
Product colour Design - White
Progressive scan Image sensor - Yes
Protection features Design - Dust resistant, Water resistant
PTZ modes Performance - Digital PTZ
Quality of Service (QoS) support Network - Yes
Security algorithms Security - 802.1x RADIUS, HTTPS
Sensor type Image sensor - CMOS
Stck_Kart - 0
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 65 °C
Storno - N
Summary - Axis 02100-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Field of view (FOV) angle: 183°, Lens viewing angle, horizontal: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Focal length range: 1.3 mm
Total megapixels Video - 12 MP
Type Performance - IP security camera
Unit Box Height - 0.09
Unit Box Length - 0.175
Unit Box Width - 0.165
Unit Calculated Volume - 0.002599 cubm
Unit Calculated Weight - 1.06 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.axis.com/products/axis-m4308-ple
Video recording Video - Yes
Video streaming Video - Yes
Warranty - 60 months
Weight Weight & dimensions - 850 g
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Zoom capability Lens system - Yes
