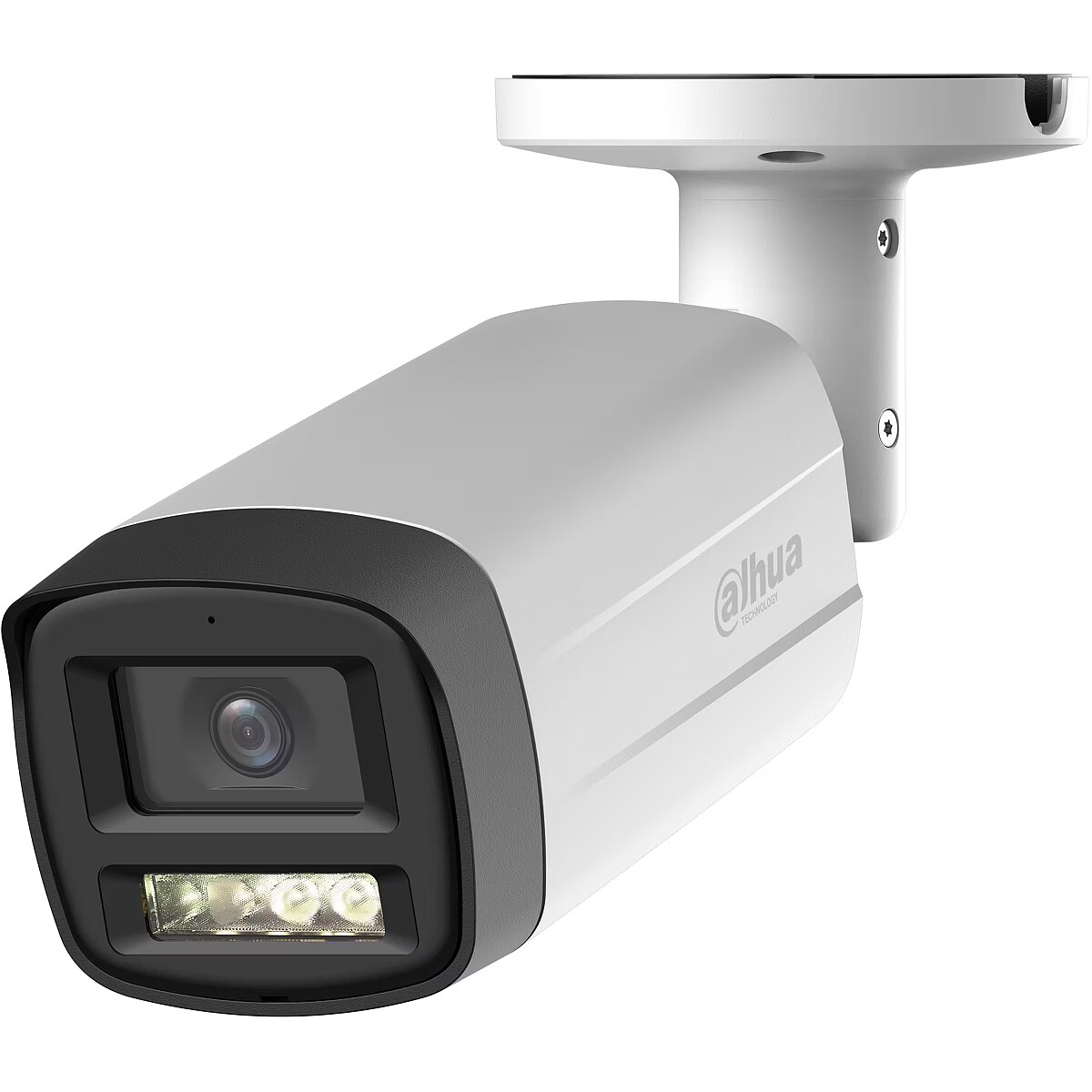

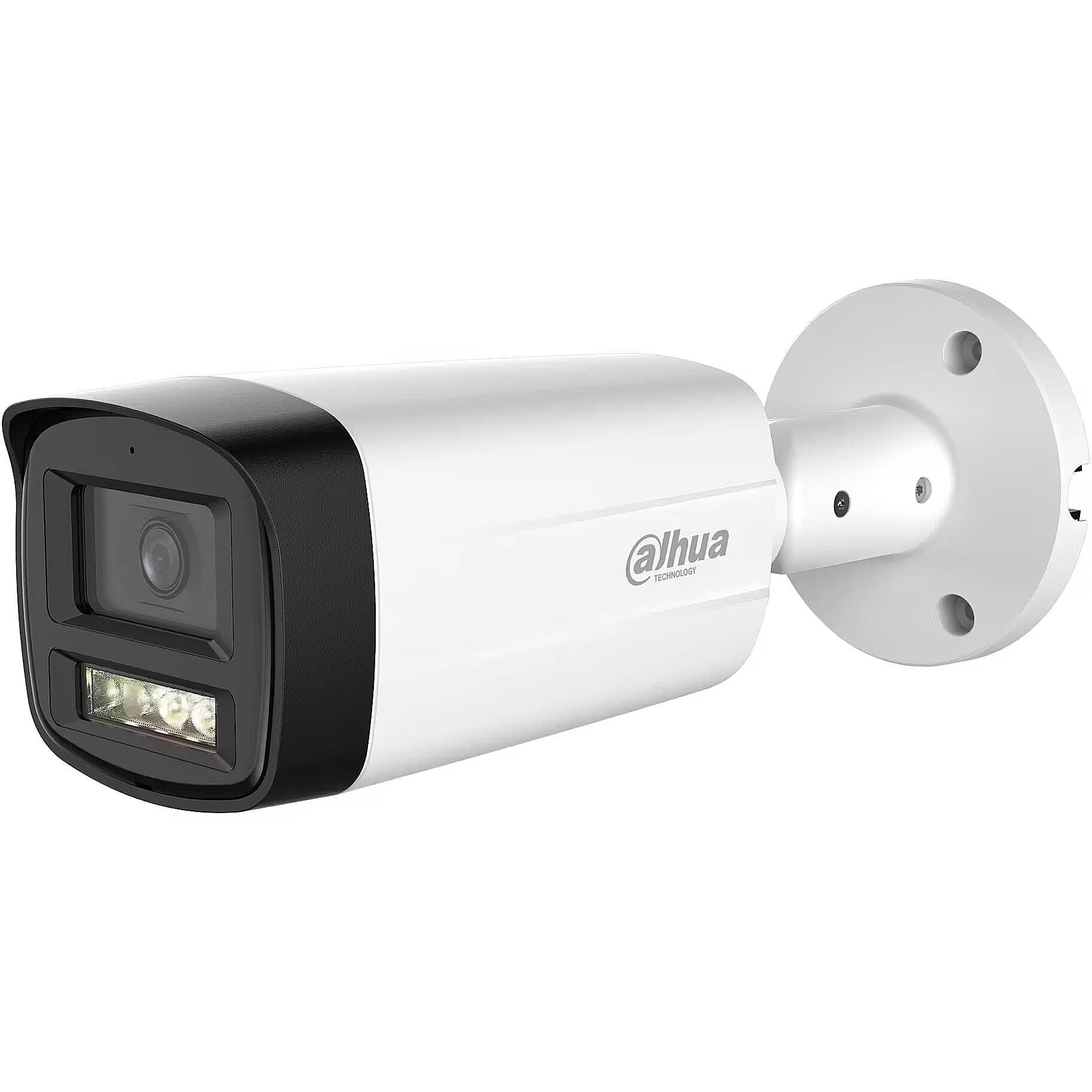

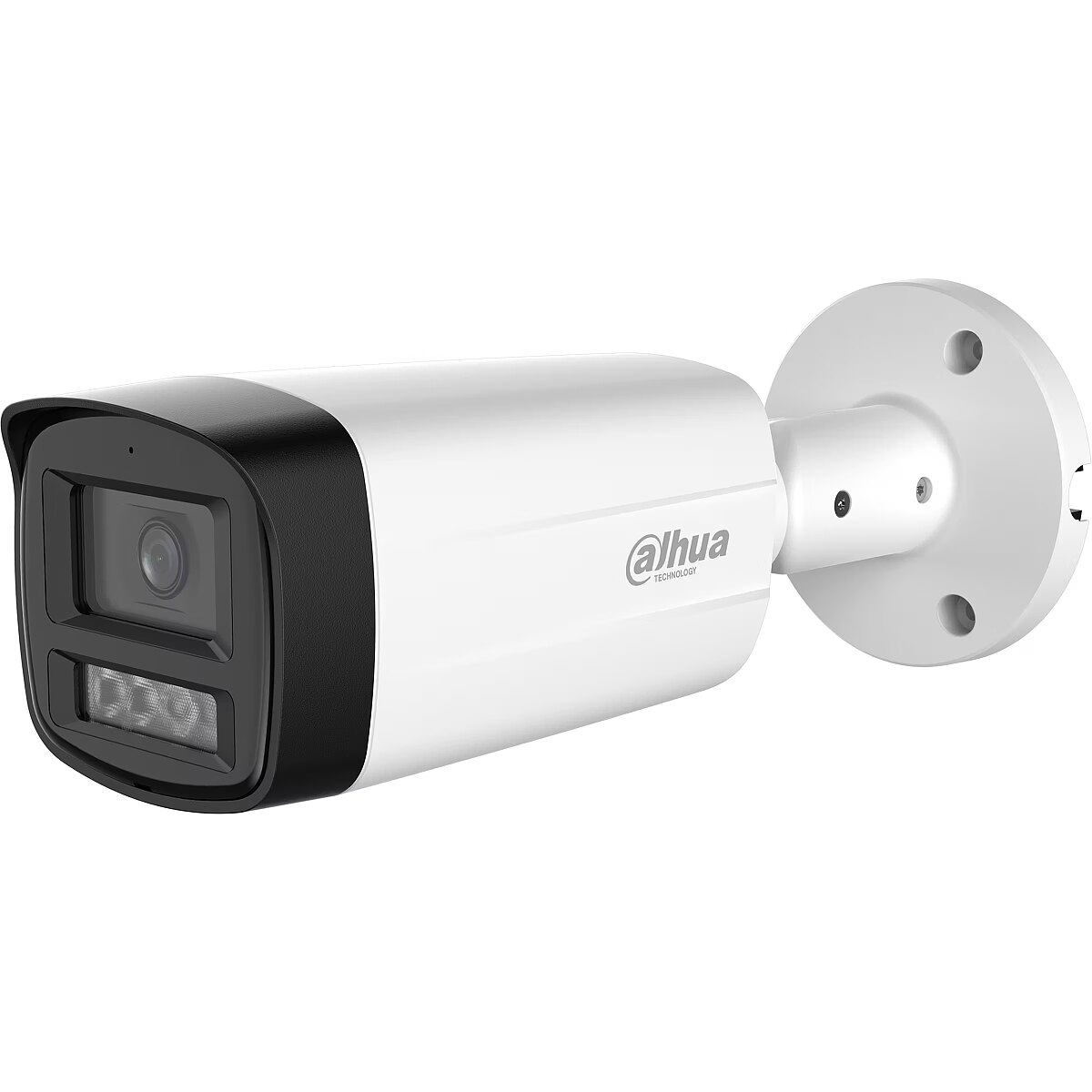

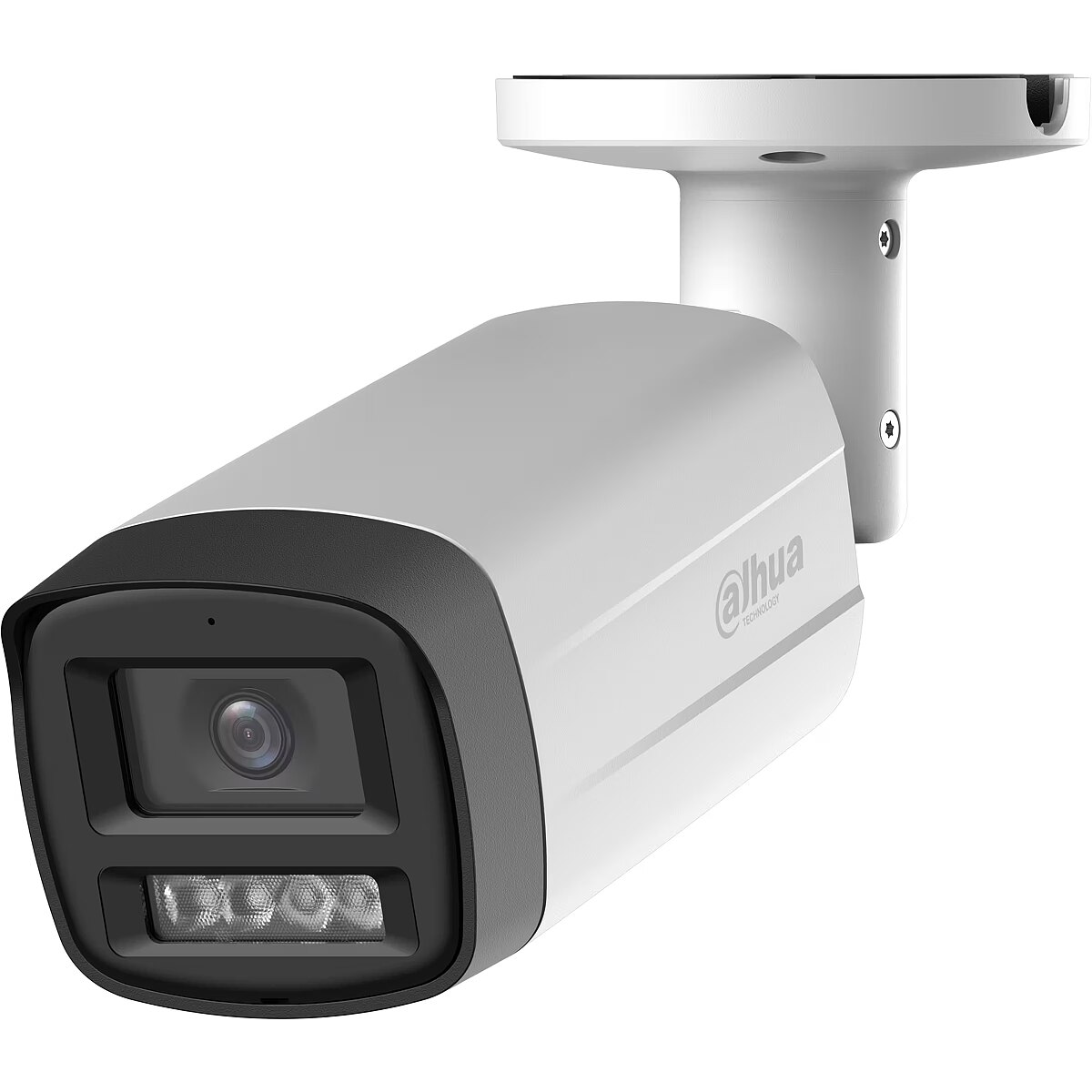

Dahua Bullet, 2160p(4K), 8MP, White

Analog signal format system Video - NTSC, PAL
Angle of rotation Camera - 360°
Audio - Built-in microphone - Yes
Audio - Signal-to-Noise Ratio (SNR) - 65 dB
Back Light Compensation (BLC) Video - Yes
Bluetooth Network - No
BNC output ports Ports & interfaces - 1
Brand - Dahua Technology
BrandPartCode - HFW1801TH-IL-A-0360B-S3DIP
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/25 - 1/100000 s
Camera - Camera shutter type - Electronic
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 125.3°
Camera - Lens viewing angle, horizontal - 105.5°
Camera - Lens viewing angle, vertical - 56.5°
Camera - Minimum illumination - 0 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Camera - White balance - Auto
Camera pan control Camera - Yes
Camera shutter speed Camera - 1/25 - 1/100000 s
Camera shutter type Camera - Electronic
Camera tilt control Camera - Yes
Category - Security Cameras
Category Code - HSC
Closest focusing distance Lens system - 2.1 m
Compliance certificates Sustainability - Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
DC output voltage Power - 12
Description - The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios. Smart Dual Light

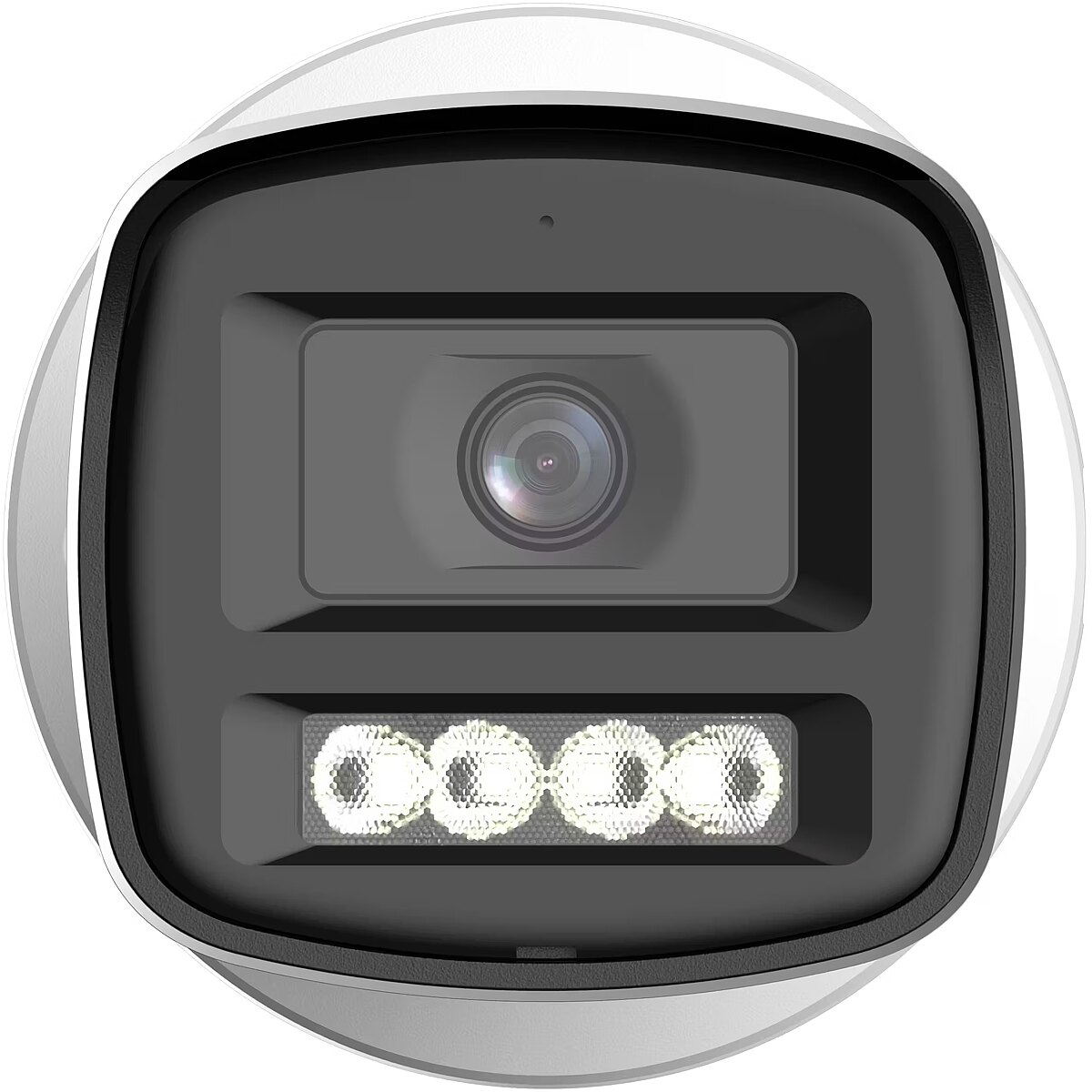

With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution. Smart Light+
Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions. Smart Area Lighting
Automatically adjusts the intensity of the brightness and exposure for the left and right areas in the video based on the proportion and position of the targets to reveal more details in the image. Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence. Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images. Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.
> * The parameters and datasheets below can only be applied to 1801-IL-S3 seriesIn order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later versionIn order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later versionMax. 15 fps@4KSmart Dual Light80 m illumination distanceSuper AdaptBuilt-in Mic3.6 mm fixed lens (2.8 mm, 6 mm optional)CVI/CVBS/AHD/TVI switchableIP67, 12 VDC
Design - Form factor - Box
Design - Housing material - Plastic, Metal
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - White, Black
Design - Protection features - Corrosion resistant, Waterproof
Detect distance Lens system - 113.6 m
Ethernet LAN Network - No
Fixed focal length Lens system - 3.6 mm
Fixed focus Lens system - Yes
Form factor Design - Box
Frame rate Video - 15 fps
Gain control type Video - Auto
Height Weight & dimensions - 90.4 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Plastic, Metal
Identify distance Lens system - 11.4 m
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Interface Ports & interfaces - BNC
International Protection (IP) code Design - IP67
Iris Technical details - Yes
LED type Night vision - IR/White
Length Weight & dimensions - 240.7 mm
Lens mount interface Technical details - M12
Lens system - Closest focusing distance - 2.1 m
Lens system - Detect distance - 113.6 m
Lens system - Fixed focal length - 3.6 mm
Lens system - Fixed focus - Yes
Lens system - Identify distance - 11.4 m
Lens system - Maximum aperture number - 2
Lens system - Observe distance - 45.4 m
Lens system - Recognize distance - 22.7 m
Lens viewing angle, diagonal Camera - 125.3°
Lens viewing angle, horizontal Camera - 105.5°
Lens viewing angle, vertical Camera - 56.5°
LongDesc - The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios.Smart Dual LightWith its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.Smart Light+Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.Smart Area LightingAutomatically adjusts the intensity of the brightness and exposure for the left and right areas in the video based on the proportion and position of the targets to reveal more details in the image.Broadcast-quality AudioAudio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.Super AdaptWith its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.Advanced 3DNRDahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.
LongProductName - 4K CMOS Smart Dual Light, 3840 x 2160, 3.6 mm, SNR 65 dB, IR/WL, M12, WDR, 3D NR, BNC, IP67, Plastic/Metal, White
LongSummaryDescription - Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Black, Form factor: Box. Angle of rotation: 360°, Lens viewing angle, horizontal: 105.5°, Lens viewing angle, vertical: 56.5°. Sensor type: CMOS. Detect distance: 113.6 m, Observe distance: 45.4 m, Recognize distance: 22.7 m
Maximum aperture number Lens system - 2
Maximum resolution Video - 3840 x 2160 pixels
Minimum illumination Camera - 0 lx
Mirror Security - Yes
Mounting type Design - Ceiling/Wall/Pole
Network - Bluetooth - No
Network - Ethernet LAN - No
Network - Wi-Fi - No
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 80 m
Night vision - Number of illumination LEDs - 4
Night vision distance Night vision - 80 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 4
Observe distance Lens system - 45.4 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -40 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Package weight Packaging data - 590 g
Packaging content - Number of cameras - 1
Packaging data - Package weight - 590 g
Pan range Camera - 0 - 360°
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - CCTV security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Indoor & outdoor
Ports & interfaces - BNC output ports - 1
Ports & interfaces - Interface - BNC
Power - DC output voltage - 12
Power - Power consumption (max) - 7.2 W
Power - Power source type - DC
Power consumption (max) Power - 7.2 W
Power source type Power - DC
Product colour Design - White, Black
ProductName - 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Progressive scan Image sensor - Yes
Protection features Design - Corrosion resistant, Waterproof
Recognize distance Lens system - 22.7 m
Security - Mirror - Yes
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera, CCTV security camera, Indoor & outdoor, Wired, Ceiling/Wall/Pole, White, Black, Box
Signal-to-Noise Ratio (SNR) Audio - 65 dB
Smart IR Video - Yes
Storage - Built-in HDD - No
Storage relative humidity (H-H) Operational conditions - 0 - 95%
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Summary - Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Black, Form factor: Box. Angle of rotation: 360°, Lens viewing angle, horizontal: 105.5°, Lens viewing angle, vertical: 56.5°. Sensor type: CMOS. Detect distance: 113.6 m, Observe distance: 45.4 m, Recognize distance: 22.7 m
Supported graphics resolutions Video - 3840 x 2160, 960 x 576, 960 x 480
Supported video modes Video - 2160p, 576p, 480p
Sustainability - Compliance certificates - Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE
Technical details - Iris - Yes
Technical details - Lens mount interface - M12
Tilt angle range Camera - 0 - 90°
Title - Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Type Performance - CCTV security camera
Unit Box Height - 0.11
Unit Box Length - 0.3
Unit Box Width - 0.12
Unit Calculated Volume - 0.00396 cubm
Unit Calculated Weight - 0.65 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/4K/Smart-Dual-Light/HAC-HFW1801TH-IL-A=S3
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/4K/Smart-Dual-Light/HAC-HFW1801TH-IL-A=S3
Video - Analog signal format system - NTSC, PAL
Video - Back Light Compensation (BLC) - Yes
Video - Frame rate - 15 fps
Video - Gain control type - Auto
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 3840 x 2160 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Smart IR - Yes
Video - Supported graphics resolutions - 3840 x 2160, 960 x 576, 960 x 480
Video - Supported video modes - 2160p, 576p, 480p
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Height - 90.4 mm
Weight & dimensions - Length - 240.7 mm
Weight & dimensions - Weight - 420 g
Weight & dimensions - Width - 90.7 mm
Weight Weight & dimensions - 420 g
White balance Camera - Auto
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 90.7 mm
