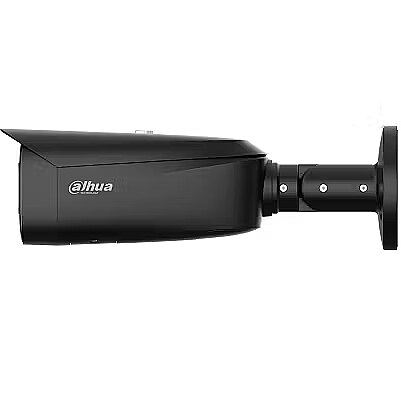

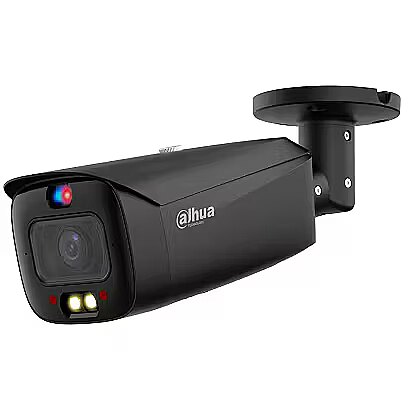

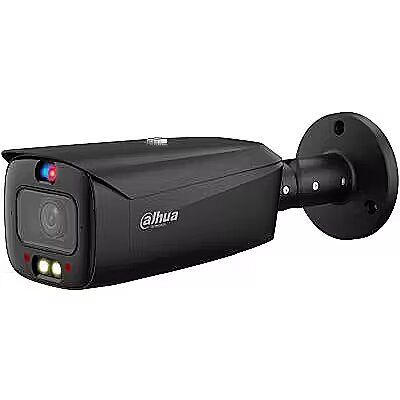

Dahua Bullet, 1944p, 5MP, Black

Adjustment shutter speed Camera - Auto/Manual
Alarm input channels Security - 2
Alarm output channels Security - 2
Audio - Audio detection - Yes
Audio - Audio formats supported - G.711, G.726
Audio - Audio input channels - 2.0 channels
Audio - Audio output channels - 2.0 channels
Audio - Audio system - 2-way
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio detection Audio - Yes
Audio formats supported Audio - G.711/G.726
Audio input channels Audio - 2.0 channels
Audio output channels Audio - 2.0 channels
Audio system Audio - 2-way
Bluetooth Network - No
Brand - Dahua Technology
BrandPartCode - HFW3549T1-ZASPV27135S5-B
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Built-in speaker(s) Audio - Yes
Camera - Adjustment shutter speed - Auto/Manual
Camera - Camera pan control - No
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Camera tilt control - No
Camera - Minimum illumination - 0.0003 lx
Camera - Number of Privacy masking areas - 4
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Camera - White balance - Auto, Lamp, Manual, Outdoor
Camera pan control Camera - No
Camera shutter speed Camera - 1/3 - 1/100000 s
Camera tilt control Camera - No
Card reader integrated Storage - Yes
Category - Security Cameras
Category Code - FNC
Certification Performance - CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
DC output voltage Power - 12
Depth Weight & dimensions - 288.4 mm
Description - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. Siren And Light Active Deterrence Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing. Smart Dual Light Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently. SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches. One-tap Disarming Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs. Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device. Protection (IP67, wide voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage. 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition imageOutputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520) @25/30 fpsH.265 codec, high compression rate, ultra-low bit rateBuilt-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 mROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environmentsRotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesIntelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detectionAlarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk12 VDC/PoE power supplyIP67 protectionSound and light alarm (red and blue lights)SMD 4.0One-tap arming/disarming through alarm input
Design - Form factor - Bullet
Design - Housing material - Metal, Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - Black
Ethernet interface type Network - Fast Ethernet/Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Form factor Design - Bullet
Height Weight & dimensions - 84.7 mm
Housing material Design - Metal/Plastic
Image sensor - Number of sensors - 1
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Internal memory Storage - 512 MB
International Protection (IP) code Design - IP67
Lens system - Number of lenses - 1
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.Siren And Light Active Deterrence Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.Smart Dual Light Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently. SMD 4.0Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.One-tap Disarming Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs. Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device. Protection (IP67, wide voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
LongProductName - 1/2.7" CMOS, 2960 (H) × 1668 (V), 256 MB, >56 dB
LongSummaryDescription - Dahua Technology WizSense IPC-HFW3549T1-ZAS-PV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.0003 lx, Tilt angle range: 0 - 90°, Pan range: 0 - 360°. Sensor type: CMOS. Night vision distance: 30 m
Management features - Web-based management - Yes
Management features - Web browser - Yes
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2592 x 1944 pixels
Minimum illumination Camera - 0.0003 lx
Mirror Security - Yes
Mobile operating systems supported System requirements - Android/iOS
Model - HFW3549T1-ZASPV27135S5-B
Mounting type Design - Ceiling/wall
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of lenses Lens system - 1
Number of Privacy masking areas Camera - 4
Number of sensors Image sensor - 1
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Package weight Packaging data - 1350 g
Packaging data - Package weight - 1.35 kg
Pan range Camera - 0 - 360 °
Performance - Certification - CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Indoor & outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 7.4 W
Power - Power consumption (Power over Ethernet (PoE)) - 8.7 W
Power - Power consumption (typical) - 3.3 W
Power - Power source type - DC, PoE
Power consumption (max) Power - 7.4 W
Power consumption (Power over Ethernet (PoE)) Power - 8.7 W
Power consumption (typical) Power - 3.3 W
Power source type Power - DC,PoE
Privacy masking Video - Yes
Product colour Design - Black
ProductName - IPC-HFW3549T1-ZAS-PV
Progressive scan Image sensor - Yes
ROM capacity Storage - 128 MB
Security - Alarm input channels - 2
Security - Alarm output channels - 2
Security - Mirror - Yes
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology WizSense IPC-HFW3549T1-ZAS-PV, IP security camera, Indoor & outdoor, Wired, CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC..., Ceiling/wall, Black
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Internal memory - 512 MB
Storage - Maximum memory card size - 256 GB
Storage - ROM capacity - 128 MB
Storage temperature (T-T) Operational conditions - -30 - 60 °C
Summary - Dahua Technology WizSense IPC-HFW3549T1-ZAS-PV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.0003 lx, Tilt angle range: 0 - 90°, Pan range: 0 - 360°. Sensor type: CMOS. Night vision distance: 30 m
Supported graphics resolutions Video - 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2592 x 1944/2688 x 1520/640 x 480 (VGA)
System requirements - Mobile operating systems supported - Android, iOS
Tilt angle range Camera - 0 - 90 °
Title - Dahua Technology WizSense IPC-HFW3549T1-ZAS-PV Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
Total megapixels Video - 5 MP
Type Performance - IP security camera
Unit Box Height - 0.135
Unit Box Length - 0.34
Unit Box Width - 0.145
Unit Calculated Volume - 0.006655 cubm
Unit Calculated Weight - 1.32 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HFW3549T1-ZAS-PV=S5
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HFW3549T1-ZAS-PV=S5
Video - Maximum resolution - 2592 x 1944 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Supported graphics resolutions - 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944, 2688 x 1520
Video - Total megapixels - 5 MP
Video - Video compression formats - H.264, H.264B, H.264H, H.265
Video compression formats Video - H.264/H.264B/H.264H/H.265
Warranty - 36 months
WarrantyInfo -
Web-based management Management features - Yes
Web browser Management features - Yes
Weight & dimensions - Depth - 288.4 mm
Weight & dimensions - Height - 84.7 mm
Weight & dimensions - Weight - 1.05 kg
Weight & dimensions - Width - 94.4 mm
Weight Weight & dimensions - 1050 g
White balance Camera - Auto/Lamp/Manual/Outdoor
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 94.4 mm
