Be Quiet Silent Wings Pro 4, 120mm, PWM

Air flow - 83.9 cfm
Air flow rates - 83.9 cfm
ARTIKEL1 - SILENT WINGS PRO 4 120MM PWM
ARTIKEL2 - BLACK 4PIN
Brand - be quiet!
BrandPartCode - BL098
category - Air Cooling Fans
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - BL098
Colour - Black
Connector type - 4-pin
Cooling technology - Air

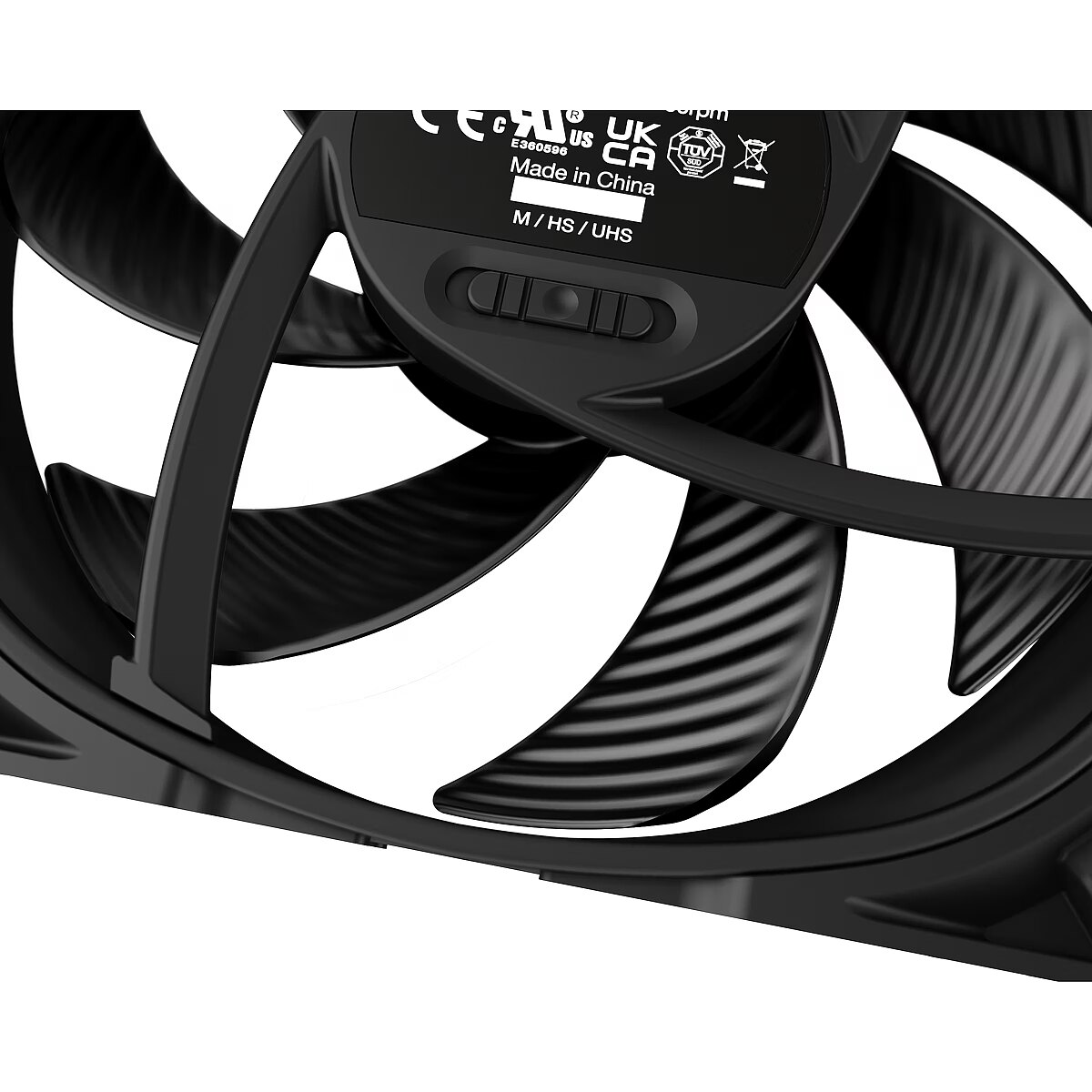

Description - SILENT WINGS PRO 4 120mm PWM LEGENDARY SILENCE, EPIC PERFORMANCE AND FEATURES Silent Wings Pro 4 120mm PWM is the most progressive, performant and versatile fan by be quiet! Optimized fan blades for the highest performance on radiators and heat sinks Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 3000 rpm) Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure Virtually inaudible operation at regular speed 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations Individual mounting systems for use as a case fan or with a radiator
Description - SILENT WINGS PRO 4 120mm PWM LEGENDARY SILENCE, PERFORMANCE AND FEATURES Silent Wings Pro 4 120mm PWM is the most progressive, efficient and versatile fan from be quiet! Optimised fan blades for superior performance on coolers and heatsinks Speed switch allows to change the maximum PWM speed between medium, high and ultra-high speed (up to 3000 rpm) Small clearance between fan blades and fan frame with funnel-shaped air outlet for extremely high air pressure Virtually inaudible operation at standard speed 6-pole fan motor for reduced vibration and energy consumption Individual and easy mounting systems for mounting in the case or with a heatsink IMPROVED ON ALL LEVELS Revised blade layout for next-generation performance Fan blades are what make a fan. That's why the Silent Wings Pro 4 120mm PWM fan blades have been redesigned from the ground up. The new blade layout ensures unparalleled performance in all possible applications. Whether in the case, on coolers or heatsinks. OPTIMISED FOR HIGH PERFORMANCE Minimum distance for maximum air pressure The Silent Wings Pro 4 120mm PWM provides maximum air pressure and thus a significant increase in system performance. This is made possible by the reduced distance between the fan blades and the frame. This allows the Silent Wings 120mm PWM to be used by the user in even the most demanding configurations. SPEED SWITCH 3 speed options for every possible application The speed switch allows quick and easy switching between medium, high and ultra-high speeds. The Silent Wings Pro 4 120mm PWM changes its capabilities with a simple slide to the right. Medium speed is suitable for any operation that requires regular cooling performance. High speed allows the fan to spin faster, providing more cooling power. Ultra-high speed ultimately provides enough rpm to cool even the most demanding hardware in high-end PCs. 6-POLE FAN MOTOR The key to virtually inaudible operation when needed The 6-pole fan motor with 3 phases ensures ultra-low energy consumption, less vibration and therefore quiet operation at a maximum of 36.9 dB(A). Equipped with this state-of-the-art technology, the fan ensures smooth operation and thus reduces costs. 3 DIFFERENT INSTALLATION OPTIONS For any application The Silent Wings Pro 4 120mm PWM comes with 3 mounting options included. The factory-installed corners are specifically designed for heatsinks on which the fan will be able to fully showcase its unparalleled performance. On the other hand, for chassis applications, the anti-vibration mounting will be the best choice as it reduces vibrations to a minimum. Plastic mounts complete the set. FLUID-DYNAMIC BEARING For balanced operation The advanced fluid-dynamic bearing (FDB) ensures a very long fan life of up to 300,000 hours. In addition, it significantly reduces vibrations and supports the virtually inaudible operation of the Silent Wings 4 120mm PWM. ELEGANT DESIGN Great looks on all sides The all-black design combined with the high-quality fan decal makes the Silent Wings Pro 4 120mm PWM a highlight in any setup.  The finely braided PWM cable perfectly complements the external appearance of the fan. But it's not just the PWM cable that looks great: its connector can also be easily plugged and unplugged, making the fan not only eye-catching but also user-friendly.
Design - Certification - CE / ROHS / RU / UKCA / TÜV / WEEE
Design - Fan bearing technology - Fluid Dynamic Bearing (FDB)
Design - Fan connector - 4-pin
Design - LED backlight - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 174
dimension depth - 30 mm
dimension height - 195 mm
Dimensions - 120 x 120 x 25 mm
dimension weight - 394 g
dimension width - 140 mm
ean - 4260052188903
EAN - 4260052188903
EANCode - 4260052188903
Eans - 4260052188903
EAN_code - 4260052188903
Fan - 12 cm
Fan size group - 120mm
Fan speed - 3000rpm
Fan speed (max) - 3000 rpm
Full Description Line - Silent Wings Pro 4|Number of fans 1|Air flow 83.9 cfm|Noise level, max 36.9 dB|Colour Black|Dimensions 120 x 120 x 25 mm
GRUPPE1 - Computer Systems
GRUPPE2 - Cooling Syst & Fans
GTIN - 4260052188903
guarantee - 60
guarantee_type - normal
HERSTELLER - BE QUIET
HSTNUMMER - BL098
Illumination - No
Logistics data - Harmonized System (HS) code - 84733080
Logistics data - Products per shipping (inner) case - 40 pc(s)
Logistics data - Shipping (inner) case gross weight - 17.2 kg
Logistics data - Shipping (inner) case height - 37.5 cm
Logistics data - Shipping (inner) case length - 43.2 cm
Logistics data - Shipping (inner) case width - 38.7 cm
LongDesc - Legendary silence, epic performance and featuresFor the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 120mm PWM is the most progressive, performant, and versatile fan by be quiet!
LongProductName - Silent Wings Pro 4 120mm PWM, 3000RPM, 36.9dB, FDB, 83.9cfm, 142.5m3/h
LongSummaryDescription - be quiet! SILENT WINGS PRO 4 | 120mm PWM. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 3000 RPM, Noise level (high speed): 36.9 dB, Maximum airflow: 83.9 cfm, Airflow: 142.5 m³/h, Maximum air pressure: 5.31 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 7 - 13.2 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BL098
Model - BL098
Model name - Silent Wings Pro 4
MPN - BL098
Name - 120mm Be Quiet! SILENT WINGS PRO 4 PWM
name - be quiet! Silent Wings 4 Pro PWM Lüfter - 120mm, schwarz
Name - be quiet! Silent Wings Pro 4 120mm PWM
Name - Be quiet! Silent Wings Pro 4 PWM 120x120x25, case fan (black)
name - Fan Silent Wings Pro 4 120mm PWM
Noise - 36.9 dB
Noise level, max - 36.9 dB
Number of fans - 1
Other features - Air pressure @ 100% PWM / 12V (mm H2O): 5.31 Input power: 3.6 W Input current: 0.3 A Service life at 25°C: up to 300,000 h
Other features - Country of origin - Germany
Packaging content - Number of clips - 4
Packaging content - Screws included - Yes
Packaging content - Set contents - Anti-vibration pins
Packaging content - Set contents - Fan
Packaging content - Set contents - Installation kit
Packaging content - Set contents - Silicone pads
Performance - Airflow - 142.5 m³/h
Performance - Bearing type - Fluid bearing
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Easy to attach - Yes
Performance - Fan diameter - 12 cm
Performance - Fan speed (max) - 3000 RPM
Performance - Lifetime - 300000 h
Performance - Maximum airflow - 83.9 cfm
Performance - Maximum airflow - 142,5 m3/h
Performance - Maximum air pressure - 5.31 mmH2O
Performance - Mean time between failures (MTBF) - 300000 h
Performance - Noise level - 36.9 dB
Performance - Noise level (high speed) - 36.9 dB
Performance - Platform - PC
Performance - Proper use - CPU cooling
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 3000 RPM
Performance - Suitable location - Computer case
Performance - Suitable location - Housing
Performance - Suitable location - Radiator
Performance - Type - Cooling fan
Performance - Type - Fan
Power - Current - 0,3 A
Power - Input voltage - 7 - 13,2 V
Power - Maximum current - 0.33 A
Power - Power consumption (typical) - 3.6 W
Power - Rated current - 0.3 A
Power - Rated voltage - 12 V
Power - Voltage - 7 - 13.2 V
producer - Be quiet!
Producer - be quiet!
producerCode - BL098
ProducerCode - BL098
productName - BE QUIET! Silent Wings Pro 4 BL098 PC 120 mm
ProductName - SILENT WINGS PRO 4 | 120mm PWM
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 19.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 3 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.41 kg
Shipping Box Width Shipping/Package Box Dimensions - 14.5 cm
ShortDescription -
ShortSummaryDescription - be quiet! SILENT WINGS PRO 4 | 120mm PWM, Fan, 12 cm, 3000 RPM, 36.9 dB, 83.9 cfm, 142.5 m³/h
sizeX - 140
sizeY - 195
sizeZ - 32
Stck_Kart - 0
Stck_Pal - 0
Storno - N
Technical_details - Type: fan Color: Black EAN: 4260052188903 Manufacturer No.: BL098 Series: Silent Wings Type: case fan Usage: for PC case Fastening: push pins, screwed Loudness : 36.9dB Speed: 3,000 rpm Fan Bearing: FDB - Fluid Dynamic Bearing Flow rate: 142.5 m3/h (83.9 cfm) Air Pressure: Up to 5.31 mm/H2O Power connector: 4-pin PWM Voltage range: 7 - 13.2 volts Power consumption: 3.6 watts Feature: Speed Switch enables 3 options: medium-speed, high-speed and ultra-high-speed, fan corners optimized for radiators and anti-vibration mounts for cases, small distance between frame and fan blades for maximum air pressure Additional information: Elegant appearance with high-gloss black fan sticker and high-quality, sleeved PWM cable Accessories: instructions, radiator corners, rubber and plastic corners, push pins, fan screws Dimensions: Quantity: 1 piece Width: 120mm Height: 120mm Depth: 25mm
Title - be quiet! SILENT WINGS PRO 4 | 120mm PWM Computer case Fan 12 cm Black 1 pc(s)
Type of cooling - Active
Unit Box Height - 0.03
Unit Box Length - 0.195
Unit Box Width - 0.145
Unit Brutto Volume - 0.0008483 cubm
Unit Gross Weight - 0.41 kg
Unit Net Weight - 0.12 kg
URL - https://www.bequiet.com/en/download/casefans/3698?utm_source=newsletter
Vendor Homepage - www.bequiet.com/en/casefans/3705
vendpn - BL098
Video -
Warranty - 60 months
WarrantyInfo - 5-year manufacturer warranty
warrantyLength - 24
warrantyType - G
Weight - 0,41
Weight - 0.38
weight - 400
Weight & dimensions - Cable length - 0.5 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 192 mm
Weight & dimensions - Package height - 31 mm
Weight & dimensions - Package weight - 400 g
Weight & dimensions - Package width - 141 mm
Weight & dimensions - Weight - 227 g
Weight & dimensions - Width - 120 mm
