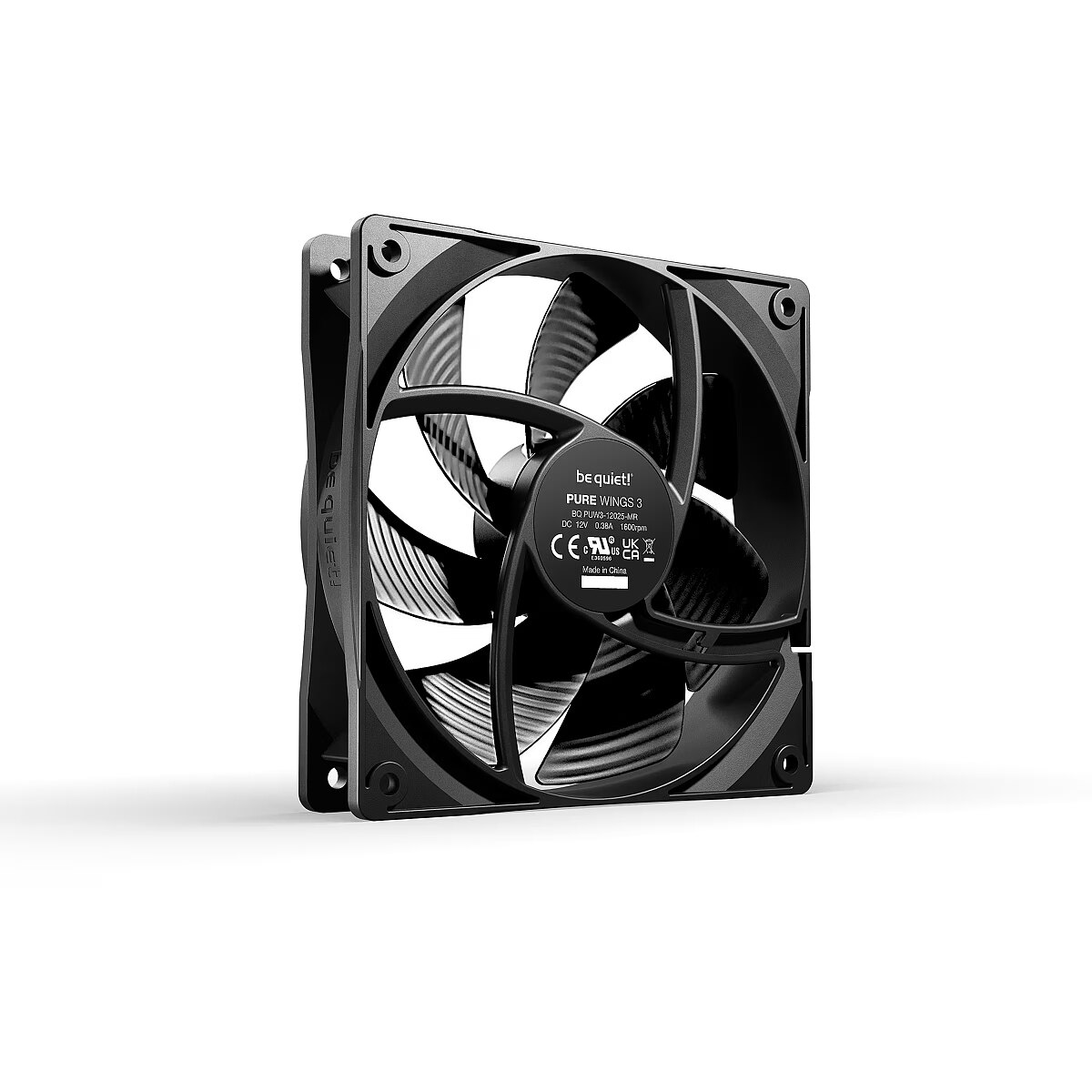

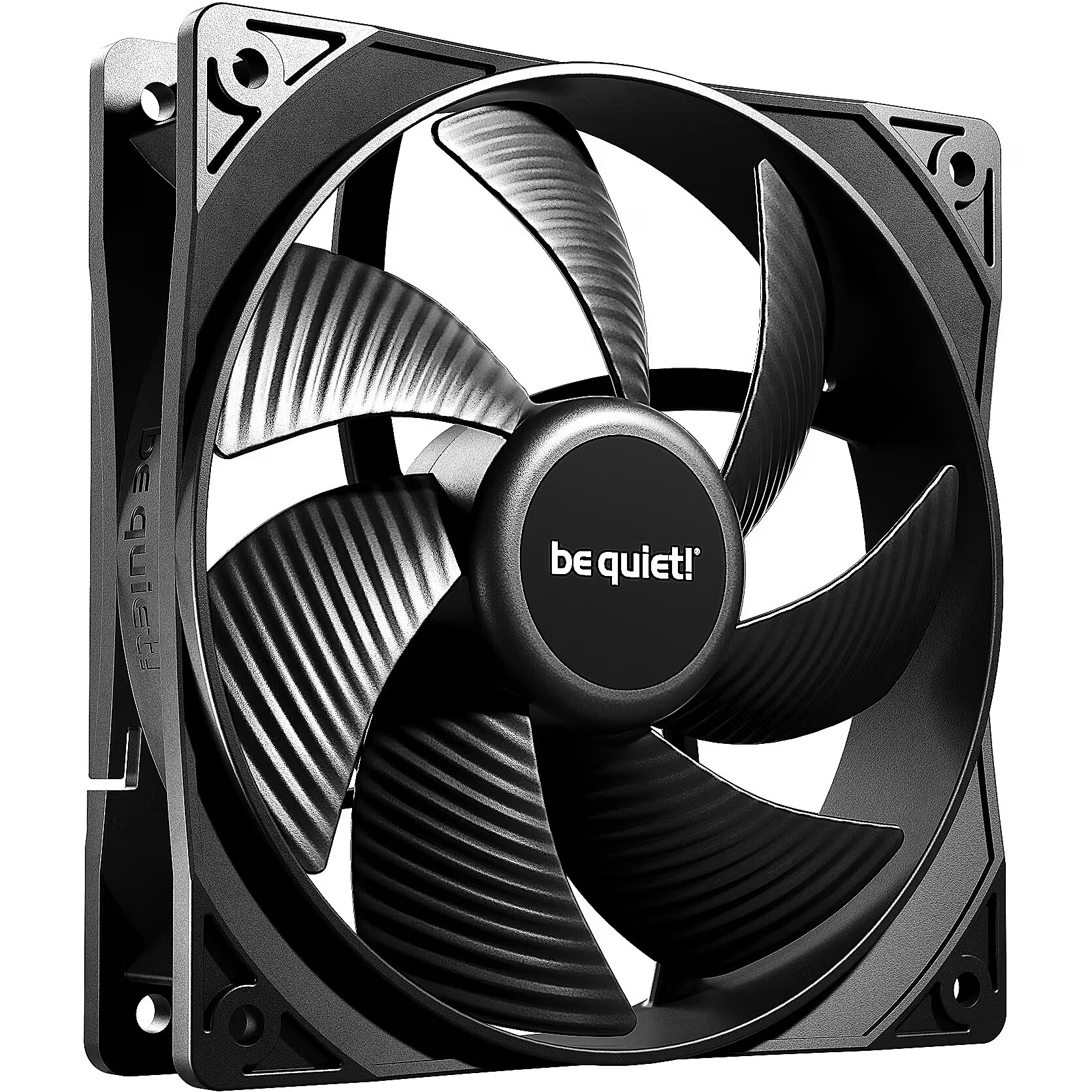

Be Quiet Pure Wings 3, 120mm

Accessories included - Fan bolts
Airflow Performance - 84.8 m³/h
Air flow rates - 49.9 cfm
Brand - be quiet!
BrandPartCode - BL104
Cable length Weight & dimensions - 0.46 m
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Compliance certificates Technical details - CE, RoHS, UKCA, WEEE
Connector type - 3-pin
Cooling technology - Air
Depth Weight & dimensions - 120 mm
Description - Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 120mm are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.Optimized fan frame for outstanding performance on radiatorsNewly designed fan blades and re-arranged angle for extraordinary air pressurePure Wings 3 120mm can be operated with very low minimum rpm for very quiet operationLong life rifle bearing gives an operating lifetime of 80,000 hoursIconic, unmistakable and streamlined design that avoids anything unnecessaryProduct conception, design and quality control in Germany
Description - Pure Wings 3 120 mm fan Efficient, Progressive, Quiet With a low minimum RPM and high top speed, the Pure Wings 3 120mm are the perfect PC addition for any application. The fan offers exceptional reliability and ensures long-lasting operation in a gaming setup. Optimized fan frame ensures exceptional performance on coolers Newly designed fan blades and changed angle provide exceptional air pressure Pure Wings 3 120mm can run at very low minimum speeds for very quiet operation The long-life rifle bearing guarantees a service life of 80,000 hours Product concept, design and quality control in Germany
Design - Fan connector - 3-pin
Design - Illumination LED - No
Design - Number of fans - 1 fan(s)
Design - Power management - 3-pin connector
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 111
dimension depth - 30 mm
dimension height - 155 mm
Dimensions - 120 x 120 x 25 mm
dimension weight - 170 g
dimension width - 125 mm
ean - 4260052190760
Eans - 4260052190760
EAN_code - 4260052190760
Fan - 12 cm
Fan's mean time to failure (MTTF) Performance - 80000 h
Fan bearing technology Performance - Rifle bearing
Fan connector Design - 3-pin
Fan current Power - 0.1 A
Fan diameter Performance - 12 cm
Fan power consumption Power - 2.4 W
Fan speed (max) - 1600 rpm
GTIN - 4260052190760
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 25 mm
Illumination - No
Logistics data - Products per shipping (inner) case - 60 pc(s)
Logistics data - Shipping (inner) case gross weight - 11.7 kg
Logistics data - Shipping (inner) case height - 33 cm
Logistics data - Shipping (inner) case length - 42.7 cm
Logistics data - Shipping (inner) case width - 35.5 cm
LongDesc - Performant, Progressive, QuietWith low minimum rpm and high top-end speed, Pure Wings 3 120mm are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
LongProductName - Pure Wings 3 120mm, 1600RPM, 49.9 cfm/ 84.8 m3/h
LongSummaryDescription - be quiet! Pure Wings 3 120mm. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 1600 RPM, Airflow: 84.8 m³/h, Maximum air pressure: 1.45 mmH2O. Voltage: 5 - 13.2 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Manufacturer - Be quiet
Manufacturer_code - BL104
Maximum airflow Performance - 49.9 cfm
Maximum air pressure Performance - 1.45 mmH2O
Model - BL104
Model name - Pure Wings 3 120mm
Name - be quiet! PURE WINGS 3 120mm
Name - be quiet! Pure Wings 3 120mm, case fan (black)
name - Fan Pure Wings 3 120 mm
Noise - 25.5 dB
Noise level (high speed) Performance - 25.5 dB
Number of fans - 1
Number of fans Design - 1 fan(s)
Number of screws Packaging content - 4
Other features -
Package depth Weight & dimensions - 155 mm
Package height Weight & dimensions - 27 mm
Package weight Weight & dimensions - 174 g
Package width Weight & dimensions - 122 mm
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 84.8 m³/h
Performance - Fan's mean time to failure (MTTF) - 80000 h
Performance - Fan bearing technology - Rifle bearing
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 49,9 ft³/min
Performance - Maximum airflow - 49.9 cfm
Performance - Maximum air pressure - 1.45 mmH2O
Performance - Noise level (high speed) - 25.5 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1600 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Fan current - 0.1 A
Power - Fan power consumption - 2.4 W
Power - Rated voltage - 12 V
Power - Voltage - 5 - 13.2 V
producer - Be quiet!
Producer - be quiet!
producerCode - BL104
ProducerCode - BL104
Product colour Design - Black
productName - Fan Be Quiet! Pure Wings 3 120mm
ProductName - Pure Wings 3 120mm
productSize - Normal
Products per shipping (inner) case Logistics data - 60 pc(s)
Quantity per pack Performance - 1 pc(s)
Radiator - None
Rated voltage Power - 12 V
Rotational speed (max) Performance - 1600 RPM
Screws included Packaging content - Yes
Shipping (inner) case gross weight Logistics data - 11.7 kg
Shipping (inner) case height Logistics data - 33 cm
Shipping (inner) case length Logistics data - 42.7 cm
Shipping (inner) case width Logistics data - 35.5 cm
ShortDescription -
ShortSummaryDescription - be quiet! Pure Wings 3 120mm, Fan, 12 cm, 1600 RPM, 84.8 m³/h, Black
sizeX - 120
sizeY - 155
sizeZ - 30
Stand / CPU block - None
Suitable location Performance - Computer case
Summary - be quiet! Pure Wings 3 120mm. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 1600 RPM, Airflow: 84.8 m³/h, Maximum air pressure: 1.45 mmH2O. Voltage: 5 - 13.2 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Sustainability certificates Technical details - Triman
Sustainability compliance Technical details - Yes
Technical details - Compliance certificates - CE, RoHS, UKCA, WEEE
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Title - be quiet! Pure Wings 3 120mm Computer case Fan 12 cm Black 1 pc(s)
Type of cooling - Active
Type Performance - Fan
Unit Box Height - 0.125
Unit Box Length - 0.13
Unit Box Width - 0.03
Unit Calculated Volume - 0.0005903 cubm
Unit Calculated Weight - 0.182 kg
Units per Shipping Box - 60
URL - https://www.bequiet.com/en/download/casefans/4603?utm_source=newsletter
Vendor Homepage - https://www.bequiet.com/en/download/casefans/4603?utm_source=newsletter
vendpn - BL104
Voltage Power - 5 - 13.2 V
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 0,17
Weight - 147 g
weight - 175
Weight & dimensions - Cable length - 0.46 m
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 155 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 174 g
Weight & dimensions - Package width - 122 mm
Weight & dimensions - Weight - 148 g
Weight & dimensions - Width - 120 mm
Weight Weight & dimensions - 148 g
Width Weight & dimensions - 120 mm
