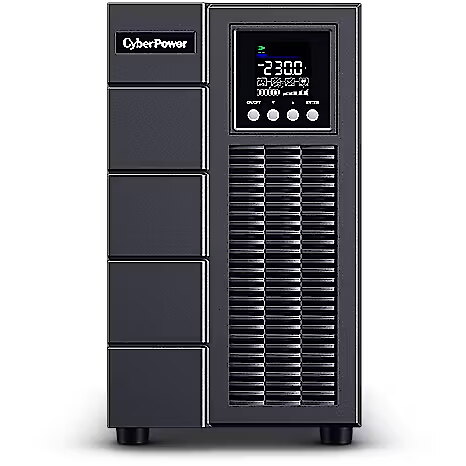

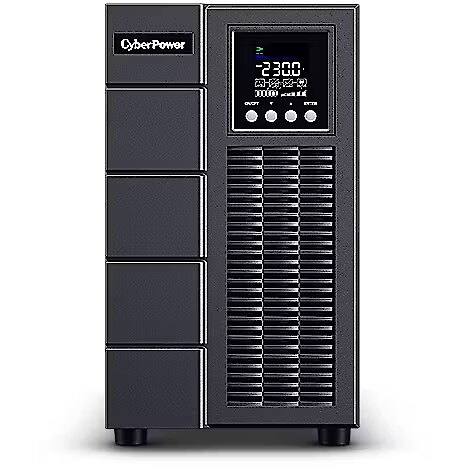

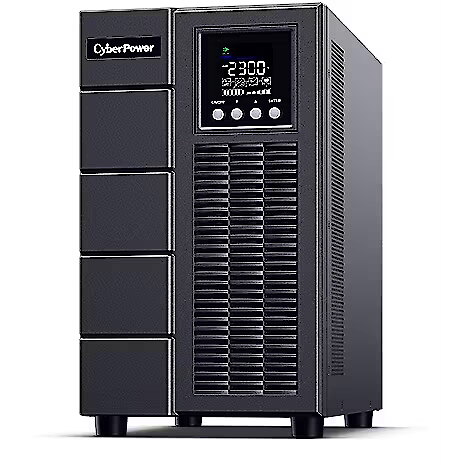

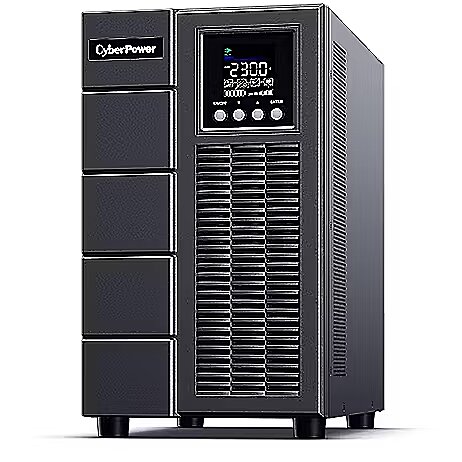

Cyber Power UPS OLS3000EA-DE

Accessories included - OLS3000EA-DE UPS Power cord USB cable User manual
Active power - 2700 W
Apparent power - 3000 VA
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Charging current - 1.5 A
Battery - Number of batteries supported - 3
Battery - Typical backup time at full load - 4.2 min
Battery - Typical backup time at half load - 13.1 min
Brand - CyberPower
BrandPartCode - OLS3000EA-DE
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - RoHS, CE
Charging time - 4 h
Chassis type - Tower
Color - Black
Description - OLS3000EA-DE UPS emergency power supply The CyberPower OLS3000EA-DE is a high-efficiency UPS with an online double conversion topology that provides seamless pure sine wave power to critical devices such as NAS, servers, DVR/surveillance systems for transportation and infrastructure, and emergency systems. It is usually integrated with a server or data center environment. The UPS is equipped with a color LCD panel allowing users to monitor the power system and easily configure settings. This model is generator compatible and can also operate in ECO mode to save energy. The product can be connected to an emergency power off switch (EPO), which allows users to immediately turn off the UPS in the event of a failure. Variable speed fans provide automatic temperature management based on power consumption to reduce noise and provide greater comfort for users. Online UPS (double conversion) topology Generator compatibility Zero switching time Protection against interference and surges Color LCD panel Serial communications port PowerPanel management software Tower type ECO mode Overload protection Smart Battery Management (SBM) EMI and RFI filtering Variable speed fans Emergency Power Off (EPO) Port SNMP/HTTP remote management (optional)
Design - Built-in fan - Yes
Design - Cable length - 1.5 m
Design - Display type - LCD
Design - Form factor - Tower
Design - Housing material - Metal
Design - LED indicators - Fault, Operation, Power, Status
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 300 mm
dimension height - 450 mm
Dimensions - 196 x 337 x 416 mm
dimension weight - 27300 g
dimension width - 520 mm
ean - 4711027790251
Environment requirements - Operating Temperature: 32 ~ 104 (°F) Operating temperature: 0 ~ 40 (°C) Relative operating humidity (non-condensing): 20 ~ 90 (%) Operating altitude: 0-5,000 feet (0-1,500 meters) (feet/meters) Storage Temperature: 4 ~ 122 (°F) Storage temperature: -20 ~ 50 (°C) Relative storage humidity (non-condensing): 10 ~ 90 (%) Storage Altitude (feet/meters): 0-5000 feet (0-1500 meters) Online heat dissipation: 1023 (BTU/hr) Variable speed fans: 20 automatic steps
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement, Fault, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - Efficiency (ECO mode) - 95%
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 230 V
Features - Input operation voltage (min) - 190 V
Features - Input power factor - 0.98
Features - Maximum current - 13.04 A
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Power factor - 0.9
Features - Power protection features - Overload
Features - Response time - 0 ms
Features - Surge energy rating - 370 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
Filters / protection - Overload
Filters / protection - Suppression
Filters / protection - Surge
GTIN - 4711027790251
GTIN - 5715063461341
guarantee - 24
guarantee_type - external

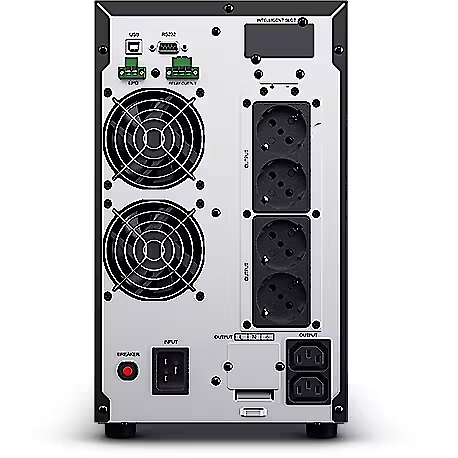

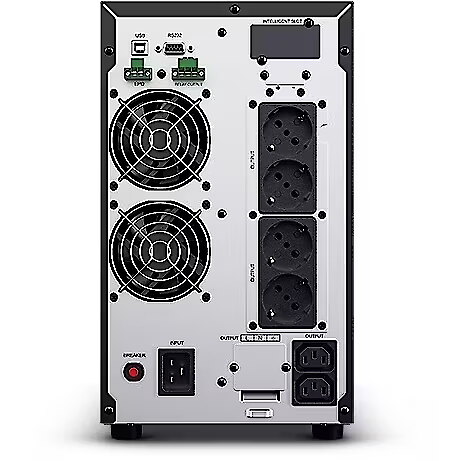

I/O connectors - 1 x EPO
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C20
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 8504408590
LongDesc - CyberPower OLS3000EA-DE is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.The UPS is designed with color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
LongProductName - 3000 VA, 2700 Watts, IEC C13, Schuko, 13.04 A, 190 - 300 Vac, 1.5 m, 196 x 337 x 416 mm, 21.3 kg
LongSummaryDescription - CyberPower OLS3000EA-DE. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4.2 min, Typical backup time at half load: 13.1 min. Form factor: Tower, Product colour: Black, Housing material: Metal. Certification: RoHS, CE
name - UPS OLS3000EA-DE
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 1500 m
Operational conditions - Operating altitude - 0 - 1500 m
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Other features -
Output power ports - 2 x IEC-C13
Output power ports - 4 x C/F type (Schuko)
Packaging content - Cables included - Power load cable, USB cable
Packaging data - Package depth - 519 mm
Packaging data - Package height - 458 mm
Packaging data - Package weight - 30.4 kg
Packaging data - Package width - 295 mm
Ports & interfaces - AC outlets quantity - 7 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - USB port - Yes
producer - CyberPower
ProductName - OLS3000EA-DE
ShortSummaryDescription - CyberPower OLS3000EA-DE, Double-conversion (Online), 3 kVA, 2700 W, Pure sine, 190 V, 230 V
Software - PowerPanel Business
Special functions -
The shape of the output voltage - Full sine wave
Title - CyberPower OLS3000EA-DE uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 7 AC outlet(s)
Transfer time (max) - 0 ms
UPS Architecture - on-line double conversion
URL - https://www.cyberpower.com/de/en/product/sku/ols3000ea-de
vendpn - OLS3000EA-DE
WarrantyInfo -
Weight - 26 kg
Weight & dimensions - Depth - 416 mm
Weight & dimensions - Height - 337 mm
Weight & dimensions - Weight - 21.3 kg
Weight & dimensions - Width - 196 mm
