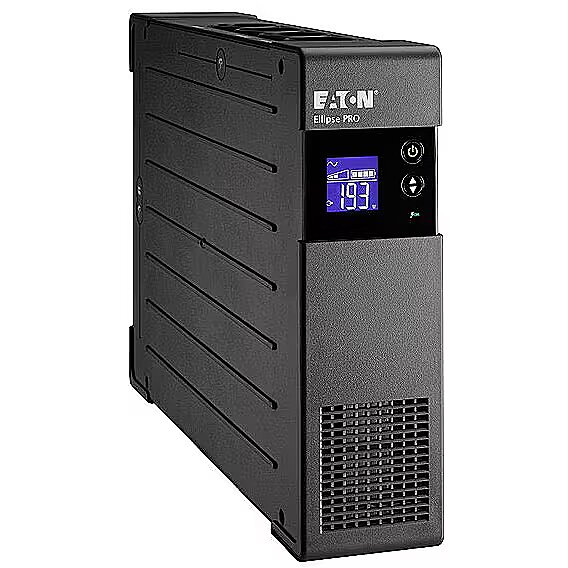

Eaton ELP1200DIN, 1200VA 750W

ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - Type F
ARTIKEL1 - EATON ELLIPSE PRO 1200 DIN
ARTIKEL2 - IN
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Cablesincluded -
Certificates > Certification - IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
Code - ELP1200DIN
Depth - 390 mm
Design -
Design > Form factor - Tower
Displaytype - LCD
EAN - 743172437884
EANCode - 0743172437884
Efficiency -
Features -
Features > Colour of product - Black
Formfactor - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Heatdissipation -
Height - 275 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery - No
HSTNUMMER - ELP1200DIN
Inputfrequency - 50/60 Hz
Inputoperationvoltagemax - 285 V
Inputoperationvoltagemin - 150 V
Link - https://www.eaton.com/ae/en-gb/skuPage.ELP1200DIN.html
LongDesc - The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
ManufDatasheet -
Name - Eaton | UPS | Ellipse PRO 1200 DIN | 1200 VA | 750 W
Networkcardslot -
Noiselevel -
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT -
Operationalconditions -
Other features > Special features - Convenient extra-flat design for easy installation in any office environment; Automatic Voltage Regulation (AVR); High performance surge-protection device compliant with IEC 61643-11 standard; Data line protection to ensure that the internet line (including xDSL) is protected against surges; LCD display for real-time status and measurements; 8 outlets to connect your PC + peripherals; EcoControl function helps you save up to 20 % energy compared to previous generation UPSs; HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux); Easy to replace battery helps to extend UPS service life
Outputfrequency - 50 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 750 W
Outputpowercapacity - 1.2 kVA
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 495 mm
Package features > Gross height (mm) - 330 mm
Package features > Gross width (mm) - 145.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 73 pc(s)
Package features > Paper/Pasteboard - 1000.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 1.20 kg
Package features > TI weight (kg) - 8.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.02368575 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 1200 VA
Performance > UPS topology - Line-Interactive
Ports & interfaces > AC outlets quantity - 8
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - 1200VA/750W UPS, line-interactive, DIN 4+4
Producer product family - UPS
Producer product name - Ellipse PRO 1200 DIN
Productcolour - Black
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 1.2 kVA 750 W
• 8 AC outlet(s)
• Sealed Lead Acid (VRLA)
• Tower Black

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/ELP1200DIN_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/ELP1200DIN_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/ELP1200DIN_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
Stck_Kart - 1
Stck_Pal - 19
Storno - Y
Technical details > Capacity - 750 W
Technical details > Gross weight - 11.25 kg
Technical details > Net weight - 10.05 kg
Technical details > Producer - Eaton
Typicalbackuptimeathalfload - 9 min
UPStopology - Line-Interactive
USBport -
USBporttype -
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waveform -
Weight - 9.9 kg
Weightdimensions -
Width - 82 mm
