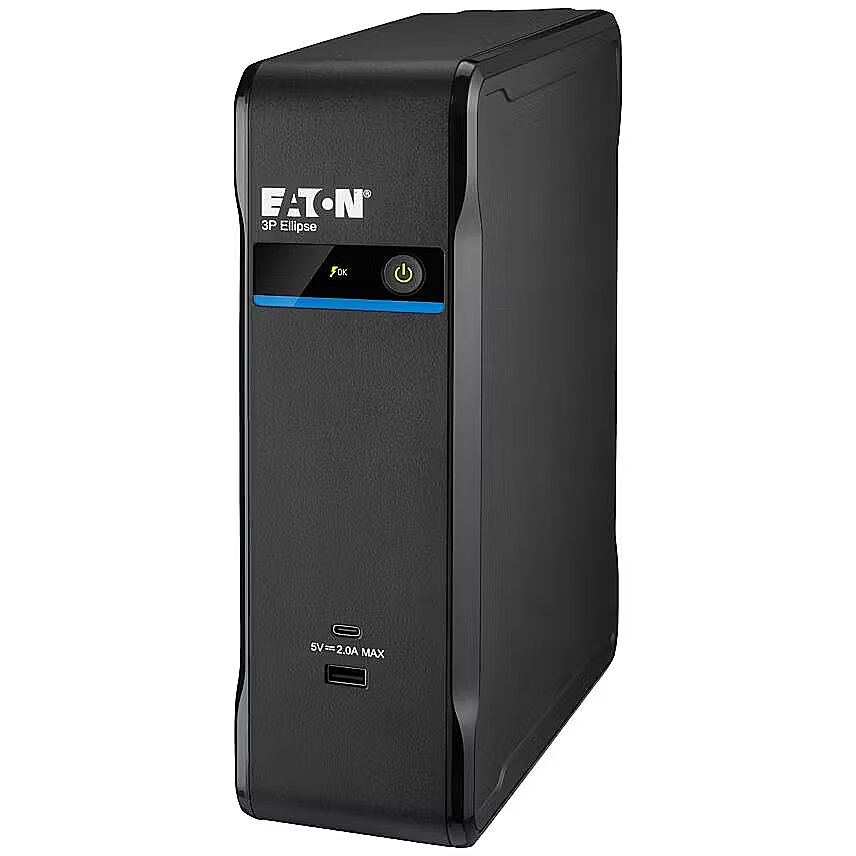

Eaton 3P700UI, 700VA, 420W, IEC

Accessories included - UPS 2 × IEC-IEC cables USB cable Quick start guide Safety instructions
ACoutletsquantity - 4 AC outlet(s)
ACoutlettypes - C3 coupler
Active power - 420 W
Apparent power - 700 VA
ARTIKEL1 - EATON 3P ELLIPSE 700 USB IEC
ARTIKEL2 - .
AutomaticVoltageRegulationAVR -
Battery -
Battery - Battery capacity - 7 Ah
Battery - Battery voltage - 12 V
Batterycapacity - 7 Ah
Battery capacity - 7 Ah
Batterytechnology -
Batteryvoltage - 12 V
Breite - 0
Cablesincluded - USB cable
Certificates - Certification - IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Ukr
Cm
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Chassis type - Tower
Color - Black
Depth - 235 mm
Description - Eaton 3P Ellipse 700 USB IEC Power: 700 VA, 420 W Input: C14 Outlets: 3 × C13 (surge protection + battery backup), 1 × C13 (surge protection only) USB charging Form factor: Tower Eaton 3P Ellipse The 3P Ellipse UPS is the latest addition to Eatons power protection portfolio. Its sleek, attractive design and virtually silent operation make this compact UPS a great choice for both homes and small businesses. With up to 12% more power compared to its predecessor (Ellipse ECO), it can protect a wider range of devices-from home AV and Hi-Fi equipment to advanced gaming computers. No need for additional adapters: you can connect devices directly to FR or Schuko sockets on the UPS, which is a major convenience compared to units equipped only with IEC outlets. Simple cloud connectivity via the optional CLOUD-PS card makes it especially appealing for businesses. It transforms the 3P into a remotely monitored UPS, providing real-time status updates and notifications via a mobile app or web browser. Built-in surge protection Compliant with the strict IEC 61643-11 standard Cloud monitoring With the optional CLOUD-PS card, real-time UPS status and alerts are accessible via mobile app or web browser Mobile device charging USB-A and USB-C ports on the front panel Automatic computer shutdown Enabled via UPS Companion software Up to 12% more power Compared to previous Ellipse ECO models
Design -
Design - Display type - LED
Design - Form factor - Tower
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 2762
dimension depth - 285 mm
dimension height - 310 mm
Dimensions - 235 x 263 x 81 mm
dimension weight - 4500 g
dimension width - 140 mm
Displaytype - LED
ean - 3553340621321
EANCode - 3553340621321
Efficiency - 97%
Environment requirements - Temperature range: 0°C to 40°C (32°F to 104°F) Relative humidity: 0%-95% (non-condensing)
Features -
Features - Auto shut-off - Yes
Features - Efficiency - 97%
Features - Efficiency (ECO mode) - 97%
Features - Input frequency - 46/70 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Noise level - 25 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 284 V
Features - Output operation voltage (min) - 161 V
Features - Output power - 420 W
Features - Output power capacity - 0.7 kVA
Features - Output power factor - 0.6
Features - Power consumption (average operating) - 13 W
Features - Surge protection - Yes
Features - UPS topology - Standby (Offline)
Features - Waveform - Stepwise
Filters / protection - Overdischarge
Filters / protection - Surge
Formfactor - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 36
guarantee_type - external
Heatdissipation -
Height - 263 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0
Hotswapbattery -
HSTNUMMER - 3P700UI
I/O connectors - 1 x USB (Type B)
I/O connectors - 1 x USB (Type C)
I/O connectors - 1 x USB 2.0
Inputfrequency - 46/70 Hz
Inputoperationvoltagemax - 284 V
Inputoperationvoltagemin - 161 V
Input power ports - IEC-C14
Laenge - 0
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/3P700UI.pdf
name - UPS 3P Ellipse 700 USB IEC 3P700UI
Networkcardslot -
No. of batteries - 1
Noiselevel - 25 dB
Numberofbatterycells -
Numberofinputphases - 1
Numberofoutputphases - 1
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Output outlets: 3 × C13 (surge protection + battery backup) 1 × C13 (surge protection only)
Other features - Input connection type - C14
Other features - Nominal input voltage - 220-240 V
Other features - Relative humidity - 0 - 95%
Outputfrequency - 50/60 Hz
Outputoperationvoltagemax - 284 V
Outputoperationvoltagemin - 161 V
Outputpower - 420 W
Outputpowercapacity - 0.7 kVA
Output power ports - 4 x IEC-C13
Packagingcontent -
Packaging content - Cables included - USB cable
Packaging content - Quick installation guide - Yes
Packaging data - Package type - Box
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C3 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type A/USB Type-C
Portsinterfaces -
Powerfactor -
Powerplug -
ProdDesc - Eaton 3P Ellipse 700 USB IEC
producer - Eaton
producerCode - 3P700UI
Productcolour - Black
Productcondition - Original
ProductHighLights -

• Convenient extra-flat design for easy installation in any office environment
• High performance surge-protection device compliant with IEC 61643-11 standard
• 4 outlets to connect your PC + peripherals

productName - Eaton 3P700UI uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 4 AC outlet(s)
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/3P700UI_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/3P700UI_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/3P700UI_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/3P700UI_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/EATON/3P700UI_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/EATON/3P700UI_6.jpg
productSize - Normal
Quickinstallationguide - Yes
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
sizeX - 147
sizeY - 324
sizeZ - 290
Software - Eaton UPS Companion
Special functions - Replaceable batteries Automatic battery test Cold start capability
Stck_Kart - 9998
Stck_Pal - 2
Storno - Y
Typicalbackuptimeathalfload -
UPS Architecture - off-line (standby)
UPStopology - Standby (Offline)
USBport - Yes
USBporttype - USB Type A/USB Type-C
vendpn - 3P700UI
Voltage - 12 V
Warranty - 24 months
Warrantyandmisc -
warrantyLength - 24
warrantyType - F
Waveform - Stepwise
Weight - 3.9 kg
Weight - 3.9 kg
weight - 4560
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 3.9 kg
Weight & dimensions - Width - 81 mm
Weightdimensions -
Width - 81 mm
