Battery - Battery capacity - 9 Ah
Battery - Battery voltage - 12 V
Battery - Number of battery cells - 2
Battery - Typical backup time at full load - 3.2 min
Battery - Typical backup time at half load - 8.9 min
Brand - FSP
BrandPartCode - PPF8001328
Category - Uninterruptible Power Supplies (UPSs)
Code - CHAMP 1K TW-SCHUKO
Design - Control type - Buttons
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
EAN - 4713224529832
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 120 V
Features - Noise level - 50 dB
Features - Output frequency - 47/63 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 900 W
Features - Output power capacity - 1 kVA
Features - Output voltage regulation - 1%
Features - Power factor - 0.99
Features - Response time - 0 ms
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
GTIN - 4713224529832
LongDesc - FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller.Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
LongProductName - 1000 VA, 900 W, 200 - 240 V, 3:1, 145 x 282 x 220 mm, 9.8 kg
LongSummaryDescription - FSP Champ Tower 1K. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: Type F, USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 3.2 min. Form factor: Tower, Product colour: Black, Control type: Buttons. Cables included: Input power cable, USB cable
Name - Fortron PPF8001305,Online,UPS,1000VA,900W,230V, IEC*3 | FSP
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 366.00 mm
Package features > Gross height (mm) - 330.00 mm
Package features > Gross width (mm) - 231.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 31 pc(s)
Package features > Paper/Pasteboard - 1000.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Batteries included - Yes
Packaging content - Cables included - Input power cable, USB cable
Packaging content - Manual - Yes

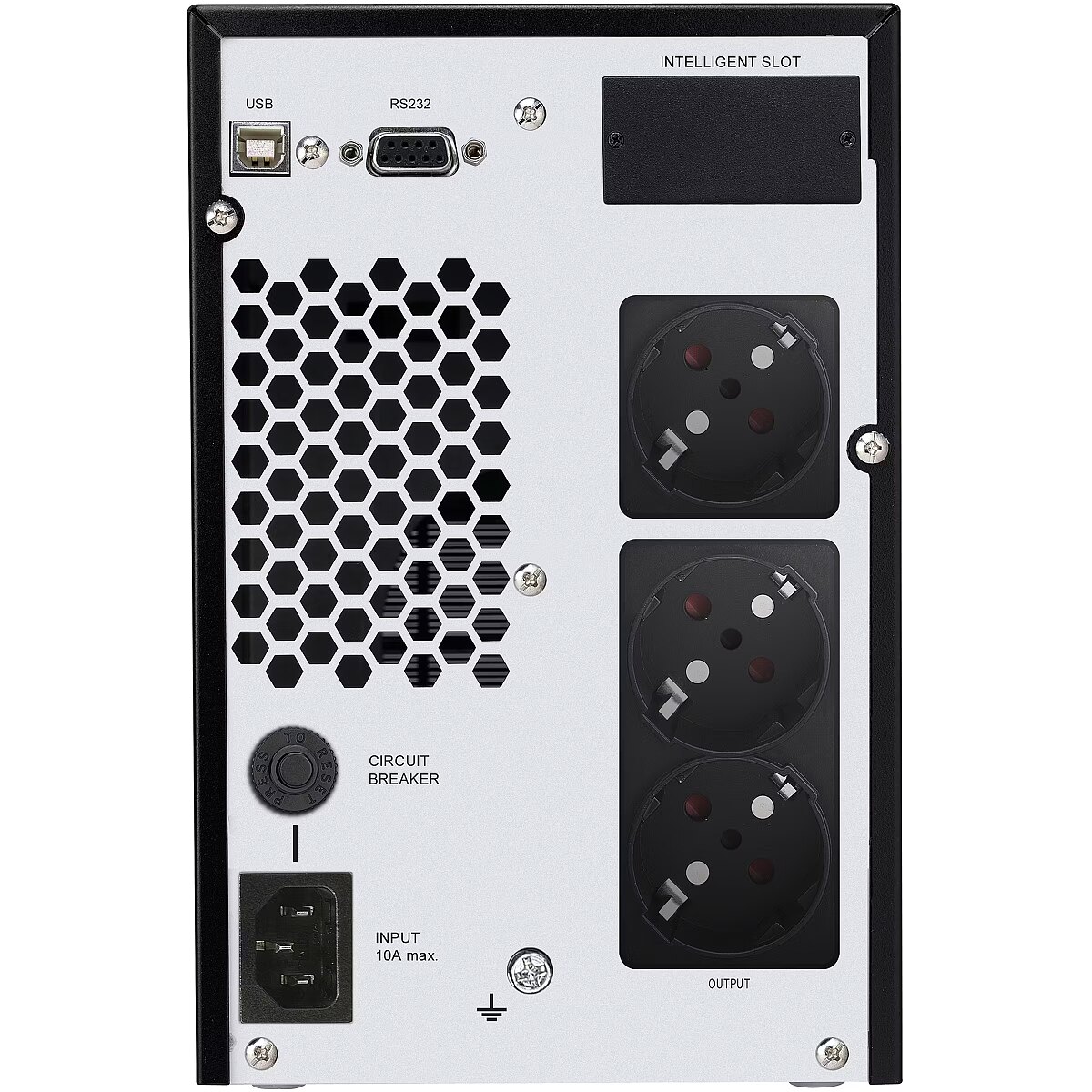

Ports & interfaces - AC outlet types - Type F
Ports & interfaces - Number of output IEC jumpers - 3
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
ProductName - Champ Tower 1K
ShortSummaryDescription - FSP Champ Tower 1K, Double-conversion (Online), 1 kVA, 900 W, Pure sine, 120 V, 300 V
Technical details > Gross weight - 10.00 kg
Technical details > Net weight - 9.00 kg
Technical details > Producer - FSP
Title - FSP Champ Tower 1K uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W
URL - https://www.fsplifestyle.com/PROP161000119/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 282 mm
Weight & dimensions - Height - 220 mm
Weight & dimensions - Weight - 9.8 kg
Weight & dimensions - Width - 145 mm
