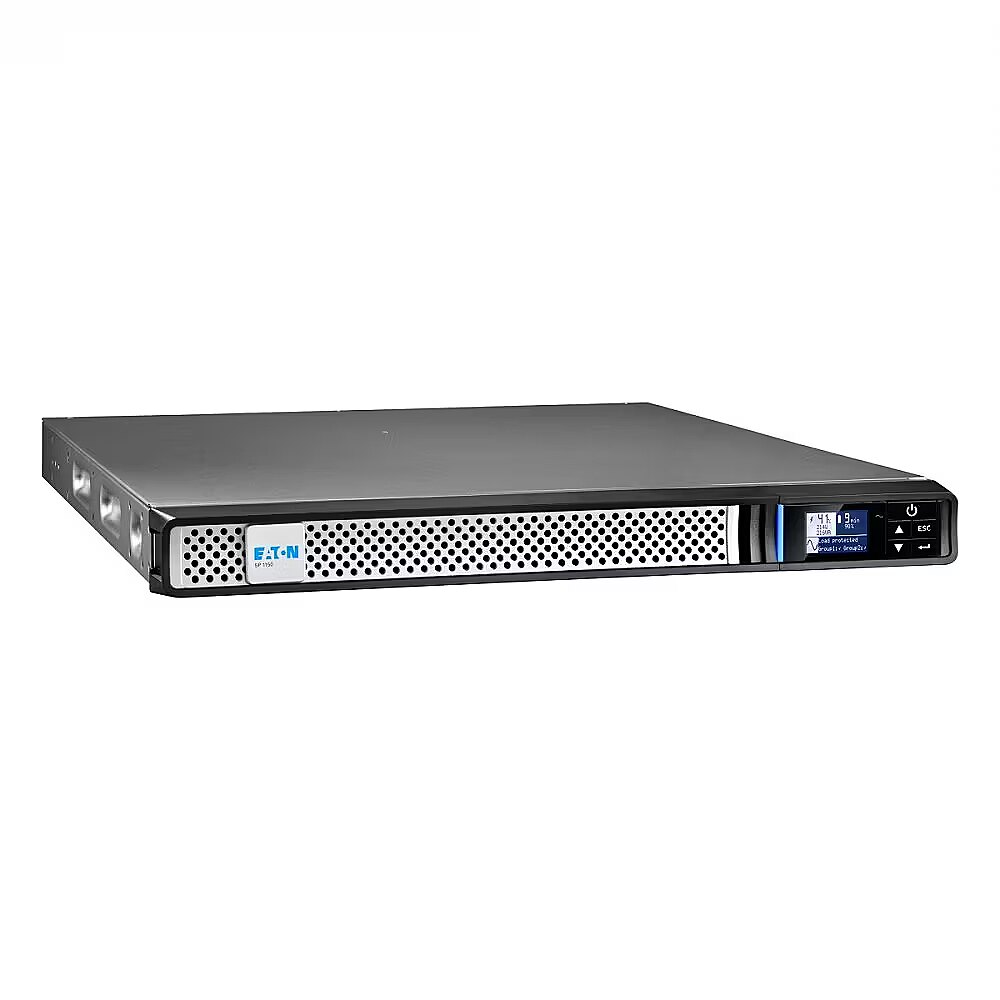

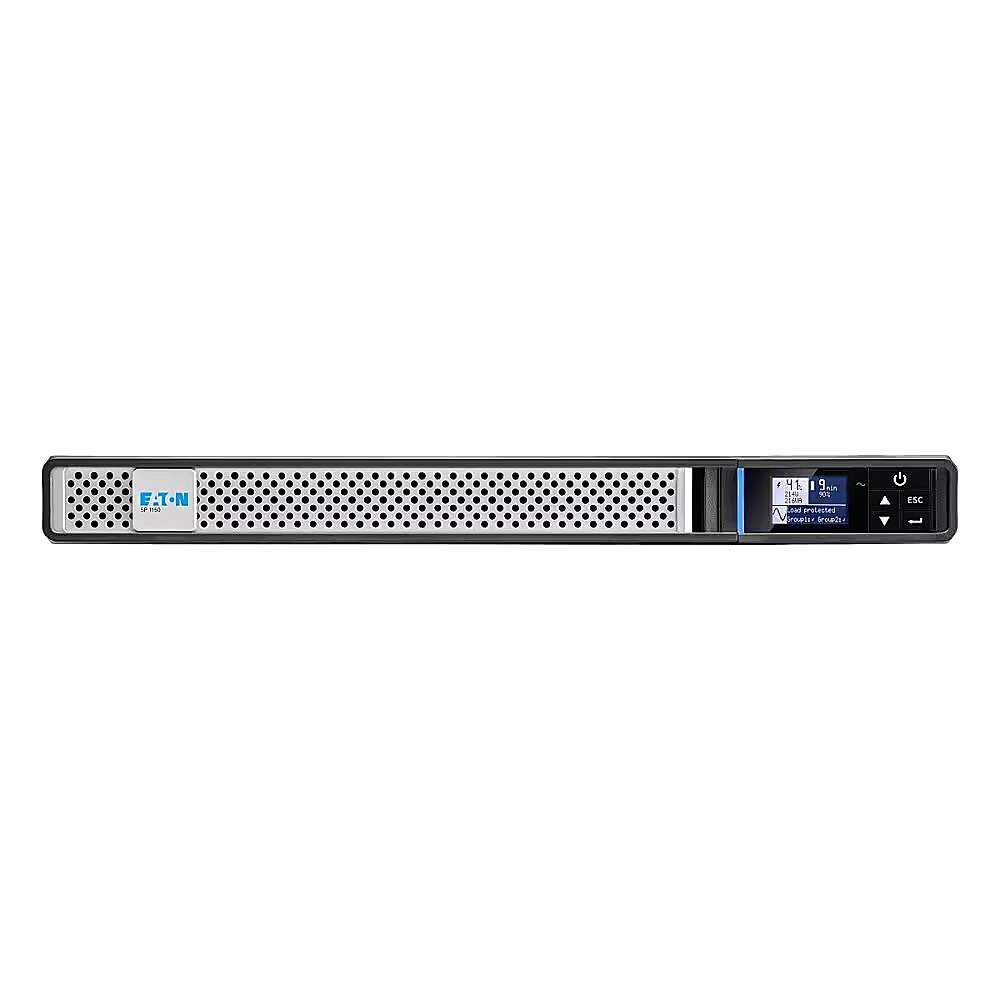

Eaton 5P1150IRNG2, 1150VA 920W, IEC 1U

Accessories included - Zestaw do montażu w szafie rack System blokady przewodów Kabel USB 2 x Przewód IEC-IEC Szybki start Instrukcje dotyczące bezpieczeństwa Karta sieciowa
ACoutletsquantity - 6 AC outlet(s)
AC outlets quantity Ports & interfaces - 6 AC outlet(s)
ACoutlettypes - C13 coupler
AC outlet types Ports & interfaces - C13 coupler
Active power - 920 W
Apparent power - 1150 VA
ARTIKEL1 - EATON 5P 1150I RACK 1U NETPACK
ARTIKEL2 - G2
Automatic Voltage Regulation (AVR) Features - Yes
AutomaticVoltageRegulationAVR - Yes
Backup time (100% load) - 3 min
Battery -
Batterycapacity - 9 Ah
Battery capacity - 9 Ah
Battery capacity Battery - 9 Ah
Batterytechnology - Sealed Lead Acid (VRLA)
Battery technology Battery - Sealed Lead Acid (VRLA)
Batteryvoltage - 6 V
Battery voltage Battery - 6 V
Breite - 0
Cablesincluded - USB cable
Cables included Packaging content - USB cable
Category Code - UPW
Certification Certificates - EMC
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Chassis type - Rack
Color - Black
Color - Silver
Compliance certificates Certificates - Low Voltage Directive (LVD), RoHS
Depth - 509 mm
Depth Weight & dimensions - 509 mm
Description - 5P1150IRNG2 UPS Eaton 5P, 1150 VA, 920 W, wejście: C14, wyjścia: (6) C13, rack, 1U, karta sieciowa System automatycznej regulacji napięcia (AVR) Ochrona zasilania dla zastosowań o wysokiej gęstości: tylko 1U Energooszczędność, redukcja kosztów energii i chłodzenia Czysta sinusoida na wyjściu Kompatybilność ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) Pełna integracja z oprogramowaniem Eaton Brightlayer Software suite 1 port USB + 1 port szeregowy Technologia zaawansowanego zarządzania bateriami (ABM+) zwiększająca żywotność baterii oraz poprawiająca dokładność przewidywania żywotności Wyświetlacz graficzny LCD nowej generacji Baterie wymienialne podczas pracy urządzenia Zdalny restart i optymalizacja czasu podtrzymania dzięki 2 zarządzanym grupom gniazd Karta sieciowa w zestawie
Design -
Designation - CE+WEEE
dimension depth - 175 mm
dimension height - 540 mm
Dimensions - 509 x 43.2 x 438 mm
dimension weight - 19300 g
dimension width - 585 mm
Displaytype - LCD
Display type Design - LCD
ean - 3553340710407
EANCode - 3553340710407
Efficiency - 98.2%
Efficiency Features - 98.2%
Environment requirements - Wilgotność względna: 0-90%, bez kondensacji
Features -
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overdischarge
Formfactor - Rackmount
Form factor Design - Rackmount
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation - 465 BTU/h
Heat dissipation Features - 465 BTU/h
Height - 43.2 mm
Height Weight & dimensions - 43.2 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0
Hot-swap battery Battery - Yes
Hotswapbattery - Yes
HSTNUMMER - 5P1150IRNG2
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x Terminal
I/O connectors - 1 x USB (Type B)
Inputfrequency - 47/70 Hz
Input frequency Features - 47/70 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 150 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 150 V
Input power ports - IEC-C14
Laenge - 0
LED indicators Design - Yes
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5P1150IRNG2.pdf
Model - Eaton 5P Gen2
name - UPS 5P 1150i Rack 1U Netpack G2 1150VA/920W

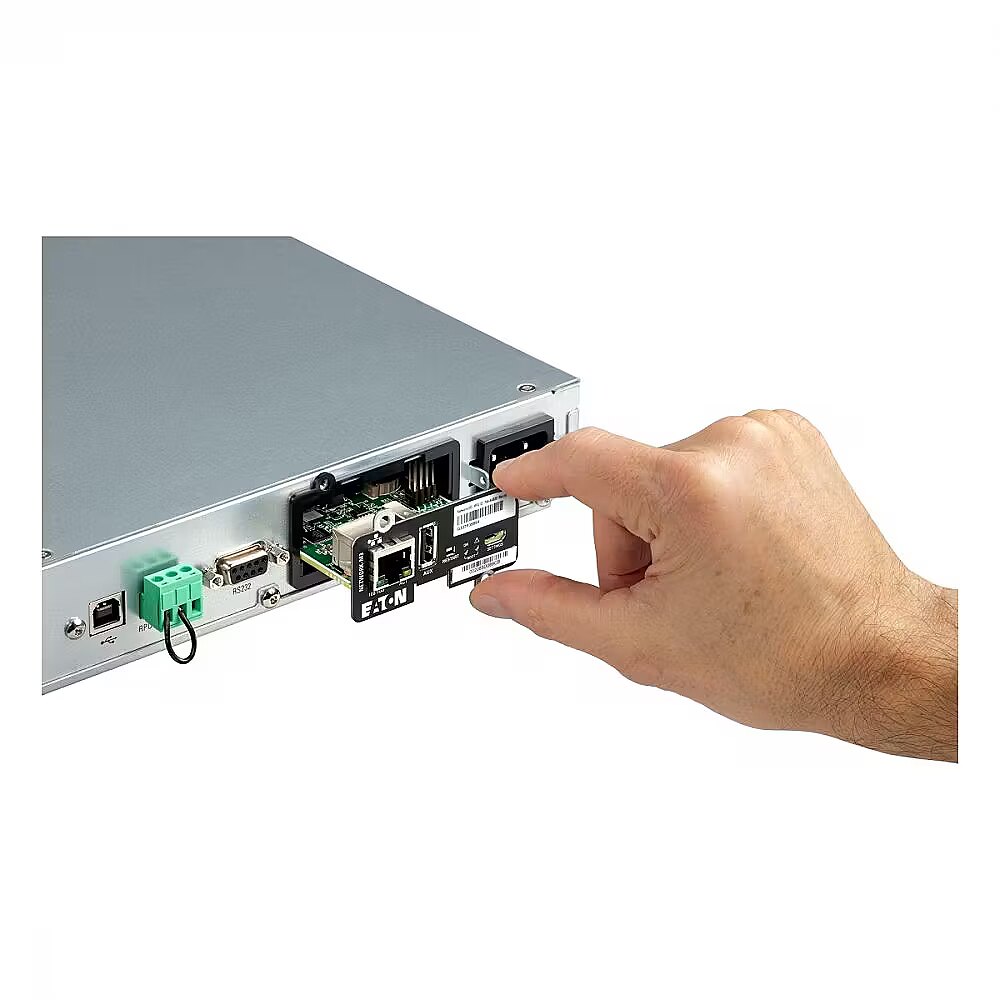

Networkcardslot - Yes
Network card slot Ports & interfaces - Yes
No. of batteries - 4
Noiselevel - 35 dB
Noise level Features - 35 dB
Numberofbatterycells - 4
Number of battery cells Battery - 4
Numberofinputphases - 1
Number of input phases Features - 1
Numberofoutputphases - 1
Number of output phases Features - 1
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
Operating altitude Operational conditions - 0 - 3000 m
Operating relative humidity (H-H) Operational conditions - 0 - 90%
OperatingrelativehumidityHH - 0 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features -
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 200 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 200 V
Outputpower - 920 W
Outputpowercapacity - 1.15 kVA
Output power capacity Features - 1.15 kVA
Output power Features - 920 W
Output power ports - 6 x IEC-C13
Packagingcontent -
Portsinterfaces -
Powerfactor - 0.8
Power factor Features - 0.8
Powerplug - C14 coupler
Power plug Ports & interfaces - C14 coupler
ProdDesc - Eaton 5P 1150i Rack 1U Netpack G2
producer - Eaton
Productcolour - Black, Silver
Product colour Design - Black, Silver
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 1.15 kVA 920 W
• Waveform: Sine
• 6 AC outlet(s)
• Sealed Lead Acid (VRLA) 6 V 9 Ah
• Rackmount Black, Silver

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P1150IRNG2_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P1150IRNG2_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P1150IRNG2_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/5P1150IRNG2_4.jpg
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide - Yes
Quick installation guide Packaging content - Yes
Rack capacity Design - 1U
Rackmountkit - Yes
Rack mount kit Packaging content - Yes
RS232ports -
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
Software - Eaton Brightlayer Software suite
Special functions - Automatyczny test baterii
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Summary - Eaton 5P1150IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.15 kVA, Output power: 920 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
The shape of the output voltage - Full sine wave
Typicalbackuptimeathalfload - 12.5 min
Typical backup time at half load Battery - 12.5 min
Unit Box Height - 0.175
Unit Box Length - 0.59
Unit Box Width - 0.54
Unit Calculated Volume - 0.055755 cubm
Unit Calculated Weight - 19.2 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
UPS topology Features - Line-Interactive
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype - USB Type-B
USB port type Ports & interfaces - USB Type-B
Vendor Homepage - https://www.eaton.com/gr/en-gb/skuPage.5P1150IRNG2.html
vendpn - 5P1150IRNG2
Voltage - 6 V
Warranty - 24 months
Warrantyandmisc -
Waste Electrical and Electronic Equipment (WEEE) compliance Certificates - Yes
Waveform - Sine
Waveform Features - Sine
Weight - 14.2 kg
Weight - 14.3 kg
Weightdimensions -
Weight Weight & dimensions - 14.3 kg
Width - 438 mm
Width Weight & dimensions - 438 mm
