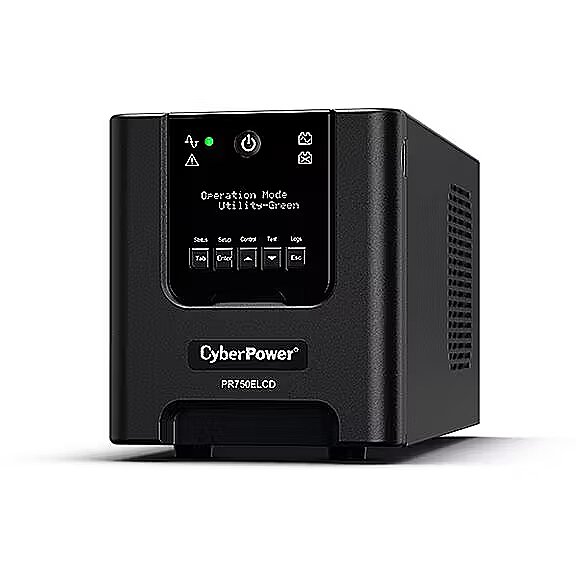

Cyber Power PR750ELCD, 750VA 675W, IEC

Accessories included - PR750ELCD UPS Power cord USB cable Serial cable EPO cable User manual
Active power - 675 W
Apparent power - 750 VA
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 2.5 min
Battery - Typical backup time at half load - 10.5 min
Battery > Battery recharge time - 8 (Typical); 3 (Quick) h
Battery > Typical backup time at full load - 2.5 min
Battery > Typical backup time at half load - 10.5 min
Brand - CyberPower
BrandPartCode - PR750ELCD
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EAC, RCM, RoHS
Charging time - 8 h
Chassis type - Tower
Code - PR750ELCD
Color - Black
Data Act - Link and Link
Description - UPS PR750ELCD uninterruptible power supply CyberPower PR750ELCD line-interactive UPS with uninterrupted sinusoidal voltage provides the best protection for office system devices, including desktop computers, workstations, network devices and peripherals. It is usually located in a back office, server room or data center. The UPS can be managed locally via USB or serial ports or remotely via an SNMP card (optional remote management card), giving administrators and users unparalleled flexible access to each UPS over the network for real-time monitoring, configuration and scheduling shutdown the system using PowerPanel management software. UPS Line-interactive topology Active PFC compatible Automatic voltage regulation (AVR) Key/non-key workloads Protection against interference and surges LCD status display USB connectivity port PowerPanel management software Tower type Energy Saving Technology Pure sine wave output Overload protection Hot-swap batteries EMI and RFI filtering Detachable LCD panel Emergency Power Off (EPO) Port SNMP/HTTP remote management (optional)
Design - Display type - LCD
Design - Form factor - Tower
Design - Housing material - Metal
Design - LED indicators - Error, Operation
Design - Product colour - Black
Design > Form factor - Tower
Designation - CE+WEEE
dimension depth - 500 mm
dimension height - 300 mm
Dimensions - 136 x 162 x 349 mm
dimension weight - 14000 g
dimension width - 280 mm
EAN - 4712364143397
ean - 4712364143397
Environment requirements - Operating Temperature: 32 ~ 104 (°F) Operating temperature: 0 ~ 40 (°C) Relative operating humidity (non-condensing): 0 ~ 95 (%) Operating altitude: 0-10,000 feet (0-3000 meters) (feet/meters) Storage Temperature: 5 ~ 113 (°F) Storage temperature: -15 ~ 45 (°C) Relative storage humidity (non-condensing): 0 ~ 95 (%) Storage altitude (feet/meters): 0-50,000 feet (0-15,000 meters) Online heat dissipation: 75 (BTU/hr)
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 301 V
Features - Input operation voltage (min) - 150 V
Features - Maximum current - 10 A
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 675 W
Features - Output power capacity - 0.75 kVA
Features - Power factor - 0.9
Features - Power protection features - Overload
Features - Response time - 4 ms
Features - Surge energy rating - 405 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Filters / protection - Overload
Filters / protection - Suppression
Filters / protection - Surge
GTIN - 4712364143397
GTIN - 4712364144189
GTIN - 5050914923815
GTIN - 5054484768906
GTIN - 5054533768901
guarantee - 24
guarantee_type - external
I/O connectors - 1 x EPO
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C14
Link - https://www.cyberpower.com/eu/en/product/sku/pr750elcd
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 8504408590
LongDesc - The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sine Wave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
LongProductName - Smart App UPS for Network and Server
LongSummaryDescription - CyberPower PR750ELCD. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 675 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2.5 min, Typical backup time at half load: 10.5 min. Form factor: Tower, Product colour: Black, Housing material: Metal. Certification: CE, EAC, RCM, RoHS
Name - CyberPower | Smart App UPS Systems | PR750ELCD | 750 VA | 675 W
name - UPS PR750ELCD
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Overload protection - Yes
Other features > Dimensions (WxDxH) - 136 x 349 x 162 mm
Output power ports - 6 x IEC-C13
Package features > Classification of battery - CL126:PE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 486.00 mm
Package features > Gross depth master carton - 595 mm
Package features > Gross height (mm) - 283.00 mm
Package features > Gross height master carton - 246 mm
Package features > Gross width (mm) - 272.00 mm
Package features > Gross width master carton - 360 mm
Package features > Net weight master carton - 20.8 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 46 pc(s)
Package features > Paper/Pasteboard - 900.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.98 kg
Package features > Tare weight master carton - 0.896 kg
Package features > TI weight (kg) - 3.5 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.04 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - USB cable
Packaging data - Package depth - 486 mm
Packaging data - Package height - 283 mm
Packaging data - Package weight - 13.3 kg
Packaging data - Package width - 272 mm
Performance > Capacity - 750 VA
Performance > UPS topology - Line-Interactive
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB port - Yes
producer - CyberPower
Producer product family - Smart App UPS Systems
Producer product name - PR750ELCD
ProductName - PR750ELCD
ShortSummaryDescription - CyberPower PR750ELCD, Line-Interactive, 0.75 kVA, 675 W, Pure sine, 150 V, 301 V
Software - PowerPanel Business
Special functions -
Technical details > Capacity - 675 W
Technical details > Gross weight - 13.28 kg
Technical details > Net weight - 12.30 kg
Technical details > Other features - Line-interactive UPS Topology; Active PFC Compatible; Automatic Voltage Regulation (AVR); Critical/Non-critical Load Outlets; Surge and Spike Protection; LCD Status Display; USB Connectivity Port; PowerPanel Management Software; Tower Form Factor; Energy Saving Technology; Pure Sine Wave Output; Overload Protection; Hot-swappable Batteries; EMI and RFI Filtration; Detachable LCD Panel; Emergency Power Off (EPO) Port; SNMP/HTTP Remote Management Capability (Optional)
Technical details > Producer - CyberPower
The shape of the output voltage - Full sine wave
Title - CyberPower PR750ELCD uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 675 W 6 AC outlet(s)
Transfer time (max) - 4 ms
UPS Architecture - line-interactive
URL - https://www.cyberpower.com/de/en/product/sku/pr750elcd
vendpn - PR750ELCD
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight - 12.3 kg
Weight & dimensions - Depth - 138 mm
Weight & dimensions - Height - 162 mm
Weight & dimensions - Weight - 12.3 kg
Weight & dimensions - Width - 349 mm
