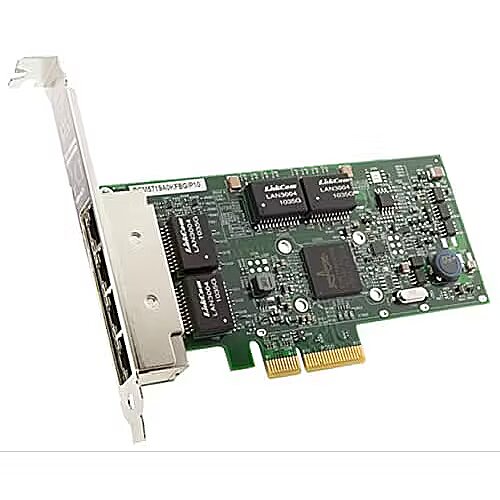

Broadcom BCM5719-4P - 4 x 1GbE PCIe NIC

Category_1 - Computers and Laptops
Category_2 - Computers - Accessories
Design - Component for - Server
Design - Internal - Yes
dimensionalWeight - 271
EAN - 650861000000
EAN_code - 0650861000000
Gross Weight Kg - 0,17
Logistics data - Harmonized System (HS) code - 85176990
Manufacturer - Broadcom
Manufacturer Code - BCM95719A1904AC
Manufacturer Name - BROADCOM
Manufacturer_code - BCM95719A1904AC
Name - Broadcom NetXtreme 4x1GbE network card BRC - BCM5719-4P NetXtreme 4 x 1GbE PCIe
Network - Cabling technology - 10/100/1000BaseT(X)
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Full duplex - Yes
Network - Jumbo frames - 1500
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ap
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Wake-on-LAN ready - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 55 °C
Operational conditions - Storage temperature (T-T) - -40 - 65 °C
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Ethernet
Ports & interfaces - PCI version - 2.0
producerCode - BCM95719A1904AC
productName - Broadcom BCM5719-4P Internal Ethernet 1000 Mbit/s
productSize - Normal
Short description - BC 1 GbE 4-port Server Adapter NetXtreme BCM5719-4P (4xRJ45) bulk PCIe 2.0 x4 incl. full height and low profile bracket
sizeX - 235
sizeY - 165
sizeZ - 35
Sustainability - Sustainability certificates - CE
Sustainability - Sustainability certificates - RoHS
System requirements - Other operating systems supported - Novell Open Enterprise Server 11
System requirements - Other operating systems supported - VMware vSphere 5.0+
System requirements - Server operating systems supported - Windows Server 2008
System requirements - Server operating systems supported - Windows Server 2008 R2
System requirements - Server operating systems supported - Windows Server 2012
warrantyLength - 36
warrantyType - G
Weight - 0,21
weight - 200
