Synology RackStation RS2423+, 2U 12-Bay

Access Control List (ACL) Performance - Yes
Accessories included - Main Unit X 1 Accessory Pack X 1 Power Cable X 1 Quick Installation Guide X 1
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Backup features Performance - Cloud, iSCSI LUN
Backup function Performance - Yes
Browser supported Performance - Google Chrome Firefox Microsoft Edge Safari
Built-in display Design - No
Built-in FTP server Performance - Yes
Built-in RAM memory - 8 GB
Built-in speaker(s) Design - No
Cables included Packaging content - AC
Card reader integrated Performance - No
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
Certification Other features - FCC
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL
Chassis type Design - Rack (2U)
Code - RS2423+
Compliance certificates Other features - CE, RoHS
Cooling type Design - Active
Copper ethernet cabling technology Network - 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Data Act - Link
Depth Weight & dimensions - 562 mm
Description - Faster performance and responsiveness The RS2423+/RS2423RP+ offers exceptional performance with read/write speeds of more than 155,000/79,000 random read/write operations per second (IOPS) and up to 3,500/1,700 MB/s sequential read/write.1 These are excellent, cost-effective file management and sharing solutions for small and medium-sized businesses, with advanced backup features designed for businesses with growing data needs. Designed with reliability in mind The RS2423+ and RS2423RP+ units are equipped with one 10GbE RJ-45 port and Gigabit Ethernet ports, which can be connected using Link Aggregation to enable automatic network failover and load balancing. Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to create a reliable server cluster with an active-passive architecture, maximising uptime. The RS2423RP+ is further equipped with redundant hot-swappable power supplies to protect service continuity in the event of a single power source problem. Space for expansion The 12-bay, 2U high RS2423+/RS2423RP+ can be easily adapted to your usage environment, whether you need higher performance, faster networking or more storage capacity. Versatile storage for businesses The RS2423+/RS2423RP+ server is ideal for small and medium-sized businesses and branch offices looking for a powerful, reliable and cost-effective storage solution for file management, data backup and surveillance. Data protection across multiple endpoints Design an effective backup strategy to maximise data and system availability with a range of native unlicensed solutions.
Description - Secure storage for your business Business-ready Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 216 TB raw storage before expansion. Flexible configuration Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed. Versatile applications Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites. Faster and more responsive The RS2423+/RS2423RP+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.1 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs. Designed for reliability The RS2423+ and RS2423RP+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing. Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime. The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source. Room for expansion Easily adjust the 2U 12-bay RS2423+/RS2423RP+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity. Versatile storage for businesses The RS2423+/RS2423RP+ are ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance. Intuitive storage for on-site and remote teams Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations. Enable efficient collaboration with Synology Drive Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications. Multi-platform support Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected. Collaborate in real time Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files. Connect teams with Hybrid Share Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices. Reliable data access on demand With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage. Local caching of most-used data Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full. Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions. Endpoint, VM, and NAS/SAN protection Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business. Microsoft 365 and Google Workspace Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption. Hyper Backup Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,5public cloud platforms, USB devices, file servers, local folders, and other Synology systems. Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning. Snapshot Replication Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds. Smart and scalable surveillance Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises. Wide device compatibility Connect up to 50 IP cameras from a selection of over 8,300 validated models thanks to Synology Surveillance Station’s wide camera compatibility. Multi-platform convenience Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app. Secure and private storage Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption. Assisted camera deployment Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras. Centralized management and monitoring
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.
Time-saving video analytics
Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.
Flexible monitoring of multiple locations
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS, featuring built-in data protection.
Works best with Synology drives
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Synology High Availability
Real-time system-level protection with automatic failover mechanism to maximize service availability.
Get extra protection with Extended Warranty Plus
Extend the standard 3-year hardware warranty8 of your RS2423(RP)+ with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.
Design - Built-in display - No
Design - Built-in speaker(s) - No
Design - Chassis type - Rack (2U)
Design - Cooling type - Active
Design - Fan diameter - 6 cm
Design - LED indicators - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - Grey
Design > Chassis type - Rack
Designation - CE+WEEE
Device class Performance - Small & Medium Business
dimensionalWeight - 20462
dimension depth - 725 mm
dimension height - 255 mm
Dimensions - 88 x 482 x 552 mm
dimension weight - 15870 g
dimension width - 590 mm
Disk type - HDD
Disk type - SSD
EAN - 4711174724895
ean - 4711174724895
EAN_code - 4711174724895
ECC Memory - Yes
Ethernet LAN (RJ-45) ports Ports & interfaces - 3
Ethernet LAN data rates Network - 10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max) Network - 10000 Mbit/s
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 8
External power adapter Packaging content - No
Fan - 6 cm
Fan diameter Design - 6 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Gross Weight Kg - 17,85
guarantee - 36
guarantee_type - normal
HDD interface - SATA
Height Weight & dimensions - 88 mm
Hot-swap drive bays Storage - Yes
Hot-swapping support - Yes
Housing - Rack 2U
I/O connectors - 2 x USB 3.0
I/O connectors - 3 x RJ-45 LAN
Installed storage drive type Storage - No
Internal memory Memory - 8 GB
Internal memory type Memory - DDR4
iSCSI support Network - Yes
LED indicators Design - Yes
Link - https://www.synology.com/en-global/products/RS2423+#features
Link aggregation Network - Yes
Management, monitoring, configuration -
Management protocols Performance - SNMP
Manufacturer - Synology
Manufacturer Code - RS2423+
Manufacturer Name - Synology
Manufacturer_code - RS2423+
Max. number of disks - 12
Maximum RAM supported Memory - 32 GB
Max memory size - 32 GB
Memory - ECC - Yes
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 32 GB
Memory - Memory form factor - UDIMM
Memory - Memory slots - 2
Memory > Internal memory type - DDR4
Memory > Internal RAM - 8 GB
Memory form factor Memory - UDIMM
Memory slots Memory - 2
Memory type - DDR4
Model - RS2423+
Model name - RS2423+
MPN - RS2423+
Multilingual support Performance - Yes
Name - 12-Bay Synology RackStation RS2423+
name - RS2423+ 12x0HDD
Name - Synology RS2423+, NAS
Name - Synology | RackStation | RS2423+ 12-bay | AMD Ryzen | V1780B | Processor frequency 3.6 GHz | 8 GB | DDR4
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10GBASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - Ethernet LAN data rate supported (max) - 10000 Mbit/s
Network - iSCSI support - Yes
Network - Link aggregation - Yes
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 1 x 10Gbit/s 10GBase-T
Network interface - 2 x 10/100/1000 Mbit/s
Network protocols - SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Noise level Performance - 52.3 dB
Number of available memory slots - 1
Number of fans - 3
Number of fans Design - 3 fan(s)
Number of HDDs installed - 0
Number of memory slots used - 1
Number of power supply units Power - 1
Number of processors supported Processor - 1
Number of storage drives supported Storage - 12
Online RAID expansion Storage - Yes
Online RAID migration Storage - Yes
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating system installed Software - DiskStation Manager
Operating system version Software - 7.1.1
Operating temperature (T-T) Operational conditions - 0 - 35 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 35 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other disk parameters -
Other features -
Other features - Certification - FCC
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL
Other features - Compliance certificates - CE
Other features - Compliance certificates - RoHS
Other features > Drive bays - 12
Other features > Ethernet LAN (RJ-45) ports - 3
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 100.00 mm
Package features > Gross height (mm) - 570.00 mm
Package features > Gross width (mm) - 500.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 61 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - External power adapter - No
Packaging content - Power cables quantity - 1
Packaging content - Rack mount kit - No
PCI Express x8 (Gen 3.x) slots Ports & interfaces - 1
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Google Chrome Firefox Microsoft Edge Safari
Performance - Built-in FTP server - Yes
Performance - Card reader integrated - No
Performance - Device class - Small & Medium Business
Performance - Management protocols - SNMP
Performance - Multilingual support - Yes
Performance - Noise level - 52.3 dB
Performance - Security algorithms - AES
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Type - NAS
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - PCI Express x8 (Gen 3.x) slots - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 1x10GbE, 2x1GbE, 2xUSB 3.2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (typical) - 119.95 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 500 W
Power - Redundant power supply (RPS) support - No
Power cables quantity Packaging content - 1
Power consumption (typical) Power - 119.95 W
Power supply - AC power input voltage: 100V to 240V AC Power frequency: 50/60 Hz, single phase
Power supply location Power - Built-in
Power supply unit (PSU) capacity Power - 500 W
Processor - AMD Ryzen V1780B 4-core 3.35 (base) / 3.6 (turbo) GHz
Processor - Number of processors supported - 1
Processor - Processor boost frequency - 3.6 GHz
Processor - Processor cores - 4
Processor - Processor family - Ryzen Embedded
Processor - Processor frequency - 3.35 GHz
Processor - Processor generation - AMD Ryzen Embedded V1000 Series
Processor - Processor manufacturer - AMD
Processor - Processor model - V1780B
Processor > Processor family - AMD Ryzen
Processor > Processor frequency - 3.6 GHz
Processor > Processor model - V1780B
Processor boost frequency Processor - 3.6 GHz
Processor cores Processor - 4
Processor family Processor - Ryzen Embedded
Processor frequency Processor - 3.35 GHz
Processor generation Processor - AMD Ryzen Embedded V1000 Series
Processor manufacturer Processor - AMD
Processor model Processor - V1780B
producer - Synology
producerCode - RS2423+
Producer product family - RackStation
Producer product name - RS2423+ 12-bay
Product colour Design - Black, Grey
productName - Synology RackStation RS2423+ NAS/storage server Rack (2U) Ryzen Embedded V1780B 8 GB DDR4 0 TB DiskStation Manager Black, Grey
productSize - Normal
Rack mount kit Packaging content - No
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels Storage - 0, 1, 5, 6, 10, JBOD
RAID support Storage - Yes
Redundant power supply (RPS) support Power - No
Safety warning - Warnings - Avoid contact with liquids.
Safety warning - Warnings - Do not dismantle the appliance yourself.
Safety warning - Warnings - Do not dispose of the device in the regular rubbish bin. The product requires special disposal.
Security algorithms Performance - AES
Short description - Synology NAS Rack Station RS2423+ (12 Bay) 2U
sizeX - 720
sizeY - 580
sizeZ - 245
Snapshot Performance - Yes
Software - Operating system installed - DiskStation Manager
Software - Operating system version - 7.1.1
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of storage drives supported - 12
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - JBOD
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5"
Storage - Supported file systems - BTRFS
Storage - Supported file systems - exFAT
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - Fat
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - Serial ATA
Storage - Supported storage drive types - HDD & SSD
Storage - Total installed storage capacity - 0 TB
Storage > RAID levels - 0,1,5,6,10,Hybr
Storage drives installed Storage - No
Storage drive sizes supported Storage - 2.5,3.5"
Storage temperature (T-T) Operational conditions - -20 - 60 °C

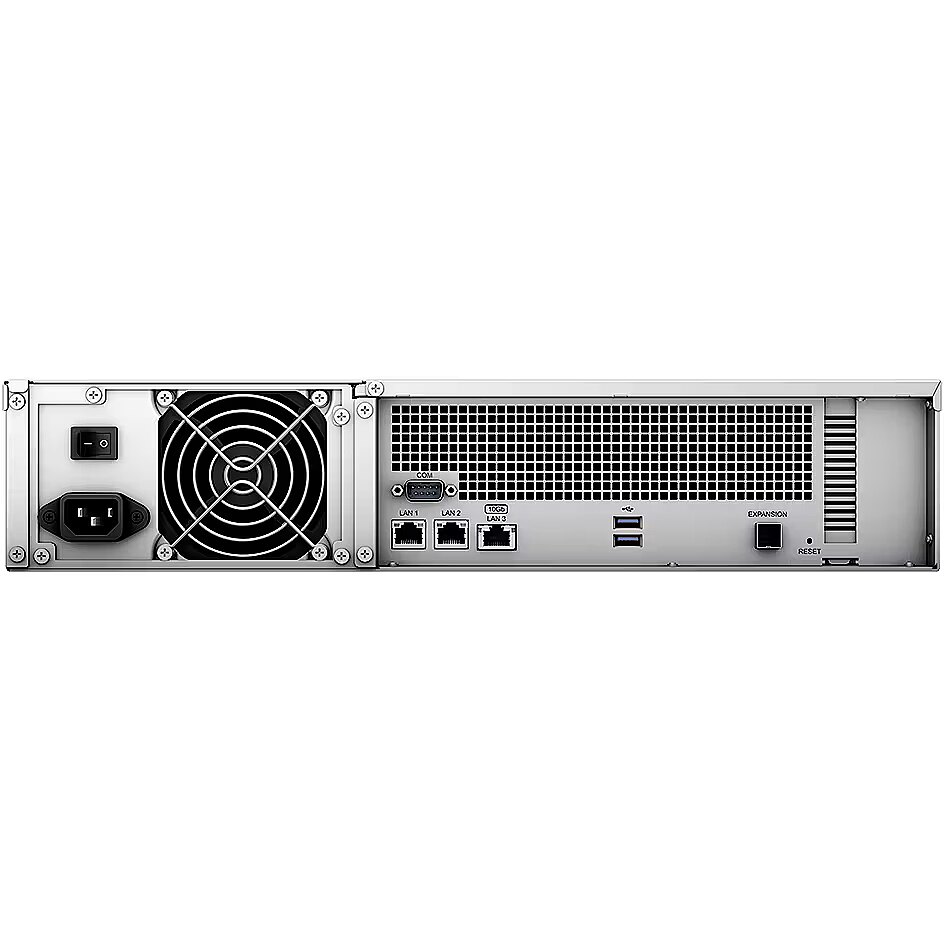

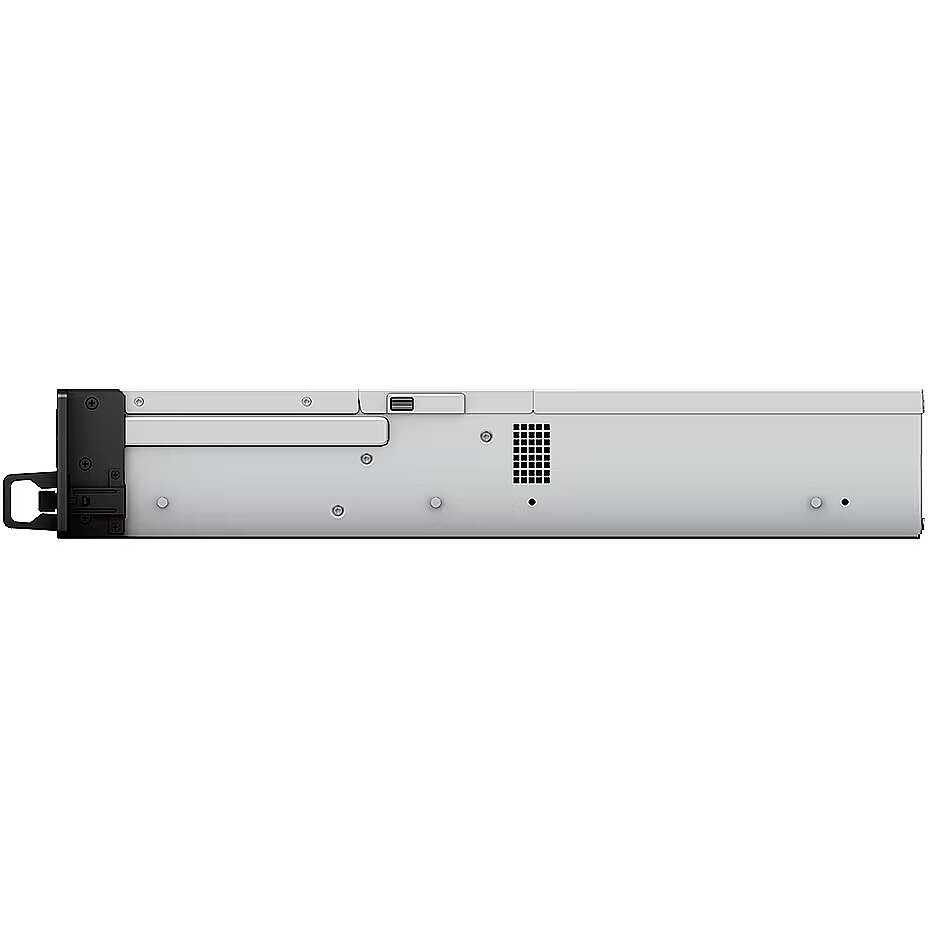

Summary - Synology RackStation RS2423+. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1780B, Processor frequency: 3.35 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager
Supported file systems Storage - BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces Storage - Serial ATA
Supported storage drive types Storage - HDD & SSD
Sustainability - Sustainability compliance - Yes
Sustainability compliance Sustainability - Yes
System log Performance - Yes
Technical details > Gross weight - 12.00 kg
Technical details > Net weight - 11.50 kg
Technical details > Other features - System fans 3 x (60 x 60 x 38 mm)
Technical details > Producer - Synology
Total installed storage capacity Storage - 0 TB
Total number of memory slots - 2
Type Performance - NAS
Unit Box Height - 0.255
Unit Box Length - 0.72
Unit Box Width - 0.585
Unit Calculated Volume - 0.1074 cubm
Unit Calculated Weight - 15.8 kg
Units per Shipping Box - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB port Ports & interfaces - Yes
Vendor Homepage - https://www.synology.com/en-global/products/RS2423RP+#specs
vendpn - RS2423+
Wake-on-LAN ready Network - Yes
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - F
Weight - 11.5 kg
Weight - 15,75
Weight - 15.84
weight - 15830
Weight & dimensions - Depth - 562 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 11.5 kg
Weight & dimensions - Width - 482 mm
Weight Weight & dimensions - 11.5 kg
Width Weight & dimensions - 482 mm
