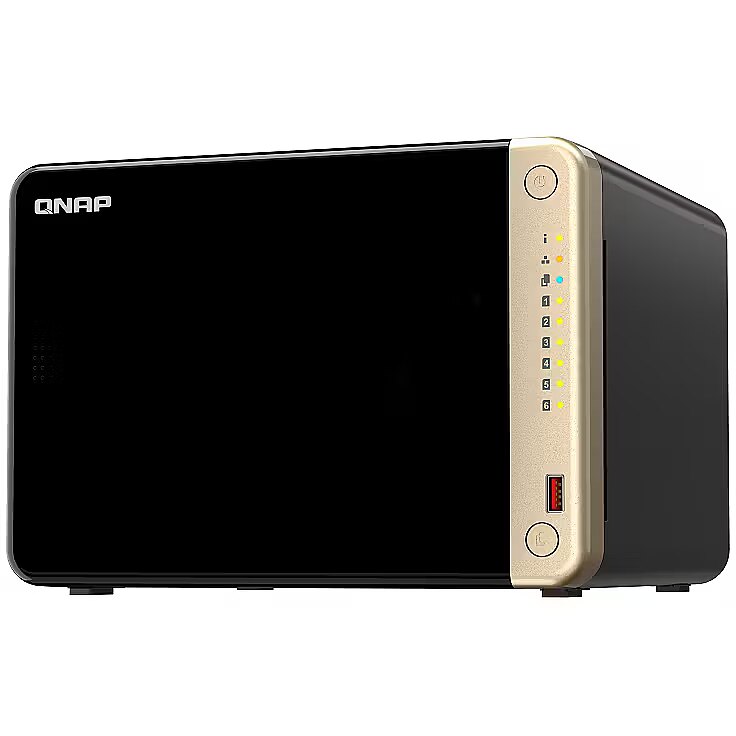

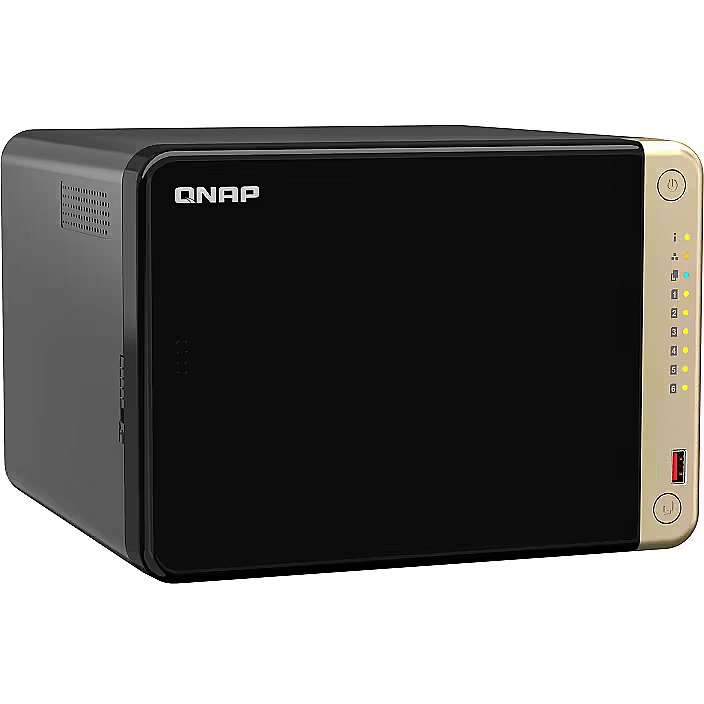

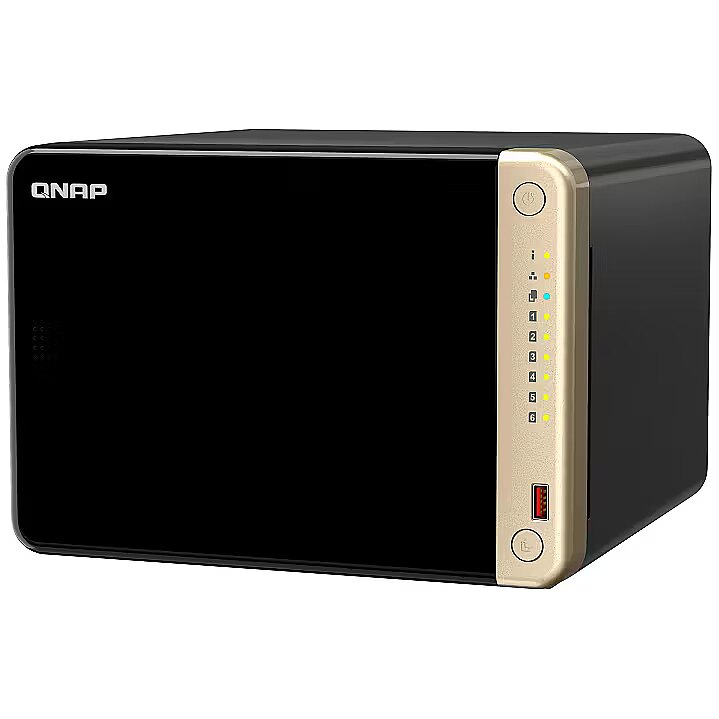

Qnap TS-664-8G, 6-Bay

Access Control List (ACL) Performance - Yes
Accessories included -
AC input voltage Power - 100 - 240 V
Backup button Performance - Yes
Backup features Performance - Cloud, iSCSI LUN
Backup function Performance - Yes
Bad block scan Storage - Yes
Brand - QNAP
BrandPartCode - TS-664-8G
Browser supported Performance - Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Built-in flash memory - 4 GB
Built-in FTP server Performance - Yes
Built-in RAM memory - 8 GB
Buzzer Performance - Yes
Cable lock slot Design - Yes
Cable lock slot type Design - Kensington
Cables included Packaging content - AC, LAN (RJ-45)
Category - NAS & Storage Servers
Category - Root/Electronics/Networks and communication/NAS - file servers
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
Chassis type Design - Tower
Code - TS-664-8G
Cooling type Design - Active
CPU configuration (max) Processor - 1
Dane techniczne: Częstotliwość procesora - 2900 MHz (turbo)
Dane techniczne: Format szerokości dysku twardego - 2.5 cala
Dane techniczne: Format szerokości dysku twardego - 3.5 cala
Dane techniczne: Format szerokości dysku twardego - M.2 NVMe (2280)
Dane techniczne: Grupa produktowa - NAS - serwery plików Qnap
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Ilość pamięci RAM - 8 GB
Dane techniczne: Inne cechy - pamięć flash 4 GB
Dane techniczne: Interfejs dysku twardego - M.2
Dane techniczne: Interfejs dysku twardego - Serial ATA III
Dane techniczne: Interfejs LAN - 2 x 2.5 Gigabit Ethernet
Dane techniczne: Maks. ilość dysków twardych - 8 (6 x SATA + 2 x M.2)
Dane techniczne: Maks. rozmiar pamięci - 8 GB
Dane techniczne: Obsługiwany typ RAID - JBOD
Dane techniczne: Obsługiwany typ RAID - RAID 0
Dane techniczne: Obsługiwany typ RAID - RAID 1
Dane techniczne: Obsługiwany typ RAID - RAID 5
Dane techniczne: Obsługiwany typ RAID - RAID 6
Dane techniczne: Obsługiwany typ RAID - RAID 10
Dane techniczne: Obsługiwany typ RAID - RAID 50
Dane techniczne: Obsługiwany typ RAID - RAID 60
Dane techniczne: Obsługiwany typ RAID - Single Disk
Dane techniczne: Obudowa - wolnostojąca
Dane techniczne: Procesor - Intel Celeron N5095
Dane techniczne: Producent - Qnap
Dane techniczne: System - QTS 5
Dane techniczne: Typ pamięci - SO-DIMM
Dane techniczne: Waga - 2.9 kg
Dane techniczne: Wymiary - 168 x 235 x 226 mm
Dane techniczne: Zasilanie - zasilacz wbudowany
Dane techniczne: Zastosowanie - kopie zapasowe
Dane techniczne: Zastosowanie - media serwer
Dane techniczne: Zastosowanie - serwer baz danych
Dane techniczne: Zastosowanie - serwer FTP
Dane techniczne: Zastosowanie - serwer iTunes
Dane techniczne: Zastosowanie - serwer plików
Dane techniczne: Zastosowanie - serwer syslog
Dane techniczne: Zastosowanie - serwer VPN
Dane techniczne: Zastosowanie - serwer WWW
Dane techniczne: Zastosowanie - serwer wydruku
Dane techniczne: Zastosowanie - stacja fotograficzna
Dane techniczne: Zastosowanie - stacja monitoringu
Dane techniczne: Zastosowanie - stacja pobierająca dane
Dane techniczne: Złącza zewnętrzne - 1 x HDMI
Dane techniczne: Złącza zewnętrzne - 2 x USB 2.0
Dane techniczne: Złącza zewnętrzne - 2 x USB 3.2 Gen 2
Depth Weight & dimensions - 226 mm
Description - TS-664
Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and Virtualization applications Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS. Quad-core high performance and up to 16GB RAM
The TS-664 is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance. Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
The TS-664 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition. Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
The TS-664 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs1 with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-664 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices. Accelerate AI–powered image recognition with TPU
By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-664 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition. SSD caching and auto-tiering enable 24/7 optimized storage efficiency
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-664 supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness. Streamline large file transfers and video editing with 2.5GbE
The TS-664 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing. Future-proof your IT infrastructure for high-speed networks
The TS-664 is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration. Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-664. UPS and other compatible USB devices can also be connected for greater functionality and application potential. Abundant I/O capabilities with PCIe expansion
The TS-664 has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential. Direct 4K HDMI output for multimedia and virtual machine display
The TS-664 features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 2.0 output supports up to 4K, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-664 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-664 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station. Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-664 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application. QTS 5, Fast, smooth, and easy-to-use!
The TS-664 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features. Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker. Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup. Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps. Comprehensive backup and disaster recovery solution
The TS-664 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed. PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data. Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-664 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy. VM backup
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression. SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS. Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time. QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups. Multi-version snapshots mitigate ransomware threats
The TS-664 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware. Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data. Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side. Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-664 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis. All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-664, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment. Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers. Conainer Station
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices. Linux Station
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development. Comprehensive security and privilege settings
The TS-664 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers. myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-664 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits. Simplified privilege settings
The TS-664 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems. QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security. Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-664 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection. QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms. Security Counselor
A security portal for the TS-664 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software. Malware Remover
Regularly scan your TS-664 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security. The best file storage and collaboration center
The TS-664 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files. Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-664 and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-664 storage as needed to accommodate data and business growth. Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-664, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app. Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-664 while also centrally managing files on the NAS, cloud storage, and remote devices. Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations. Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business. 2.5GbE connectivity: Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) portsM.2 SSD caching: Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognitionPCIe expandability: Install a PCIe Gen3 x2 card to expand the core functionality of the TS-664, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) cardLicense-free virtualized environment: Host multiple containerized apps to run a wide range of applications and servicesDrives Auto-Tiering: Qtier™ auto-tiering technology and SSD caching enable constant storage optimization4K HDMI: 4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience
Description - TS-664 Quad-core 2.5GbE dual-port Intel-based NAS supports M.2 SSD caching and PCIe expansion for high-speed data transmission and virtualization applications. Powered by an Intel Celeron N5095 quad-core processor (burst clocked up to 2.9GHz), the TS-664 offers two 2.5GbE RJ45 ports and Port Trunking for a combined bandwidth of up to 5Gbps. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides the flexibility to expand NAS functionality by installing a QM2 card for M.2 SSD caching or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4GB RAM for lightweight VMs and containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output, and real-time transcoding. It also provides expandable storage and feature-rich applications as a cost-effective, reliable 2.5GbE NAS. 2.5GbE connectivity By setting up port trunking with two built-in 2.5GbE ports (2.5G / 1G / 100M), you can get transfer speeds up to 5Gbps. M.2 SSD cache Two M.2 PCIe Gen3 slots enable NVMe SSD cache or SSD storage pool for greater performance, or Edge TPU for AI-based image recognition. PCIe expandability By installing a PCIe Gen3 x2 card, you can expand the core functionality of the TS-664, including adding a 10GbE/5GbE/2.5GbE multi-gigabit network card, a QM2 card or a USB 3.2 Gen 2 (10Gbps) card. License-free virtualized environment Support for many containerized applications for different services and programs. Automatic disk tiering Qtier auto-tiering technology and SSD cache ensure continuous storage optimization. 4K HDMI 4K H.264 hardware decoding and real-time transcoding ensures smooth multimedia playback on the big screen.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Tower
Design - Cooling type - Active
Design - Fan diameter - 9 cm
Design - LED indicators - HDD, LAN, Power, Status, USB
Design - Number of fans - 2 fan(s)
Design - Product colour - Black, Bronze
Design > Chassis type - Tower
Design > Number of 3.5" bays - 6
Designation - CE+WEEE
Device class Performance - Small & Medium Business
DHCP server Network - Yes
dimension depth - 380 mm
dimension height - 250 mm
Dimensions - 168 × 235 × 226 mm
dimension weight - 3898 g
dimension width - 340 mm
Disk roaming Storage - Yes
Disk scan Performance - Yes
Disk type - HDD
Disk type - SSD
Dynamic DNS (DDNS) Network - Yes
EAN - 4711103082317
ean - 4711103082317
Eans - 4711103082317
EAN_code - 4711103082317
Enhanced Intel SpeedStep Technology Processor special features - Yes
Ethernet LAN (RJ-45) ports Ports & interfaces - 2
Ethernet LAN data rates Network - 10,100,1000,2500 Mbit/s
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 2
Expansion slots - 2 x M.2
External power adapter Packaging content - Yes
Fan - 9 cm
Fan diameter Design - 9 cm
Fan voltage Power - 12 V
Flash memory Memory - 4000 MB
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Gross Weight Kg - 4,56
GTIN - 0885022024667
GTIN - 885022024667
GTIN - 4711103082317
GTIN - 7330381515538
guarantee - 36
guarantee_type - normal
HDD interface - SATA III - 6 Gb/s
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1
Height Weight & dimensions - 168 mm
Hot-swap drive bays Storage - Yes
Hot-swapping support - Yes
Hot spare Performance - Yes
Housing - Tower

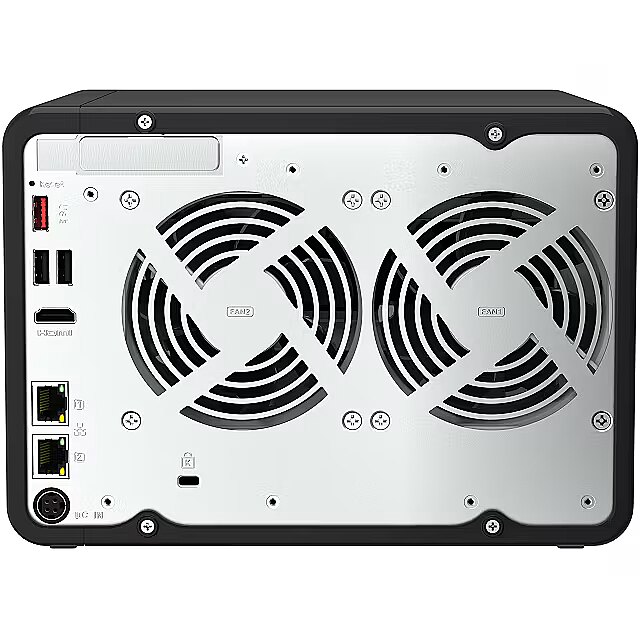

I/O connectors - 1 x HDMI
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 2 x USB 2.0
I/O connectors - 2 x USB 3.1
Idle States Processor special features - Yes
Installed storage drive type Storage - No
Intel 64 Processor special features - Yes
Intel Trusted Execution Technology Processor special features - No
Intel Virtualization Technology (VT-x) Processor special features - Yes
Intel Virtualization Technology for Directed I/O (VT-d) Processor special features - Yes
Intel VT-x with Extended Page Tables (EPT) Processor special features - Yes
Internal memory Memory - 8 GB
Internal memory type Memory - DDR4
iSCSI support Network - Yes
Jumbo frames support Network - Yes
LED indicators Design - HDD, LAN, Power, Status, USB
Link - https://www.qnap.com/en/product/ts-664
Linux operating systems supported Software - Ubuntu 14.04
LongDesc - TS-664Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and Virtualization applicationsPowered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.Quad-core high performance and up to 16GB RAMThe TS-664 is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.Accelerate AI–powered image recognition and caching with TPU and PCIe expansionThe TS-664 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.Install M.2 NVMe SSDs for cache acceleration or efficient tiered storageThe TS-664 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs1 with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-664 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.Accelerate AI–powered image recognition with TPUBy leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-664 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.SSD caching and auto-tiering enable 24/7 optimized storage efficiencyWhile SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-664 supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.Streamline large file transfers and video editing with 2.5GbEThe TS-664 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.Future-proof your IT infrastructure for high-speed networksThe TS-664 is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.Enhance productivity with multiple USB portsWith two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-664. UPS and other compatible USB devices can also be connected for greater functionality and application potential.Abundant I/O capabilities with PCIe expansionThe TS-664 has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.Direct 4K HDMI output for multimedia and virtual machine displayThe TS-664 features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 2.0 output supports up to 4K, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-664 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-664 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.Faster image identification with integrated Intel® OpenVINO™ AI engine.With integrated Intel® OpenVINO™ AI computing resources, the TS-664 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.QTS 5, Fast, smooth, and easy-to-use!The TS-664 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.Brighter. Smoother. You’ll like it.When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.Get started with the notice boardWhen performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.Smooth and reactive user interfaceWhether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.Comprehensive backup and disaster recovery solutionThe TS-664 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.PC/Laptop backupFor Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.Remote backup for NASHybrid Backup Sync makes it easy to back up data from a TS-664 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.VM backupEnjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.SaaS backupSafeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.Cloud backup for NASHybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.QuDedup technologyHybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.Multi-version snapshots mitigate ransomware threatsThe TS-664 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.Volume and LUN snapshotsTake snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.Instantly restore snapshotsSnapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.Back up snapshotsMultiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-664 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.All-in-one solution for hosting virtual machines and containersBy running multiple virtual machines and containers on the TS-664, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.Virtualization StationRun multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.Conainer StationExperience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.Linux StationRun Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.Comprehensive security and privilege settingsThe TS-664 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.myQNAPcloud secures remote accessmyQNAPcloud allows convenient connection to the TS-664 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.Simplified privilege settingsThe TS-664 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.QuFirewall protectionSupports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.Superior security with QVPNA virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-664 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.QuWAN SD-WANTo facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.Security CounselorA security portal for the TS-664 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.Malware RemoverRegularly scan your TS-664 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.The best file storage and collaboration centerThe TS-664 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.Smart surveillance solution for 24/7 securityQVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-664 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.Flexible and economical storage expansionQNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-664 storage as needed to accommodate data and business growth.Attach QNAP expansion enclosuresConnect expansion enclosures to the TS-664, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.Mount cloud storage or remote file serversMount cloud storage or remote file servers to expand the capacity of the TS-664 while also centrally managing files on the NAS, cloud storage, and remote devices.Migrate to a new NASInstall your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.Upgrade RAID capacityHot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
LongProductName - 6 x 3.5", Intel Celeron N5105/N5095, 8 GB SODIMM DDR4, 4GB Flash, LAN, 120 W, 100-240V, 168 x 235 x 226 mm, 2.9 kg
LongSummaryDescription - QNAP TS-664. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Intel® Celeron®, Processor model: N5095, Processor frequency: 2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
Mac operating systems supported Software - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Management, monitoring, configuration -
Management protocols Performance - SNMP V2, V3
Manufacturer - Qnap
Manufacturer - QNAP
Manufacturer Code - TS-664-8G
Manufacturer Name - QNAP
Manufacturer_code - TS-664-8G
Max. number of disks - 6
Maximum RAM supported Memory - 16 GB
Max memory size - 8 GB
Memory - Flash memory - 4000 MB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 16 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 2
Memory > Internal memory type - DDR4
Memory > Internal RAM - 8 GB
Memory form factor Memory - SO-DIMM
Memory slots Memory - 2
Memory type - SODIMM DDR4
Model - TS-664-4G
Model name - TS-664
MPN - TS-664-8G
Multilingual support Performance - Yes
Name - 6-Bay QNAP TS-664-8G Intel® Celeron® - N5095 - Schwarz
Name - QNAP TS-664-8G
Name - QNAP TS-664-8G, NAS (black)
Name - QNAP | 6-Bay desktop NAS | TS-664-8G | Intel Celeron | N5095 4-core | Processor frequency 2.9 GHz | 8 GB | DDR4
name - Server NAS TS-664-8G Tower 6-bay Intel Celeron N5105/N5095 8G
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network protocols -
Number of fans - 2
Number of fans Design - 2 fan(s)
Number of HDDs installed - 0
Number of M.2 (M & B) slots Storage - 2
Number of power supply units Power - 1
Number of processors supported Processor - 1
Number of storage drives supported Storage - 6
On-board graphics card model Processor - Intel® UHD Graphics
On/off switch Performance - Yes
Online RAID expansion Storage - Yes
Online RAID migration Storage - Yes
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating system installed Software - QNAP QTS
Operating system version Software - 5.0.0
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features -
Other features - Warranty period - 3 year(s)
Other features > Drive bays - 6
Other features > Ethernet LAN (RJ-45) ports - 2
Other operating systems supported Software - Solaris 10
Package depth Weight & dimensions - 383 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 380.00 mm
Package features > Gross height (mm) - 250.00 mm
Package features > Gross width (mm) - 340.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 27 pc(s)
Package features > Paper/Pasteboard - 1800.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 2.00 kg
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package height Weight & dimensions - 345 mm
Package type Packaging content - Box
Package weight Weight & dimensions - 4.56 kg
Package width Weight & dimensions - 255 mm
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - External power adapter - Yes
Packaging content - Package type - Box
Performance - Access Control List (ACL) - Yes
Performance - Backup button - Yes
Performance - Backup features - Cloud, iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Disk scan - Yes
Performance - Hot spare - Yes
Performance - Management protocols - SNMP V2, V3
Performance - Multilingual support - Yes
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH
Performance - Share folder - Y
Performance - Share folder access right management - Yes
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Type - NAS
Performance - USB copy function - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 2x 2.5 Gigabit Ethernet Port, 2 x M.2 2280 PCIe Gen 3 x1, 2 x USB 3.2 Gen 2Type-A, 1x HDMI
Power - AC input voltage - 100 - 240 V
Power - Fan voltage - 12 V
Power - Number of power supply units - 1
Power - Power consumption (sleep) - 23.22 W
Power - Power consumption (typical) - 44.02 W
Power - Power supply location - External
Power - Power supply unit (PSU) capacity - 120 W
Power consumption (sleep) Power - 23.22 W
Power consumption (typical) Power - 44.02 W
Power supply - 120W, 100240V power supply
Power supply location Power - External
Power supply unit (PSU) capacity Power - 120 W
Processor - Intel Celeron N5095 4-core/4-thread processor up to 2.9 GHz
Processor - CPU configuration (max) - 1
Processor - Number of processors supported - 1
Processor - On-board graphics card model - Intel® UHD Graphics
Processor - Processor boost frequency - 2.9 GHz
Processor - Processor cores - 4
Processor - Processor family - Intel® Celeron®
Processor - Processor frequency - 2 GHz
Processor - Processor manufacturer - Intel
Processor - Processor model - N5095
Processor - Processor threads - 4
Processor > Processor family - Intel Celeron
Processor > Processor frequency - 2.9 GHz
Processor > Processor model - N5095 4-core
Processor boost frequency Processor - 2.9 GHz
Processor cores Processor - 4
Processor family Processor - Intel® Celeron®
Processor frequency Processor - 2 GHz
Processor manufacturer Processor - Intel
Processor model Processor - N5095
Processor special features - Enhanced Intel SpeedStep Technology - Yes
Processor special features - Idle States - Yes
Processor special features - Intel 64 - Yes
Processor special features - Intel Trusted Execution Technology - No
Processor special features - Intel Virtualization Technology (VT-x) - Yes
Processor special features - Intel Virtualization Technology for Directed I/O (VT-d) - Yes
Processor special features - Intel VT-x with Extended Page Tables (EPT) - Yes
Processor threads Processor - 4
Producent: Nazwa producenta / importera - Qnap
QNAP GmbH
Karl-Arnold-Straße 26
47877 Willich
producer - QNAP
Producer - Qnap
ProducerCode - TS-664-8G
Producer product family - 6-Bay desktop NAS
Producer product name - TS-664-8G
Product colour Design - Black, Bronze
ProductName - TS-664
RAID - No
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - 50 (5+0)
RAID levels - 60 (6+0)
RAID levels Storage - 0, 1, 5, 6, 10, 50, JBOD
RAID rebuild Storage - Yes
RAID support Storage - Yes
Reset button Performance - Yes
S.M.A.R.T. support Performance - Yes
Security algorithms Performance - FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH
Server operating systems supported Software - Windows Server 2008, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Share folder access right management Performance - Yes
Share folder Performance - Y
ShortDescription -
Short description - QNAP NAS TS-664-8G (6 Bay)
ShortSummaryDescription - QNAP TS-664, NAS, Tower, Intel® Celeron®, N5095, 8 GB, DDR4
Snapshot Performance - Yes
Software - Linux operating systems supported - Ubuntu 14.04
Software - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Software - Operating system installed - QNAP QTS
Software - Operating system version - 5.0.0
Software - Other operating systems supported - Solaris 10
Software - Server operating systems supported - Windows Server 2008, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Software - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Storage - Bad block scan - Yes
Storage - Disk roaming - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 6
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, 50, JBOD
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5,3.5,M.2
Storage - Supported file systems - FAT32, HFS+, NTFS, ext3, ext4
Storage - Supported storage drive interfaces - M.2, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storage - Total installed storage capacity - 0 TB
Storage drives installed Storage - No
Storage drive sizes supported Storage - 2.5,3.5,M.2
Storage temperature (T-T) Operational conditions - -20 - 70 °C
Summary - QNAP TS-664. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Intel® Celeron®, Processor model: N5095, Processor frequency: 2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
Supported file systems Storage - FAT32, HFS+, NTFS, ext3, ext4
Supported storage drive interfaces Storage - M.2, Serial ATA III
Supported storage drive types Storage - HDD & SSD
System log Performance - Yes
Technical details > Gross weight - 4.40 kg
Technical details > Net weight - 2.40 kg
Technical details > Other features - Fan 2 x 90mm, 12VDC; Power Supply Unit 120W adapter, 100-240V
Technical details > Producer - QNAP
Title - QNAP TS-664 NAS Tower Intel® Celeron® N5095 8 GB DDR4 0 TB QNAP QTS Black, Bronze
Total installed storage capacity Storage - 0 TB
Type Performance - NAS
Unit Box Height - 0.345
Unit Box Length - 0.38
Unit Box Width - 0.255
Unit Calculated Volume - 0.03911 cubm
Unit Calculated Weight - 5.1 kg
Units per Pallet - 0
Units per Shipping Box - 2
URL - https://www.qnap.com/en/product/ts-664
USB 2.0 ports quantity Ports & interfaces - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Ports & interfaces - 2
USB copy function Performance - Yes
USB port Ports & interfaces - Yes
Vendor Homepage - https://www.qnap.com/en/product/ts-664
vendpn - TS-664-8G
Wake-on-LAN ready Network - Yes
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 2 years
Warranty period Other features - 3 year(s)
Weight - 2.9 kg
Weight - 4,56
Weight - 4.52
Weight & dimensions - Depth - 226 mm
Weight & dimensions - Height - 168 mm
Weight & dimensions - Package depth - 383 mm
Weight & dimensions - Package height - 345 mm
Weight & dimensions - Package weight - 4.56 kg
Weight & dimensions - Package width - 255 mm
Weight & dimensions - Weight - 2.9 kg
Weight & dimensions - Width - 235 mm
Weight Weight & dimensions - 2.9 kg
Width Weight & dimensions - 235 mm
Windows operating systems supported Software - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows
