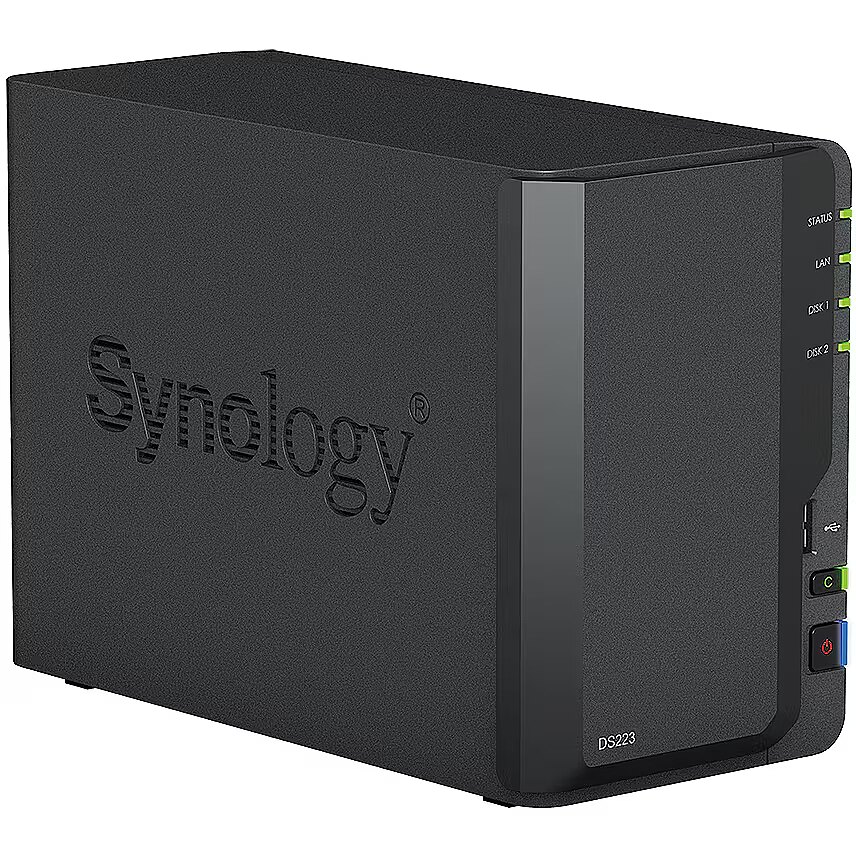

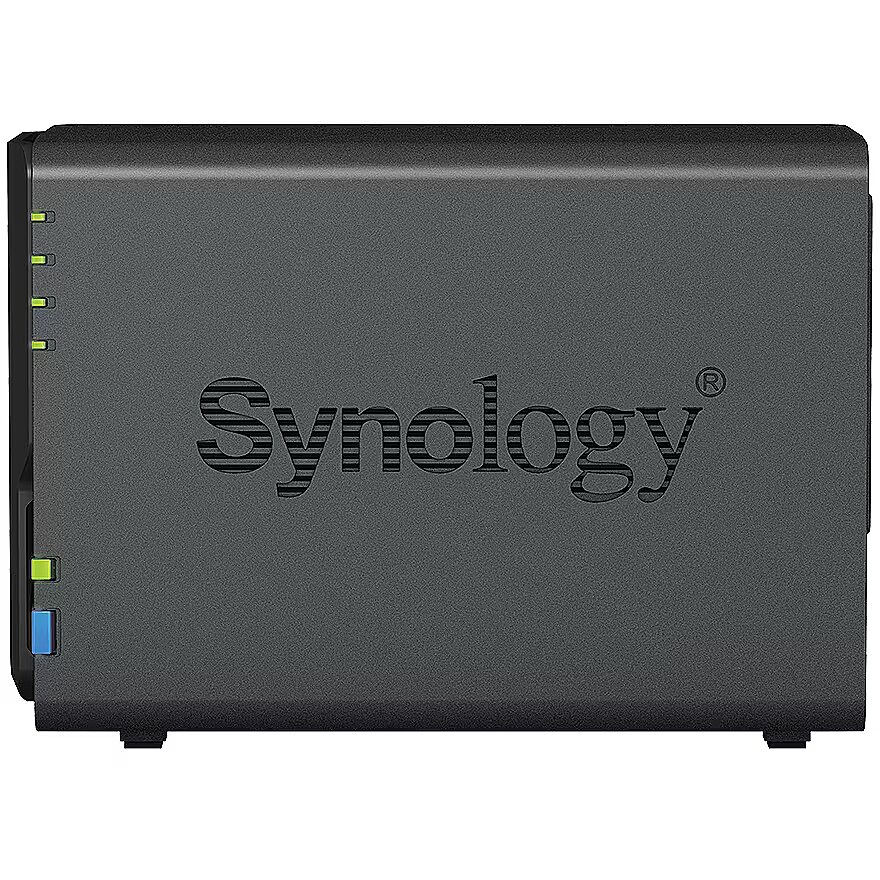

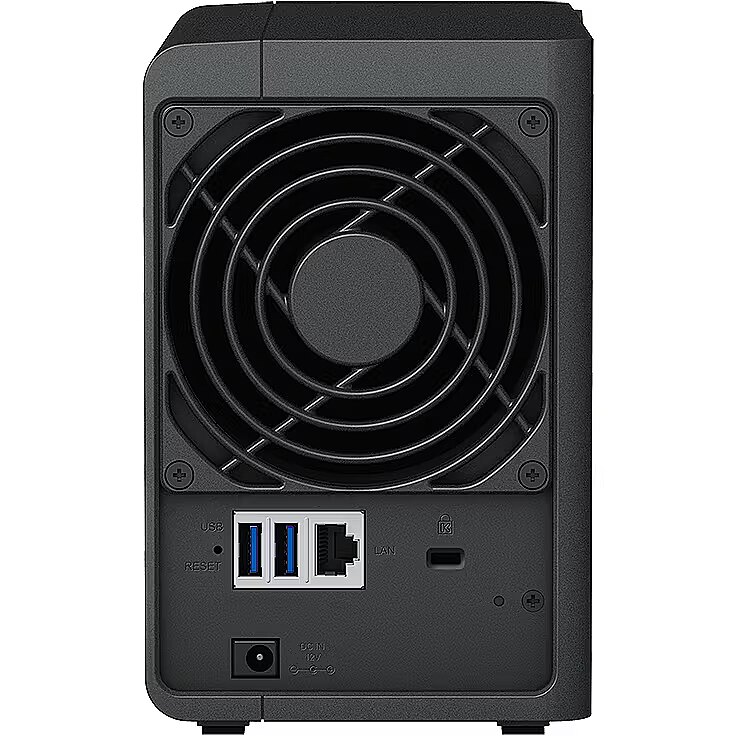

Synology DiskStation DS223, 2-Bay

Accessories included - main unit Accessory pack Charger Power cable RJ-45 LAN cable Quick Installation Guide
Built-in RAM memory - 2 GB
category - Cases External Storage
Category - Root/Electronics/PC peripherals/Storage and archiving/NAS - file servers
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
code - DS223
Code - DS223
CPU - Realtek RTD1619B
Description - DiskStation DS223 Data management platform for home and small office “This products is eligible for Synology Extended Warranty Plus. You can purchase Extended Warranty Plus either from the DSM interface (version 7.1 and above) or from your Synology Account.” “For this Synology product we are offering additional*, paid, support packages provided by Tehnogroup. Technogroup support packages includes services like on-site support, on-site post-warranty and NBD replacement. Please contact your Account Manager for individual price offer. *Synology product price do not include additional support package costs”
Description - DiskStation DS223 Data management platform for homes and small offices. Gain control over your data Consolidate files from different sources into your own private cloud. The DS223 simplifies the process and offers everything you need to keep your data safe and organized. A secure private cloud Access anywhere, anytime, up to 36 TB of data. A simple backup center Back up your documents and media for easy recovery. Efficient work Power consumption during operation is low at just 17.3 W. A simple private cloud Quickly and easily import data from PCs, Macs, and external storage devices, and sync all devices for streamlined file management. Access from any device Access your files from your PC, Mac, Linux, Chromebook, Android, iOS or any device with a browser. Keep your data private or easily share it with secure links. Saves storage space Enable on-demand mode to download files to your Windows or Mac computer only on access. Pin your most important or most used files for simple offline access. Cloud integration Sync files between private clouds and public cloud services, including Google Drive, Dropbox, and Microsoft OneDrive. Store local copies of your data in the cloud for centralized data management and ownership. Synchronization between locations Say goodbye to long waiting times when downloading or uploading files. Continuously sync content between two Synology devices to enable fast local access anywhere, no matter the amount of data. Your data in safe hands Not all storage is created equal. Synology DiskStation Manager (DSM), the operating system that powers DS223, uses the efficient Btrfs file system to protect data from data corruption and undo any accidental or malicious changes with snapshot technology. All-in-one NAS for the modern home Configure your DS223 to best suit your needs with multiple complete solutions designed for each scenario. Photo management Smart and secure features make it easy to browse, sort and share your media. Minimize digital clutter Organize your photos and clips with Synology Photos' smart sorting features. Easy collaboration Share media with family, friends, and colleagues with privacy-focused sharing options in Synology Photos. Data protection Intuitive backup tools keep your digital memories and important projects safe. Automatic media backup Photos and videos taken on mobile devices are automatically uploaded to your private cloud via Synology Photos or Synology Drive. Protection against cyberattacks Use Synology Drive to protect your data from ransomware attacks or accidental deletion with real-time or scheduled backup of important folders. Video surveillance Intuitive monitoring solutions for your home let you protect what matters. Compatibility with many devices Connect up to 20 IP cameras from a wide range of over 8,300 approved models or ONVIF devices. Universal access Watch the image from the cameras the way you like. Watch camera feeds via web browsers, desktop clients or mobile apps. Receive event notifications and take immediate action. Data platform protection Add an extra layer of protection to your files with one of the built-in license-free backup solutions for DS223. Flexible backups Back up the entire NAS, including system settings and applications, or select specific folders. Secure all your backup data to multiple destinations. Almost continuous protection Increase the level of protection for NAS servers by creating point-in-time copies of shared folders that can be replicated to another location and quickly restored.
Design > Chassis type - Tower
Design > Number of 3.5" bays - 2
dimensionalWeight - 1846
dimension depth - 125 mm
dimension height - 275 mm
Dimensions - 165 mm x 108 mm x 232.7 mm
Dimensions - 165 x 108 x 232.7 mm
dimension weight - 2040 g
dimension width - 295 mm
Disk type - HDD
Disk type - SSD
EAN - 4711174724772
ean - 4711174724772
Eans - 4711174724772
EAN_code - 4711174724772
Fan - 9 cm
File System - EXT4
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Full Description Line - NAS Ready-to-go|CPU Realtek RTD1619B|Drives/bays 2|3xUSB 3.2|1xRJ45|Memory 2 GB|DDR4|File System EXT4|Included Accessories Accessory Pack X 1AC Power Adapter X 1AC Power Cord X 1RJ-45 LAN Cable X 1Quick Installation Guide X 1|Power consumption 17.343 Watts
Gross Weight Kg - 1,6
guarantee - 24
guarantee_type - normal
HDD interface - SATA
Hot-swapping support - Yes
Housing - Tower
I/O connectors - 3 x USB 3.0
Included Accessories - Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1
Link - https://www.synology.com/en-my/products/DS223
Management, monitoring, configuration -
Manufacturer - Synology
Manufacturer Code - DS223
Manufacturer Name - Synology
Manufacturer_code - DS223
Max. number of disks - 2
Memory - 2 GB
Memory > Internal memory type - DDR4
Memory > Internal RAM - 2 GB
Memory type - DDR4
Memory type - DDR4
Model - DS223
name - NAS server DS223 2x0HDD 2GB DDR4 1xRJ45 3xUSB3.2.1 2Y
name - Synology DiskStation DS223 NAS Server, 2GB RAM, 1x Gb LAN - 2-Bay
Name - Synology DS223
Name - Synology DS223 Up to 2 HDD/SSD Hot-Swap Realtek RTD1619B Processor frequency 1.7 GHz 2 GB DDR4
Name - Synology DS223, NAS (black)
NAS features - Ready-to-go
Network architecture - GigabitEthernet
Network interface - 1 x 10/100/1000 Mbit/s
Network protocols - SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFSKerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP,LDAP, CalDAV
Number of drives/bays - 2
Number of fans - 1
Number of HDDs installed - 0
Other disk parameters -
Other features -
Other features > Drive bays - 2
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 290 mm
Package features > Gross height (mm) - 120 mm
Package features > Gross width (mm) - 270 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 184 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.009396 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Ports & interfaces > Interface - 1x1GbE/3xUSB 3.2Gen1
Power consumption - 17.343 Watts
Power supply - Power Supply/Adapter: 60W AC power input voltage: 100V - 240V AC Power frequency: 50/60 Hz, single phase Power consumption: 17,343 W (access); 4.08 W (Hard Drive Hibernation)
Processor - CPU model: Realtek RTD1619B Number of processors: 1 Processor architecture: 64-bit CPU frequency: 4-core 1.7GHz Hardware encryption mechanism
Processor > Processor family - Realtek
Processor > Processor frequency - 1.7 GHz
Processor > Processor model - RTD1619B
producer - Synology
Producer - Synology
producerCode - DS223
ProducerCode - DS223
Producer product name - DS223
productName - Synology DiskStation DS223 NAS/storage server Desktop Ethernet LAN RTD1619B
productSize - Normal
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - JBOD
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 29 cm
Shipping Box Height Shipping/Package Box Dimensions - 12.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.22 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription -
Short description - Synology NAS Disk Station DS223 (2 Bay)
sizeX - 285
sizeY - 120
sizeZ - 270
Storage > Number of storage drives supported - Up to 2 HDD/SSD Hot-Swap
Storage > RAID levels - RAID Basic, JBOD, RAID 0, RAID 1
Supported drives - 3.5" SATA HDD; 2.5" SATA SSD
Technical details > Gross weight - 1.58 kg
Technical details > Net weight - 1.28 kg
Technical details > Other features - 1x Fans 92 mm x 92 mm
Technical details > Warranty - 24 month(s)
Unit Box Height - 0.125
Unit Box Length - 0.29
Unit Box Width - 0.275
Unit Brutto Volume - 0.009969 cubm
Unit Gross Weight - 2.22 kg
Unit Net Weight - 1.28 kg
USB 3.2 Input/Output connectors - 3
Vendor Homepage - www.synology.com/en-my/products/DS223#specs
vendpn - DS223
Warranty - 24
Warranty - 24 months
warrantyLength - 24
warrantyType - G
Weight - 1.28 kg
Weight - 2,21
weight - 2225
