Brand - Ricoh
BrandPartCode - PA03641-B301
Category - Scanners
Category 1 - Drucker & Scanner
Category 2 - Scanner
Certificates - Green (Eco) compliant - Yes
Design - Built-in display - No
Design - Product colour - Black, White
Design - Scanner type - Overhead scanner
EAN - 4939761308734
GTIN - 4058154030714
GTIN - 4939761305412
GTIN - 4939761308734
Logistics data - Cardboard packaging weight - 1.2 kg
Logistics data - Country of origin - China
Logistics data - Foil packaging weight - 15 g
Logistics data - Glass packaging weight - 0 g
Logistics data - Harmonized System (HS) code - 8471607000
Logistics data - Metal packaging weight - 0 g
Logistics data - Pallet gross length - 101.6 cm
Logistics data - Pallet gross width - 121.9 cm
Logistics data - Pallet height (air) - 124.5 cm
Logistics data - Pallet height (sea) - 197.5 cm
Logistics data - Paper packaging weight - 2.4 kg
Logistics data - Plastic packaging weight - 15 g
Logistics data - Polystyrene (EPS/EPP) packaging weight - 200 g
Logistics data - Products per pallet (air) - 24 pc(s)
Logistics data - Products per pallet (sea) - 40 pc(s)
Logistics data - Wood packaging weight - 0 g

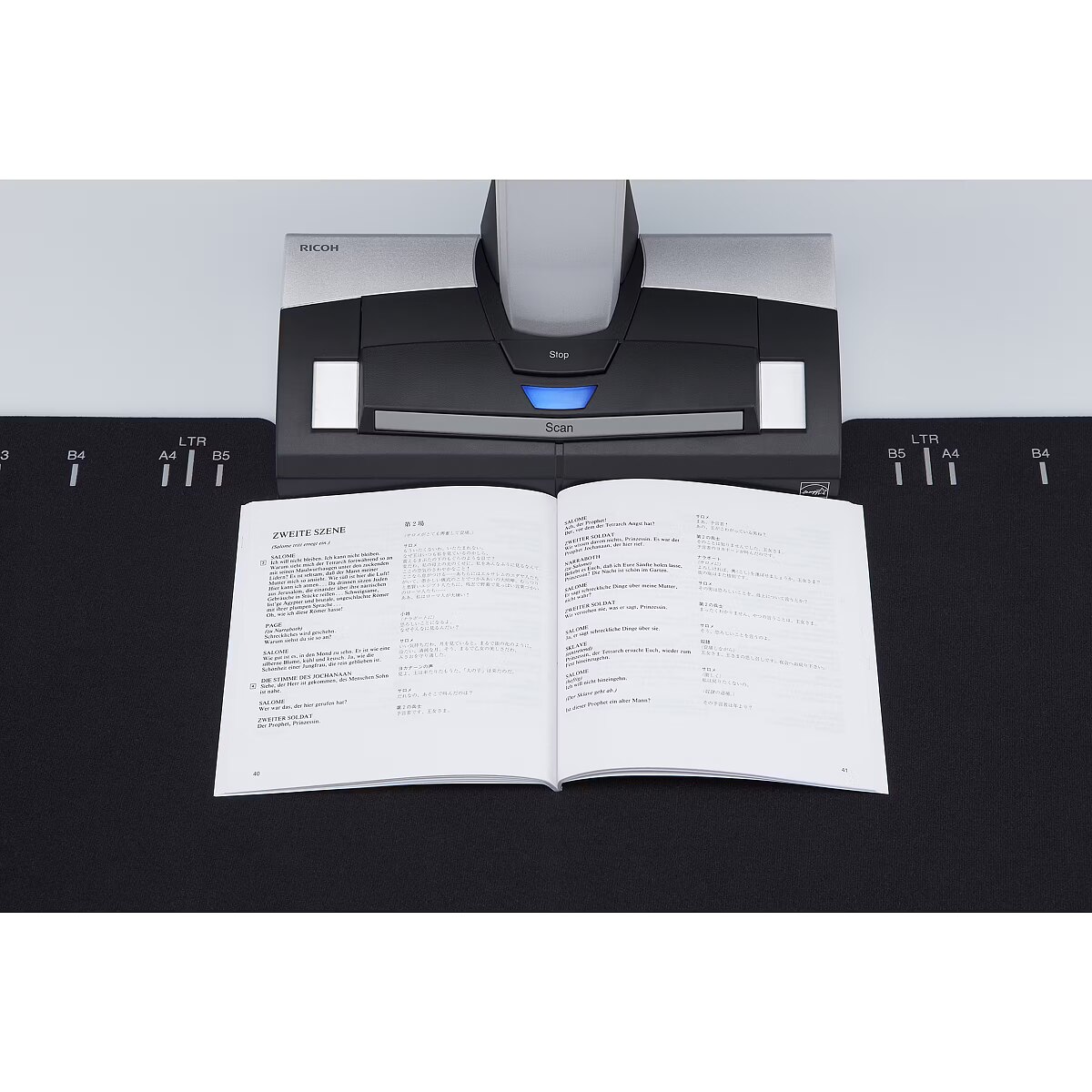

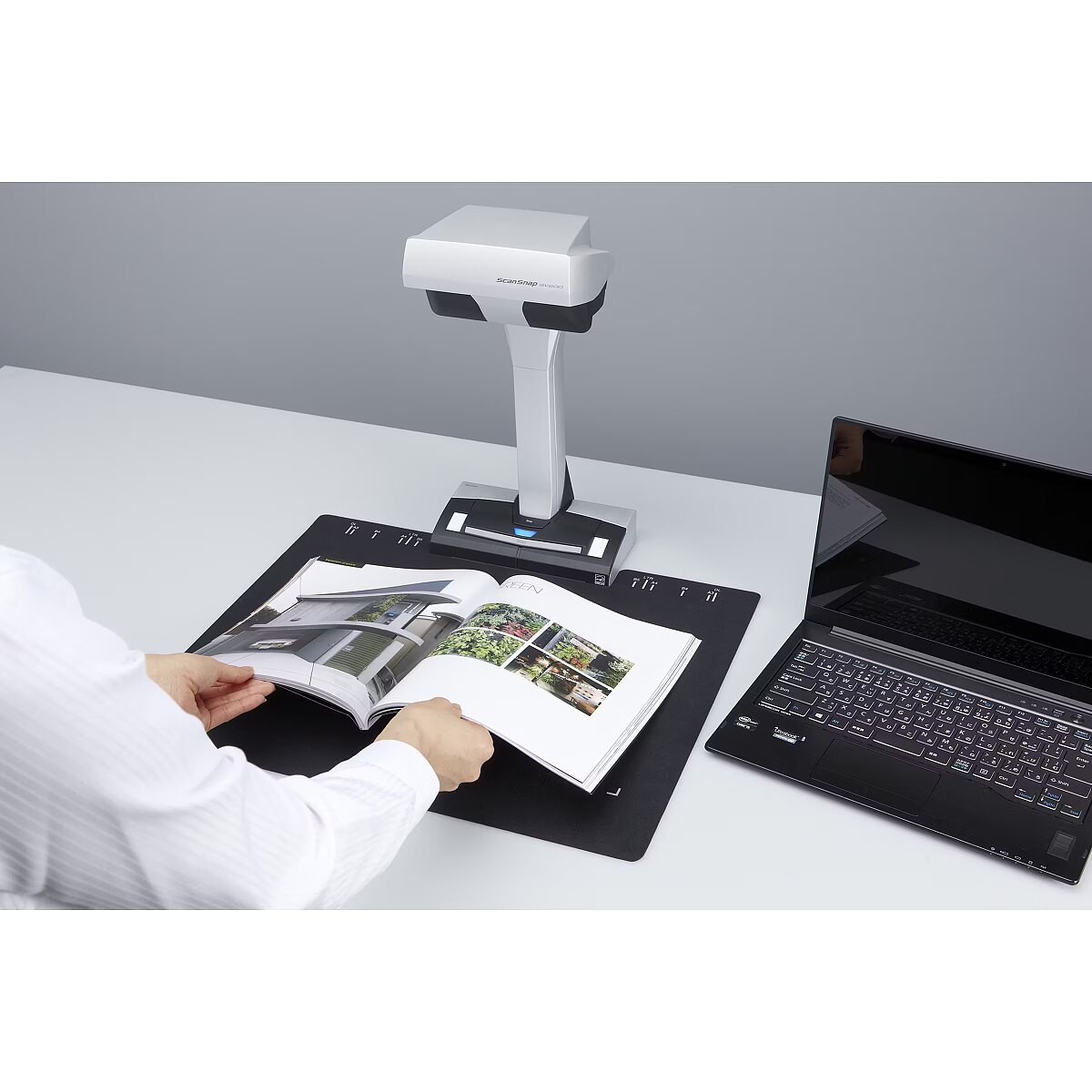

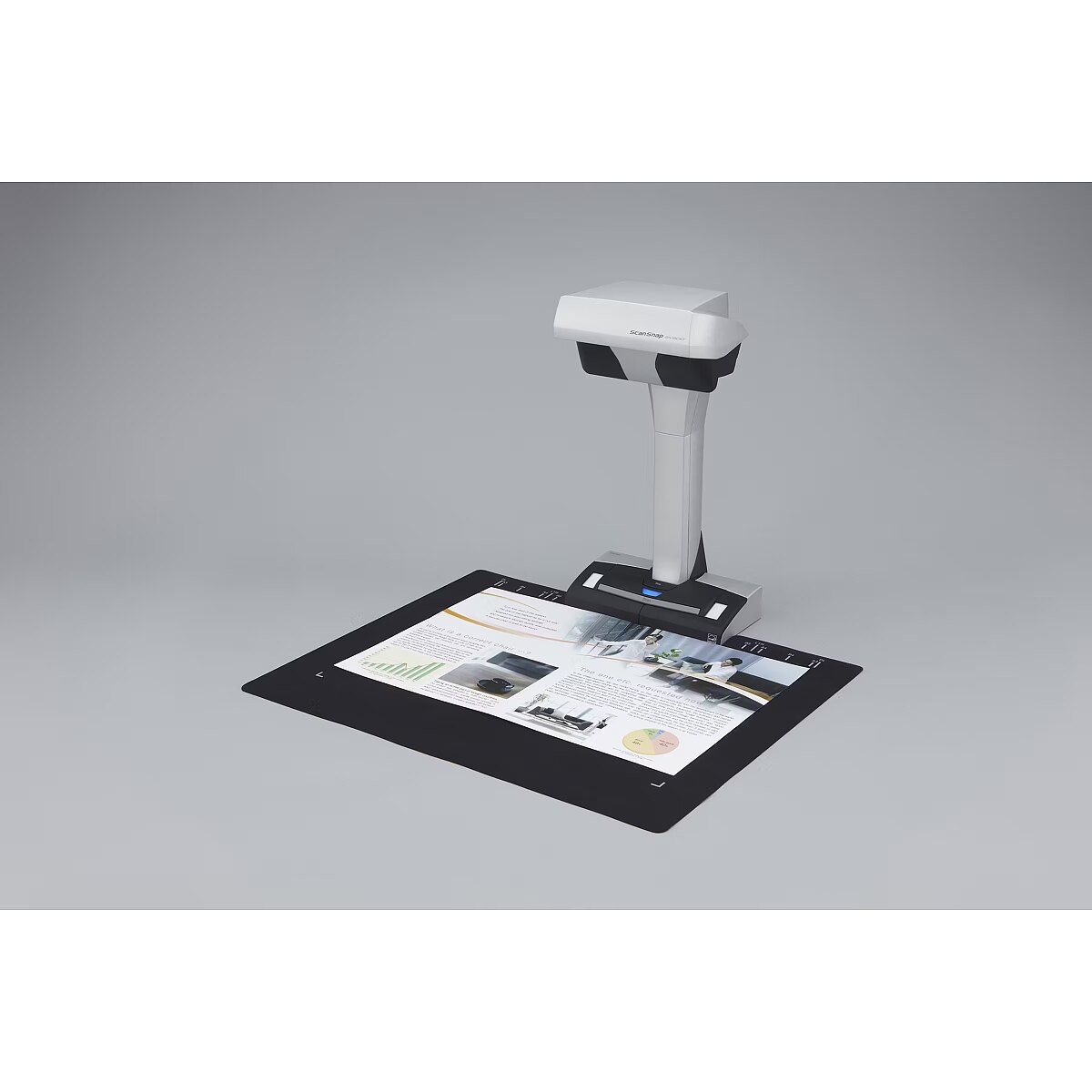

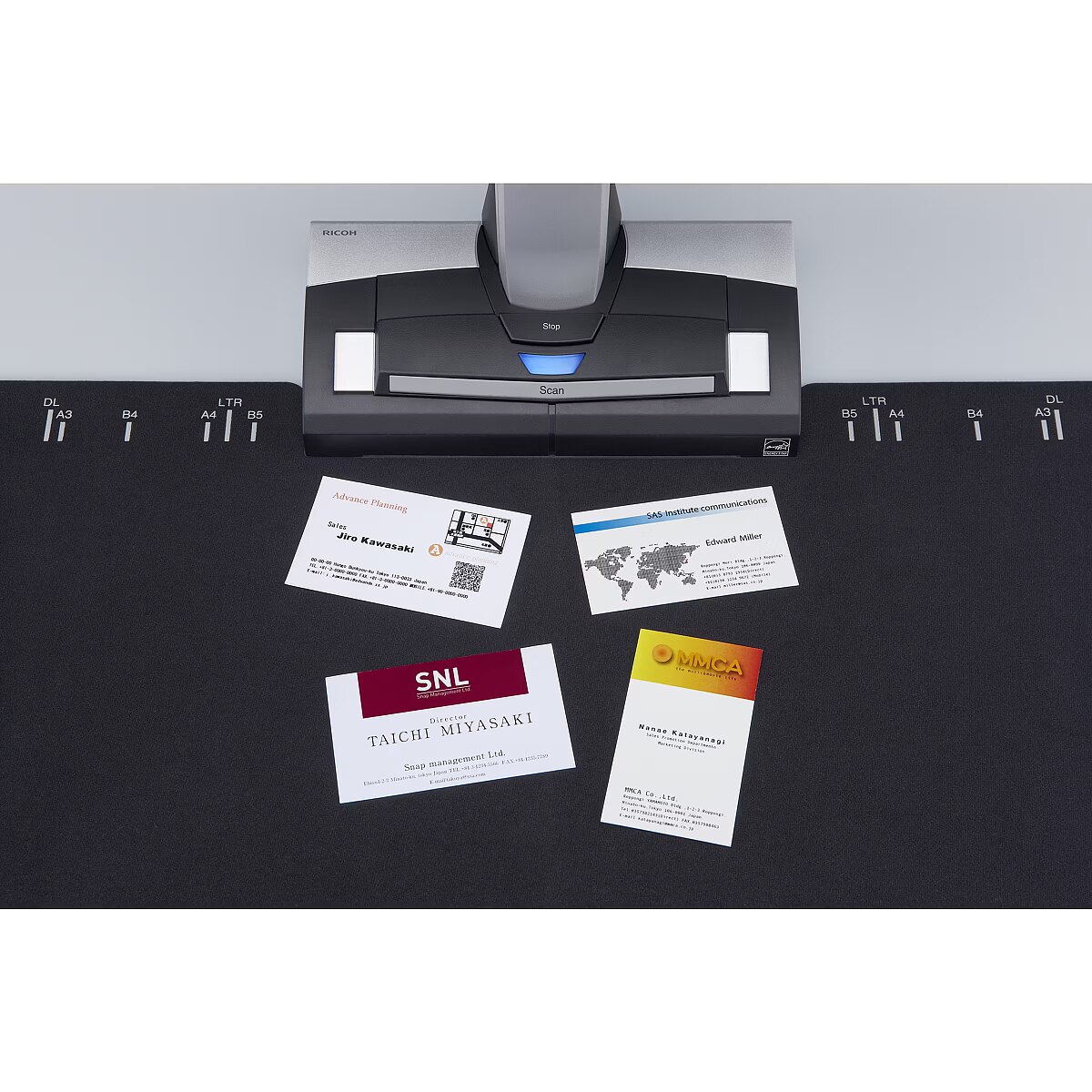

LongDesc - - One touch operation for PC and Mac- Scan a multitude of everyday documents including loose paper, bound material and delicate items- Multi cropping capability allowing for scanning of various documents at the same time- Continuous scanning capability with “page turning detection” and “timed scanning”- “VI technology” helps minimise any unevenness in image quality- Correct distortion and curvature of bound material with “Book Image Correction”- Small footprint and robust design allows for easy positioning in any environment.Digitise anything with easeThe ScanSnap SV600 allows you to scan newspapers, bound documents, magazines or books without the need for cutting or causing damage.Scan anything from business cards to A3 size (landscape)* documentsAny documents larger than A4 such as maps, historical documents and blueprints can be simply positioned on the black pad and scanned directly without any extra effort. User interaction retouch tool allows the possibility to hold the document in a good position without worrying about fingers on the scanned image.* The maximum document size will be 400 x 300 mm when the thickness of the documentis over 5 mm.New VI technologyEquipped with “VI technology” which combines a ‘deep depth of field lens’, a ‘CCD linear image sensor’ and a ‘high directivity LED lamp’ the SV600 is able to comfortably minimise any unevenness in image quality and generate a smooth image even when scanning from a distance.No problem scanning bound documentsThe SV600 can comfortably scan books and magazines and also documents with sticky notes can be scanned without any issues.No need to worry about your delicate documents or booksWith “VI technology”, scanning can be performed without touching the document. You do not need to worry that documents such as crayon or oil paintings, pencil writings or photos will be damaged by touching.Long depth of field lensWide auto focus area even when the focus distance is variableCCD linear image sensorHelps produce smooth images.The SV600 scans documents with a movable head and incorporates a High directivity LED lampHelps maintain the same brightness level without any impact from surroundings.Smooth operation with the assistance of various functionsThe SV600 is enhanced with a host of customised features which helps continue ScanSnap’s concept of being simple, speedy and compact.Quick Menu facilitates operabilityScanSnap’s Quick Menu will automatically pop up after scanning enabling you to link your scanned data to an application both quickly and easily, scan directly to the cloud for example thereby easily sharing your documents.ScanSnap SV600 includesAutomatically crop several documents with ‘Multiple Document Detection”In just one touch you can capture multiple documents of differing sizes in just one scan pass. Place several business cards, receipts and photos within the scanning area and the SV600 will capture all the documents and will intelligently crop to the exact size.* Up to 10 documents can be cropped automatically. At least 15 mmis needed between documents.Fast start up time and scanning speed lead to time savings and efficienciesThe SV600 can be ready to scan in no time from power up and just 3 seconds is then required to scan an A3 landscape sized document.Compact design with a small footprintThe SV600 is incredibly robust with a firm footing and is compact enough to enable efficient usage of your workspace without imposing to your daily routines when not in use.Scan with one touch!With a host of impressive features, you can continuously scan multiple pages smoothly.Page Turning DetectionAutomatically detect when the page is turned.Timed Mode- You can set the time to start scanning after the “Scan” button is pressed.- For continuous scanning you can set the time interval before the next scanning to begin.Auto image correction; enhances the reading experienceBook Image Correction – Automatically correct distortion caused by the curve of an opened book or magazine. You can confirm and fine tune the scanned images on the preview dialog after scanning or have this be performed automatically.Book Image CorrectionCan easily correctdistortion of the document.User interaction retouchFinger images scanned while suppressing the document can be deleted with ease.ScanSnap Receipt*The ScanSnap Receipt software allows you to easily scan and extract information from your receipts, and even export the data for tax filing.*Available via an online update only.ScanSnap Sync*With ScanSnap Sync built into ScanSnap Organizer software and the ScanSnap Connect app, captured documents are automatically synchronized with all your devices through Dropbox, Google Drive or Microsoft OneDrive.*Available via an online update only.The Nuance software allows users to read directly from cloud based applications and to save directly to those cloud based applications meaning that the possibility of using and sharing digital documents is extended. In case documents are intended to be managed locally, ScanSnap Organizer will provide an ideal repository. This application plays an increasingly important role in the ScanSnap eco system, especially when additionally utilising the recently introduced ScanSnap Sync functionality, which allows for cross linkage from the ScanSnap Connect App to for example Dropbox, to Nuance Power PDF or to ScanSnap Organizer.
LongProductName - ScanSnap SV600 - 1x CCD, 2x White LED, USB 2.0, 20W, ±1.5%, 3kg
LongSummaryDescription - Ricoh ScanSnap SV600. Maximum scan size: 432 x 300 mm, Optical scanning resolution: 285 x 218 DPI, Black/white scanning colour modes: Grayscale, Monochrome. Scanner type: Overhead scanner, Product colour: Black, White. Sensor type: CCD, Light source: White LED (2x). Maximum ISO A-series paper size: A3, Scanning media types supported: Business Card, Post Card(JPN), ISO A-series sizes (A0...A9): A3, A4, A5, A6. Socket connector type: C7, Standard interfaces: USB 1.1, USB 2.0
Manufacturer - Fujitsu
MPN - PA03641-B301
Name - Fujitsu ScanSnap SV600 - Overhead-Scanner - 432 x 300 mm
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Other features - Automatic colour mode detection - Yes
Other features - Compliance certificates - RoHS
Other features - Horizontal optical scanning resolution (max) - 285 DPI
Other features - Horizontal optical scanning resolution (min) - 218 DPI
Other features - Media thickness - 30 mm
Other features - Minimum scan size - 25.4 x 25.4 mm
Other features - Scan time - 3 s
Other features - Vertical optical scanning resolution (max) - 283 DPI
Other features - Vertical optical scanning resolution (min) - 152 DPI
Other features - Vertical scanning magnification - ±1.5%%
Packaging content - AC adapter included - Yes
Packaging content - Bundled software - Nuance Power PDF (Win)
Nuance Power PDF Converter (Mac)
Packaging content - Cables included - AC
Packaging data - Package depth - 500 mm
Packaging data - Package height - 365 mm
Packaging data - Package weight - 6.5 kg
Packaging data - Package width - 301 mm
Packaging data - Quantity per pack - 1 pc(s)
Paper handling - ISO A-series sizes (A0...A9) - A3, A4, A5, A6
Paper handling - ISO B-series sizes (B0...B9) - B4, B5, B6
Paper handling - Legal - Yes
Paper handling - Letter - Yes
Paper handling - Maximum ISO A-series paper size - A3
Paper handling - Scanning media types supported - Business Card, Post Card(JPN)
Performance - Light source - White LED (2x)
Performance - Sensor type - CCD
Ports & interfaces - Socket connector type - C7
Ports & interfaces - Standard interfaces - USB 1.1, USB 2.0
Ports & interfaces - USB port - Yes
Ports & interfaces - USB version - 2.0
Power - AC input frequency - 50 - 60 Hz
Power - Input voltage - 100-240 V
Power - Power consumption (off) - 0.4 W
Power - Power consumption (standby) - 2.6 W
Power - Power consumption (typical) - 20 W
Power - Power supply type - AC
ProductName - ScanSnap SV600
Scanning - Black/white scanning colour modes - Grayscale, Monochrome
Scanning - Colour scanning - Yes
Scanning - Duplex scanning - No
Scanning - Film scanning - No
Scanning - Maximum scan size - 432 x 300 mm
Scanning - Optical scanning resolution - 285 x 218 DPI
ShortSummaryDescription - Ricoh ScanSnap SV600, 432 x 300 mm, 285 x 218 DPI, Grayscale, Monochrome, Overhead scanner, Black, White, CCD
Sustainability - Sustainability certificates - ENERGY STAR
System requirements - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
System requirements - Windows operating systems supported - Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional
Title - Ricoh ScanSnap SV600 Overhead scanner 285 x 218 DPI A3 Black, White
URL - https://www.pfu.ricoh.com/global/scanners/
WarrantyInfo - 3 year Standard Warranty - Advance Exchange - Includes replacement of defective product and two-way shipping costs.
Weight - 5.12
Weight & dimensions - Depth - 156 mm
Weight & dimensions - Height - 383 mm
Weight & dimensions - Weight - 3 kg
Weight & dimensions - Width - 210 mm
