Audio - Headphone frequency - 70 - 20000 Hz
Audio - Impedance - 8 Ω
Audio - RMS rated power - 10 W
Color - White

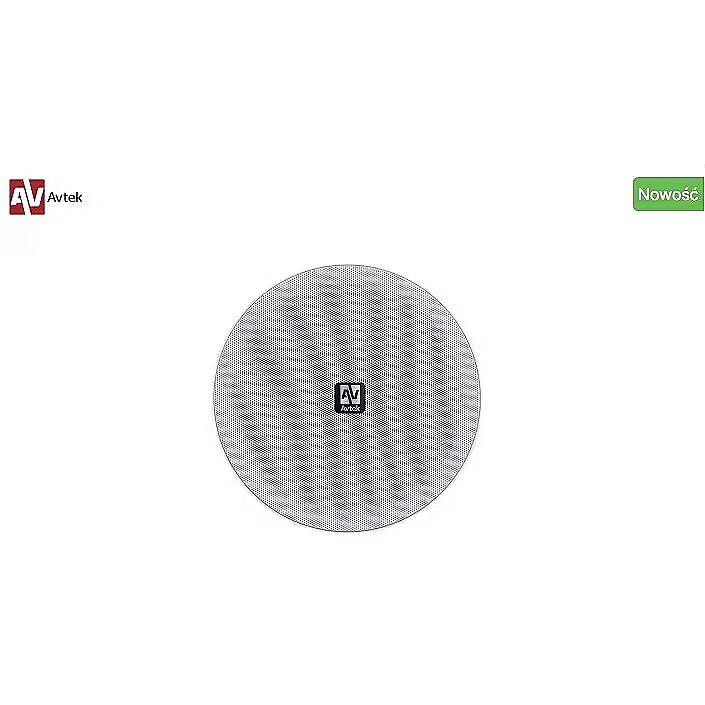

Description - Avtek CS 606 is a coaxial ceiling speaker equipped with a 100 V / 70 V transformer with selectable power taps (10W6W3W). Thanks to its discreet, frameless design, white ABS housing, and metal grille, the device blends aesthetically and unobtrusively into the architecture of any interior.
This model is an ideal solution for delivering clear voice announcements and background music playback. It ensures reliable operation and high sound quality, making it an excellent choice for public and commercial spaces it works perfectly in modern educational facilities, business environments, as well as shopping centers and hotels.

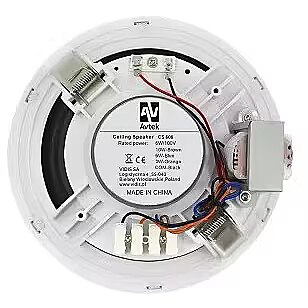

The speaker terminals have been designed with maximum installer convenience in mind. The use of tool-free connectors allows for quick and secure connection of the speaker cable, significantly reducing the time required to set up the entire audio system.
Installation in a suspended ceiling is exceptionally quick and easy thanks to the spring clamp mechanism. The speaker simply needs to be inserted into a prepared mounting cut-out with a diameter of 165 mm sturdy spring-loaded clamps will automatically lock the enclosure in place, ensuring stability and secure mounting without the need for a single screw.

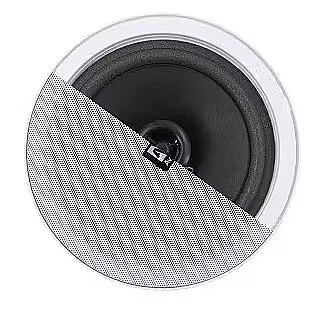

At the heart of the device is a 6.5-inch paper cone coaxial driver with an integrated tweeter. This two-way design, combining a woofer and tweeter, allows for a wide frequency response range of 70-20 kHz. This directly contributes to improved sound clarity and enhanced speech intelligibility.
Designation - CE+WEEE
dimensionalWeight - 894
dimension depth - 200 mm
dimension height - 100 mm

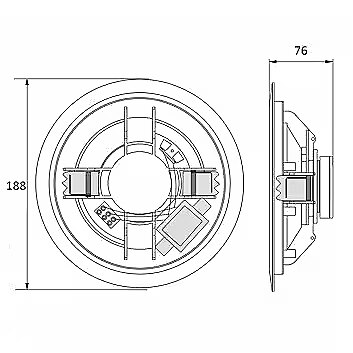

Dimensions - 188 x 76 mm
dimension weight - 990 g
dimension width - 200 mm
ean - 5907731310918
guarantee - 36
guarantee_type - external
Max speaker power (total) - 10 W
name - Ceiling speaker CS 606
Other features - Impedance: 8 100V Woofer/Full-Range Driver Diameter: 6.5 inches Tweeter Diameter: 1 inch SPL: 94 dB Speaker Type: 2-Way Material: ABS Warranty: 3 years
Pass band (max) - 20000 Hz
Pass band (min) - 70 Hz
Power - Overall length - 27 cm
Power - Weight - 1.3 kg
producer - Avtek
producerCode - 1SVS70
productName - AVTEK CEILING SPEAKER CS 606
productSize - Normal
Purpose - Music
Purpose - pa system/Sound equipment
Safety warning - Warnings - Dispose of in accordance with local regulations for electronic equipment.
Safety warning - Warnings - Do not dismantle the unit - risk of electric shock.
Safety warning - Warnings - Do not expose the device to moisture or water.
sizeX - 216
sizeY - 205
sizeZ - 101
Technical details - Product colour - Grey
Technical details - Product colour - White
Technical details - Speaker type - 2-way
Type - Ceiling/wall
vendpn - 1SVS70
warrantyLength - 36
warrantyType - F
weight - 986
