12V power connector Internal I/O - Yes
Accessories included - 1 x User Manual 1 x I/O Shield 2 x SATA data cables 1 x Screw for M.2 slot
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS -
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Cables included Packaging content - SATA
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chassis intrusion connector Internal I/O - Yes
Chipset manufacturer - Intel
Chipset type - Intel H470
COM connector / port - Yes
Compliance certificates Technical details - CE/EuP/Federal Communications Commission (FCC)
Component for Features - PC
COM ports quantity Rear panel I/O ports - 1
CPU fan connector Internal I/O - Yes
CPU socket - LGA1200
Dane techniczne: Chipset płyty głównej - Intel H510
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 198 mm
Description - H510M-HDV/M.2 SE motherboard Supports 10th and 11th generation Intel Core processors (LGA1200) 5 Power phase design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics output options: HDMI, DVI-D, D-Sub Realtek ALC897 7.1 CH HD audio codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 and SATA3) 6 USB 3.2 Gen1 ports (2 front, 4 rear) Realtek gigabit network card Supports ASRock Auto Driver Installer
Description - Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)5 Power Phase DesignSupports DDR4 3200 MHz*1 PCIe 4.0 x16, 1 PCIe 3.0 x1Graphics Output Options: HDMI, DVI-D, D-SubRealtek ALC897 7.1 CH HD Audio Codec4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)6 USB 3.2 Gen1 (2 Front, 4 Rear)Realtek Gigabit LANSupports ASRock Auto Driver Installer
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Chipset: 1 x Ultra M.2 slot (M2_1, M key), supports 2260/2280 SATA3 6.0Gb/s and PCIe Gen3x4 (32Gb/s) modes 4 SATA3 6.0 Gb/s connectors
dimensionalWeight - 803
dimension depth - 60 mm
dimension height - 240 mm
Dimensions - 23.1 x 19.8 cm
dimension weight - 736 g
dimension width - 280 mm
DVI-D ports quantity Rear panel I/O ports - 1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
ean - 4710483943126
EAN - 4710483943126
Eans - 4710483943126
ECC сompatibility Memory - Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel H470
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Graphics - 1xHDMI 11th Gen Intel processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60 Hz 10th Gen Intel processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30 Hz 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60 Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60 Hz
guarantee - 24
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 1.4/2.0
Headphone outputs Rear panel I/O ports - 1
Integrated CPU - No
Internal I/O - 12V power connector (8-pin) - Y
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 8111H 1Gb Ethernet)
LAN controller Network - Realtek 8111H
Line-in Rear panel I/O ports - Yes
LPT connector / port - No
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 64 GB
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2800 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4
Microphone in Rear panel I/O ports - Yes
Model - H510M-HDV/M.2
Model - H510M-HDV/M.2 SE
Motherboard chipset Features - Intel H470
Motherboard form factor Features - micro ATX
MPN - 90-MXBM00-A0UAYZ
Name - 1200 ASROCK H510M-HDV/M.2 SE mATX D4

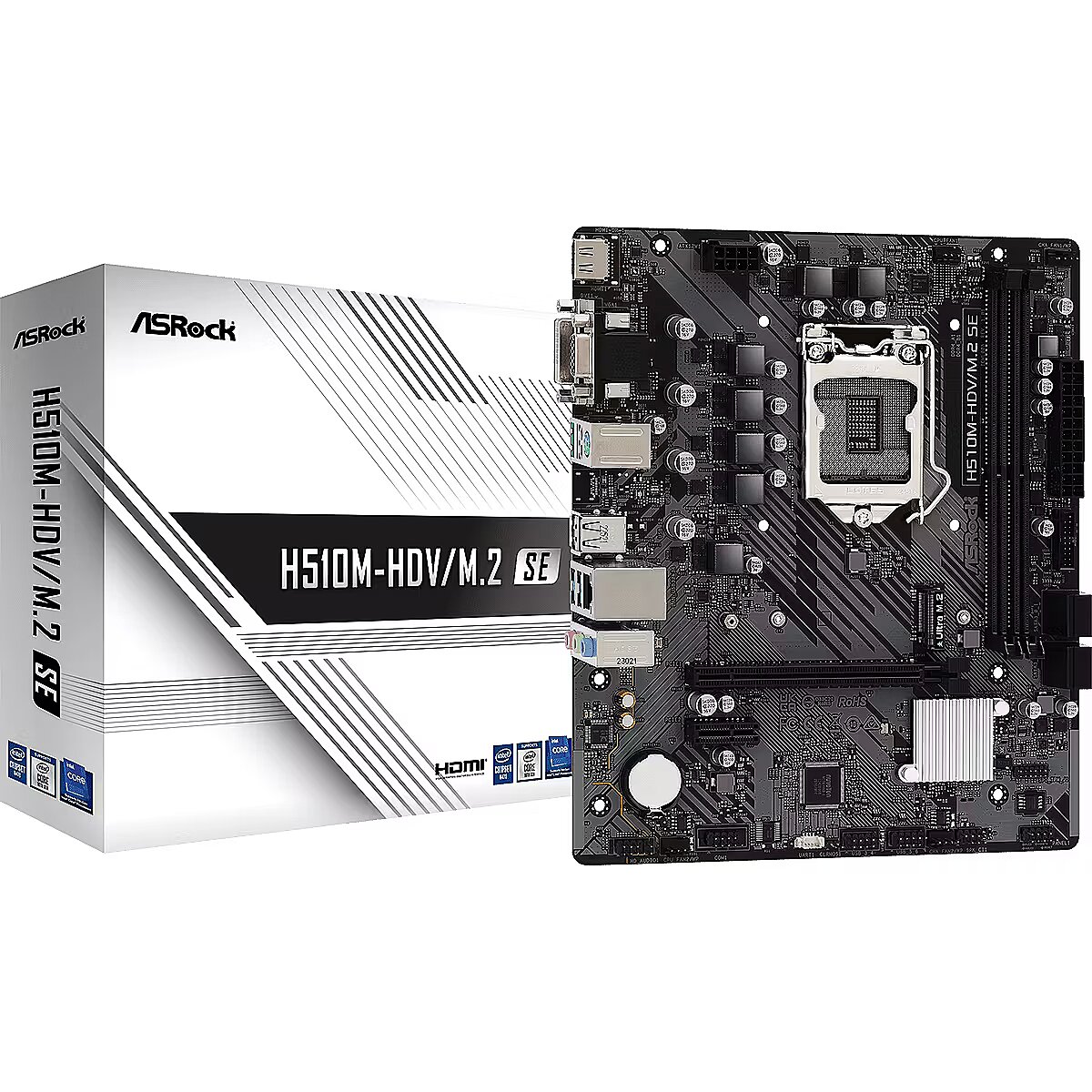

Name - ASRock H510M-HDV/M.2 SE
name - H510M-HDV/M.2 SE s1200 2DDR4 HDMI/DVI mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Number of chassis fan connectors Internal I/O - 2
Number of DDR4 slots - 2
Number of displays supported Graphics - 3
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 64 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2933 (PC4-23400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
PCI Express x1 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1200
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G59XX
Procesor: Obsługiwane typy procesorów - Intel Core i3-10XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-11XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-10XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-11XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-10XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-11XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-10XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-11XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G6XXX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200
Processor family - Intel Core
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1200 (Socket H5)
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
producer - ASRock
Producer - ASRock
producerCode - H510M-HDV/M.2 SE
ProducerCode - H510M-HDV/M.2 SE
productName - Asrock H510M-HDV/M.2 SE motherboard
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
RAID - No
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortDescription - Socket 1200 | Chipset Intel H510 | DDR4 |
sizeX - 285
sizeY - 235
sizeZ - 60
Software -
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock H510M-HDV/M.2 SE. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5). Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. HDMI version: 1.4/2.0, USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H
Supported memory clock speed (max) Memory - 3200 MHz
Supported memory clock speeds Memory - 2133/2400/2666/2800/2933/3200 MHz
Supported memory types Memory - DDR4-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported storage drive interfaces Storage controllers - PCI Express 3.0,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Sustainability certificates Technical details - ErP
Sustainability compliance Technical details - Yes
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.24
Unit Box Length - 0.28
Unit Box Width - 0.06
Unit Calculated Volume - 0.004032 cubm
Unit Calculated Weight - 1 kg
Units per Shipping Box - 1
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB connector type Rear panel I/O ports - USB Type-A
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - https://www.asrock.com/MB/Intel/H510M-HDVM.2%20SE/index.asp
vendpn - H510M-HDV/M.2 SE
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 0.736
weight - 750
Weight & dimensions - Depth - 198 mm
Weight & dimensions - Width - 231 mm
Wi-Fi Network - No
Width Weight & dimensions - 231 mm
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 198 mm
Wymiary: Wysokość - 231 mm
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x DVI-D
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
