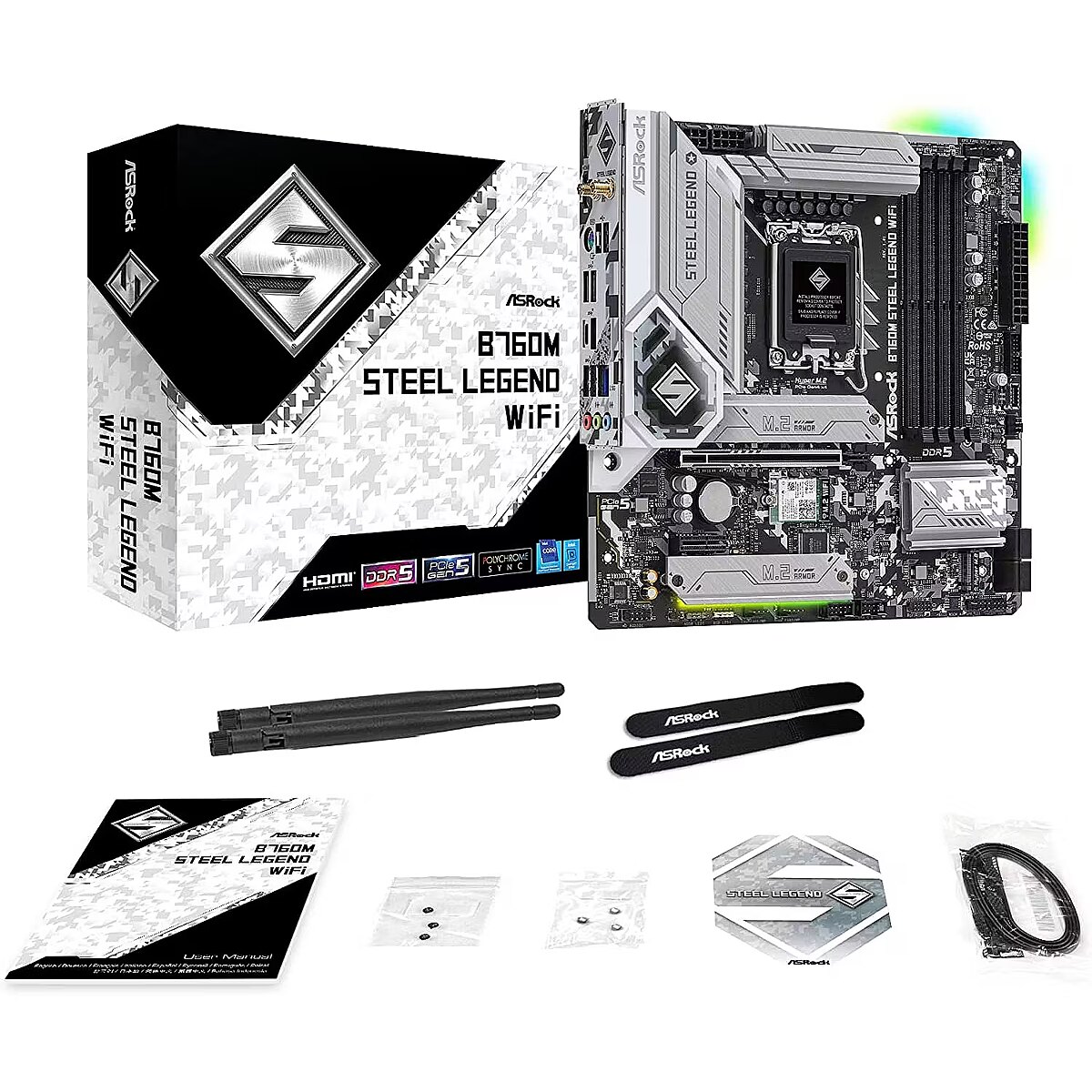

Accessories included - User manual 2 x SATA data cable 2 x ASRock Wi-Fi 2.4/5/6GHz Antenna 3 x Screws for M.2 slot 3 x Brackets for M.2 slot
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
category - Mainboards Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
CnCode CnCode - 84733020
code - 90-MXBL70-A0UAYZ
Code - B760M STEEL LEGEND WIFI
COM connector / port - No
CPU socket - LGA1700
Description - B760M Steel Legend WiFi - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - 12+1+1 Power Phase, Dr.MOS for VCore+GT - Supports DDR5 7200MHz (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x1 - Graphics Output Options: HDMI, DisplayPort, eDP - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), - 1 USB 3.2 Gen2 Type-A (Rear), - 6 USB 3.2 Gen1 (4 Rear, 2 Front), - 6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3 - Supports ASRock Auto Driver Installer
Description - B760M STEEL LEGEND WIFI Supports 13th and 12th generation Intel Core processors (LGA1700) 12+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x1 Graphics outputs: HDMI, DisplayPort, eDP Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4) 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3 Supports ASRock Auto Driver Installer
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports 2260/2280 PCIe Gen4x4 (64Gbps) chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gbps) 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gbps) 4 x SATA3 6.0Gb/s connector
dimensionalWeight - 916
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1030 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483941795
ean - 4710483941795
Eans - 4710483941795
EAN_code - 4710483941795
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x4 (Gen 1.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 7200 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe graphics architecture (12th generation) eDP 1.4, supports max. resolution up to Full HD 60 Hz HDMI 2.1 compatible with TMDS, supports HDCP 2.3 and up to 4K 60 Hz max. resolution DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Integrated Intel UHD graphics and VGA outputs can only be supported by processors with integrated GPU.
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA3, 3 Hyper M.2
Link - https://www.asrock.com/MB/Intel/B760M%20Steel%20Legend%20WiFi/index.asp#Specification
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - Asrock
Manufacturer_code - 90-MXBL70-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B760M STEEL LEGEND WIFI

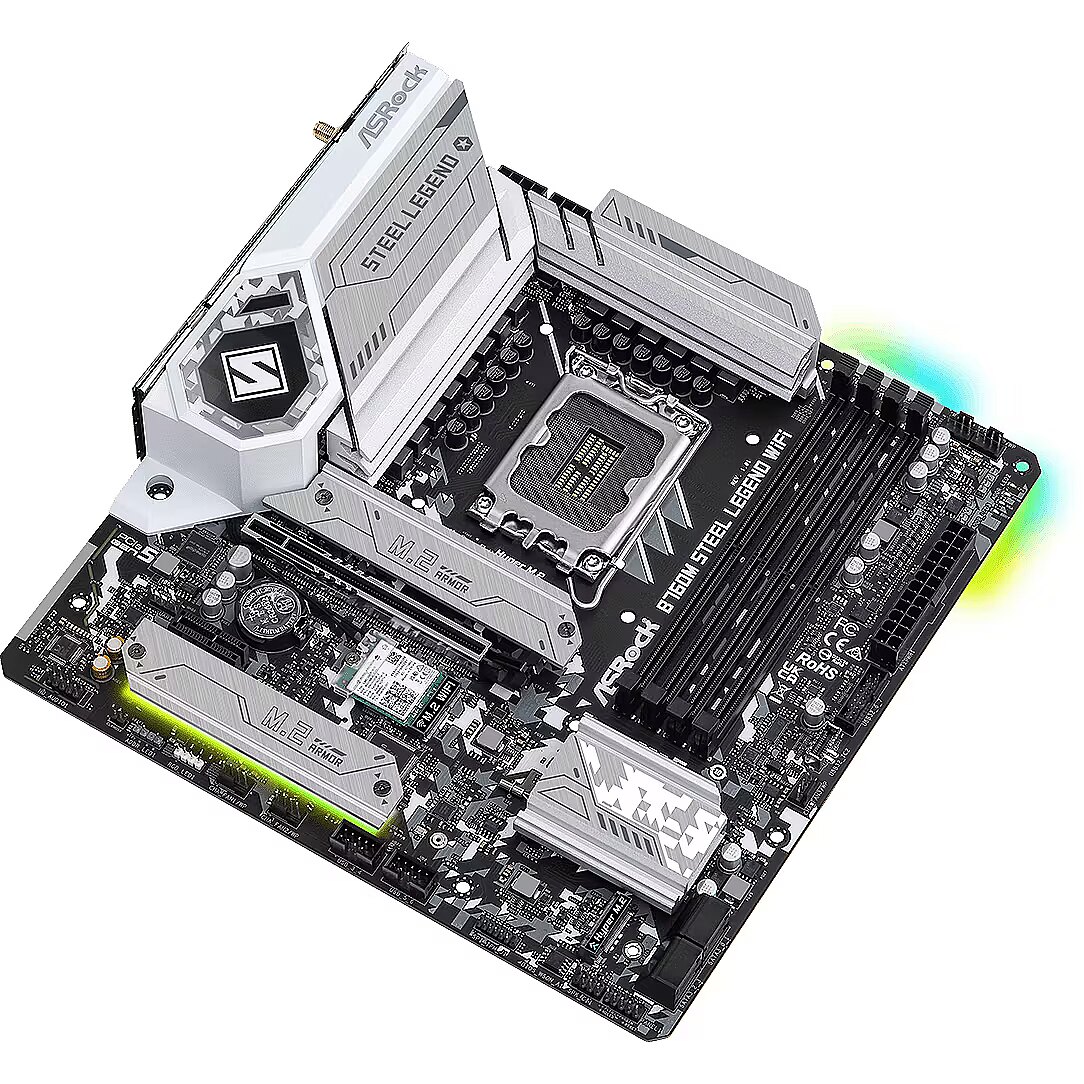

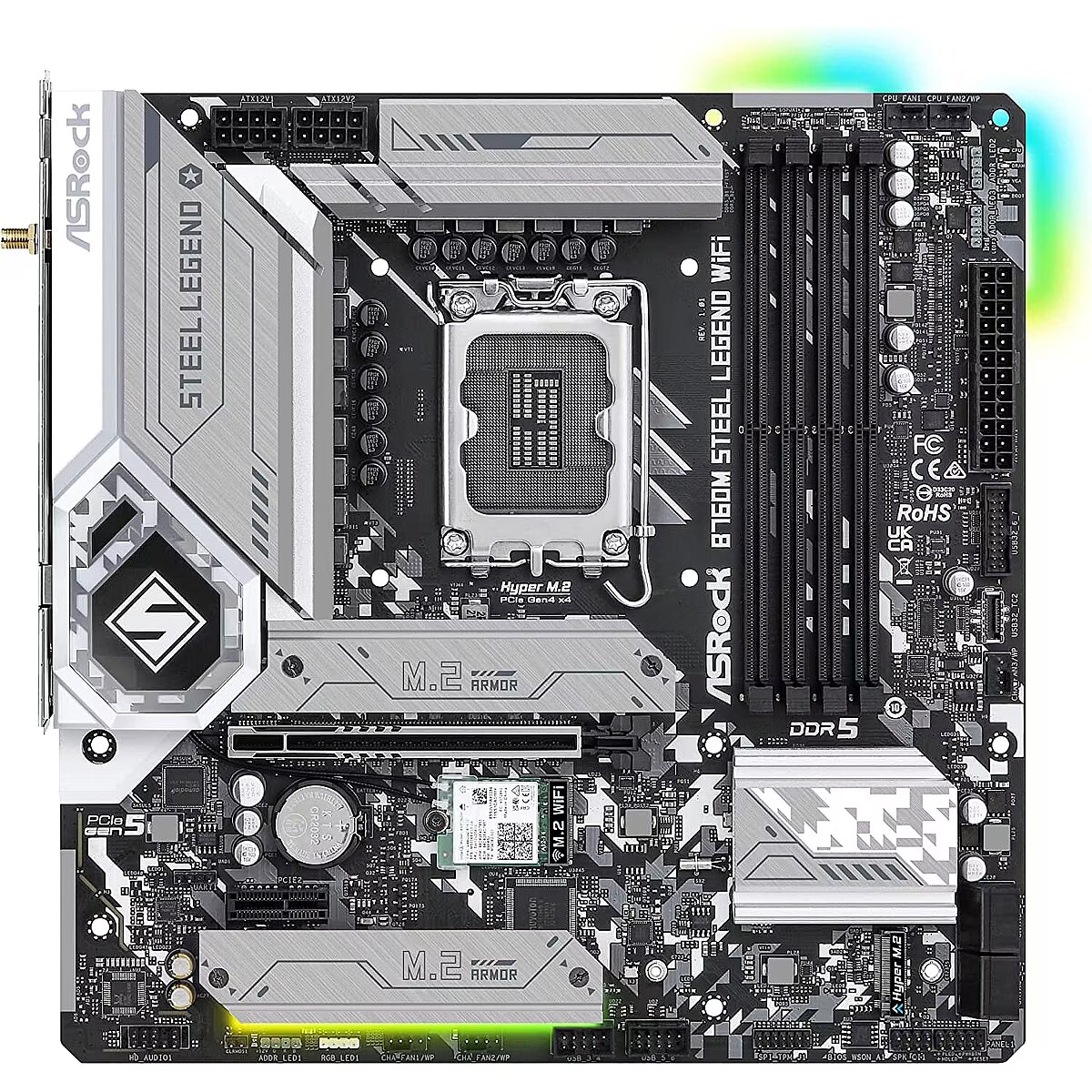

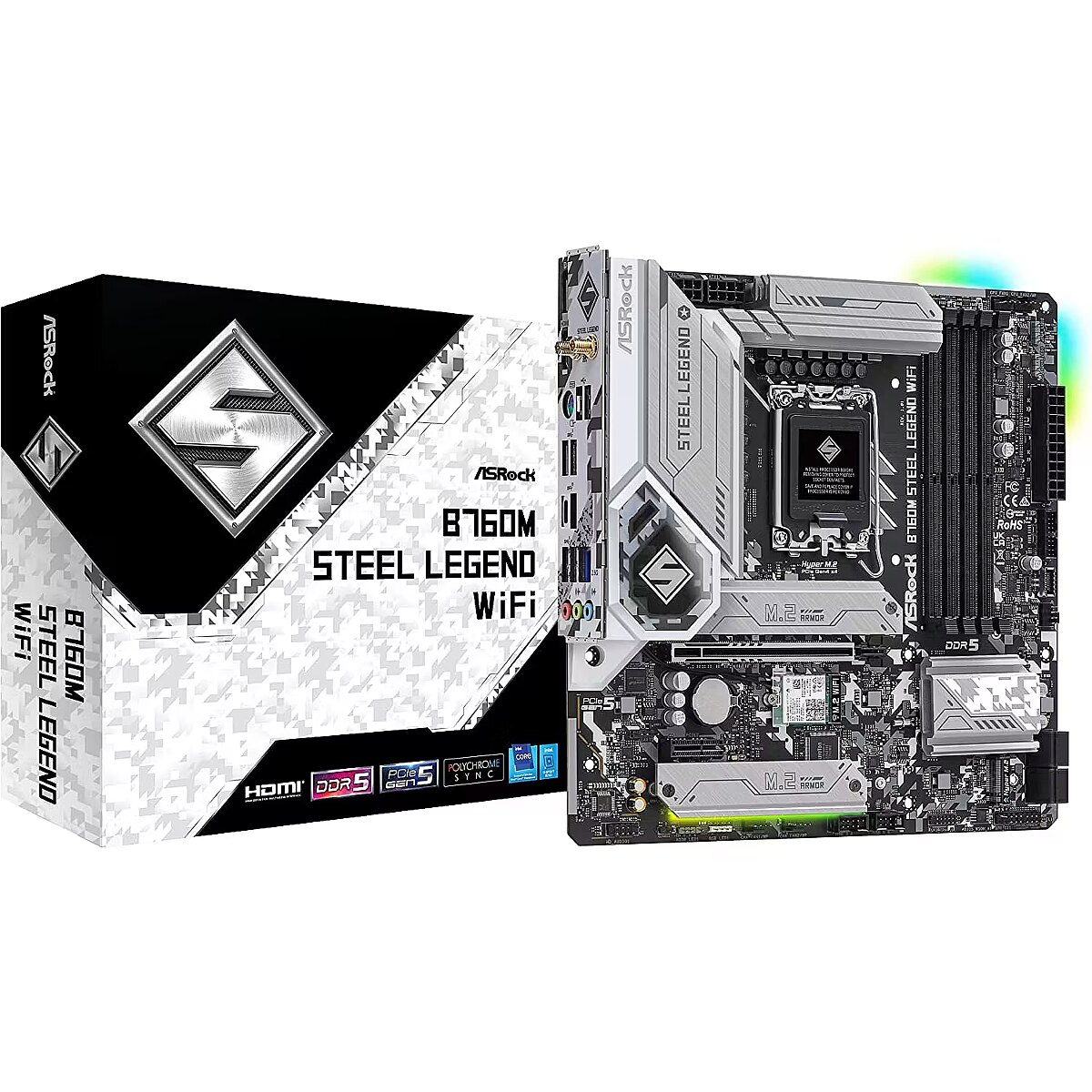

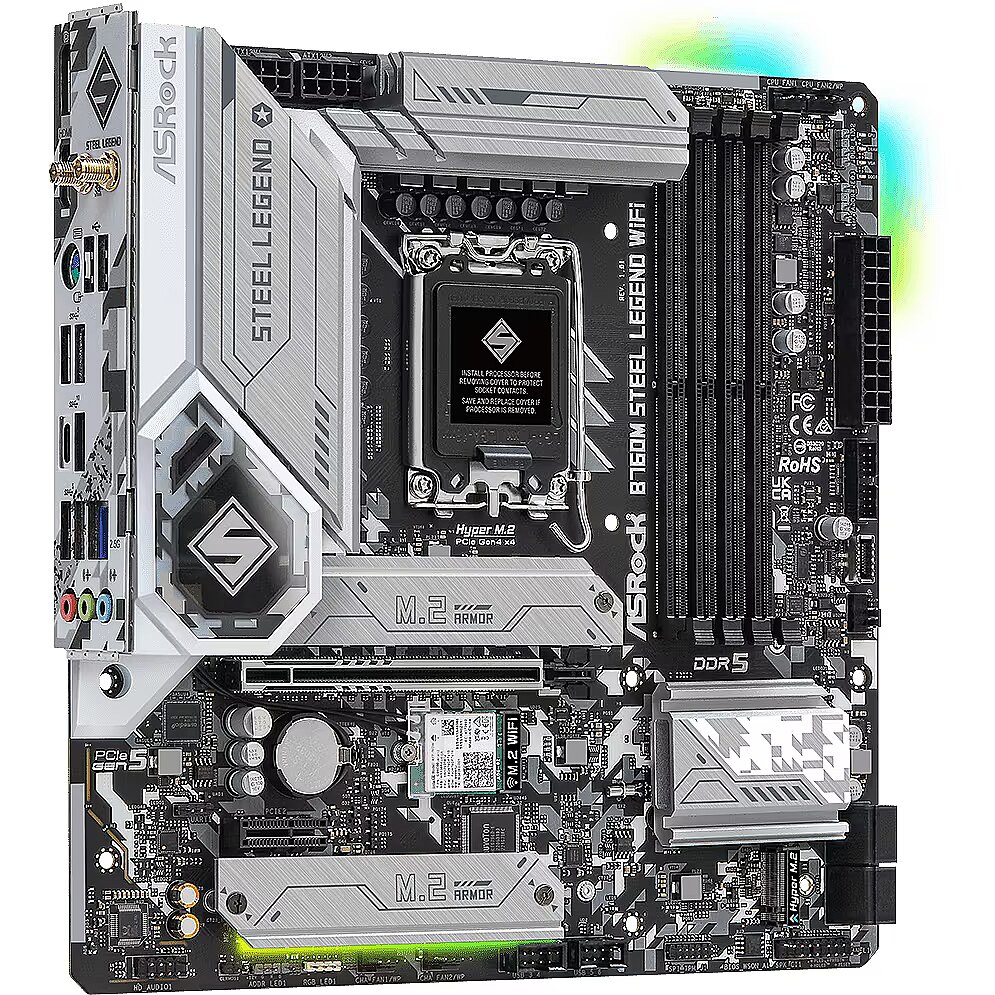

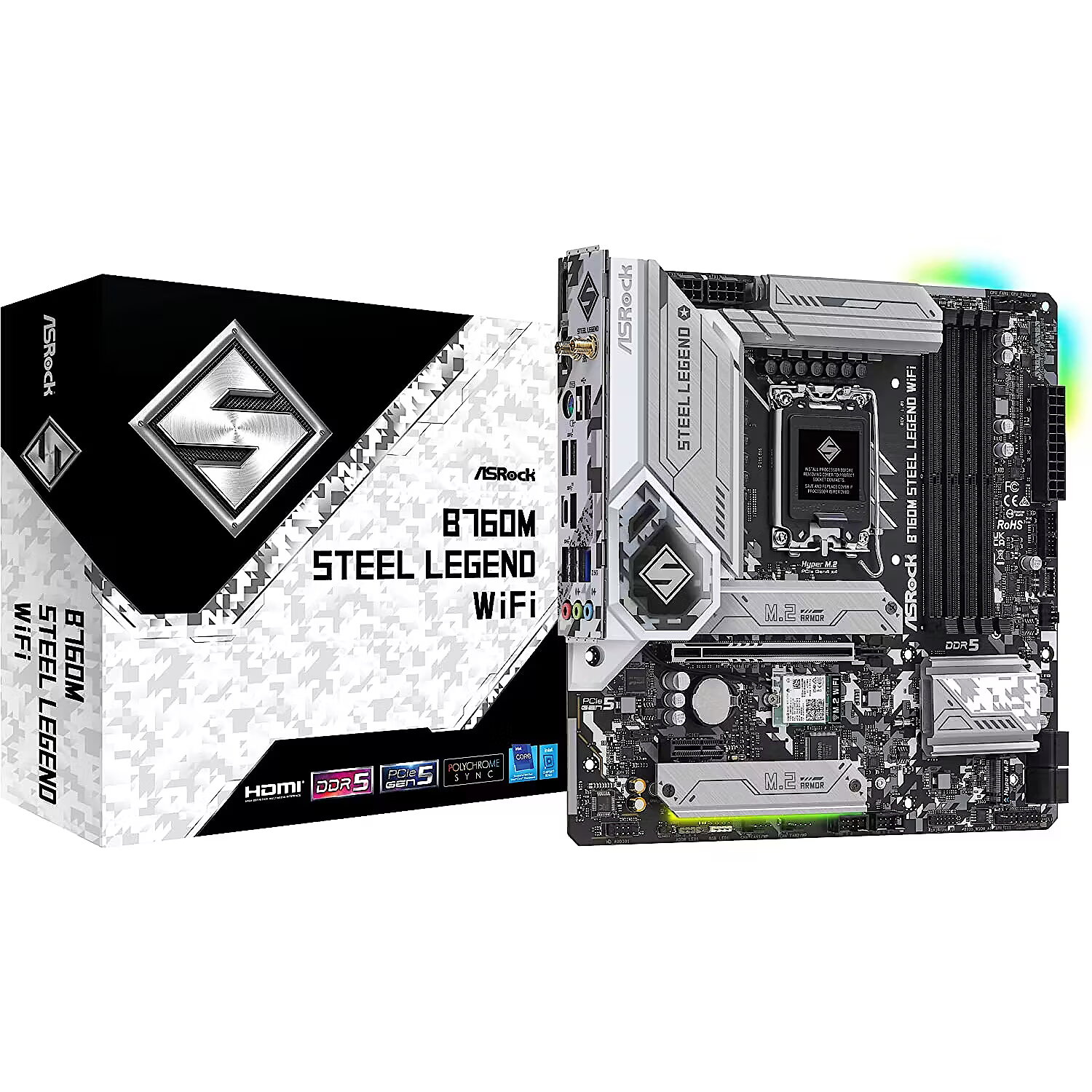

Name - ASRock B760M Steel Legend WiFi
name - ASRock B760M Steel Legend WiFi, Intel B760 Mainboard - Sockel 1700, DDR5
Name - ASRock B760M Steel Legend WiFi - 1700
Name - ASRock | B760M Steel Legend WiFi | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA3, 3 Hyper M.2 | Number of SATA connectors 4 | Chipset B760 | Micro ATX
name - Motherboard B760M STEEL LEGEND WIFI s1700 4DDR5 DP/HDMI mATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN: 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with extended 6GHz band support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x eDP
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - B760
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Supports 13th Gen and 12th Gen and Next Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - ASRock
Producer - ASRock
producerCode - B760M STEEL LEGEND WIFI
ProducerCode - B760M Steel Legend WiFi
Producer product name - B760M Steel Legend WiFi
productName - Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57.3 cm
Shipping Box Height Shipping/Package Box Dimensions - 28.7 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 15.08 kg
Shipping Box Width Shipping/Package Box Dimensions - 32 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
sizeX - 282
sizeY - 62
sizeZ - 262
Socket - LGA1700
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Superb Productivity: PCIe Gen5 (Graphics) Dual Channel DDR5 Rock-Solid Durability: 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT Flexible Integrated I/O Shield Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore Ultrafast Connectivity: 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update: ASRock Auto Driver Installer EZ Troubleshooter: ASRock Post Status Checker
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.287
Unit Box Length - 0.573
Unit Box Width - 0.032
Unit Brutto Volume - 0.005262 cubm
Unit Gross Weight - 1.51 kg
Unit Net Weight - 1 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.asrock.com/mb/Intel/B760M%20Steel%20Legend%20WiFi/index.asp
vendpn - B760M STEEL LEGEND WIFI
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,36
weight - 1375
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
