15pin D-sub Input/Output connectors - 1
Accessories included -
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
BIOS -
BIOS - BIOS type - UEFI AMI
Brand - MSI
BrandPartCode - PRO H610M-G DDR4
category - Mainboards Intel Mainboards
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel H610
Chipset manufacturer - Intel
Chipset type - Intel H610 Chipset
code - 7D46-009R
Code - PRO H610M-G DDR4
COM connector / port - No
CPU socket - LGA1700
Description - PRO H610M-G DDR4 motherboard Supports Intel 12th generation Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR4 memory, up to 3200 (MAX.) MHz Core Boost: premium chip that supports more cores for better performance Memory boost: advanced technology to deliver clean data signals for best performance, stability and compatibility Lightning-fast performance: PCIe 4.0 Audio Boost: reward your ears with studio quality audio Steel Armor: protects VGA cards from bending and electromagnetic interference for better performance, stability and durability.
Description - PRO H610M-G DDR4 Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR4 Memory, up to 3200(MAX) MHz Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Experience: PCIe 4.0 Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Detailed data on disk/drive interfaces - 1x M.2 socket (M key, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/2260/2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
dimensionalWeight - 811
dimension depth - 55 mm
dimension height - 260 mm
Dimensions - 24.4 x 21.1 cm
dimension weight - 742 g
dimension width - 260 mm
DisplayPort Input/Output connectors - 1
EAN - 4719072925024
ean - 4719072925024
EAN_code - 4719072925024
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2800/2933/3000/3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|SATA|Video|LAN Gigabit|Audio|TPM Header
Graphics - 1x HDMI 2.1 with HDR port, supports maximum resolution of 4K 60Hz 1x VGA port, supports maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 supports maximum resolution of 4K 60Hz
Graphics - DirectX version - 12.0
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.75 kg
Gross Weight Kg - 1
GTIN - 0824142278789
GTIN - 824142278789
GTIN - 4719072925024
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-H610M-G-DDR4
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.FROZR AI COOLINGDetecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
LongProductName - Micro-ATX, LGA1700, Intel H610, DDR4, SSD, Windows 10/11
LongSummaryDescription - MSI PRO H610M-G DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - MSI
Manufacturer Code - PRO H610M-G DDR4
Manufacturer Name - MSI
Manufacturer_code - 7D46-009R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2666,2933,3200 MHz
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - PRO H610M-G DDR4
MPN - 7D46-009R
Name - 1700 MSI PRO H610M-G DDR4
Name - MSI PRO H610M-G DDR4 H610 - Socket 1700
name - MSI PRO H610M-G DDR4, Intel H610 Mainboard - Sockel 1700
Name - MSI | PRO H610M-G DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel H610 | M-ATX
name - PRO H610M-G s1700 DDR4 DP/HDMI M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface -
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Other features - Weight - 764 g
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 60.00 mm
Package features > Gross height (mm) - 260.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 213 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PDF - https://www.blobs.lt/products/9/7/3/1/0/4/118e5912082626e542d4a0469f7c5a23/original.pdf
Performance > Chipset - Intel H610
Performance > Motherboard form factor - M-ATX
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - MSI
producerCode - 7D46-009R
Producer product name - PRO H610M-G DDR4
productName - MSI PRO H610M-G DDR4 motherboard Intel H610 LGA 1700 micro ATX
ProductName - PRO H610M-G DDR4
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - No

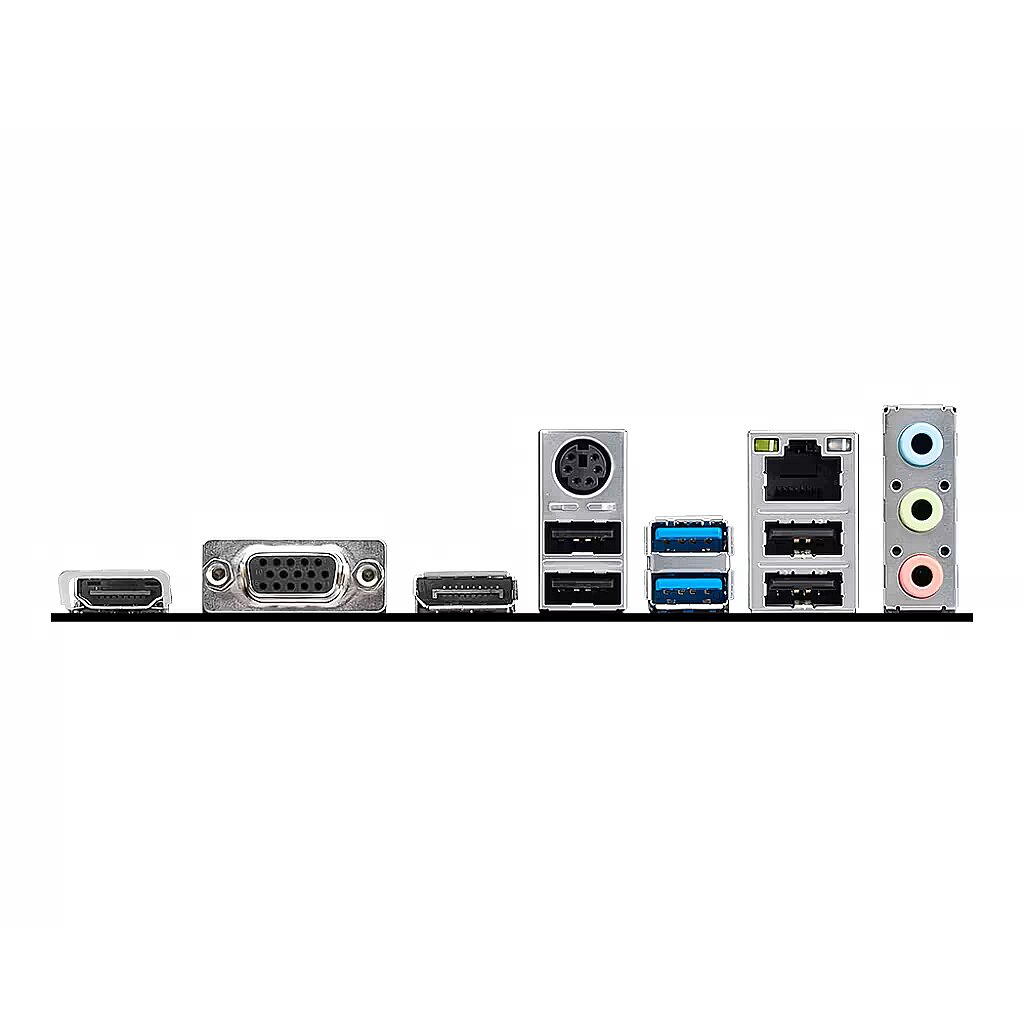

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 26.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.764 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
Short description - MSI PRO H610M-G DDR4 S1700/DP-HDMI-VGA/M.2/LAN/µATX
ShortSummaryDescription - MSI PRO H610M-G DDR4, Intel, LGA 1700, Intel® Core™ i9, LGA 1700, DDR4-SDRAM, 64 GB
sizeX - 260
sizeY - 260
sizeZ - 60
Socket - LGA1700
Software -
Sound card - Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.55 kg
Technical details > Producer - MSI
Title - MSI PRO H610M-G DDR4 motherboard Intel H610 LGA 1700 micro ATX
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.265
Unit Box Width - 0.26
Unit Brutto Volume - 0.003789 cubm
Unit Gross Weight - 0.764 kg
Unit Net Weight - 0.47 kg
URL - https://www.msi.com/Motherboard/PRO-H610M-G-DDR4/Overview
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 2
USB ports at back panel - 6
USB ports on motherboard - 8
Vendor Homepage - www.msi.com/Motherboard/PRO-H610M-G-DDR4
vendpn - PRO H610M-G DDR4
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,77
Weight - 0.76
weight - 800
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Width - 211 mm
