1st M.2 highest PCI Express generation Expansion slots - 4.0
1st M.2 largest key size Expansion slots - 22110
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 2280
3rd M.2 highest PCI Express generation Expansion slots - 4.0
3rd M.2 largest key size Expansion slots - 2280
ACPI version BIOS - 5.0
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Brand - GIGABYTE
BrandPartCode - Z790 EAGLE
Bundled software Packaging content - Norton® Internet Security (OEM version)
LAN bandwidth management software
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1851
Clear CMOS jumper BIOS - Yes
Code - Z790 EAGLE
Compatible processor series Processor - Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
Component for Features - PC
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 244 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSupports Intel Core 14th/ 13th /12th processorsUnparalleled Performance：Twin 12*+1+１ Phases Digital VRM SolutionDual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module SupportNext Generation Storage：3*PCIe 4.0 x4 M.2 ConnectorsAdvanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD PerformanceEZ-Latch：PCIe 5.0x16 Slot with Quick Release DesignFast Networks：2.5GbE LANExtended Connectivity：DP, HDMI, Rear USB-C 10Gb/sSmart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Desktop Management Interface (DMI) version BIOS - 2.7
DirectX version Graphics - 12.0
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.2
EAN - 4719331860981
EAN_code - 4719331860981
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 22110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331860981
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
LAN controller Network - Realtek RTL8125
Line-in Rear panel I/O ports - Yes
Link - https://www.gigabyte.com/Motherboard/Z790-EAGLE-rev-10#kf
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - Z790 EAGLE Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2,5GbE LAN, USB 3.2 Gen 2
LongSummaryDescription - GIGABYTE Z790 EAGLE Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2,5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - Z790 EAGLE
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Model - Z790 EAGLE (rev. 1.0)
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel Z790
Motherboard form factor Features - ATX
MPN - Z790 EAGLE
Name - GA-Z790 EAGLE (1700) (D)
Name - GigaByte Z790 EAGLE black/grey - Socket 1700
Name - Gigabyte Z790 EAGLE | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Wi-Fi - No
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 4
Number of CPU fan connectors Internal I/O - 2
Number of EPS power connectors (8-pin) Internal I/O - 2
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 3
Number of memory slots Memory - 4
Number of RGB LED pin headers Internal I/O - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 7
Number of water pump connectors Internal I/O - 2
Package depth Packaging data - 270 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Package height Packaging data - 80 mm
Package weight Packaging data - 1792.5 g
Package width Packaging data - 335 mm
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.79 kg
Packaging data - Package width - 335 mm
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Product colour Features - Black
ProductName - Z790 EAGLE Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2,5GbE LAN, USB 3.2 Gen 2
Products per shipping (inner) case Logistics data - 1 pc(s)
PS/2 ports quantity Rear panel I/O ports - 1
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes

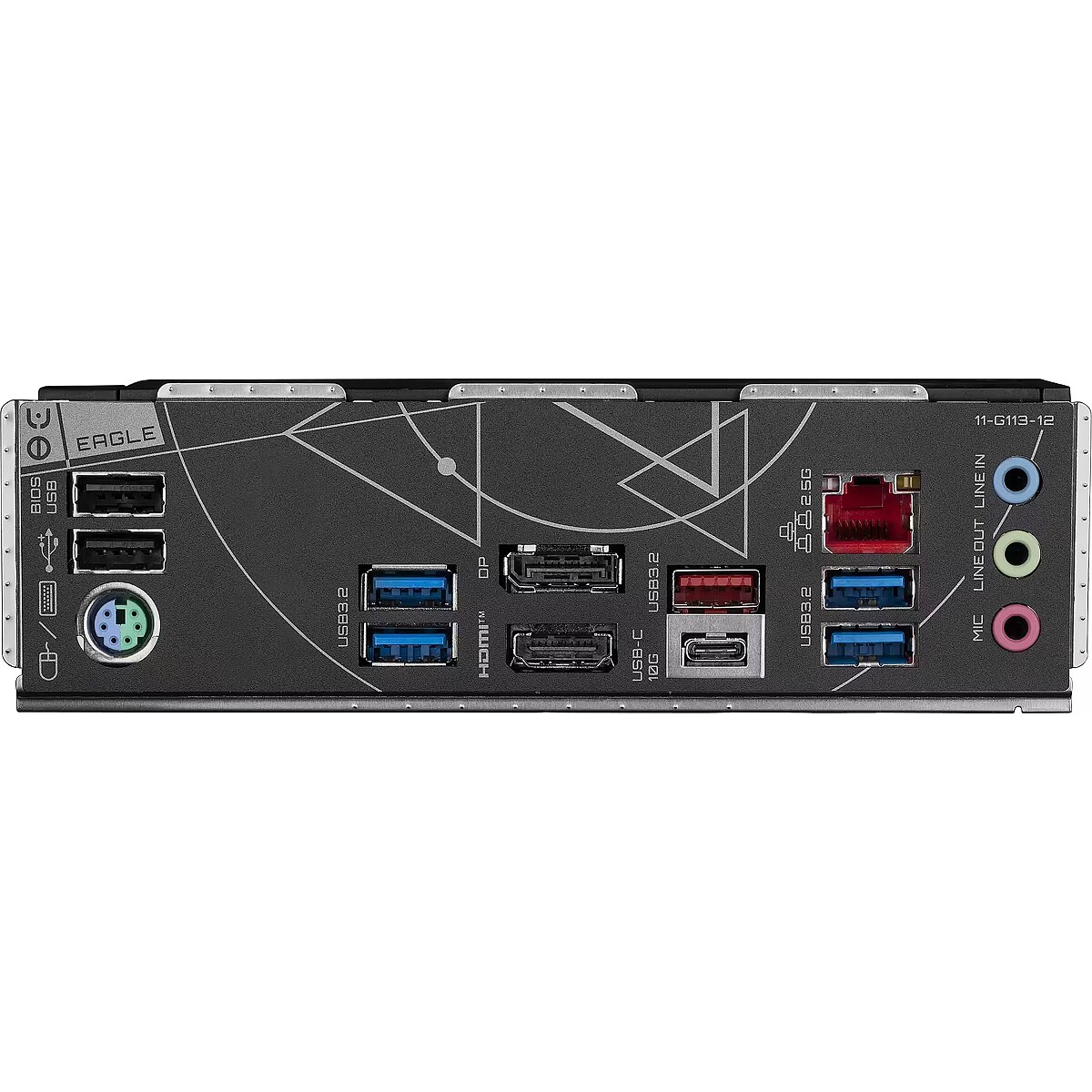

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RGB LED pin header Internal I/O - Yes
S/PDIF out connector Internal I/O - Yes
Screws included Packaging content - Yes
ShortSummaryDescription - GIGABYTE Z790 EAGLE Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2,5GbE LAN, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 256 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE Z790 EAGLE Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2,5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Supported memory clock speed (max) Memory - 7600 MHz
Supported memory clock speeds Memory - 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.23 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - Z790 EAGLE
Thunderbolt headers Internal I/O - 2
Title - GIGABYTE Z790 EAGLE Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2,5GbE LAN, USB 3.2 Gen 2
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.342
Unit Box Length - 0.271
Unit Box Width - 0.081
Unit Calculated Volume - 0.01038 cubm
Unit Calculated Weight - 1.82 kg
Units per Shipping Box - 8
URL - https://www.gigabyte.com
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.gigabyte.com
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Technical details - 3 year(s)
Weight - 1,61
Weight - 1.62
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
